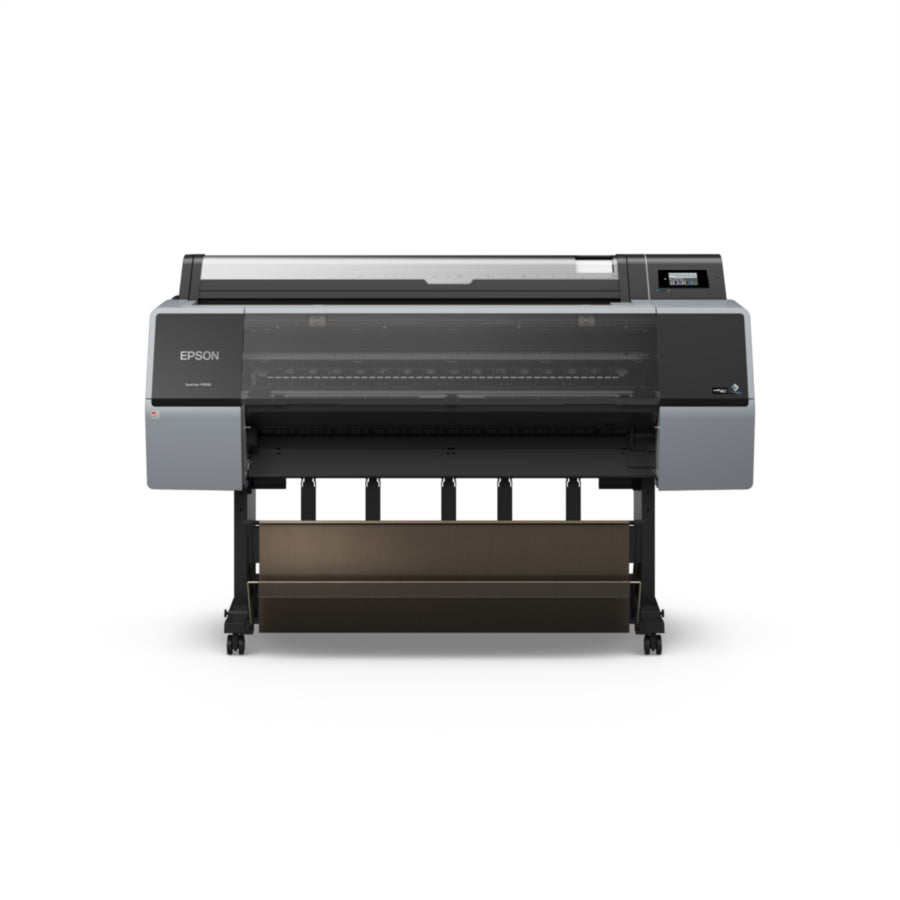

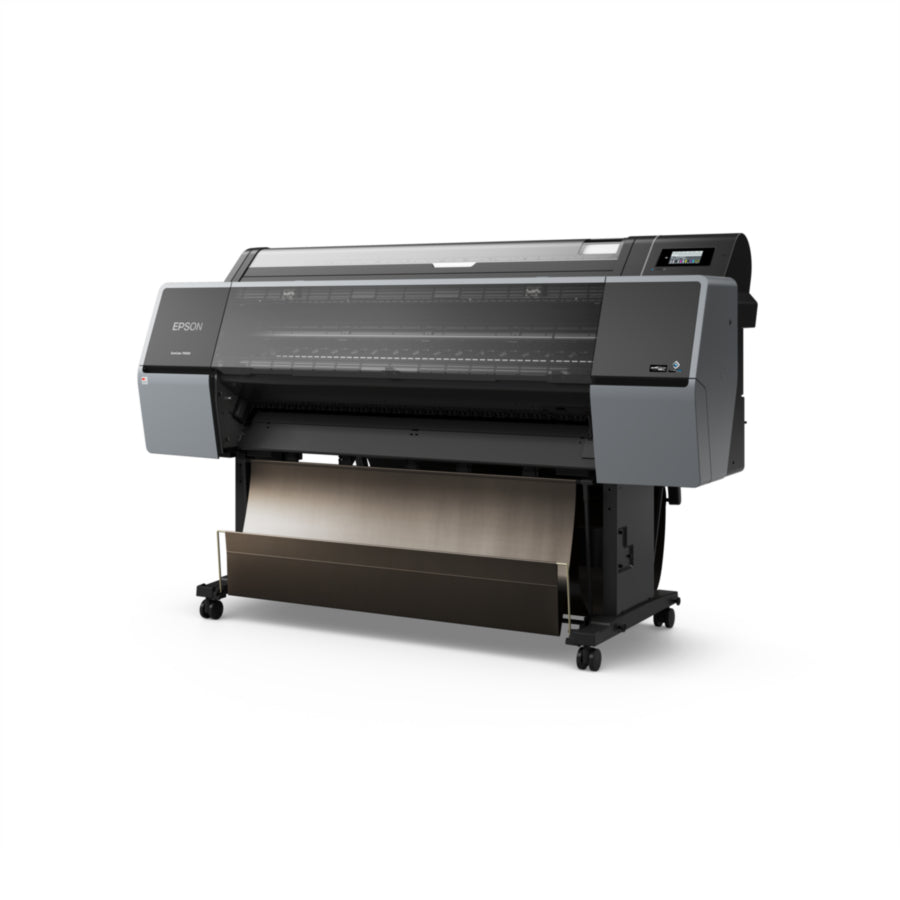

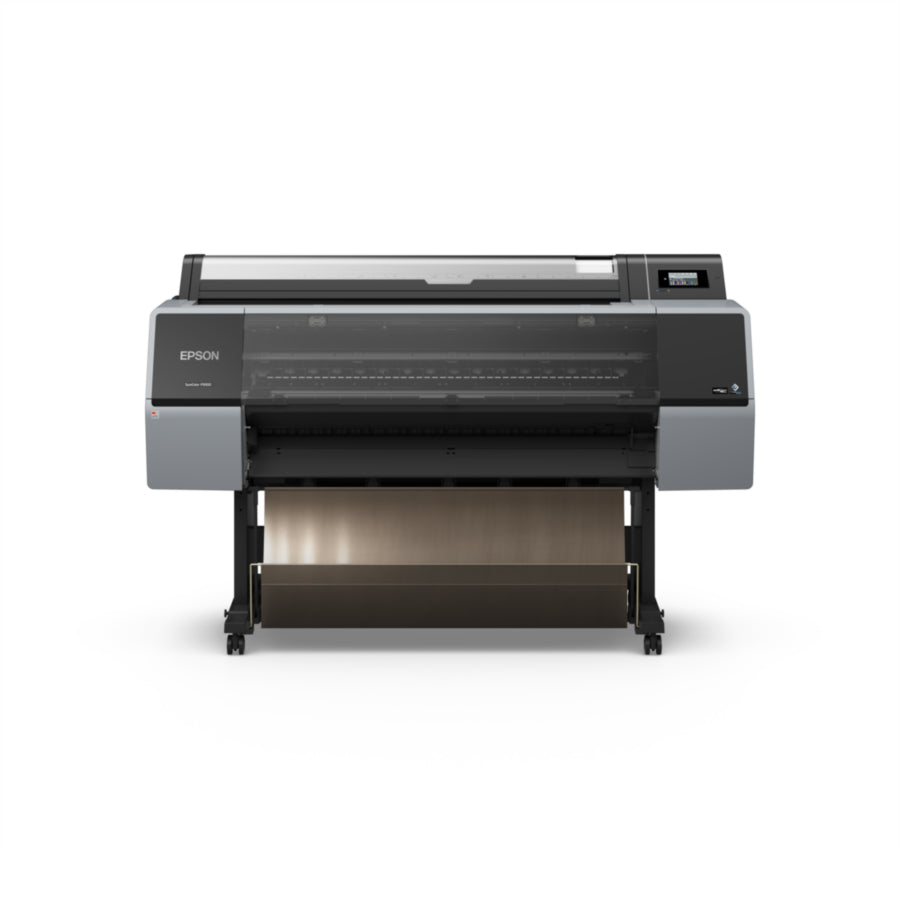

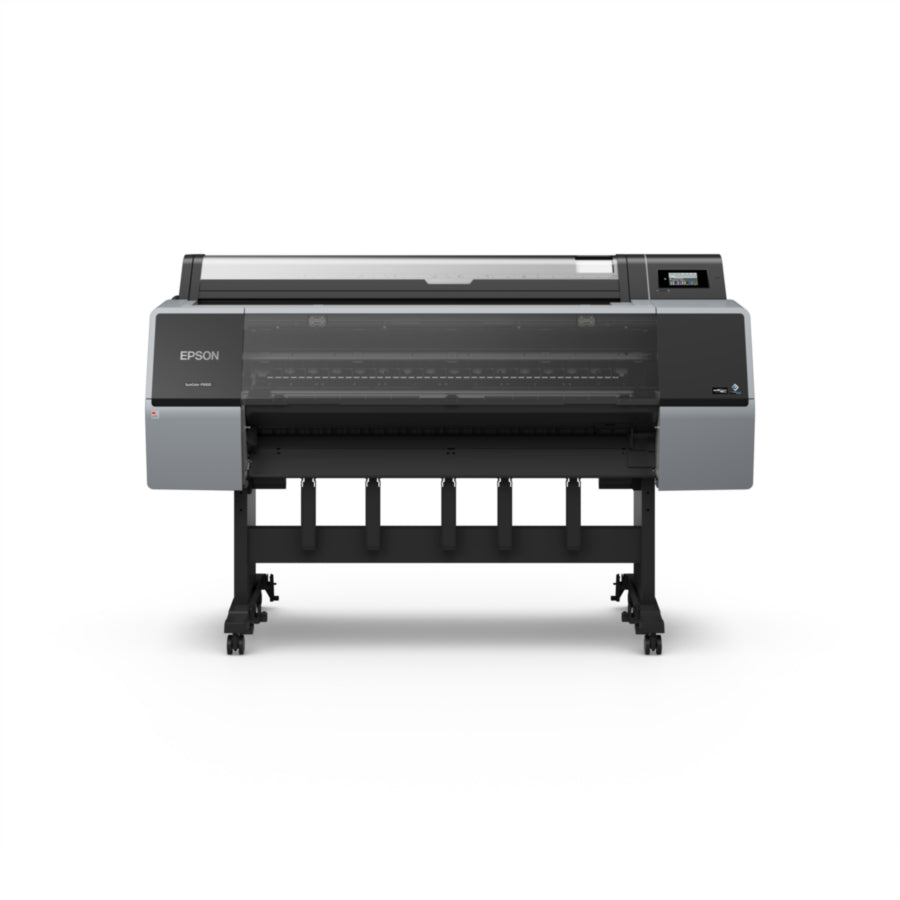

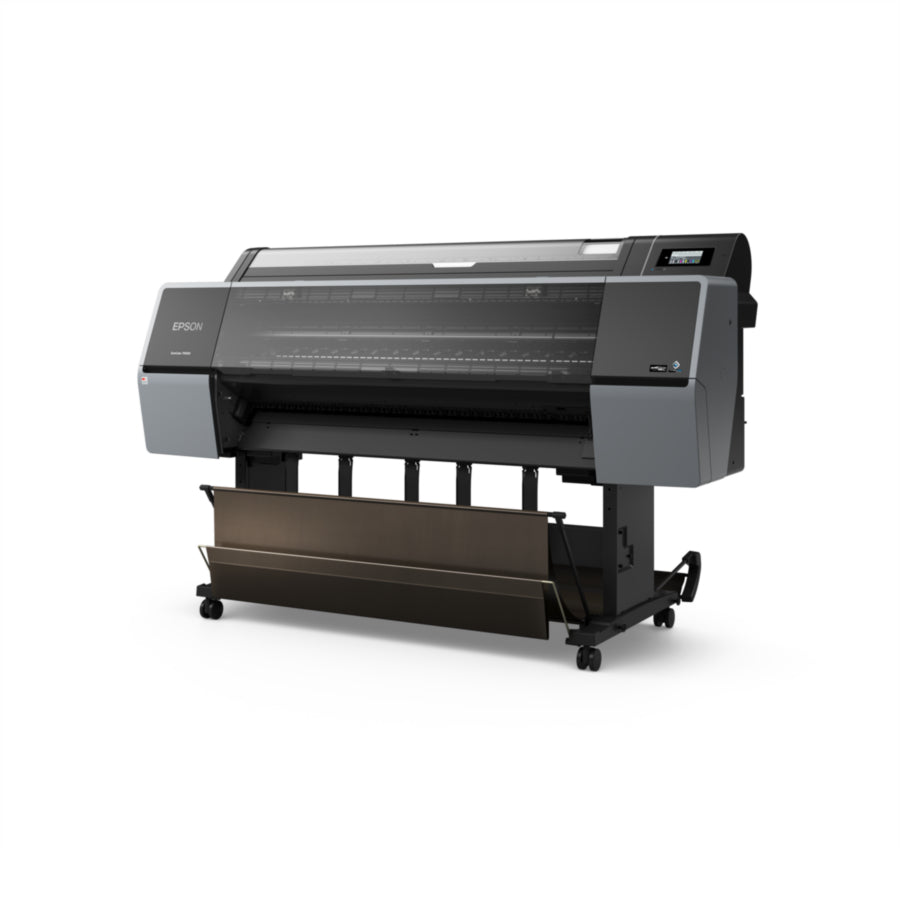

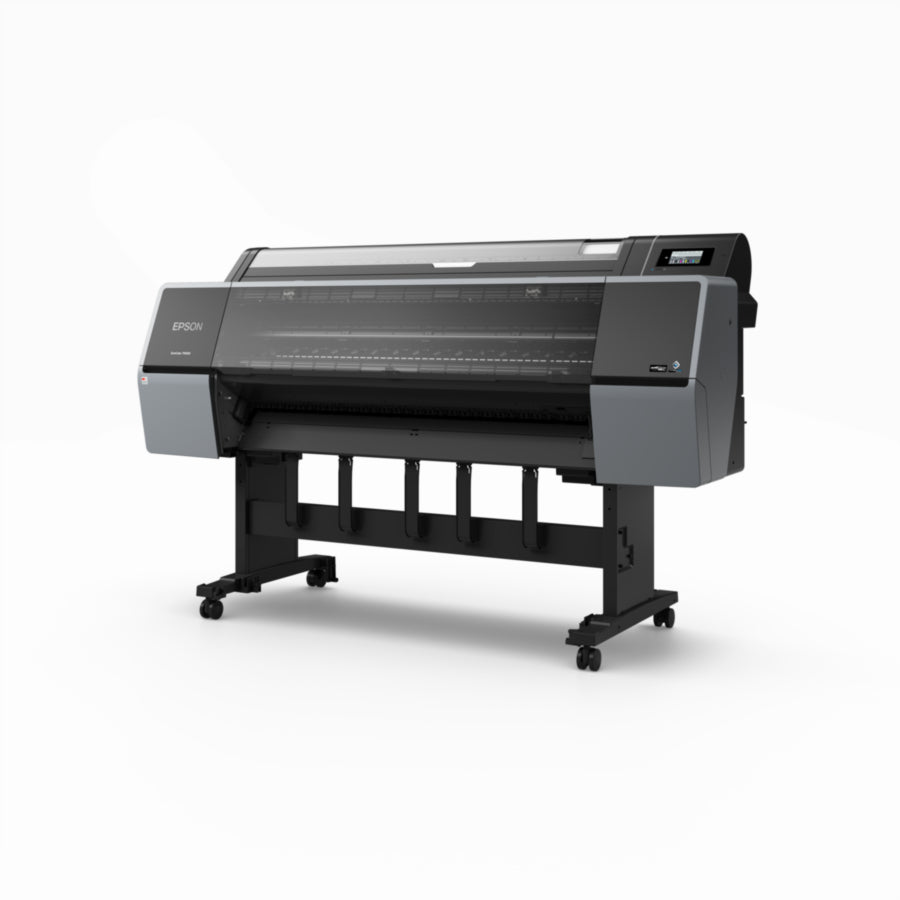

Epson SureColor SC-P9330 Photo Graphic Production Printer
PRODUCT DESCRIPTION
Epson SureColor SC-P9330 Photo Graphic Production Printer (C11CL83402) - 1 Year Local Warranty
The Epson SureColor SC-P9330 Photo Graphic Production Printer - High Quality Prints at Affordable Costs.
High Quality Prints at Affordable Costs
By cascading the platform of the high-end models, you can enjoy high quality prints at a pocket friendly price.
Designed for Convenience and Comfort
With the enhanced Dustproof Structure and ease of user self cleaning, production efficiency can be guaranteed.
Remarkable Productivity
Adopting the PrecisionCore MicroTFP printhead which is 2.64 times bigger than its predecessor, faster throughput and better colour formation can be expected.
Wide Colour Gamut
Equipped with Epson's UltraChrome PRO 10 inks, the SC-P9330 delivers a wide range of colours, resulting in the prints displayed brightly even when viewed from a distance.
More Accurate Colour
With the addition of Violet Ink, reproduction of blue is now even more accurate and closer to true blue.
Black Enhanced Overcoat
Black Enhanced Overcoat (BEO) print mode provides higher levels of black density and increased contrast with smooth gradations.
Ideal For
Photo labs, print service providers, photographers and fine-art studios in Singapore producing large-format photo and graphic output. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureColor SC-P9330 Datasheet — Technical Specifications
General
| Model | SureColor SC-P9330 |
| Official Product Name | Epson SureColor SC-P9330 Photo Graphic Production Printer |
| Epson Product Code | C11CL83402 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 1 year |
Printing
| Printing Technology | Precision Core inkjet technology |
| Technology | VSDT (Variable-Sized Droplet Technology) |
| Print Head | Precision Core MicroTFP printhead |
| Nozzle Configuration | 8000 nozzles (800 nozzles x 10 Colors) Black: 3200 (PK:800, MK:800, GY:800, LGY:800) Color: 4800 (Y:800, VM:800, C:800, VLM:800, LC:800, V:800) |
| Line Accuracy | ±0.1% or ±0.26 mm (whichever greater) |
| Margin (Roll Paper) | With border: Top, bottom, right, left 3mm Borderless: Top, bottom, right, left 0mm |
| Margin (Cut Sheet) | With border: Top 3mm, bottom 14mm, right, left 3mm Borderless: Top 3mm, bottom 14mm, right, left 0mm |
| Maximum Resolution | 2400 x 1200 dpi |
| Minimum Ink Droplet Volume | 3.5pl |
| Print Speed | LEVEL 1 (600dpi x 600dpi): approx 3.6min LEVEL 2 / Default (600dpi x 600dpi): approx 4.8min LEVEL 4 (1200dpi x 1200dpi): approx 9.3min (Printed on B0 size Premium Glossy Photo Paper 170gsm) |
Ink
| Ink Type | Pigment ink |
| Ink Brand Name | ULTRACHROME PRO 10 INK |
| Colours | Cyan, Vivid Magenta, Yellow, Light Cyan, Vivid Light Magenta, Violet, Photo Black, Matte Black, Gray, Light Gray |
| Ink Capacity | 150ml, 350ml, 700ml |
| Ink Case | Ink Cartridge |
Dimensions and Weight
| Weight | 151 kg |
| Printer Dimension (W) Printing | 1909 mm |
| Printer Dimension (D) Printing | 1318 mm |
| Printer Dimension (H) Printing | 1218 mm |
| Printer Dimension (W) Stowed | 1909 mm |
| Printer Dimension (D) Stowed | 890 mm |
| Printer Dimension (H) Stowed | 1218 mm |
Electrical Specifications
| Voltage | AC 100 to 240V 50/60Hz |
| Power Consumption | Approx. 75W |
| Rated Current | 3.4-1.6A |
Utility Software
| Windows | ESC/P Printer Driver, Communication Driver, Installer Package, Web Installer, Software Updater, Firmware Updater, EpsonNet Print, EpsonNet Setup, EpsonNet Config SE, Manual Package, Epson Manual Launcher, Epson Print Layout, Epson Edge Print Pro, Epson Edge Dashboard, Adobe ICC Profile, Epson Media Installer, Epson Device Admin |
| Mac | ESC/P Printer Driver, Installer Package, Web Installer, Software Updater, Firmware Updater, EpsonNet Config SE, Uninstaller, Epson Manual Launcher, Epson Print layout, Epson Edge Dashboard, Epson Media Installer |
| iOS / Android | Epson Cloud Solution PORT |
Connectivity
| Memory | 2GB |
| Interfaces | USB 2.0, 1000BASE-T/100BASE-TX/10BASE-T |
| Printer Languages | ESC/P raster |
| HDD (Option) | 320GB |
Control Panel
| Colour & Size | 4.3 inch Optical Touch Colour LCD |
Environmental Characteristics
| Operating | 10˚C to 35˚C |
| Storage | -20˚C to 40˚C |
| Humidity | 20% to 80% (Operating) 5% to 85% (Storage) |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureColor SC-P9330. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interfaces | USB 2.0, 1000BASE-T/100BASE-TX/10BASE-T |
| Printer Languages | ESC/P raster |
Package Contents & Ordering Information
Ordering Information
| Model | SureColor SC-P9330 |
| Epson Product Code | C11CL83402 |
| Recommended Retail Price (incl. GST) | S$8,709.10 |
| Consumables | UltraChrome PRO 10 inks. T56W 350ml: C13T56W190 Photo Black, C13T56W290 Cyan, C13T56W390 Vivid Magenta, C13T56W490 Yellow, C13T56W590 Light Cyan, C13T56W690 Vivid Light Magenta, C13T56W790 Grey, C13T56W890 Matte Black, C13T56W990 Light Grey, C13T56WD90 Violet. T56R 700ml: C13T56R190 Photo Black, C13T56R290 Cyan, C13T56R390 Vivid Magenta, C13T56R490 Yellow, C13T56R590 Light Cyan, C13T56R690 Vivid Light Magenta, C13T56R790 Grey, C13T56R890 Matte Black, C13T56R990 Light Grey, C13T56RD90 Violet. |
In the Box
- Printer
- Printer stand
- Initial ink cartridge
- AC power cable
- Setup guide
- Maintenance box
Datasheet & Downloads
Frequently Asked Questions — SureColor SC-P9330
What warranty does the SureColor SC-P9330 come with?
1 Year Local Warranty from Epson Singapore: 1 year. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureColor SC-P9330 use?
UltraChrome PRO 10 inks. T56W 350ml: C13T56W190 Photo Black, C13T56W290 Cyan, C13T56W390 Vivid Magenta, C13T56W490 Yellow, C13T56W590 Light Cyan, C13T56W690 Vivid Light Magenta, C13T56W790 Grey, C13T56W890 Matte Black, C13T56W990 Light Grey, C13T56WD90 Violet. T56R 700ml: C13T56R190 Photo Black, C13T56R290 Cyan, C13T56R390 Vivid Magenta, C13T56R490 Yellow, C13T56R590 Light Cyan, C13T56R690 Vivid Light Magenta, C13T56R790 Grey, C13T56R890 Matte Black, C13T56R990 Light Grey, C13T56RD90 Violet. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
