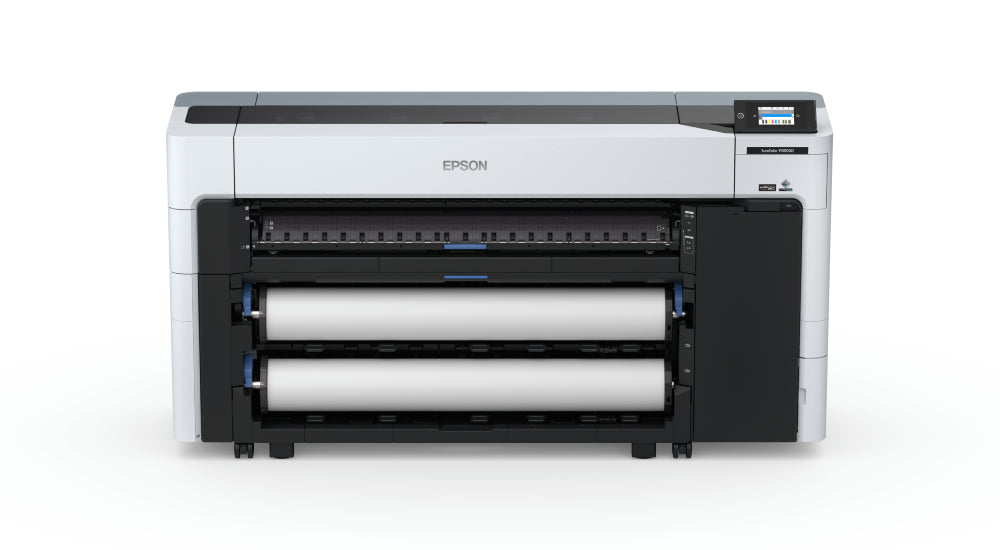

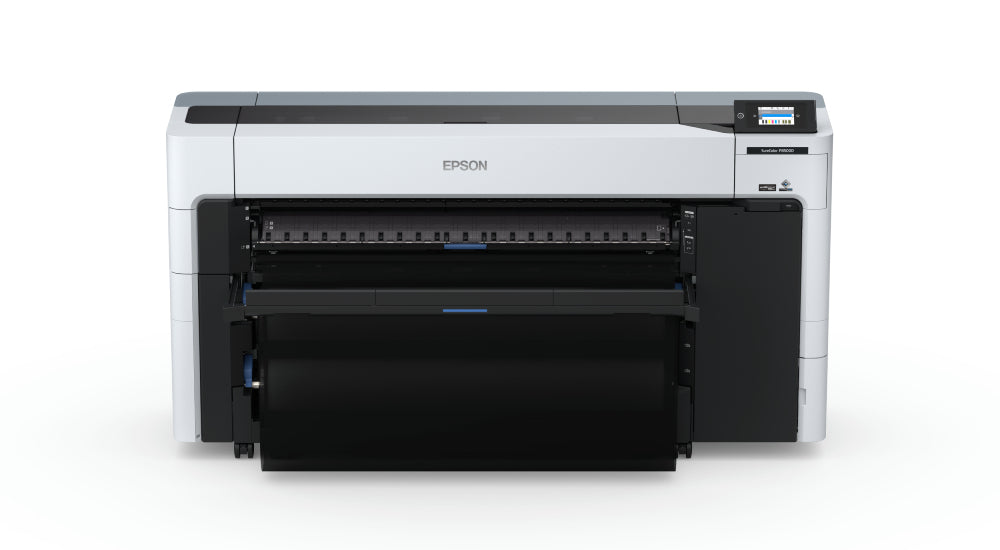

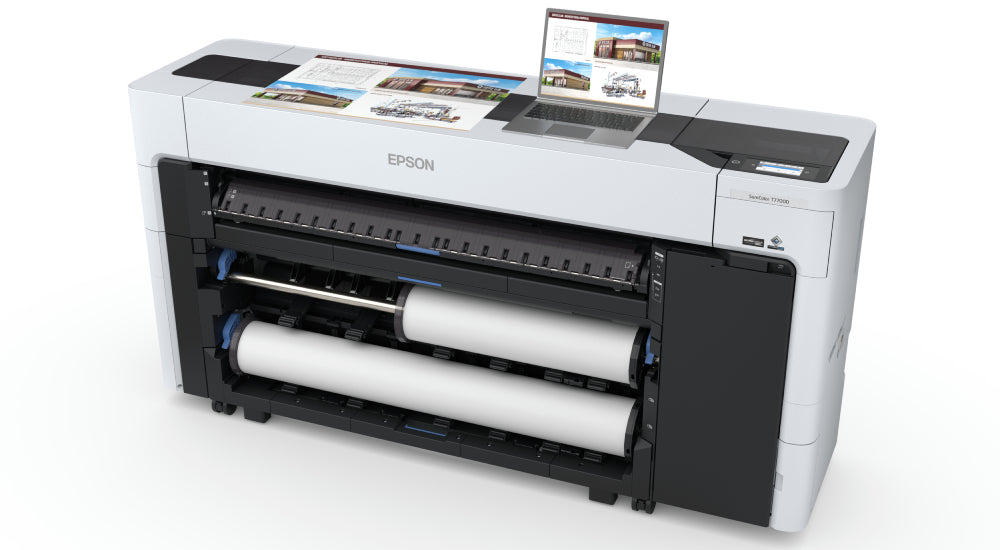

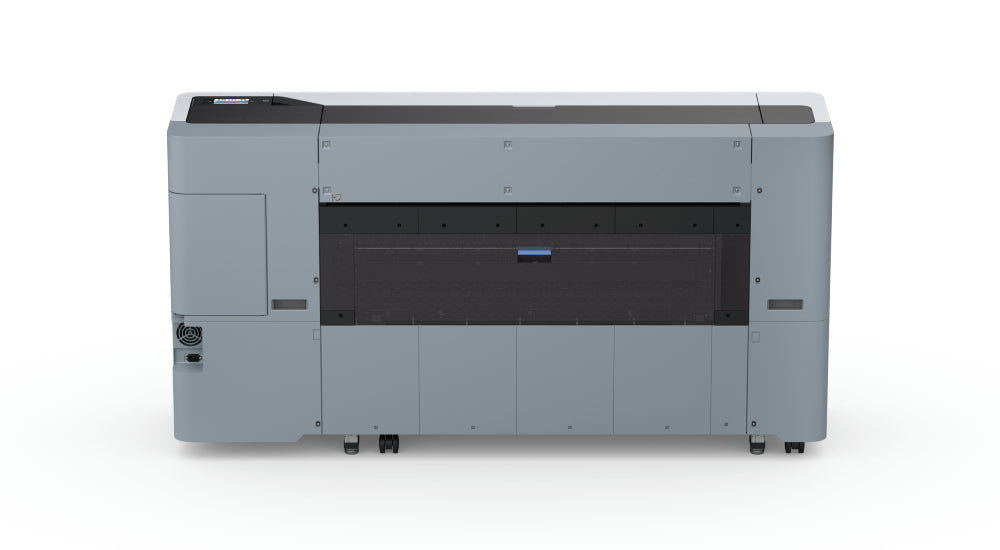

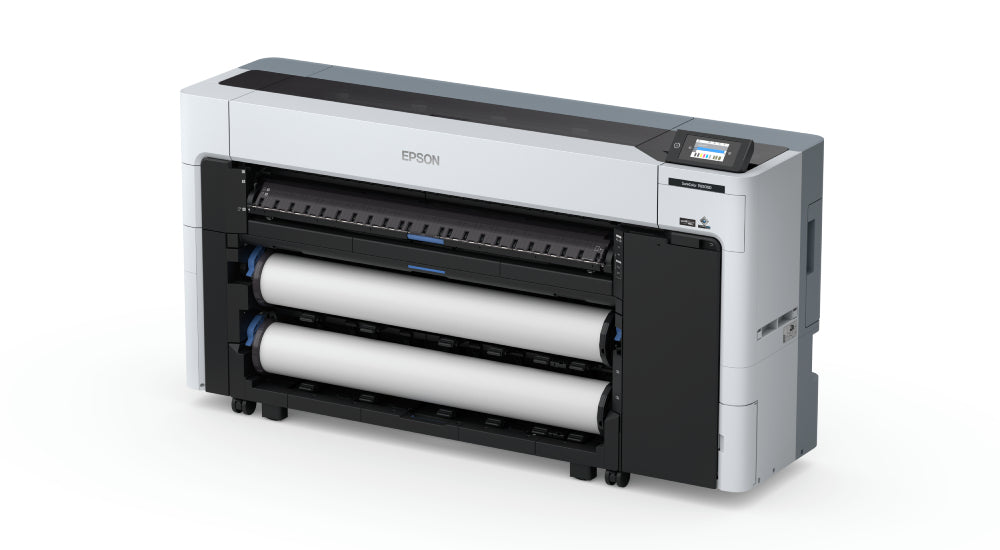

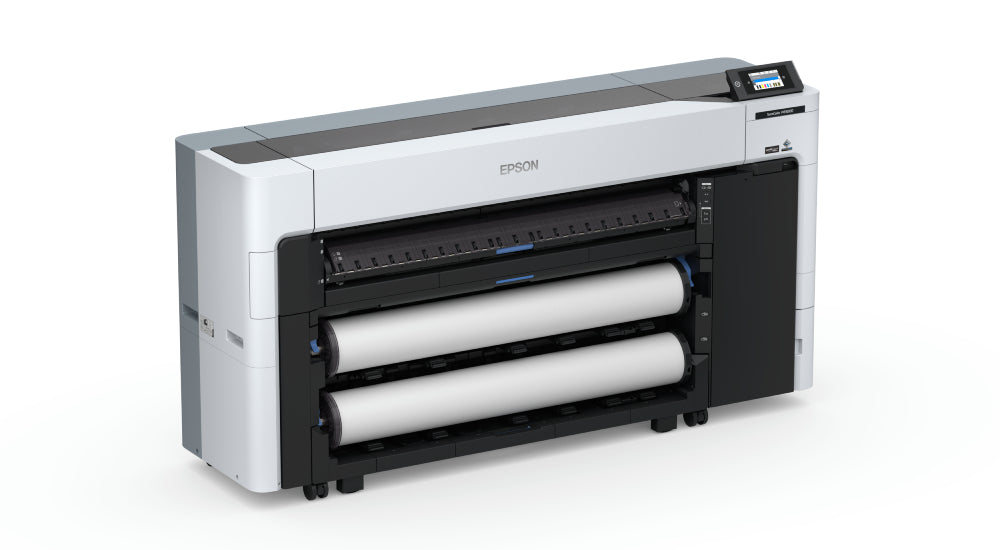

Epson SureColor SC-P8530D Production Photo Printer
PRODUCT DESCRIPTION
Epson SureColor SC-P8530D Production Photo Printer (C11CJ50402) - 1 Year Local Warranty
The Epson SureColor SC-P8530D Production Photo Printer - Transform your ideas into striking true-to-life prints.
AMPLIFY YOUR IDEAS WITH TOP CLASS PRINT QUALITY
Transform your ideas into striking true-to-life prints with Epson Pro Photo Graphic Printer. Nothing beats seeing life injected into your ideas, turning them into picturesque prints in vivid and vibrant colours with top-class accuracy.
Key Features
Improved Ergonomic flat top design with 4.3" touch panel screen; Wide 44" dual roll design for enhanced productivity; Seamless operation with Automatic Roll Switching; Additional grey ink for smooth gradients and neutral greyscale in every photo; USB direct prints
Ideal For
Photo labs, print service providers, photographers and fine-art studios in Singapore producing large-format photo and graphic output. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureColor SC-P8530D Datasheet — Technical Specifications
General
| Model | SureColor SC-P8530D |
| Official Product Name | Epson SureColor SC-P8530D Production Photo Printer |
| Epson Product Code | C11CJ50402 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 1 year |
Printing
| Print Head | PrecisionCore MicroTFP Printhead |
| Nozzle Configuration | 9,600 Nozzles: Black (Pk:1,600, Mk:1,600), Colour (C:1,600, M:1,600, Y:1,600, Gray:1,600) |
| Maximum Print Resolution | 2,400 x 1,200 dpi |
| Minimum Ink Droplet Size | 3.5pl |
| Print Speed | B0 size Premium Glossy Photo Paper 170gsm: 152 sec (Speed), 281 sec (Quality), 614 sec (Max Quality); Poster – B0 size Epson Premium Glossy Photo Paper 170gsm 1200dpi x 1200dpi: Standard(sRGB)/Quality: 281 sec |
| Printing Method | PrecisionCore Inkjet Technology, Variable-Sized Droplet Technology |
| Margin (Roll Paper) | Top/Bottom: Min. 3mm; Right/Left: Min. 0mm |
| Margin (Cut Sheet) | Top: Min. 3mm; Bottom: Min. 12.7mm; Right/Left: Min. 0mm |
Ink
| Ink Type | Pigment Ink |
| Colours | Cyan, Magenta, Yellow, Gray, Photo Black, Matte Black |
| Ink Capacity | 110, 350, 700 ml |
| Ink Case | Ink Cartridge |
Paper Handling
| Paper Feed Method | Friction Feed |
| Paper Path | Roll (Double Roll), Cut Sheet (Manual Feed), Poster Board (Manual Feed) |
| Borderless Sizes | 254mm (10"), 300mm (11.8"), 330mm (13"), 356mm (14"), 406mm (16"), 432mm (17"), 500mm (19"), 508mm (20"), 515mm (20.3"), 594mm (23"), 610mm (24"), 700mm (27.5"), 728mm (28.6"), 841mm (33"), 914mm (36"), 1030mm (40.5"), 1188mm (44") |
| Paper Size & Thickness | Width: Roll Paper 254mm-1,118mm; Cutsheet 203mm-1,118mm; Thickness: Roll 0.07mm-0.8mm; Cutsheet 0.07mm-0.8mm; Poster board 0.8mm-1.5mm |
| Maximum Reel Diameter | Max. 170 mm |
| Maximum Reel Weight | 12.5 Kg |
Recommended System Requirements
| Win PC | Windows 11/10/8.1/8/7/Vista/XP (32/64 bit); CPU: Core 2 Duo 3.05GHz or more; Memory: 1GB+; HDD: 32GB+ free space |
| Mac | Mac OS X 10.6.8 or later, Mac OS 11 or later; CPU: Core 2 Duo 3.05GHz or more; Memory: 4GB+; HDD: 32GB+ free space |
Dimensions and Weight
| Weight | Approx. 155 Kg |
| Dimensions | Printing: 1,848 x 829 x 975 mm (W x D x H); Stowed: 1,848 x 499 x 975 mm (W x D x H) |
Electrical Specifications
| Power Consumption | Operating: Approx. 70W; Ready: Approx. 32W; Sleep: Approx. 2.0W; Power Off (Standby): Approx. 0.3W |
| Rated Current | 3.4 - 1.6A |
| Supply Voltage | AC100-240V 50/60Hz |
Utility Software
| Bundled (CD) | Windows: Printer Driver, EpsonNet Setup, EpsonNet Print, EpsonNet Config SE, Epson Manuals, Manual Launcher, LFP Print Plug-in for Office, PS Driver, PS Folder |
| Web Delivery | Windows: Epson Media Installer, EpsonNet Setup Manager, Epson Device Admin, Epson Edge Dashboard, Epson Print Layout, Epson Print Automate, Epson Edge Print (Option), Epson Print Admin (Option), Order Controller (Option); Mac: Printer Driver, EpsonNet Config SE, Epson Manuals, Epson Media Installer, Epson Edge Dashboard, Epson Print Layout, PS Driver; iOS/Android: Epson Smart Panel |
Connectivity
| Interfaces | SuperSpeed USB, 100BASE-TX/1000BASE-T/IEEE802.11b/g/n/ac, USB memory stick |
| USB Direct | Yes |
| Printer Language | ESC/P raster |
Printable Area and Accuracy
| Maximum Printable Length | 91 m |
General
| Memory | 4 GB |
| Acoustic Noise Level | Sound Pressure Level: Approx. 46 dB(A); Sound Power Level: Approx. 6.4 B(A) |
| Control Panel | 4.3" Optical Touch Colour LCD |
| Printer Width | 44" |
| Options | Roll Feed Spindle (44"), SSD Unit |
| Consumables | Maintenance Box, Auto Cutter Spare Blade, Borderless Maintenance Box, Ink Cartridge |
Recommended Operating Temperature & Humidity
| Temperature | Operating: 10°C to 35°C; Storage: -20°C to 40°C |
| Humidity | Operating: 20-80% (no condensation); Storage: 5-85% (no condensation) |
Roll Media Handling
| Maximum Roll Diameter | Max. 170 mm |
| Maximum Roll Weight | 12.5kg |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureColor SC-P8530D. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interfaces | SuperSpeed USB, 100BASE-TX/1000BASE-T/IEEE802.11b/g/n/ac, USB memory stick |
| USB Direct | Yes |
| Printer Language | ESC/P raster |
Package Contents & Ordering Information
Ordering Information
| Model | SureColor SC-P8530D |
| Epson Product Code | C11CJ50402 |
| Recommended Retail Price (incl. GST) | S$11,891.90 |
| Consumables | UltraChrome PRO 6 inks. T50S 350ml: C13T48Y100 Photo Black, C13T48Y200 Cyan, C13T48Y300 Magenta, C13T48Y400 Yellow, C13T48Y800 Matte Black, C13T48YE00 Gray. T50L 700ml: C13T48R100 Photo Black, C13T48R200 Cyan, C13T48R300 Magenta, C13T48R400 Yellow, C13T48R800 Matte Black, Gray 700ml listed as C13T48Y200. Other consumables listed without part numbers: Maintenance Box, Auto Cutter Spare Blade, Borderless Maintenance Box. |
In the Box
- Printer
- Initial ink cartridge
- AC Power Cable
- Setup Guide
- Software CD-ROM
- Borderless Maintenance Box
- Roll Feed Spindle
- USB 3.0 Cable
- Adobe PS Unit
Datasheet & Downloads
Frequently Asked Questions — SureColor SC-P8530D
What warranty does the SureColor SC-P8530D come with?
1 Year Local Warranty from Epson Singapore: 1 year. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureColor SC-P8530D use?
UltraChrome PRO 6 inks. T50S 350ml: C13T48Y100 Photo Black, C13T48Y200 Cyan, C13T48Y300 Magenta, C13T48Y400 Yellow, C13T48Y800 Matte Black, C13T48YE00 Gray. T50L 700ml: C13T48R100 Photo Black, C13T48R200 Cyan, C13T48R300 Magenta, C13T48R400 Yellow, C13T48R800 Matte Black, Gray 700ml listed as C13T48Y200. Other consumables listed without part numbers: Maintenance Box, Auto Cutter Spare Blade, Borderless Maintenance Box. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
