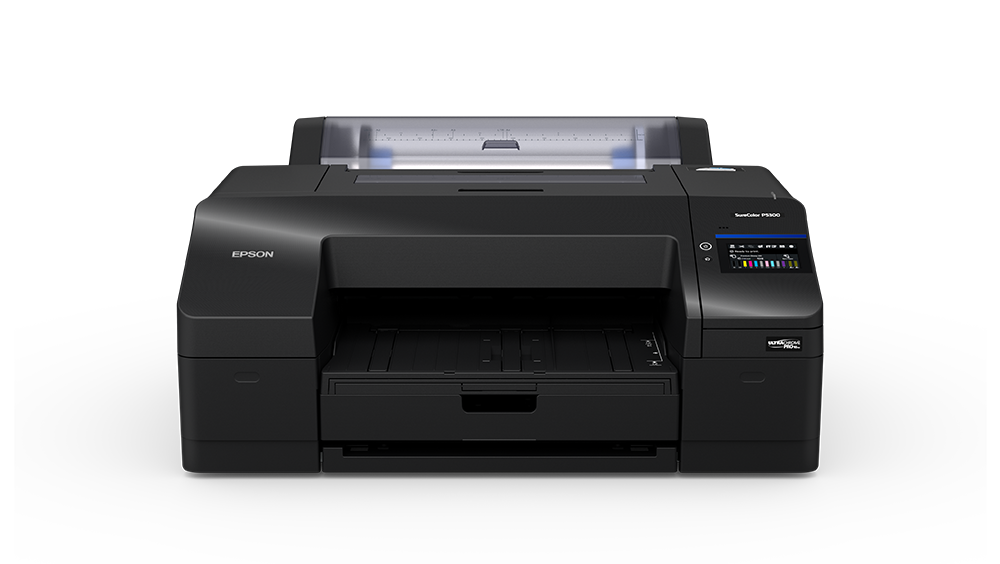

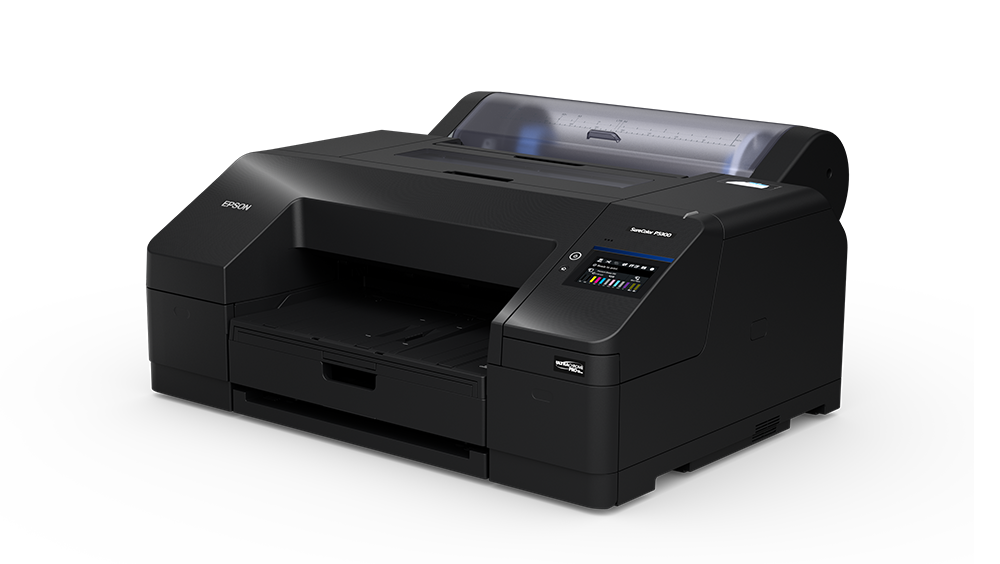

Epson SureColor SC-P5330 17" Professional Photo Printer
PRODUCT DESCRIPTION
Epson SureColor SC-P5330 17" Professional Photo Printer (C11CL14403) - 1 Year Local Warranty
The Epson SureColor SC-P5330 - Brilliance in Every Print.
Brilliance in Every Print
A compact photo printer that does not compromise on quality, the SC-P5330 is your perfect solution for impeccable colour reproduction in every print. Utilising Epson's Micro Piezo® printhead and UltraChrome™ Pro10 all-pigment ink set, every image is dynamic and vibrant, with detailed consistency in spectacular colours.
Key Features
Enhanced output quality with UltraChrome Pro10 all-pigment ink set, PK/MK channel, Black Enhance Overcoat and Carbon Black Mode. Easy-to-use functions including Wi-Fi connectivity, 4.3-inch colour touchscreen and Epson Cloud Solution PORT. Offers usage flexibility for photographers, artists, designers and photo retail stores. Designed for professional photo production.
Productivity
The SC-P5330 can easily handle high print volumes, and features a 10-channel Micro Piezo printhead with a dedicated Photo Black and Matte Black channels. It also supports a wide selection of media and includes a built-in roll unit and paper cassette.
Output Quality
The SC-P5300 prints up to A2 and offers deeper blacks, enhanced contrast and tonality, and bronzing reduction in dark areas on glossy media. This is achievable thanks to these Epson technologies: UltraChrome Pro10 Ink, Black Enhance Overcoat for higher black density, wider blue colour gamut with violet ink and Carbon Black Mode for even darker blacks.
Software Support
This Wi-Fi enabled professional photo printer offers a wealth of easy-to-use features that are both time saving and practical. The highly-intuitive functions include a 4.3-inch colour LCD touchscreen, Epson Print Layout, ColorBase Colour Calibration Utility and Epson Cloud Solution PORT.
Built-in Wi-Fi Direct Feature
Enjoy seamless printing directly from your smartphone or personal computer without need for software installations.
Epson Cloud Solution PORT
Comprehensive printer fleet management software offering a secure real-time view of production, equipment use, and service details, enhancing efficiency and optimising Epson printing workflows.
Ideal For
Photo labs, print service providers, photographers and fine-art studios in Singapore producing large-format photo and graphic output. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureColor SC-P5330 Datasheet — Technical Specifications
General
| Model | SureColor SC-P5330 |
| Official Product Name | Epson SureColor SC-P5330 |
| Epson Product Code | C11CL14403 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 1 year |
Printing
| Print Head | Micro Piezo Printhead |
| Nozzle Configuration | 1,800 Nozzles (180 Nozzles x 10 Channels x 1 Head); Black: 180 Nozzles (x2), Colour: 180 Nozzles (x8) |
| Maximum Print Resolution | 5,760 x 1,440 dpi |
| Minimum Ink Droplet Size | 1.5pl |
| Print Speed | Speed Mode: 720 x 720dpi, 2.35 minutes; Quality Mode: 1440 x 720dpi, 4.25 minutes; High Quality Mode: 1440 x 1440dpi, 6:35 minutes; Max Quality Mode: 5760 x 1440dpi, 13:00 minutes. *Based on printing on A2 size Premium Glossy Photo Paper from starting pass to cut. |
| Line Accuracy | ±0.2% of the specified vector length or ±0.26mm (whichever greater) |
| Printing Method | On-Demand Inkjet (Piezo Electric), Variable-Sized Droplet Technology |
Ink
| Ink Type | Pigment Ink |
| Ink Brand Name | UltraChrome PRO10 Ink |
| Colours | Photo Black, Matte Black, Gray, Light Gray, Cyan, Vivid Magenta, Yellow, Light Cyan, Vivid Light Magenta, Violet |
| Ink Capacity | 200ml/80ml (Bundled) |
| Ink Case | Ink Cartridge |
Paper Handling
| Paper Feed Method | Friction Feed (Auto switching between cut sheet and roll paper) |
| Paper Size | 20x25cm (8"x10"), A4, Letter, 254x305mm (10"x12"), JIS B4 (257x364mm), US B (11x17"), 11x14", A3, A3+, SuperW A3, B3, A2, US C (17"x22") |
| Paper Path | Roll, Cut Sheet (manual feed), Poster Board (manual feed), ASF Cassette |
| Maximum Paper Thickness | Roll Paper: 0.08 – 0.50mm; Manual: Cut Sheet: 0.08 – 08mm, Poster Board: 09 – 1.5mm; ASF: Cut Sheet: 0.08 – 0.8mm |
| Borderless Sizes | Roll Paper: 8/10/11/14/16/17", A4/A3/A3+/A2, 300 mm; Cut Paper & Poster Board: 10/14/16/17", A4/A3/A3+, 300 mm |
| ASF Capacity: Max. Sheets | ASF Cassette: Plain paper 250 sheets (A4-A2/US-C) |
| Maximum Roll Diameter / Weight | 2 inch-core: Max φ103 mm / 3 inch-core: Max φ150 mm |
Recommended System Requirements
| Win PC System Requirement | Windows 7, 8, 8.1, 10, 11 or later; Windows Server 2022, 2019, 2016, 2012R2, 2012, 2008R2, 2008; CPU: Core 2 Duo 3.05GHz or more; Memory: more than 4GB; HDD: Free Space more than 64GB |
| Mac System Requirement | Mac OS X 10.9.5 or later; CPU: Core 2 Duo 3.05GHz or more; Memory: more than 8GB; HDD: Free Space more than 128GB |
Dimensions and Weight
| Dimensions (W x D x H) | 863 x 1,134 x 405 mm |
| Weight | Approx. 53 Kg |
Electrical Specifications
| Power Consumption | Operating: Approx. 42W; Ready: Approx. 17W; Sleep: Approx. 2.4W; Power off (Stand-by): Approx 0.2W |
| Rated Current | AC 100V 3.4A; AC 100-240V 3.4-1.6A |
| Supply Voltage | AC 100 – 240V, 50/60Hz |
Utility Software
| Utility Software (Web delivery) | Windows: Installer Package (Install Navi), Web Installer, Software Updater, Firmware Updater, Adobe ICC Profile, LFP Accounting Tool. Mac: Installer Package, Web Installer, Software Updater, Firmware Updater, Uninstaller |
Environmental Conditions
| Temperature | Operating: 10°C to 35°C / Storage: -20°C to 40°C |
| Humidity | Operating: 20% to 80% (no condensation), Storage: 5% to 85% (no condensation) |
Connectivity
| Memory | 1GB |
| Interfaces | SuperSpeed USB, 10BASE-T/100BASE-TX, IEEE802.11b/g/n/ac |
| Printer Language | ESC/P raster |
Control Panel

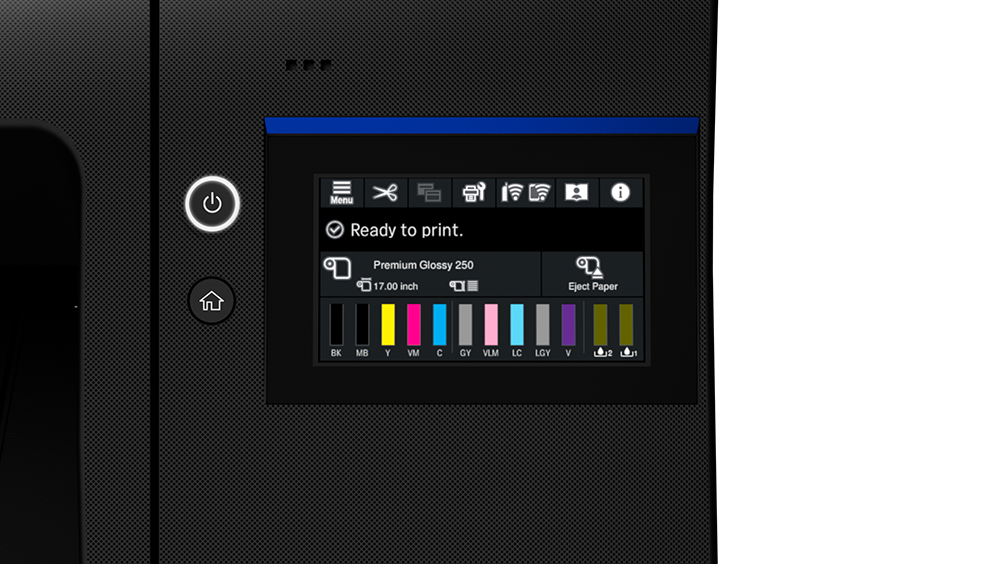

| LCD Screen | 4.3" Colour LCD & Electrostatic Touch Screen |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureColor SC-P5330. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Utility Software (Web delivery) | Windows: Installer Package (Install Navi), Web Installer, Software Updater, Firmware Updater, Adobe ICC Profile, LFP Accounting Tool. Mac: Installer Package, Web Installer, Software Updater, Firmware Updater, Uninstaller |
| Interfaces | SuperSpeed USB, 10BASE-T/100BASE-TX, IEEE802.11b/g/n/ac |
| Printer Language | ESC/P raster |
Package Contents & Ordering Information
Ordering Information
| Model | SureColor SC-P5330 |
| Epson Product Code | C11CL14403 |
| Recommended Retail Price (incl. GST) | S$4,685.91 |
| Consumables | UltraChrome PRO10 200ml ink cartridges (T55V, per epson.com.sg ink finder): Photo Black C13T55V100, Cyan C13T55V200, Vivid Magenta C13T55V300, Yellow C13T55V400, Light Cyan C13T55V500, Vivid Light Magenta C13T55V600, Grey C13T55V700, Matte Black C13T55V800, Light Grey C13T55V900, Violet C13T55VD00. Maintenance box part number not published on the page. |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — SureColor SC-P5330
What warranty does the SureColor SC-P5330 come with?
1 Year Local Warranty from Epson Singapore: 1 year. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureColor SC-P5330 use?
UltraChrome PRO10 200ml ink cartridges (T55V, per epson.com.sg ink finder): Photo Black C13T55V100, Cyan C13T55V200, Vivid Magenta C13T55V300, Yellow C13T55V400, Light Cyan C13T55V500, Vivid Light Magenta C13T55V600, Grey C13T55V700, Matte Black C13T55V800, Light Grey C13T55V900, Violet C13T55VD00. Maintenance box part number not published on the page. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
