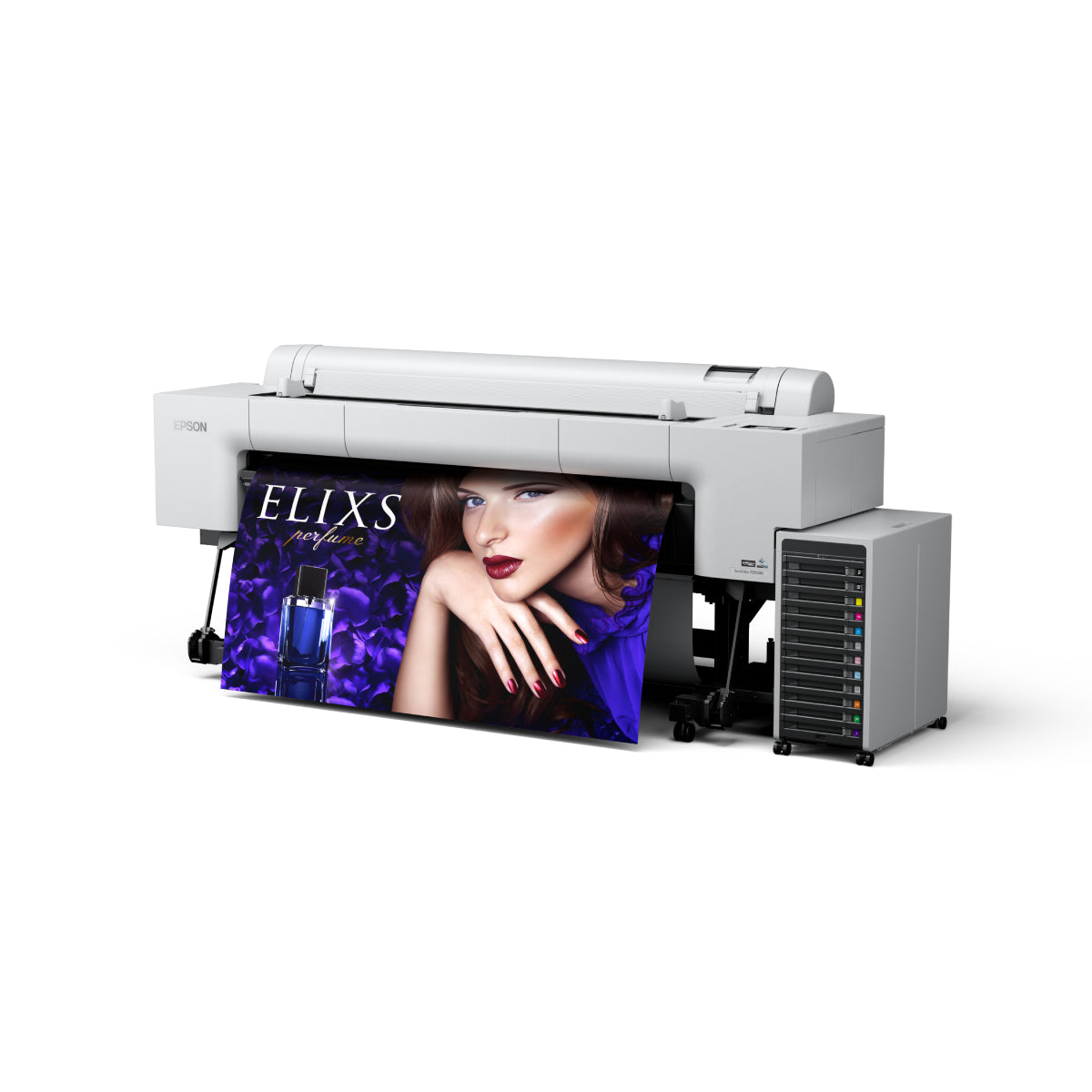

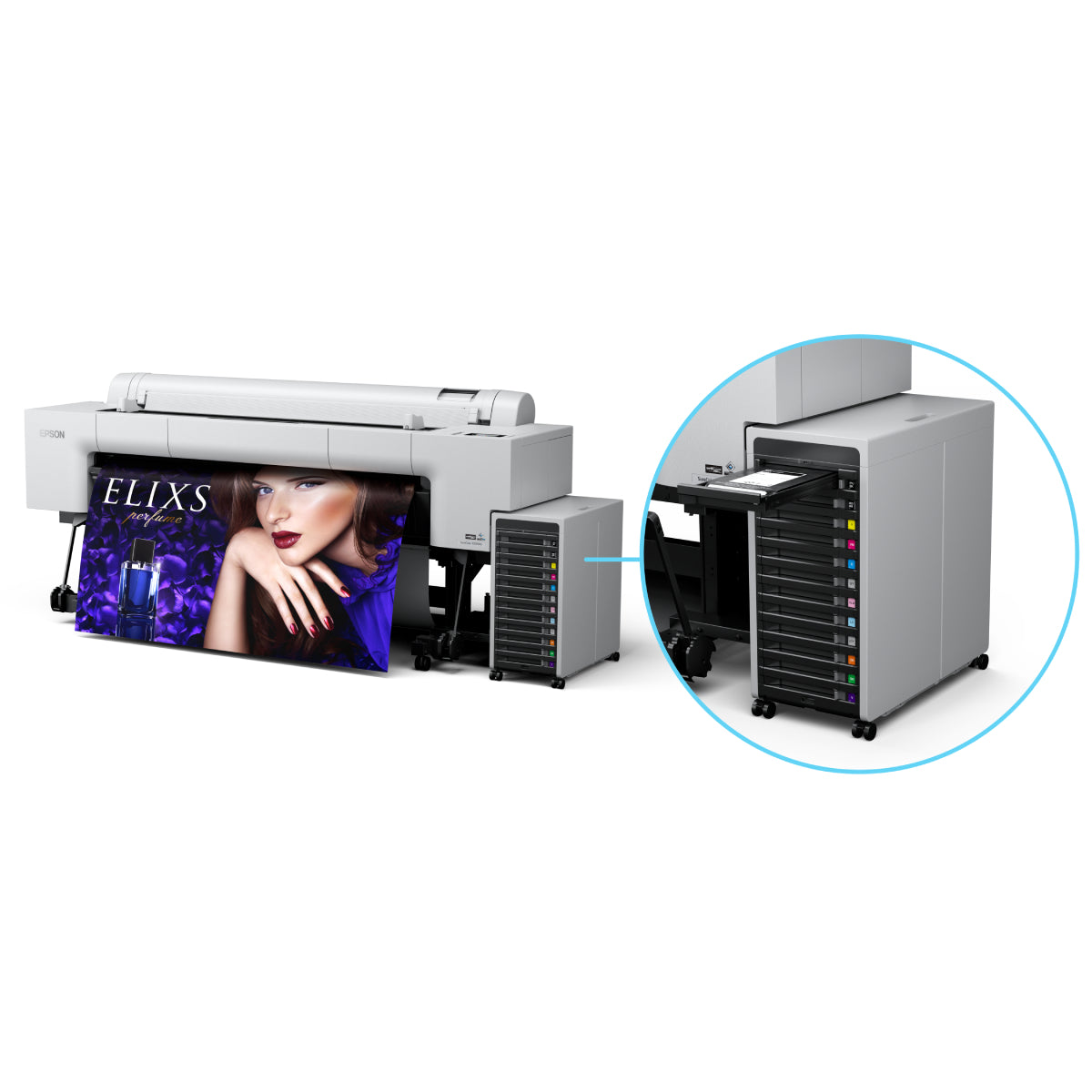

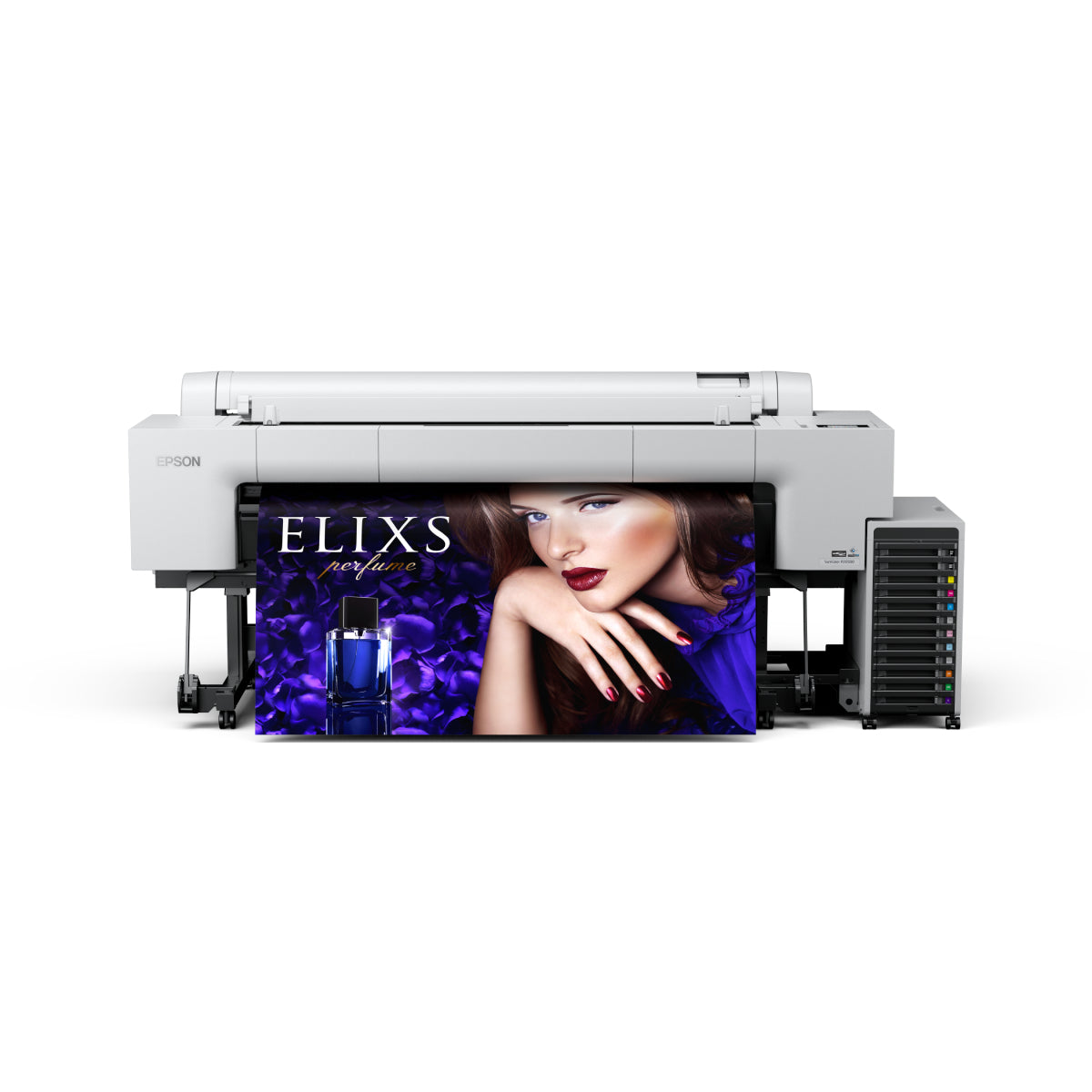

Epson SureColor SC-P20530 64" Photo Graphic Production Printer
PRODUCT DESCRIPTION
Epson SureColor SC-P20530 64" Photo Graphic Production Printer (C11CK99402) - 1 Year Local Warranty
The Epson SureColor SC-P20530 Photo Graphic Production Printer - The Pinnacle of Professional Printing Technology.
Supreme Imaging
Epson's patented PrecisionCore® Micro TFP head technology with a 2400 x 1200 dpi resolution uses an electro-mechanical movement that is kinder to the ink chemistry. Thereby offering better imaging with more stable output.
Widest Colour Gamut in its Class
The UltraChrome® PRO 12 ink set includes Orange, Green and Violet further expanding the colour gamut from its predecessor. This all-pigment aqueous ink provides quality colour and premium B&W output for consistent, predictable and durable operation.
Flexible and Easy to Operate

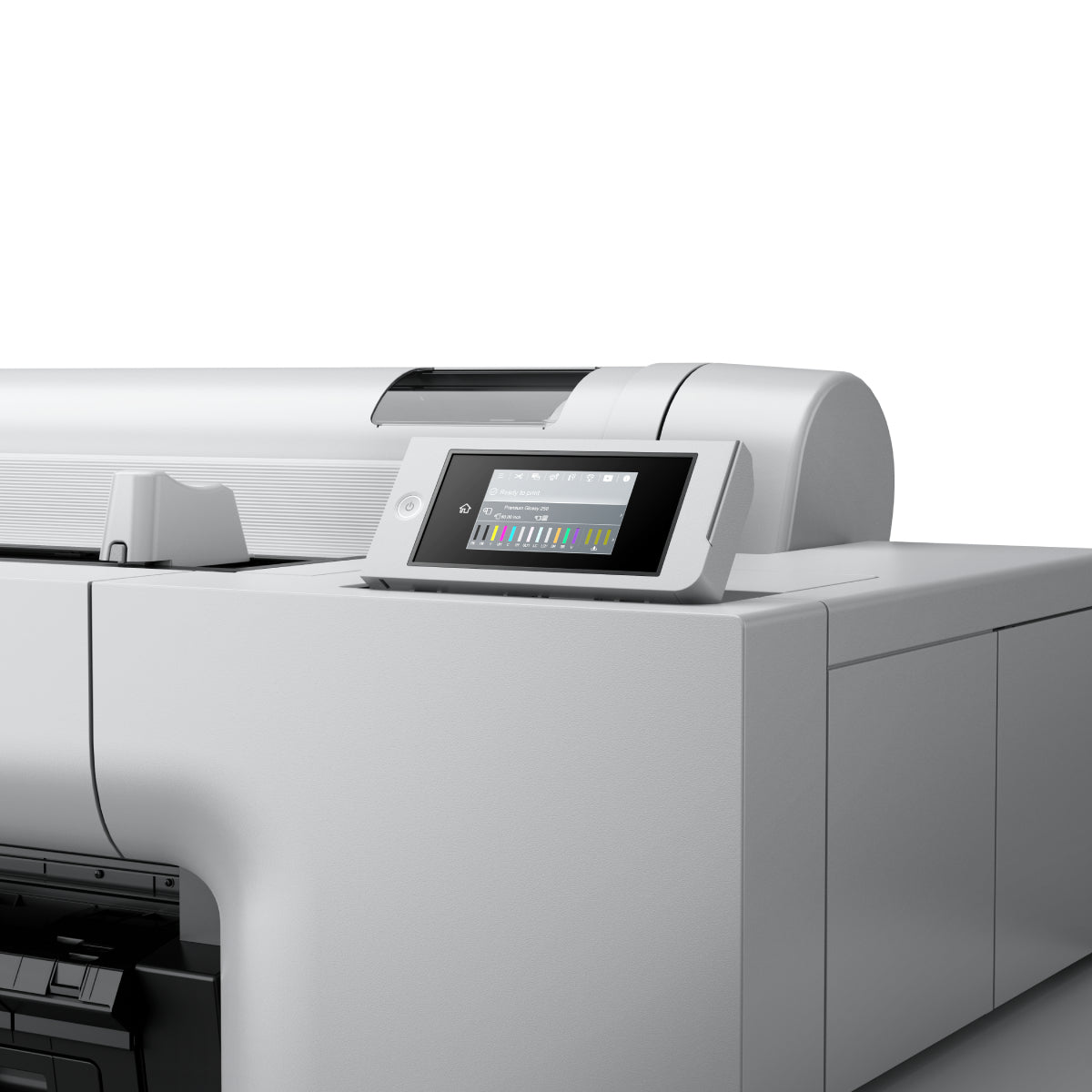

Equipped with a 4.3" LCD touchscreen, the SC-P20530 provides for intuitive operation. The printer comes with a retractable output basket and an optional Auto Take-up Reel system for roll-to-roll printing and offline/automated post-production.
Improved Productivity
The SC-P20530 comes with an optional self-encrypting SSD so you can reprint the job using the LCD touchscreen. Saving time and increasing efficiency.
Ideal For
Photo labs, print service providers, photographers and fine-art studios in Singapore producing large-format photo and graphic output. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureColor SC-P20530 Datasheet — Technical Specifications
General
| Model | SureColor SC-P20530 |
| Official Product Name | Epson SureColor SC-P20530 Photo Graphic Production Printer |
| Epson Product Code | C11CK99402 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 1 year |
Printing
| Nozzle Configuration | 9,600 Nozzles |
| Black | PK, MK, GY, LGY: 800 Nozzles |
| Colour | C, VM, Y, LC, VLM, OR, GR, V: 800 Nozzles |
| Print Speed | Plain Paper Draft Mode: Approx. 122 m2/h |
| Line Accuracy | ±0.2% or ±.26 mm (whichever greater) |
| Printing Method | PrecisionCore Inkjet Technology, Variable-Sized Droplet Technology |
| Margin (Roll Paper) | With Border (Top, Right, Left, Bottom): Min. 3 mm; Borderless (Top, Right, Left, Bottom): Min. 0 mm |
| Margin (Cut Sheet) | With Border (Top, Right, Left): Min. 3 mm / (Bottom): Min 14 mm; Borderless (Top): Min. 3 mm / (Bottom): Min 14 mm / (Right, Left): Min. 0 mm |
| Maximum Resolution | 2,400 x 1,200 dpi |
| Minimum Ink Droplet Volume | 3.5pl |
| Printhead | PrecisionCore MicroTFP Printhead |
Ink
| Ink Type | Pigment Ink |
| Ink Brand Name | UltraChrome PRO 12 Ink |
| Colours | Photo Black, Cyan, Vivid Magenta, Yellow, Matte Black, Grey, Light Grey, Light Cyan, Vivid Light Magenta, Orange, Green, Violet |
| Ink Capacity | 1,600ml |
| Ink Case | Ink Supply Unit |
Paper Handling
| Paper Feed Method | Friction Feed |
| Paper Path | Roll (Single Roll), Cut Sheet (Manual Feed), Poster Board (Manual Feed) |
| Maximum Paper Width | Paper Width (Roll): 254 (10") – 1,626 (64") mm; Paper Width (Cut Sheet): 210 (A4) – 1,118 (44") mm |
| Maximum Paper Thickness | 0.08 – 0.5 mm |
| Borderless Sizes | 254mm (10"), 300mm (11.8"), 330mm (A3+/A3++), 406mm (16"), 432mm (17"/USC), 508mm (20"), 515mm (20.3"/B2), 594mm (A1), 610mm (24"/A0+), 728 (29"/B1), 841mm (A0), 914mm (36"/A0+), 1,030mm (B0), 1,118mm (44"/B0+), 1,270mm (50"), 1,372mm (54"), 1,524mm (60"), 1,626mm (64") |
| Roll Paper Remaining | The remaining amount is managed by the barcode printed on roll paper |
| Maximum Roll Diameter / Weight | Max. 170 mm |
| Maximum Reel Diameter | Max. 190 mm |
| Maximum Reel Weight | Max. 24 Kg |
| Supported Paper Size | 91 m |
Recommended System Requirements
| Win PC System Requirement | Windows XP, Vista, 7, 8, 8.1 (32/64bit) or later |
| Mac System Requirement | Macintosh Mac OS X 10.6.8 or later |
Dimensions and Weight
| Dimensions (W x D x H) | 2,740 x 976 x 1,145 mm |
| Weight | Approx. 224 kg |
Electrical Specifications
| Rated Current | AC 100V 3.4A; AC 100-240V 3.4-1.6A |
| Voltage | AC 100 – 240V, 50/60Hz |
| Power Consumption | Operating: Approx. 95W; Sleep: Approx. 2.2W; Standby: Approx. 0.5W |
Utility Software
| Utility Software (Bundled in CD) | User's Guide (EN), Network Guide (EN), LFP RemotePanel 2, Epson Color Calibration Utility, EpsonNet Setup, EpsonNet Config, EpsonNet Print (Windows only) |
| Utility Software (Web delivery) | LFP Accounting Tool (Job monitoring, consumable cost tracking), HDD Utility software (Web download) |
Environmental Conditions
| Temperature | Operating: 10°C to 35°C / Storage: -20°C to 40°C |
| Humidity | Operating: 20% to 80% (no condensation); Storage: 5% to 85% (no condensation) |
Connectivity
| Memory | Physical 6GB (Printer H/W) |
| Interface | SuperSpeed USB, 100BASE-TX / 1000BASE-T (Option) |
| USB Direct | Yes |
| Printer Languages | ESC/P raster, Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4 (Type I), EPS |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureColor SC-P20530. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Utility Software (Bundled in CD) | User's Guide (EN), Network Guide (EN), LFP RemotePanel 2, Epson Color Calibration Utility, EpsonNet Setup, EpsonNet Config, EpsonNet Print (Windows only) |
| Utility Software (Web delivery) | LFP Accounting Tool (Job monitoring, consumable cost tracking), HDD Utility software (Web download) |
| Interface | SuperSpeed USB, 100BASE-TX / 1000BASE-T (Option) |
| USB Direct | Yes |
| Printer Languages | ESC/P raster, Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4 (Type I), EPS |
Package Contents & Ordering Information
Ordering Information
| Model | SureColor SC-P20530 |
| Epson Product Code | C11CK99402 |
| Recommended Retail Price (incl. GST) | S$19,947.00 |
| Consumables | UltraChrome PRO 12 T56J ink packs, 1.6L each: C13T56J100 Photo Black, C13T56J200 Cyan, C13T56J300 Vivid Magenta, C13T56J400 Yellow, C13T56J500 Light Cyan, C13T56J600 Vivid Light Magenta, C13T56J700 Grey, C13T56J800 Matte Black, C13T56J900 Light Grey, C13T56JA00 Orange, C13T56JB00 Green, C13T56JD00 Violet. |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — SureColor SC-P20530
What warranty does the SureColor SC-P20530 come with?
1 Year Local Warranty from Epson Singapore: 1 year. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureColor SC-P20530 use?
UltraChrome PRO 12 T56J ink packs, 1.6L each: C13T56J100 Photo Black, C13T56J200 Cyan, C13T56J300 Vivid Magenta, C13T56J400 Yellow, C13T56J500 Light Cyan, C13T56J600 Vivid Light Magenta, C13T56J700 Grey, C13T56J800 Matte Black, C13T56J900 Light Grey, C13T56JA00 Orange, C13T56JB00 Green, C13T56JD00 Violet. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
