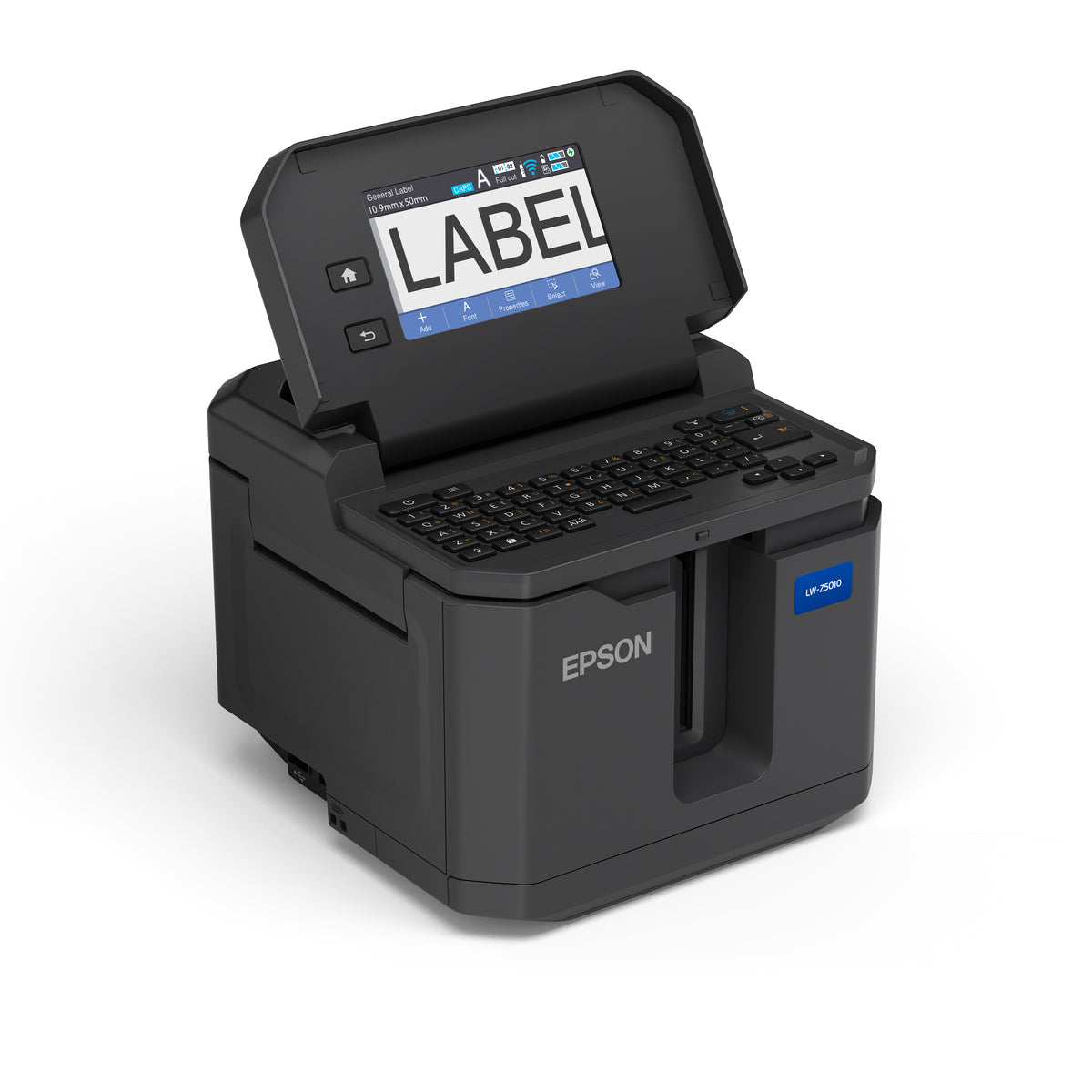

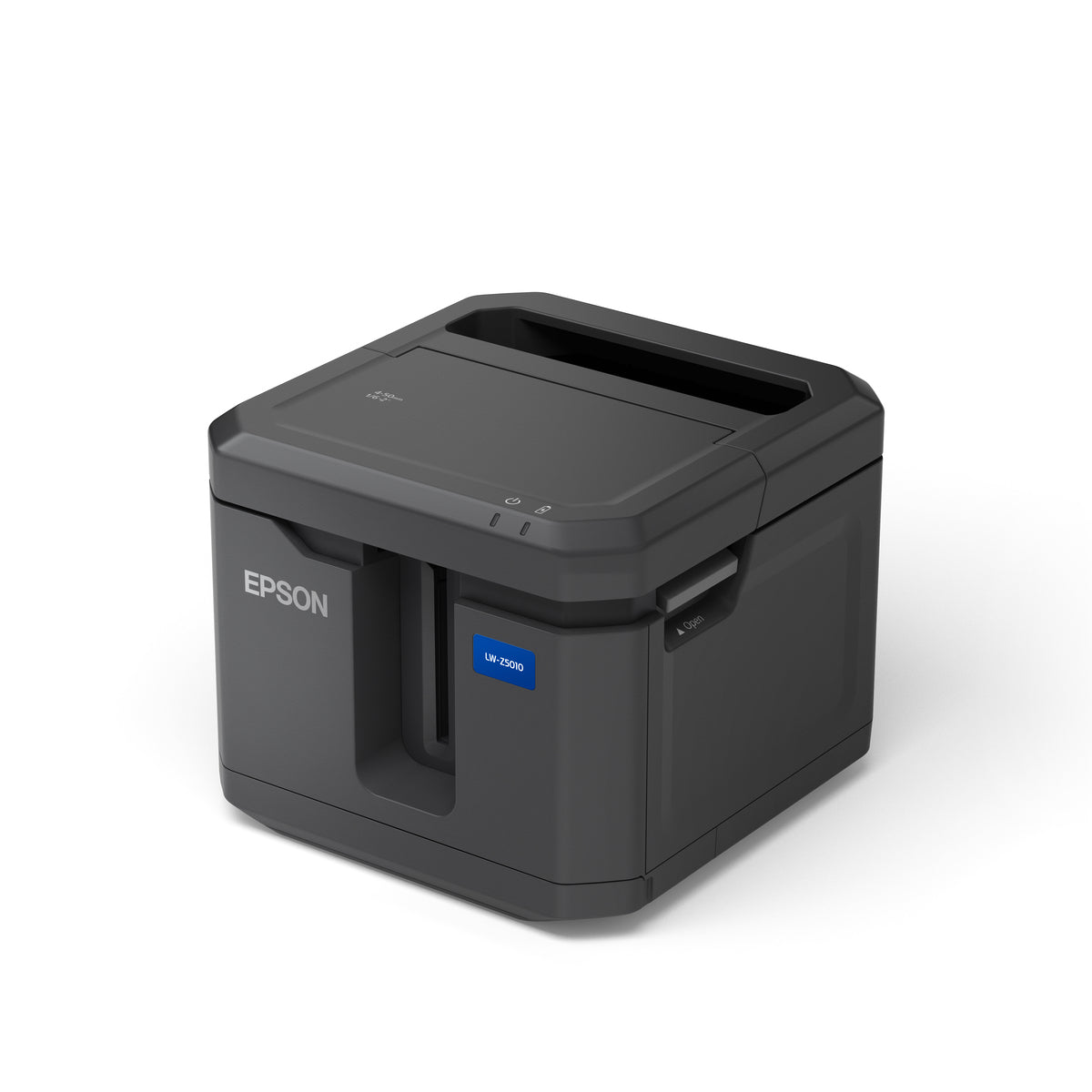

Epson LabelWorks LW-Z5010BA Bulk Roll Label Printer
PRODUCT DESCRIPTION
Epson LabelWorks LW-Z5010BA Bulk Roll Label Printer (C51CG52450) - 1 Year Local Warranty
The Epson LabelWorks LW-Z5010BA Bulk Roll Label Printer - Integrating Durability with Performance.
Introduction
Designed to tackle high-volume label printing, creating reliable and durable sign labels, Epson's multi-purpose industrial label maker LW-Z5010BA is the ideal companion for both business and industrial usages. Save more when it comes to printing with the new Bulk Roll (BR) label roll kit and rest assured that your labels, be it for use indoors or outdoors, are of the high quality and durability.
Built for high-volume print
Boasting a 300dpi print resolution with superb print speeds of up to 50 mm/sec*, Epson's LW-Z5010BA allows you to print your labels with confidence and ease. Epson BR label roll kit includes label and ribbon for high print volume of up to 50% lower cost per metre compared to label cartridges, and up to 80% compared to other types of thermal transfer label/ribbon roll. Enjoy lower total cost of ownership after using just 2 pieces of BR label roll kit as compared to label cartridges.
Adapts to your every labelling needs
Accepting labels from 6mm to 50mm in width for print, it works on various materials such as PET, vinyl, heat shrink tube or magnetic surfaces to suit both indoor and outdoor label applications. It is also compatible with both label cartridge for onsite printing and brand-new BR label roll kit for high-volume printing.

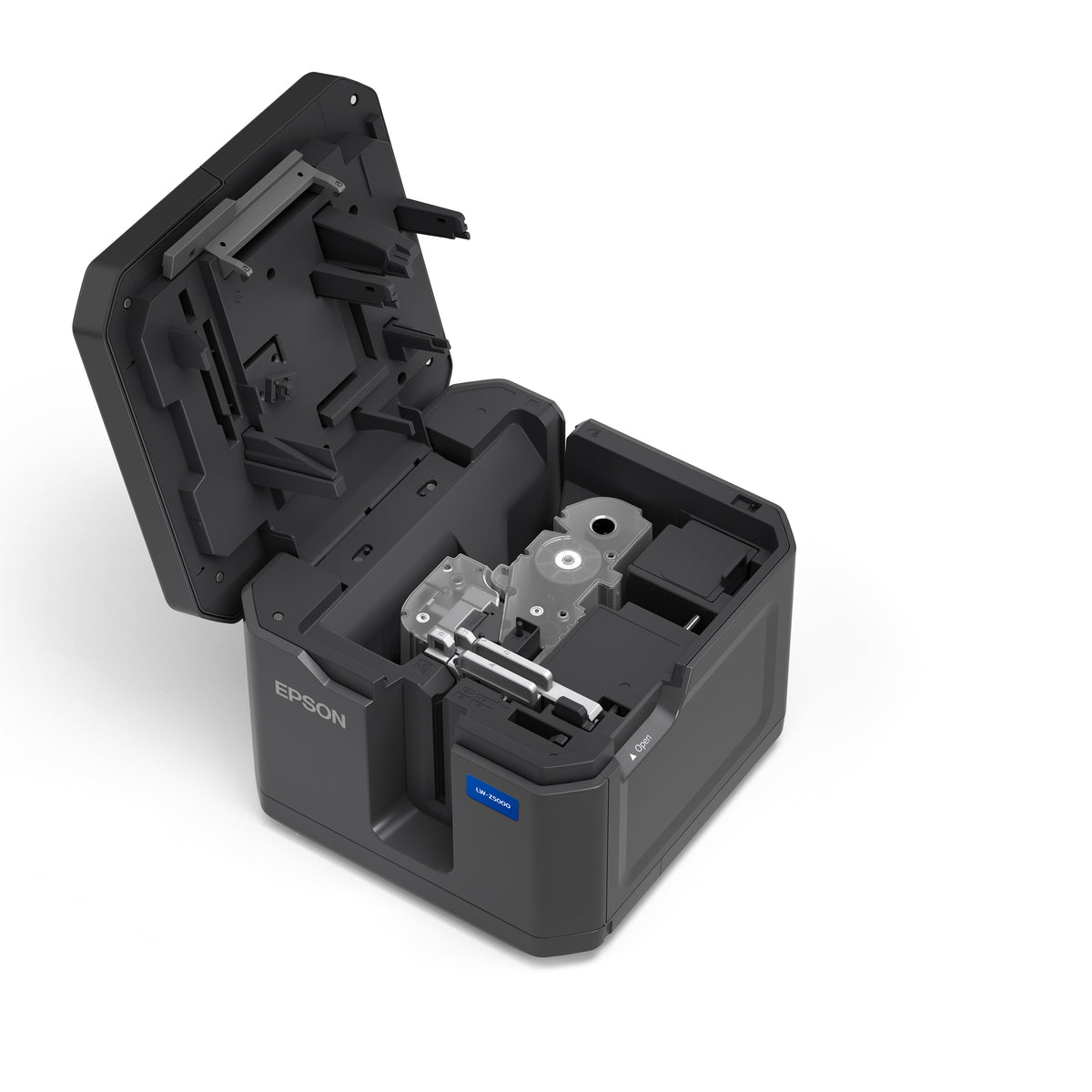

User-friendly installation and use

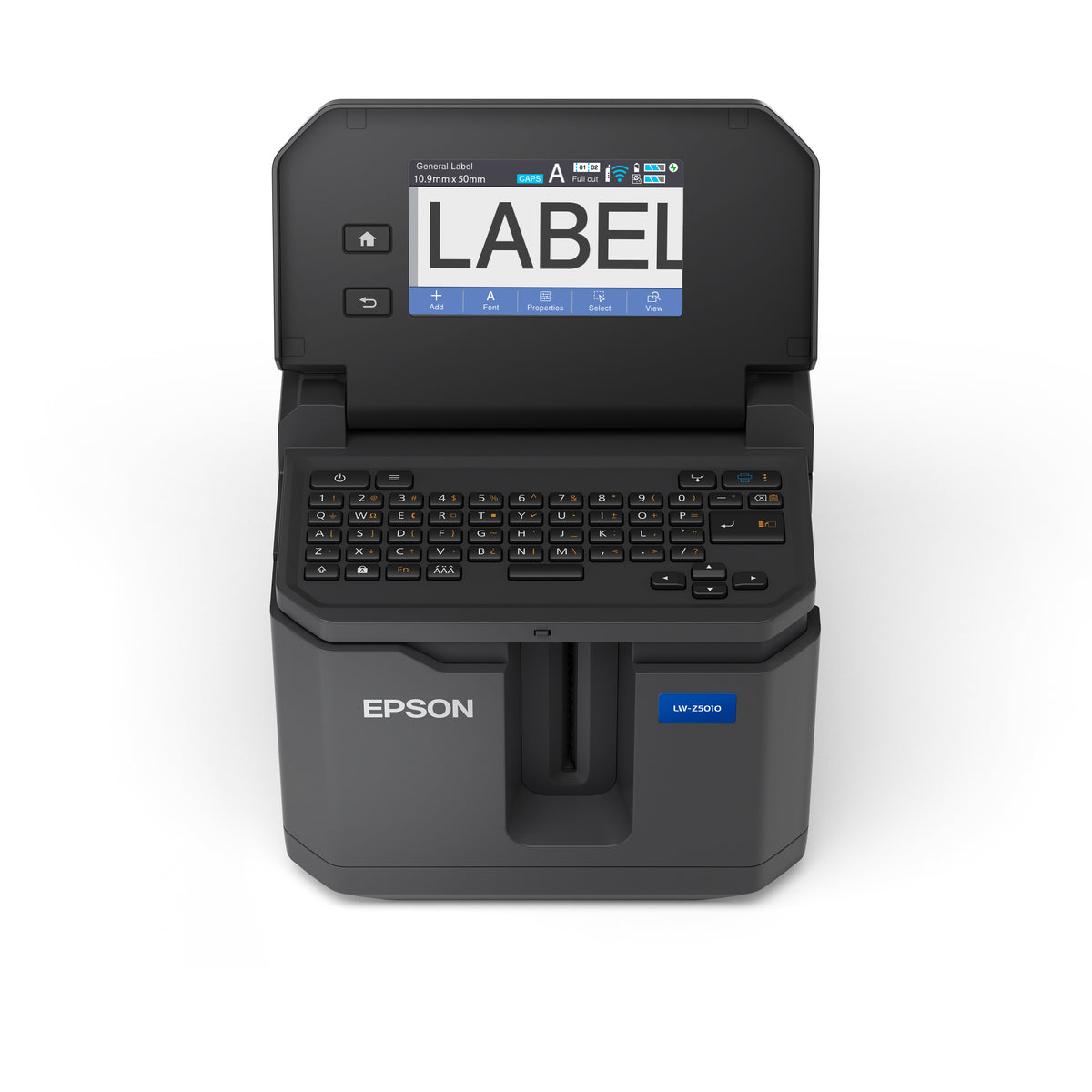

Hassle-free set up with the simple BR label roll kit design, allowing the user to install and replace consumables without fuss. Smoother operating experience with a 4.3" WQVGA colour LCD touch panel and keyboard. Creating labels made easier with the new in-built graphic user interface. Prevent errors with automatic detection of label type, colour, and size.
Multiple network-sharing capabilities
Print from anywhere when connected to the same network on your LW-Z5010BA. With seamless Wi-Fi and Ethernet connectivity, you only need one printer to serve all the users in your workgroup, making it even more cost-efficient for your business.
Ultimate versatility with Epson Label Editor software
Compatible with the upgraded Epson Label Editor software, you can now create a wide range of industrial labels including those that require barcodes, QR codes, sequential alpha and numeric coding. The Epson Label Editor software also allows you to import data for massive label printing.
Increase productivity with a peace of mind
Create and organise the roll of batch labels with the optional rewinder. Print and peel labels easily with the automatic full cut and half cut function. Replaceable cutter is available as an option.
Ideal For
Offices, IT and facilities teams, electricians and warehouses in Singapore that need durable labels for cables, assets, shelves and files. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
LabelWorks LW-Z5010BA Datasheet — Technical Specifications
General
| Model | LabelWorks LW-Z5010BA |
| Official Product Name | Epson LabelWorks LW-Z5010BA Bulk Roll Label Printer |
| Epson Product Code | C51CG52450 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months carry-in |
Hardware
| Cutter | Automatic full-cut and half-cut function (Replaceable) |
| Indicator | Power LED, Power Charge, Wi-Fi |
| Detection | Cover Open, Cut Setting, Print Density Setting, Print Speed Setting, Over Heat, Overcurrent Shutdown, Battery Charge, Auto Power Off |
| Drop-Stop & Print-and-Pick | Yes (Prints, cuts and hold label until it is pulled from printer before printing the next label in the batch automatically) |
| LCD | 4.3" Colour Touch Screen LCD |
| Keyboard | Yes |
| Tape Cartridge / Label Roll | Tape End Detection, Tape Type, Tape and Ribbon, Tape Width, Tape Remaining*1 |
| Rechargeable Battery | Bundled |
Fonts
| Print Fonts | Keypad / PC Dependant |
Connectivity
| Interface | USB 2.0, Ethernet, Wi-Fi, Simple AP mode |
| Included Software | Epson Label Editor (PC) |
| Mobile | Epson iLabel, Epson Datacom |
| Support OS | Windows, Android, iOS |
General
| AC Adapter | Bundled |
Printer Details
| Options | Rewinder: Winding Length: Max. 45m; Supported Tape Width: 9 - 50mm |
Overall Dimensions
| Overall Dimensions (D x W x H) | 198 x 193 x 153 mm |
Printing
| Technology | Thermal Transfer |
| Cartridge Type | LK Tape Cartridge, BR Label Roll Kit (Ribbon included) |
| Tape Width | Tape Cartridge: 6, 9, 12, 18, 24, 36, 50mm; Bulk Roll: 12, 18, 24, 36, 50mm |
| Resolution | 300 dpi |
| Printable Dot Numbers | 566 dot numbers |
| Max Print Speed | Up to 50mm / sec (with AC Adapter) / Up to 35mm / sec (with Rechargeable Battery) |
| Max. Print Width | 48mm |
Weight
| Weight | Approx. 3.2kg |
Print Settings
| Repeat Printing | Yes |
| Auto Increment | Yes |
| Data Import | Yes |
| Number Serialization | Up to 4 digits (alphanumeric) |
| Mirror Printing | Yes |
| Vertical Printing | Yes |
| Multi Line Print | Standalone mode / PC-based |
| Margins | Minimum 1mm print margin for standard labels for both standalone or the use of Label Editor |
| Fixed Length | Auto / Custom |
| Barcode / QR Code | 9 types on panel (EAN8, EAN13, Code39, Code 128, UPC-A, UPC-E, ITF, CodaBar, QR Code), 15 types (via Label Editor Software) |
| Symbols | 907 symbols on LCD Panel, 6 User Download Symbol, 1,475 symbols (via Label Editor Software) |
| Max Copies | 999 |
| Label Length | From 10 to 999.9mm |
Print Function
| General Labeling | Yes |
| Cable Wrap | Yes |
| Cable Flag | Yes |
| Face Plate | Yes |
| Mix-Length | Yes |
| Patch Panel | Yes |
| Punch Block | Yes |
| 110-Block/ Block-66 | Yes |
| Self-Lamination | Yes |
| Pipe Marker | Yes (Via Panel only) |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the LabelWorks LW-Z5010BA. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | USB 2.0, Ethernet, Wi-Fi, Simple AP mode |
| Included Software | Epson Label Editor (PC) |
| Mobile | Epson iLabel, Epson Datacom |
| Support OS | Windows, Android, iOS |
Package Contents & Ordering Information
Ordering Information
| Model | LabelWorks LW-Z5010BA |
| Epson Product Code | C51CG52450 |
| Recommended Retail Price (incl. GST) | S$959.00 |
| Consumables | Epson LK label (tape) cartridges 6/9/12/18/24/36/50mm and BR Bulk Roll label roll kits (ribbon included) 12/18/24/36/50mm. Individual part numbers not listed on the product page. |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — LabelWorks LW-Z5010BA
What warranty does the LabelWorks LW-Z5010BA come with?
1 Year Local Warranty from Epson Singapore: 12 months carry-in. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the LabelWorks LW-Z5010BA use?
Epson LK label (tape) cartridges 6/9/12/18/24/36/50mm and BR Bulk Roll label roll kits (ribbon included) 12/18/24/36/50mm. Individual part numbers not listed on the product page. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
