Epson EcoTank L8100 Ink Tank Printer
PRODUCT DESCRIPTION
Epson EcoTank L8100 Ink Tank Printer (C11CK94501) - 2 Years Local Warranty
The Epson EcoTank L8100 Ink Tank Printer - Quality Printing for Cherished Moments.
Remarkable Quality Prints
Achieve superior quality photo printouts with smooth gradation and less graininess, thanks to a high resolution of 5,760 x 1,440 dpi and an expanded colour gamut attained through 6 colour dye inks.
Easy Maintenance
Compact design with all front access for easy maintenance, reducing downtime from consumable replacements and paper jams.
High Yield Ink Bottles
A replacement set of ink bottles can deliver up to 2,100 4R photos or 3,600 mono pages and 7,200 colour pages, saving time and hassle while keeping overall cost low.
Direct USB Port
Effortlessly print photos directly from a memory device and save scans to it, all without relying on a computer.
ID Card Printing

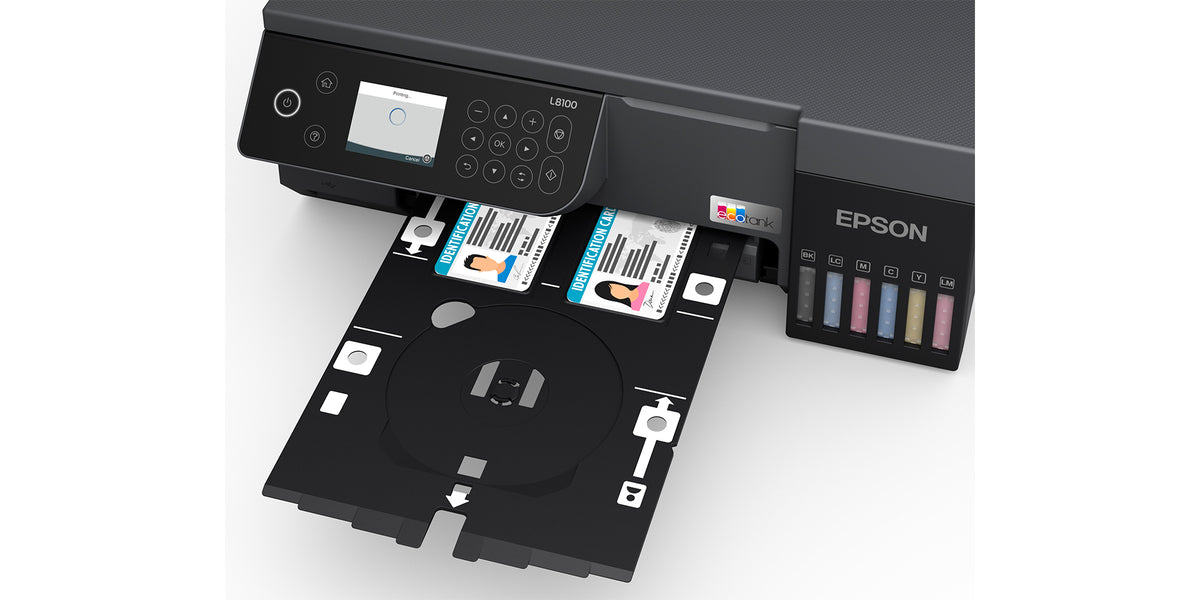

L8100 offers versatile media support, allowing you to print on various formats including CD/DVDs and PVC ID cards using the dedicated disc/ID card tray provided.
2.4" LCD Display
Perform printer operation easily without a computer via the built-in 2.4" colour LCD display.
Smart Printing
Versatile connectivity options such as Wi-Fi and Wi-Fi Direct, allows you to print wirelessly from mobile devices and laptops. The Epson Smart Panel app lets you set up, print, and troubleshoot – all at your fingertip.
Ideal For
Photographers, hobbyists, designers and schools in Singapore that want high-quality colour and photo output with low-cost refillable ink. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
EcoTank L8100 Datasheet — Technical Specifications
General
| Model | EcoTank L8100 |
| Official Product Name | Epson EcoTank L8100 Ink Tank Printer |
| Epson Product Code | C11CK94501 |
| Brand | Epson |
| Warranty | 2 Years Local Warranty (Singapore) - 2 years carry-in or 50,000 pages, whichever comes first (extra coverage available when registered on the Epson E-Portal) |
General
| Printer Type | Print, Scan, Copy |
| Printing Technology | Micropiezo Printhead |
| Nozzle Configuration | 180 x 1 nozzles Black; 180 x 1 per colour (Cyan, Magenta, Yellow, Light Cyan, Light Magenta) |
| Print Direction | Bi-directional printing |
| Maximum Resolution | 5,760 x 1,440 dpi (with Variable-Sized Droplet Technology) |
| Minimum Ink Droplet Volume | 1.5 pl |
| Printer Language | ESC/P-R, ESC/P Raster |
| CD/DVD Printing | Yes |
| PVC/ID card printing | Yes |
| Automatic 2-sided Printing | No |
| LCD Screen | 2.4" Colour LCD Screen |
Print Speed
| Draft Text - Memo, A4 (Black / Colour) | Up to 22 ppm / 22 ppm |
| ISO 24734, A4 (Black / Colour) Simplex | Up to 8.0 ipm / 8.0 ipm |
| First Page Out Time (Black / Colour) | Approx. 14 sec / 14 sec |
| Photo Default - 10 x 15 cm / 4 x 6" | Approx. 25 sec / 25 sec |
| Photo Default - A4 | Approx. 60 sec / 64 sec |
Copy
| Copy Speed ISO 29183, A4 (Black / Colour), Flatbed Simplex | Up to 7.5 ipm / 7.5 ipm |
| Copy Quality | Draft / Standard / High |
| Maximum Copies | 99 copies |
| Maximum Copy Resolution | 600 x 600 dpi |
| Maximum Copy Size | A4, LTR |
Scan
| Scanner Type | Flatbed colour image scanner |
| Sensor Type | CIS |
| Optical Resolution | 1,200 x 4,800 dpi |
| Maximum Scan Area | 216 x 297 mm (8.5 x 11.7") |
| Scanner Bit Depth | Colour: 48-bit input, 24-bit output; Grayscale: 16-bit input, 8-bit output; Black & White: 16-bit input, 1-bit output |
| Scan Speed (Flatbed) | Monochrome (200 dpi): Up to 6 sec; Colour (200 dpi): Up to 11 sec |
Paper Handling
| Paper Feed Method | Friction feed |
| Number of Paper Trays | 1 |
| Paper Hold Capacity | Input: 100 sheets A4 Plain Paper (80g/m2), 20 sheets Premium Glossy Photo Paper; Output: 100 sheets A4 Plain Paper (80g/m2), 30 sheets Premium Glossy Photo Paper |
| Support Paper Size | A4, A5, A6, B5, B6, Letter, Legal, Indian-Legal, 100 x 148 mm, 3.5 x 5", 4 x 6", 5 x 7", 5 x 8", 8 x 10", 8.5 x 13", 16:9 Wide, 16K, Envelopes: #10, DL, C6 |
| Maximum Paper Size | 215.9 x 2000 mm (8.5 x 78.74") |
| Support Paper Weight | Plain Paper: 64–90 g/m2; Photo Paper: 102–300 g/m2 |
| Print Margin | 0 mm top, left, right, bottom via custom settings in printer driver |
Connectivity
| USB | USB 2.0 |
| Network | Wi-Fi IEEE 802.11b/g/n, Wi-Fi Direct |
| Network Protocol | TCP/IPv4, TCP/IPv6 |
| Network Management Protocols | SNMP, HTTP, DHCP, APIPA, DDNS, mDNS, SLP, WSD, LLTD |
| USB Host Type | Memory Devices |
| USB Host Function | USB Host (Scan to Memory Device / Storage function) |
| Direct Print Paper Size | A4, A5, A6, B5, B6, Letter, Legal, 3.5 x 5", 4 x 6", 5 x 7", 8.5 x 13", 16K, Envelopes: #10, DL, C6 |
| Supported Formats (Direct Print) | JPEG |
| Epson Connect | Epson Smart Panel, Epson Email Print, Remote Print Driver, Scan to Cloud |
| Driverless Solutions | Apple AirPrint, Mopria Print Service, Chrome OS |
| Software Solutions Compatibility | Epson Photo+; Epson ScanSmart; Epson Device Admin; Epson Remote Services |
OS Compatibility
| Operating System Compatibility | Windows 7 / 8 / 8.1 / 10 / 11; Windows Server 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.9.5 or later, macOS 11 or later |
Acoustic
| PC Printing/PGPP/Best Photo - Sound Power (Black / Colour) | 4.9 / 5.0 B(A) |
| PC Printing/PGPP/Best Photo - Sound Pressure (Black / Colour) | 37 / 37 dB(A) |
| PC Printing/Plain Paper Default - Sound Power (Black / Colour) | 6.2 / 6.0 B(A) |
| PC Printing/Plain Paper Default - Sound Pressure (Black / Colour) | 50 / 47 dB(A) |
Electrical
| Rated Voltage | AC 220-240 V |
| Rated Frequency | 50 - 60 Hz |
| Power Consumption | Operating: 19 W; Standby: 4.8 W; Sleep: 0.7 W; Power Off: 0.2 W |
Warranty
| Warranty | 2-years Warranty or 50,000 Pages (A4), (whichever comes first, printhead included) |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the EcoTank L8100. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Printer Language | ESC/P-R, ESC/P Raster |
| USB | USB 2.0 |
| USB Host Type | Memory Devices |
| USB Host Function | USB Host (Scan to Memory Device / Storage function) |
| Epson Connect | Epson Smart Panel, Epson Email Print, Remote Print Driver, Scan to Cloud |
| Driverless Solutions | Apple AirPrint, Mopria Print Service, Chrome OS |
| Software Solutions Compatibility | Epson Photo+; Epson ScanSmart; Epson Device Admin; Epson Remote Services |
| Operating System Compatibility | Windows 7 / 8 / 8.1 / 10 / 11; Windows Server 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.9.5 or later, macOS 11 or later |
Package Contents & Ordering Information
Ordering Information
| Model | EcoTank L8100 |
| Epson Product Code | C11CK94501 |
| Recommended Retail Price (incl. GST) | S$649.00 |
| Consumables | 057 ink bottles: Black - 3,600 pages; Cyan, Magenta, Yellow, Light Cyan, Light Magenta - 7,200 pages (composite yield), 2,100 photo pages (composite yield). Pickup Roller: C12C937771. Maintenance Box: C12C934591. |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — EcoTank L8100
What warranty does the EcoTank L8100 come with?
2 Years Local Warranty from Epson Singapore: 2 years carry-in or 50,000 pages, whichever comes first (extra coverage available when registered on the Epson E-Portal). Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the EcoTank L8100 use?
057 ink bottles: Black - 3,600 pages; Cyan, Magenta, Yellow, Light Cyan, Light Magenta - 7,200 pages (composite yield), 2,100 photo pages (composite yield). Pickup Roller: C12C937771. Maintenance Box: C12C934591. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
