Epson EcoTank L6580 A4 Colour Wi-Fi Duplex All-in-One Ink Tank Printer
PRODUCT DESCRIPTION
Epson EcoTank L6580 A4 Colour Wi-Fi Duplex All-in-One Ink Tank Printer (C11CJ28502) - 3 Years Local Warranty
The Epson EcoTank L6580 A4 Colour Wi-Fi Duplex All-in-One Ink Tank Printer - SUPERIOR BUSINESS PRINTING AT LOW RUNNING COST.
Epson Heat-Free Technology
Achieve high speed printing at lower power consumption with Epson Heat-Free Technology as no heat is required during the ink ejection process. Increase productivity for your business with Epson's EcoTank L6580 while doing a little more for the environment.
Consistent High Speed Printing
With our PrecisionCore printhead technology, busy offices with high print volume will appreciate the consistent fast print speeds up to 32.0 ppm for draft and 25 ipm (simplex) for standard colour prints on L6580.
Low Power Consumption
Unlike laser printers, there is no fuser unit to heat, less power is consumed by L6580. Also, printer operating time and electricity consumption can be optimised as there are no delays caused by accumulated heat in the printhead.
Superb Savings & Page Yield
Don't compromise on cost as you print. With L6580, you'll be able to save costs as each set of bottle inks has an ultra-high yield of 7,500 for black and 6,000 pages for colour. With less consumables and replacement parts in L6580, additional savings can be made possible.
Less Maintenance with Decreased Downtime
Due to the simple Heat-Free structure, there are fewer parts that can fail, which minimises the amount of intervention required. As a result, it offers improved reliability and significantly reduced downtime.
DURABrite ET Ink
Get printouts that are sharp, clear and water-resistant with the new 4-colour pigment inks, which is perfect for business printing.

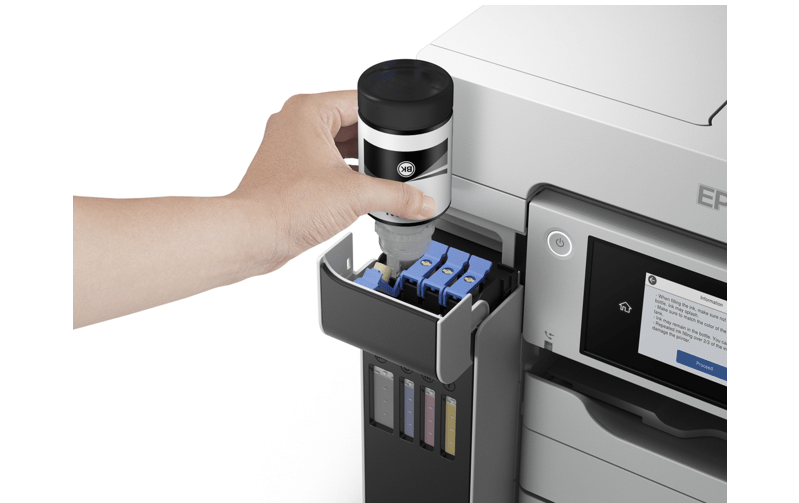

Space-saving Design, Spill-free Refilling
Compact and sleek, the new tank design is integrated into the printer to allow the printer to have a small footprint. Additionally, the unique bottle nozzle enables spill-free and error-free refilling.
Ideal For
Small and medium offices in Singapore that need fast, high-volume business printing with on-site warranty and low running costs. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
EcoTank L6580 Datasheet — Technical Specifications
General
| Model | EcoTank L6580 |
| Official Product Name | Epson EcoTank L6580 A4 Colour Wi-Fi Duplex All-in-One Ink Tank Printer |
| Epson Product Code | C11CJ28502 |
| Brand | Epson |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years on-site or 80,000 pages, whichever comes first |
General
| Printer Type | Print, Scan, Copy, Fax with ADF |
| Printing Technology | PrecisionCore Printhead |
| Nozzle Configuration | 800 x 1 nozzles each (Black, Cyan, Magenta, Yellow) |
| Print Direction | Bi-directional printing |
| Maximum Print Resolution | 4,800 x 1,200 dpi |
| Minimum Ink Droplet Size | 3.8 pl |
| Emulation | PCL5 / PCL6 / PostScript3 / PDF (ver1.7) |
| Automatic 2-sided Printing | Yes (up to A4) |
| Printer Language | ESC/P-R |

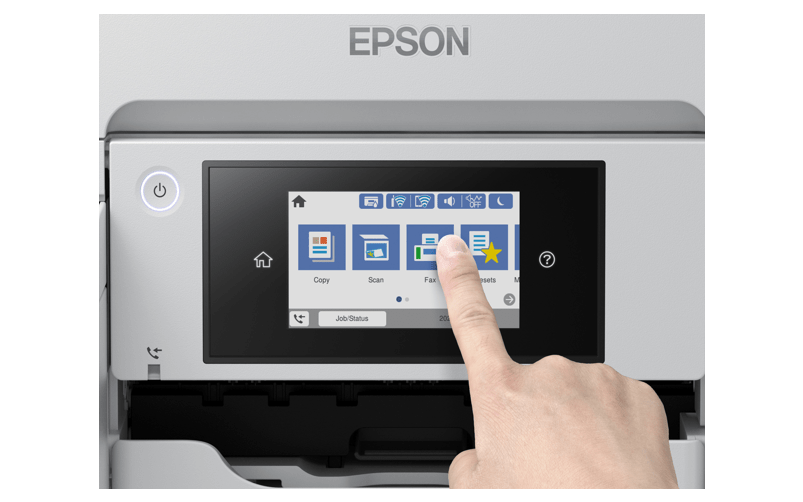

| LCD Screen | 4.3" TFT Colour Touch LCD |
Print Speed
| ISO 24734, A4 Simplex (Black/Colour) | Up to 25 ipm / 25 ipm |
| ISO 24734, A4 Duplex (Black/Colour) | Up to 21 ipm / 21 ipm |
| First Page Out Time A4 (Black/Colour) | Up to 5.5 sec / 5.5 sec |
| Draft Text - Memo, A4 (Black/Colour) | Up to 32 ppm / 32 ppm |
| Photo Default - 10 x 15 cm (Border/Borderless) | Approx. 26 sec per photo / 27 sec per photo |
Copy
| Maximum Copies from Standalone | 999 copies |
| Reduction / Enlargement | 25 - 400%, Auto Fit Function |
| Maximum Copy Resolution | 600 x 600 dpi |
| Maximum Copy Size | Legal |
| ISO 24735, A4 (Black/Colour, 1:1) | Up to 22.5 ipm / 22.5 ipm |
| ISO 24735, A4 (Black/Colour, 1:2, 2:2) | Up to 19 ipm / 19 ipm |
| ISO 29183, A4 Simplex (Black / Colour) | Up to 23 ipm / 23 ipm |
Scan
| Scanner Type | Flatbed colour image scanner |
| Sensor Type | CIS |
| Optical Resolution | 1200 x 2400 dpi |
| Maximum Scan Area | 216 x 297 mm |
| Scanner Bit Depth (Colour) | 48-bit input, 24-bit output |
| Scanner Bit Depth (Grayscale) | 16-bit input, 8-bit output |
| Scanner Bit Depth (Black & White) | 16-bit input, 1-bit output |
| Scan Features | Scan to Memory Device, Scan to Network Folder/FTP, Scan to Email, Scan to Computer (Epson ScanSmart), Scan to Computer (WSD) |
| Scan Speed (Flatbed / ADF) Monochrome | Up to 5.0 sec / 27.5 ppm / 11 ipm |
| Scan Speed (Flatbed / ADF) Colour | Up to 10 sec / 9.0 ppm / 6.0 ipm |
| ADF Paper Capacity | 50 pages (80g/m2) |
| ADF Support Paper Thickness | 64-95 g/m2 |
Fax
| Fax Type | Walk-up Black-and-white and Colour Fax Capability |
| Receive Memory / Page Memory | 6MB, Up to 550 pages (ITU-T No.1 chart) |
| Error Correction Mode | ITU-T T.30 |
| Fax Speed (Data Transfer Rate) | Up to 33.6kbps, Approx. 3sec/page |
| Fax Resolution | Up to 200 x 200 dpi |
| Transmission Paper Size (Flatbed) | Half Letter, A5, Letter, A4 |
| Transmission Paper Size (ADF) | Half Letter, A5, Letter, A4, LGL |
| Receiving Paper Size | Half Letter, A5, Letter, A4, LGL |
| Speed Dial / Group Dial | Up to 200 numbers, 199 groups |
| Fax Features | PC Fax (Transmission/Receive), Automatic Redial, Address Book, Transmit Reservation, Broadcast Fax (Mono only), Polling Reception, Fax Preview, Fax to E-mail, Memory Reception, Fax to Folder, Automatic 2-sided Fax |
Paper Handling
| Paper Feed Method | Friction Feed |
| Number of Paper Trays | 3 (Front 2, Rear 1) |
| Paper Hold Capacity (Input - Cassette 1) | 250 sheets of Plain Paper (80 g/m2), 50 sheets of Premium Gloss Photo Paper |
| Paper Hold Capacity (Input - Cassette 2) | 250 sheets of Plain Paper (80 g/m2) |
| Paper Hold Capacity (Input - Rear Slot) | 50 sheets of Plain Paper (80 g/m2), 20 sheets of Premium Gloss Photo Paper |
| Paper Hold Capacity (Output) | 125 sheets (80 g/m2), 20 sheets, Premium Glossy Photo Paper |
| Maximum Paper Size | 215.9 x 6,000mm (8.5 x 236.2") |
| Paper Sizes | A6, A5, A4, B6, B5, Half Letter, Executive, 16K, Indian-Legal, Letter, 8.5 x 13 in, Legal 8.5 x 14 in (216 x 356 mm), 4 x 6 in, 5 x 7 in, 8 x 10 in, 16:9 wide, Envelopes #10, DL, C6, C4 |
Connectivity
| USB | USB 2.0 |
| USB Host Function | USB Host (Scan to memory device / Storage function) |
| Type of Direct Printing | 10x15cm, 13x18cm, HV 16:9 Wide, A4, A5, A6, Legal, Indian-Legal, Letter, B5, B6, 16K, 8.5x13in, #10, C4, C6, DL |
| Network | Ethernet (100BASE-TX/10BASE-T), Wi-Fi (IEEE 802.11b/g/n), Wi-Fi Direct (8 connections) |
| Network Protocol | TCP/IPv4, TCP/IPv6, LPD, IPP, PORT9100, WSD |
| Network Management Protocols | SNMP, HTTP, DHCP, BOOTP, APIPA, PING, DDNS, mDNS, SNTP, SLP, WSD, LLTD |
| Security Functions | Limit Access Function, PIN No. Certification, LDAP Address Book, IP Address Filtering, Panel Admin Mode |
| Epson Connect Features | Epson Smart Panel, Epson iPrint, Epson Email Print, Remote Print Driver, Scan to Cloud |
| Other Mobile Solutions | Apple AirPrint, Mopria Print Service |
OS Compatibility
| Operating System Compatibility | Windows XP / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 (SP2 or later) / 2008 / 2012 / 2016 / 2019, Mac OS X 10.6.8 or later |
| Software Support | Epson ScanSmart (Win / Mac) |
Electrical
| Rated Voltage | AC 220 - 240 V |
| Rated Frequency | 50 - 60 Hz |
| Typical Electricity Consumption (TEC) Value | 0.14 kWh |
| Power Consumption | Operating: 19.0 W; Standby: 9.8 W; Sleep: 0.8 W; Power off: 0.2 W |
| Noise Level | Colour: 6.6B(A), 51dB(A); Black: 6.6B(A), 51dB(A) |
Physical
| Dimensions (W x D x H) | 425 x 500 x 350mm |
| Weight | 17.8kg |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the EcoTank L6580. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Emulation | PCL5 / PCL6 / PostScript3 / PDF (ver1.7) |
| Printer Language | ESC/P-R |
| USB | USB 2.0 |
| USB Host Function | USB Host (Scan to memory device / Storage function) |
| Epson Connect Features | Epson Smart Panel, Epson iPrint, Epson Email Print, Remote Print Driver, Scan to Cloud |
| Other Mobile Solutions | Apple AirPrint, Mopria Print Service |
| Operating System Compatibility | Windows XP / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 (SP2 or later) / 2008 / 2012 / 2016 / 2019, Mac OS X 10.6.8 or later |
| Software Support | Epson ScanSmart (Win / Mac) |
Package Contents & Ordering Information
Ordering Information
| Model | EcoTank L6580 |
| Epson Product Code | C11CJ28502 |
| Recommended Retail Price (incl. GST) | S$1,749.00 |
| Consumables | 008 pigment ink bottles: Black C13T06G100 - 7,500 pages; Cyan C13T06G200, Magenta C13T06G300, Yellow C13T06G400 - 6,000 pages (composite yield). (Indonesia variants C13T06G199/299/399/499.) Maintenance Box: C12C934591. |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — EcoTank L6580
What warranty does the EcoTank L6580 come with?
3 Years Local Warranty from Epson Singapore: 3 years on-site or 80,000 pages, whichever comes first. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the EcoTank L6580 use?
008 pigment ink bottles: Black C13T06G100 - 7,500 pages; Cyan C13T06G200, Magenta C13T06G300, Yellow C13T06G400 - 6,000 pages (composite yield). (Indonesia variants C13T06G199/299/399/499.) Maintenance Box: C12C934591. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
