Epson Discproducer PP-50II Disc Publisher
PRODUCT DESCRIPTION
Epson Discproducer PP-50II Disc Publisher (C11CH41061) - 1 Year Local Warranty
The Epson PP-50II - Automated Disc Publishing.
High Precision and Reliability
The Discproducer PP-50II is built to withstand hard knocks and keep dust out. The solid body provides a sturdy housing for the intricate technologies within to run processes smoothly without any interruption. The AcuGrip™ robotic arm handles discs individually, minimising the risk of scratching compared with conventional sliding mechanisms and preventing mechanical blockage interruptions.
Unrivalled Performance with Cost Savings
Epson's industry-leading Micro Piezo print head and ink technology ensure uniform, stable ink droplets with virtually no satellites or misting, producing brilliant and crisp disc labels at a high resolution of up to 1440 dpi x 720 dpi. Six individual high-capacity ink cartridges are used instead of an all-in-one cartridge, reducing running costs.
Convenient and Fuss-Free Operation
The 'Total Disc Maker' software is easy to use for fast and efficient production of CDs and DVDs in just three simple steps. Compile the data, compose the label print image using templates, and configure production settings before publishing.
Monitoring System Reliability
The Monitoring Software keeps you informed about all-important parameters such as tray status and pending jobs. This enables unattended production runs while protecting against unexpected interruptions.
Compact Design
At less than 40cm wide, the PP-50II is one of the smallest systems in its class. Its flat top allows for another unit to be stacked above to save space or be used as storage surface for media and print cartridges.
Convenient Total Front-Operation

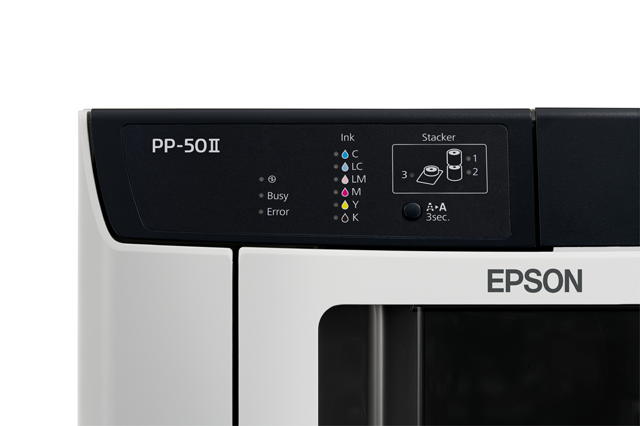

Features a two-line LCD display which is a built-in status monitor to display ink levels, helping to alert you and reduce production errors.
Blu-Ray Supported for PP-50II
The PP-50II is Blu-ray, DVD and CD publisher, combining proven features with design enhancements. Capable to produce precise and reliable results, it can burn and print up to 3 Blu-Ray discs per hour.
Ideal For
Organisations that publish and print CDs, DVDs and Blu-ray discs in batches — archives, medical imaging, education and media. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
Discproducer PP-50II Datasheet — Technical Specifications
General
| Model | Discproducer PP-50II |
| Official Product Name | Epson PP-50II |
| Epson Product Code | C11CH41061 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Performance
| Publishing Speed | CD (Burn & Print): Up to 15 discs/hour; DVD (Burn & Print): Up to 8 discs/hour; BD (Burn & Print): Up to 3 discs/hour; Printing Only Fast Mode: Up to 60 discs/hour; Fine Mode: Up to 40 discs/hour |
| Publishing Modes | Low Volume Mode: Up to 20 CDs/DVDs/BDs; Standard Mode: Up to 50 CDs/DVDs/BDs |
| Print Resolution | Fast Mode: 1440 dpi x 720 dpi; Fine Mode: 1440 dpi x 1440 dpi |
Ink
| Ink Type | Dye Ink |
| Ink Cartridges | Cyan, Light Cyan, Light Magenta, Magenta, Yellow, Black |
| Yield | 1,000 discs or more |
| Ink Pad Life | Approx. 30,000 discs |
Drive & Media
| CD/DVD Drives | 1 drive; Writing Speed: CD-R/CD+R 40x, DVD-R/DVD+R 12x, DVD-R DL/DVD+R DL 8x, BD-R/BD-R DL 8x |
| Disc Size | Outside diameter: 120mm ± 0.3mm; Inside diameter: 15mm +0.1/-0mm; Thickness: 1.2mm +0.3/-0.1mm |
| Disc Format | Standard 120mm (4.7") discs only; CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL, BD-R, BD-R DL |
| Surface | Inkjet Printable (glossy discs: Epson-recommended only) |
Connectivity & Software
| Interface | USB 2.0 Hi-Speed |
| Software | Total Disc Maker |
System Requirements
| OS Support | Windows 7/8/8.1/10/XP/Server 2008/2012/2016/2019 |
| CPU | Pentium 4 or compatible, 1.4 GHz+ (2.0 GHz+ for server) |
| Memory | 2GB+ (64-bit); 1GB+ (32-bit); 512MB+ (XP) |
| HDD | 10GB-170GB depending on OS |
| Graphics | XGA or better, 65,536 colors minimum |
General
| Warranty | 1-year limited warranty (on-site) |
| Power | AC 100-240V, 50-60Hz; Operating: Approx. 40W; Standby: Approx. 28W |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the Discproducer PP-50II. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | USB 2.0 Hi-Speed |
| Software | Total Disc Maker |
| OS Support | Windows 7/8/8.1/10/XP/Server 2008/2012/2016/2019 |
Package Contents & Ordering Information
Ordering Information
| Model | Discproducer PP-50II |
| Epson Product Code | C11CH41061 |
| Recommended Retail Price (incl. GST) | S$3,436.80 |
| Consumables | PJIC ink cartridges: C13S020447 PJIC1 Cyan, C13S020448 PJIC2 Light Cyan, C13S020449 PJIC3 Light Magenta, C13S020450 PJIC4 Magenta, C13S020451 PJIC5 Yellow, C13S020452 PJIC6 Black. Maintenance Box C13S020476 PJMB100. Yield: 1,000 discs or more; ink pad life approx. 30,000 discs. |
In the Box
- CD-ROM (Printer Driver, Application Software, User's Guide)
- Paper Manual (Setup Guide)
- 6 Ink Cartridges (Cyan, Magenta, Yellow, Light Cyan, Light Magenta, Black)
- AC Cable
- Warranty card
Datasheet & Downloads
Frequently Asked Questions — Discproducer PP-50II
What warranty does the Discproducer PP-50II come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the Discproducer PP-50II use?
PJIC ink cartridges: C13S020447 PJIC1 Cyan, C13S020448 PJIC2 Light Cyan, C13S020449 PJIC3 Light Magenta, C13S020450 PJIC4 Magenta, C13S020451 PJIC5 Yellow, C13S020452 PJIC6 Black. Maintenance Box C13S020476 PJMB100. Yield: 1,000 discs or more; ink pad life approx. 30,000 discs. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
