Eaton 9A 1000VA 900W Online Double-Conversion Rack UPS, 2U, 4x IEC C13
PRODUCT DESCRIPTION
Eaton 9A 1000VA/900W Online 2U Rack UPS (9A1000IR, 9103-53973) - 3 Years Local Warranty
True Online Double-Conversion Protection for Servers and Critical Equipment

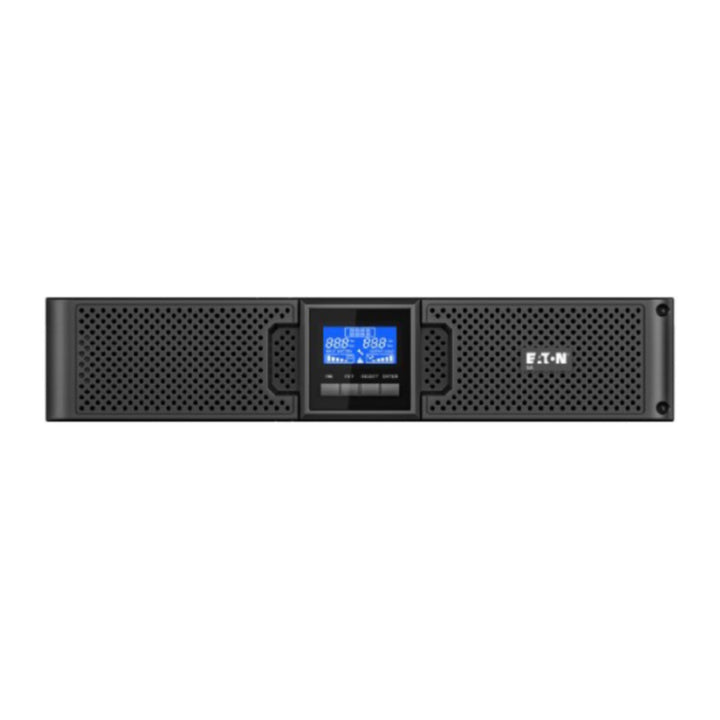

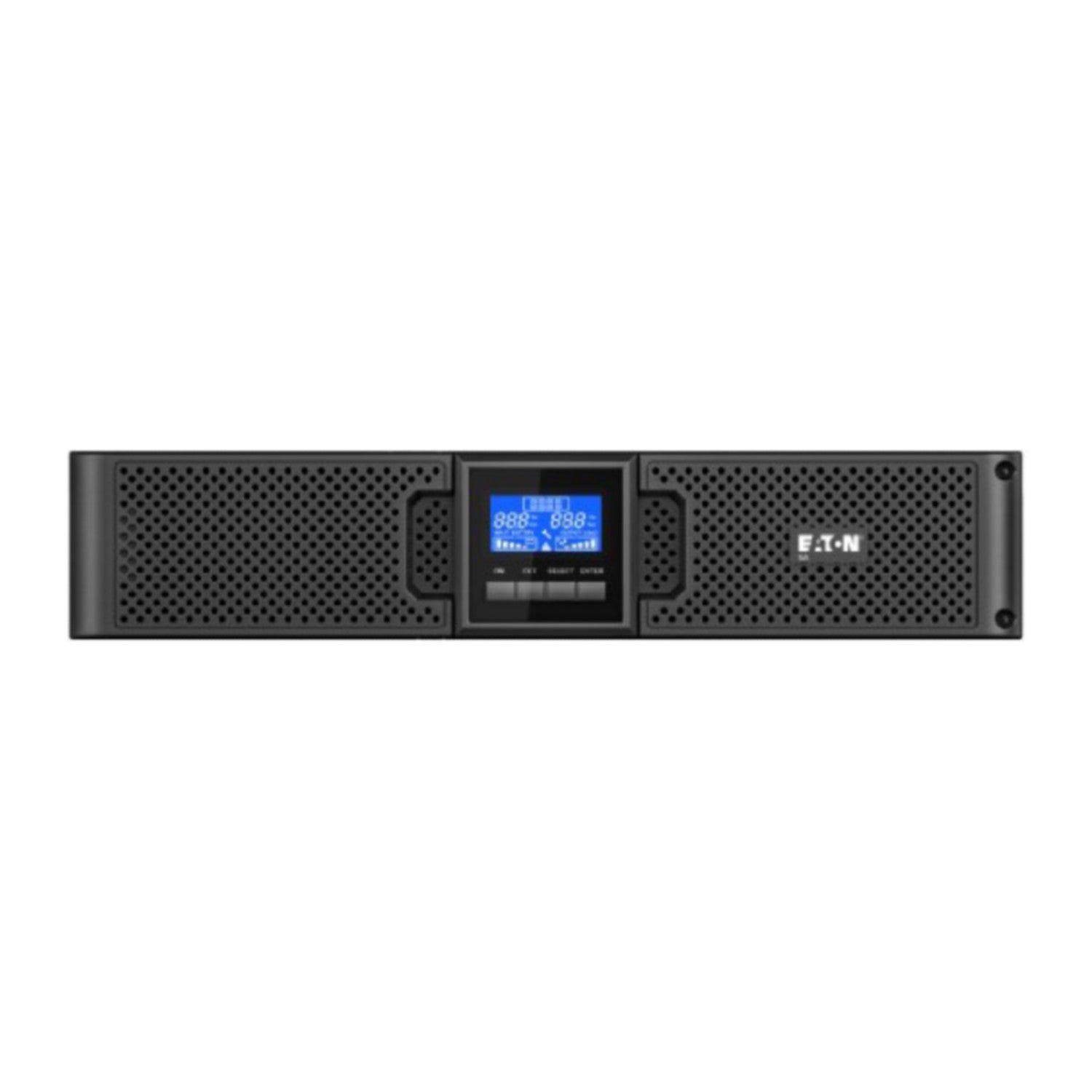

The Eaton 9A 9A1000IR is a 1000 VA / 900 W true online double-conversion UPS in a 2U rack-mount chassis. Every watt your equipment draws is regenerated by the inverter, so connected loads see a clean, regulated sine wave whatever is happening on the incoming supply — sags, surges, frequency drift or a full outage. It is Eaton's Advantage-series online UPS for East Asia, aimed at SMEs, IT, networking, storage, telecom and industrial-automation loads.
With a 0.9 output power factor you get 900 W of real power from a 1000 VA unit, which leaves more usable headroom for modern servers and switches with active-PFC power supplies.
Wide 176–300 V Input Window
The 9A runs from 176 V to 300 V without derating and keeps working down to 100 V with derating, so brown-outs on a loaded riser or site supply are absorbed without draining the battery. Output is selectable at 220, 230 or 240 V (±1%) at 50 or 60 Hz. Eaton quotes up to 88–90% efficiency in online mode, and an ECO mode (up to 97% per the user guide) is available where maximum efficiency matters more than full conditioning.
4 x IEC C13 Outlets, LCD Status and a Card Slot for Network Management
Output is on 4 x IEC C13 sockets with IEC C14 input. A segment LCD with red warning indication shows status at a glance. Standard ports are RS232, USB, EPO and an external battery connector, plus a mini slot for an Eaton NMC (network management), CMC (Modbus) or AS400 relay card for SNMP monitoring and remote shutdown.
Scalable Runtime with External Battery Modules
Internal batteries (2 x 12 V / 9 Ah) give about 4 minutes at full load — enough to ride through short outages or shut down gracefully. For longer runtime, add up to 4 9AEBM24R external battery modules; Eaton publishes 25 minutes at 100% load with one EBM.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the Eaton 9A in Singapore with a full GST invoice and local warranty support. Eaton's 9A brochure lists a 3-year warranty, and Eaton's Singapore price list confirms 3 years for this model.
Need help sizing runtime or choosing between tower and rack? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 9A1000IR Datasheet — Technical Specifications
General
| Product Name | Eaton 9A 9A1000iR |
| Catalogue Number | 9A1000IR |
| Part Number (SKU) | 9103-53973 |
| Range | Eaton 9A (Advantage Series) |
| Topology | Online double conversion |
| Form Factor | Rack 2U (19-inch rack kit included) |
| Manufacturer Warranty | 3 years (Eaton 9A brochure, East Asia) |
| Local Warranty (Singapore) | 3 years, included with every unit supplied by SourceIT, together with a GST invoice |
Input
| Nominal Voltage | 220 / 230 / 240 V AC |
| Input Voltage Range | 176–300 V without derating; 100–176 V with derating |
| Input Frequency Range | 45–55 Hz (50 Hz system); 54–66 Hz (60 Hz system) |
| Input Connection | IEC C14 |
Output
| Rated Power | 1000 VA / 900 W (0.9 power factor) |
| Output Voltage | 220 / 230 / 240 V AC, ±1% |
| Voltage Distortion (THDv) | <2% linear load / <6% non-linear load |
| Output Frequency | 50/60 Hz, auto-sensing or configurable |
| Output Receptacles | 4 x IEC C13 |
| Efficiency | Up to 88–90% online mode; up to 97% ECO mode |
| Transfer Time | <10 ms (ECO mode to battery mode) |
Battery & Runtime (Eaton published)
| Battery Type / Quantity | 2 x 12 V / 9 Ah |
| Backup at 100% Load | 4 min |
| Backup + 1 EBM at 100% Load | 25 min |
| External Battery Module | 9AEBM24R, up to 4 modules |
| EBM Charging Current | 1.5 A |
| Recharge Time | Less than 3 hours to 90% capacity |
| Cold Start | Supported |
| Runtime Graph | Eaton runtime calculator — 9A1000iR |
Communications
| Ports | RS232, USB (non-HID), EPO, external battery connector |
| Card Slot | Mini slot — NMC (network management), CMC (Modbus), AS400 relay card |
| Display | Segment LCD with red indication for warnings / errors |
| Software | Eaton WinPower |
Physical & Environmental
| Dimensions (W x H x D) | 438 x 86.5 x 435 mm |
| Weight | 12.6 kg |
| IP Rating | IP20 |
| Noise Level | <50 dB (ISO 7779, 1 m, buzzer off) |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–95% non-condensing |
| Operating Altitude | 0–3000 m (1% derating per 100 m above 1000 m) |
| Certifications | CE, KC, TISI, IEC 62040-1, IEC 62040-2 |
Compatibility & Software Support
What It Is Suited To
The 9A1000IR suits rack-mounted servers, storage, switches and firewalls in a 19-inch 4-post cabinet. Total the continuous watts of your load and keep it comfortably below 900 W; with online double conversion the equipment is always fed from the inverter, making it a good fit for sensitive or voltage-intolerant loads.
Monitoring and Shutdown
The USB and RS232 ports work with Eaton WinPower for automatic shutdown (Eaton lists WinPower for Windows, Linux, Unix and macOS). Note the USB port is non-HID, so use WinPower rather than relying on the operating system's built-in UPS support. For SNMP / web monitoring and network-wide shutdown, fit the Eaton NMC mini card in the slot; a CMC card adds Modbus and the AS400 card provides relay contacts.
Outlets
Output sockets are 4 x IEC C13. Equipment with BS 1363 (Type G) plugs needs an IEC C14 lead or an IEC-input power strip; ask us if you need one quoted.
Package Contents & 9A Ordering Information
In the Box
9A UPS, 19-inch rack mounting kit for 4-post enclosures, RS232 communication cable, connection cables for protected equipment, quick start guide and safety instructions (Eaton 9A user guide).
Eaton 9A Range — Ordering Information
| 9A1000I | 1000 VA / 900 W | Tower | 4 x IEC C13 | 9103-53974 |
| 9A2000I | 2000 VA / 1800 W | Tower | 4 x IEC C13 | 9103-73A00 |
| 9A3000I | 3000 VA / 2700 W | Tower | 6 x IEC C13 + 1 x IEC C19 | 9103-83A46 |
| 9A1000IR (this listing) | 1000 VA / 900 W | Rack 2U | 4 x IEC C13 | 9103-53973 |
| 9A2000IR | 2000 VA / 1800 W | Rack 2U | 4 x IEC C13 | 9103-73999 |
| 9A3000IR | 3000 VA / 2700 W | Rack 2U | 6 x IEC C13 + 1 x IEC C19 | 9103-83A45 |
Extended Runtime

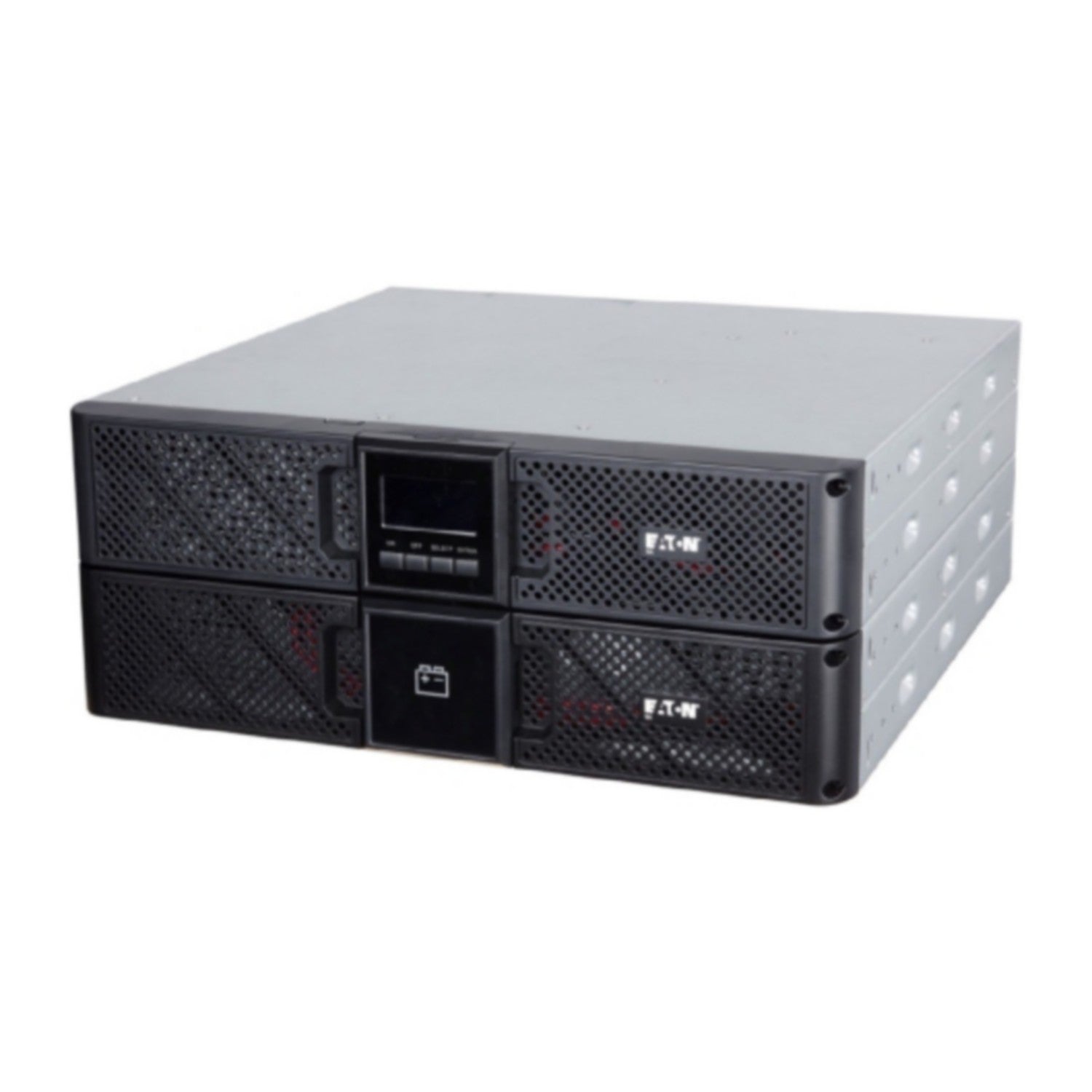

Matching external battery module for this model: 9AEBM24R (up to 4 per UPS). Ask us for pricing and runtime estimates.
Datasheet & Downloads
| Eaton brochure | Eaton 9A Online UPS Brochure — East Asia (PDF) |
| Eaton user guide | Eaton 9A UPS User Manual — East Asia (PDF) |
| Eaton product page | Eaton 9A UPS — eaton.com (software downloads) |
| Runtime | Eaton battery runtime graph — 9A1000iR |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9A1000IR.
Frequently Asked Questions — Eaton 9A1000IR
What does online double conversion mean?
The load is always powered by the inverter from a regulated DC bus, so there is no transfer gap when mains fails and the output stays clean and stable regardless of input quality. Line-interactive units such as the 5E or 5P only regulate and switch to battery when needed.
How long will it run on battery?
Eaton publishes about 4 minutes at 100% load on internal batteries and 25 minutes with one 9AEBM24R module. Runtime is much longer at partial load — check Eaton's runtime graph for 9A1000iR or send us your load in watts.
Can I monitor it over the network?
Yes, with an optional Eaton NMC mini card in the card slot. Without a card, use WinPower over USB or RS232 for local shutdown.
Are rack rails included?
Yes. Eaton's user guide lists a mounting kit for 19-inch 4-post enclosures in the box.
What warranty do I get?
3 years from Eaton, supplied by SourceIT with local Singapore support and a GST invoice.
