Dell Slim ECS1250 Core i5-14400 16GB 512GB Desktop
PRODUCT DESCRIPTION
Dell Slim Desktop ECS1250 Intel Core i5-14400 / 16GB / 512GB SSD (210-BPNX / 6677403) - 3 Years Local Warranty
14th Gen Core i5 for Everyday Work
The Dell Slim ECS1250 runs an Intel Core i5-14400 (10 cores / 16 threads, up to 4.7 GHz) with Intel UHD Graphics 730, 16GB of DDR5 memory at 4800 MT/s and a 512GB PCIe NVMe SSD.
Two Displays and Front USB-C
Rear HDMI 2.1 and DisplayPort 1.4 drive two monitors, while a front USB-C port, seven more USB ports, an optional SD card reader and 1 GbE cover peripherals and networking.
Slim 8.5-Litre Chassis, Still Upgradeable
At 8.5 litres and 95 mm wide, the slim chassis fits under monitors and on crowded desks, yet keeps a half-height PCIe x16 slot, two PCIe x1 slots, a 3.5-inch drive bay and a second memory slot (up to 64 GB DDR5).
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell ECS1250 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Slim Desktop ECS1250 |
| Part Number | 210-BPNX / 6677403 |
| Processor | Intel Core i5-14400 |
| Graphics | Intel UHD Graphics 730 (shared memory) |
| Memory | 16GB DDR5, 4800 MT/s |
| Storage | 512GB M.2 PCIe NVMe SSD |
| Wireless | Per supplied SKU - confirm with sales (Dell options: MediaTek Wi-Fi 6 MT7920 or Intel Wi-Fi 6E AX211, with Bluetooth) |
| Operating System | Per supplied SKU - confirm with sales |
| Keyboard & Mouse | Per supplied SKU - confirm with sales |
| Power Supply | 180 W internal PSU, 80 PLUS Bronze |
| Local Warranty (Singapore) | 3 years Basic Onsite, supplied by SourceIT with a GST invoice |
Processor & Graphics
| Processor | Intel Core i5-14400: 10 cores / 16 threads, 2.5 GHz to 4.7 GHz, 20 MB cache, 65 W |
| Chipset | Intel Q670 |
| Graphics | Intel UHD Graphics 730; half-height PCIe x16 slot for a low-profile graphics card |
Memory & Storage
| Memory Slots | 2 x DDR5 UDIMM, up to 64 GB (4800 MT/s with this processor) |
| Storage Slots | 1 x M.2 2230/2280 SSD slot; 1 x SATA 3.0 3.5-inch HDD bay |
| Wireless Slot | 1 x M.2 2230 for Wi-Fi/Bluetooth |
| Card Reader | SD card slot (optional) |

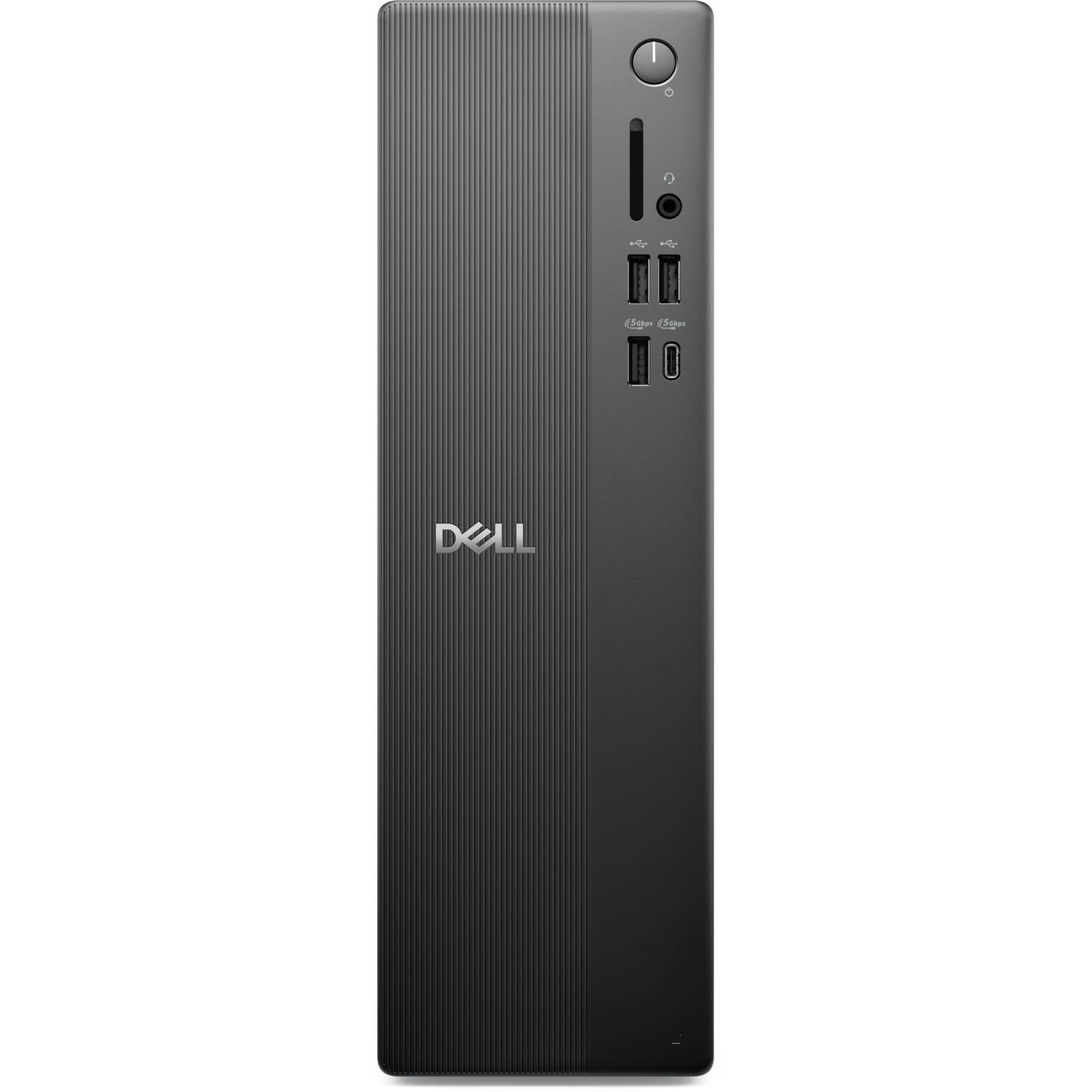

Front Ports
| USB-C | 1 x USB 3.2 Gen 1 (5 Gbps) Type-C |
| USB-A | 1 x USB 3.2 Gen 1 (5 Gbps); 2 x USB 2.0 (480 Mbps) |
| Audio | 1 x global headset jack |

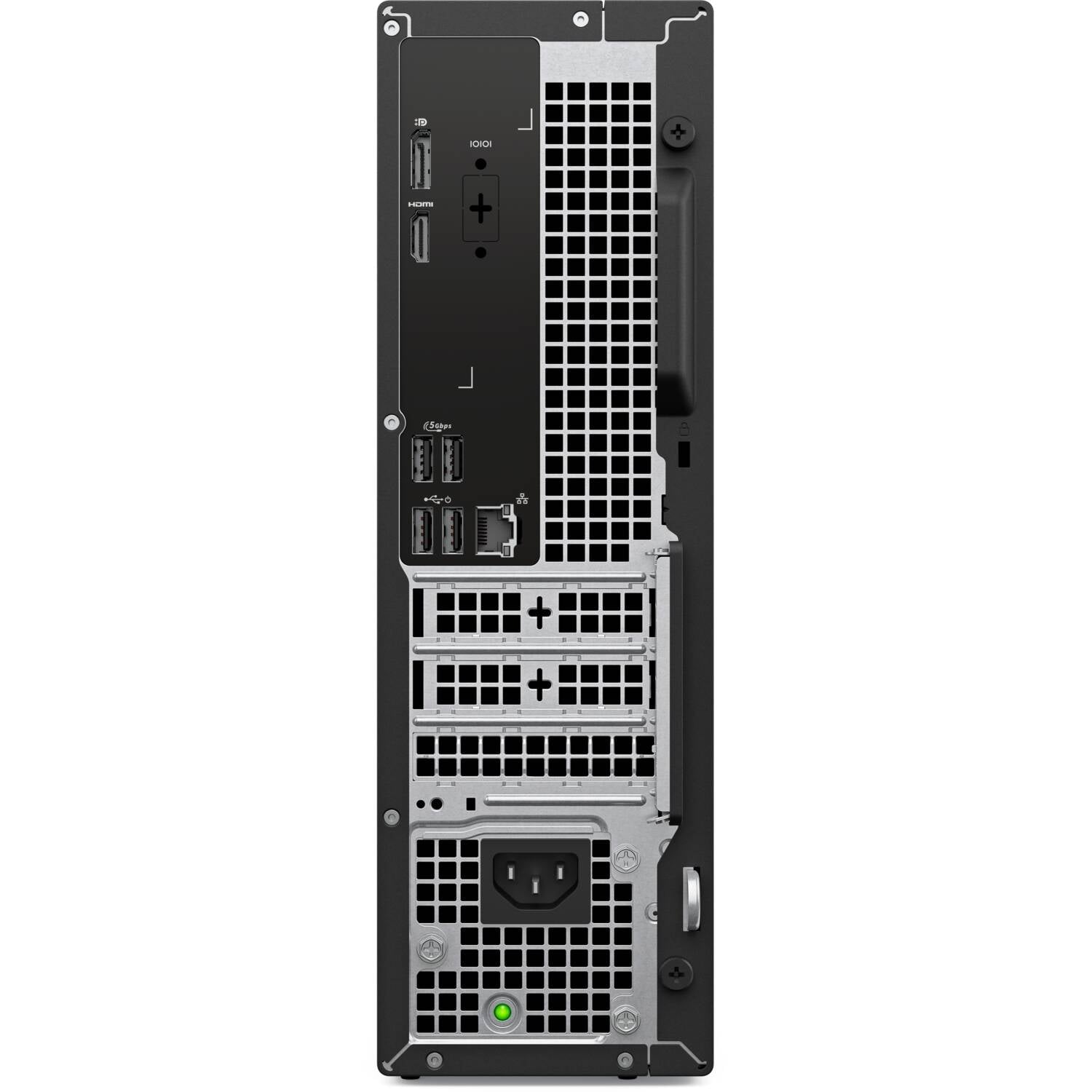

Rear Ports
| Video | 1 x HDMI 2.1 (TMDS); 1 x DisplayPort 1.4 HBR2 (up to 4096 x 2304 at 60 Hz) |
| USB | 2 x USB 3.2 Gen 1 (5 Gbps); 2 x USB 2.0 with Smart Power On |
| Network | 1 x RJ45 (1 GbE) |
| Optional | Serial port |
Expansion
| PCIe | 1 x half-height PCIe x16; 2 x half-height PCIe x1 |
Audio, Power & Security
| Audio | Realtek ALC3204 |
| Power Supply | 180 W internal PSU, 85% efficient, 80 PLUS Bronze |
| Security | TPM 2.0; security-cable slot (Kensington lock); padlock loop |
| Environmental | ENERGY STAR; EPEAT Silver with Climate+; 50% recycled steel |
Physical
| Chassis | 8.5-litre slim desktop, black |
| Dimensions (H x W x D) | 303.50 x 95.00 x 293.00 mm |
| Weight | 3.49–4.75 kg, depending on configuration |
Compatibility & Software Support
Operating System
Windows 11 Home or Windows 11 Pro depending on SKU — confirm the edition with SourceIT before ordering.
Displays
HDMI 2.1 and DisplayPort 1.4 on Intel UHD Graphics 730 support two monitors.
Typical Use
Small offices, counters, classrooms and back-office desks running productivity suites, browsers and accounting software.
Package Contents & Dell Slim Ordering Information
In the Box
Dell Slim ECS1250 desktop and power cable. Keyboard and mouse per supplied SKU.
Dell Slim ECS1250 Configurations at SourceIT
| Processor | Memory / Storage |
| Core Ultra 5 225 | 16GB / 512GB SSD |
| Core i5-14400 (this listing) | 16GB / 512GB SSD |
| Core i7-14700 | 16GB / 512GB SSD |
| Core i5-14400 | 8GB / 512GB SSD |
Need more expansion? See the Dell Tower ECT1250. Other processor, memory and storage options can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Dell product page | Dell Slim ECS1250 on Dell Singapore |
| Spec sheet | Dell Slim ECS1250 spec sheet (PDF) |
| Manuals & drivers | Dell Slim ECS1250 manuals on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ECS1250.
Frequently Asked Questions — Dell ECS1250
How many monitors can I connect?
Two, via the rear HDMI 2.1 and DisplayPort 1.4 outputs.
Is the memory DDR4 or DDR5?
DDR5 at 4800 MT/s. The desktop has two UDIMM slots and takes up to 64 GB.
Can I add a graphics card?
Only a half-height (low-profile) card fits the PCIe x16 slot, and the fitted PSU is 180 W — check power needs with SourceIT before adding a card.
How is it different from the Dell Tower ECT1250?
The Dell Slim is an 8.5-litre, 95 mm-wide chassis with half-height slots; the Dell Tower is a 14.6-litre tower with full-height PCIe slots and a 360 W PSU option.
What warranty do I get?
3 years Basic Onsite, supplied locally by SourceIT with a GST invoice.
