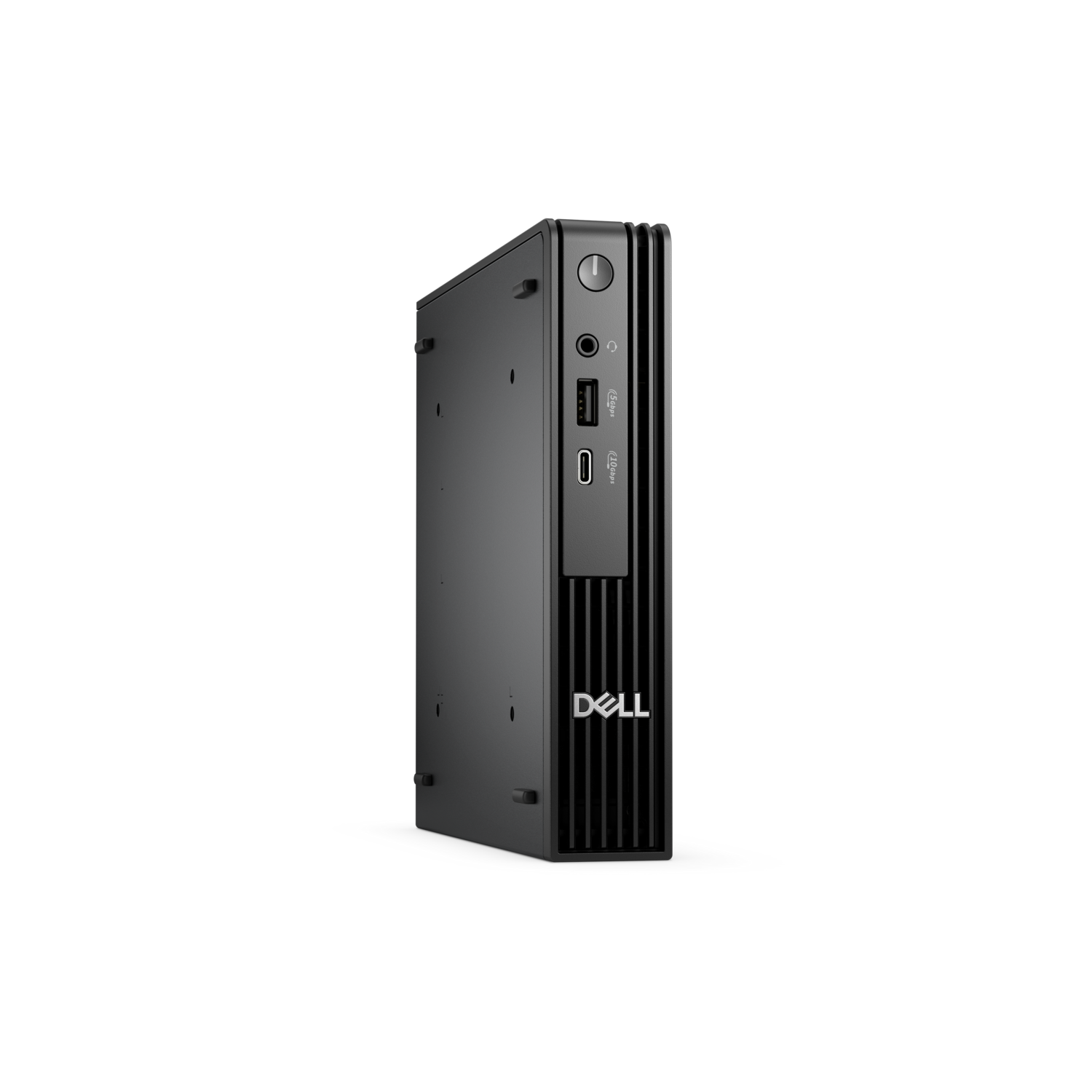

Dell Pro Micro QCM1250 Core Ultra 5 235T 16GB 256GB Desktop
PRODUCT DESCRIPTION
Dell Pro Micro Desktop QCM1250 Intel Core Ultra 5 235T / 16GB / 256GB SSD / Wi-Fi (210-BPPV / QCM1250-U5-235T-16G-256G) - Local Dell Warranty
Full Desktop Power in 1.18 Litres
The Dell Pro Micro QCM1250 measures just 182 x 36 x 178 mm, small enough to sit behind a monitor or under a desk, yet runs a 35 W Intel Core Ultra 5 235T processor with 14 cores (6 performance + 8 efficient), up to 5.0 GHz and 24 MB cache, plus an Intel AI Boost NPU of up to 13 TOPS.
Room to Grow
This configuration ships with 16GB DDR5 in a system with two SODIMM slots (up to 64GB) and a 256GB SSD, with a second M.2 SSD slot for expansion. Wi-Fi and Bluetooth are built in.
Connect Two Displays and More
HDMI 2.1 and DisplayPort 1.4a drive two monitors, while a front 10Gbps USB-C port, three 5Gbps USB-A ports, two USB 2.0 ports and Gigabit Ethernet cover peripherals and wired networking. An optional I/O module slot adds a third video output, serial or more USB.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell QCM1250 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Pro Micro Desktop QCM1250 |
| Part Number | 210-BPPV / QCM1250-U5-235T-16G-256G |
| Processor | Intel Core Ultra 5 235T (35 W) |
| Memory | 16GB DDR5 |
| Storage | 256GB SSD |
| Wireless | Wi-Fi and Bluetooth (module per supplied SKU - confirm with sales) |
| Operating System | per supplied SKU - confirm with sales |
| Keyboard & Mouse | per supplied SKU - confirm with sales |
| Local Warranty (Singapore) | Local Dell warranty, supplied by SourceIT with a GST invoice (term per supplied SKU - confirm with sales) |
Processor & Graphics
| Processor | Intel Core Ultra 5 235T: 14 cores (6P + 8E) / 14 threads, up to 5.0 GHz, 24 MB cache |
| NPU | Intel AI Boost, up to 13 TOPS |
| Graphics | Intel Graphics (integrated) |
Memory & Storage
| Memory Slots | 2 x DDR5 SODIMM, up to 64GB |
| Storage Slots | 2 x M.2 2230/2280 SSD slots (heatsinks for dual-SSD sold separately) |
| Wireless Slot | 1 x M.2 2230 for Wi-Fi/Bluetooth |
Front Ports
| USB-C | 1 x USB 3.2 Gen 2 (10Gbps) Type-C |
| USB-A | 1 x USB 3.2 Gen 1 (5Gbps) |
| Audio | 1 x headset (headphone and microphone combo) jack |
Rear Ports
| Video | 1 x HDMI 2.1 (TMDS); 1 x DisplayPort 1.4a |
| USB | 2 x USB 3.2 Gen 1 (5Gbps), one with SmartPower On; 2 x USB 2.0 |
| Network | 1 x RJ45, 10/100/1000 Mbps |
| Expansion | Optional I/O module port (HDMI, DisplayPort, VGA, USB-C, USB-A, serial, PS2 or fibre options); optional external antenna port |
| Power | 4.5 mm DC-in |
Power
| Power Adapter | External 65 W or 90 W, 19.5 V, 4.5 mm barrel |
Security
| TPM | TPM 2.0 |
| Physical | Kensington security-cable slot, padlock ring, chassis intrusion switch, lockable cable covers |
| Firmware | Dell SafeBIOS (off-host BIOS verification, BIOS resilience and recovery) |
Physical & Environmental
| Dimensions (H x W x D) | 182.00 x 36.00 x 178.00 mm |
| Volume | 1.18 L |
| Weight | 1.16–1.40 kg, depending on configuration |
| Certifications | ENERGY STAR; EPEAT Gold registered with Climate+ |
Compatibility & Software Support
Operating System
Operating system per supplied SKU - confirm with sales.
Mounting
Dell offers the Dell Pro Micro All-in-One Stand, Dual VESA Mount with Adapter Bracket, Vertical Desktop Stand and Wall/Under-the-Desk VESA Mount with PSU Sleeve for behind-the-monitor and under-desk installs.
Typical Use
Reception and front desks, hot desks, kiosks, meeting rooms and large office roll-outs where desk space is tight but a full Windows desktop is needed.
Package Contents & Dell Pro Micro Ordering Information
In the Box
Dell Pro Micro QCM1250 desktop and external power adapter; keyboard and mouse per supplied SKU - confirm with sales.
Dell Pro Micro Configurations at SourceIT
| Processor | Memory / SSD |
| Core Ultra 5 235T (this listing) | 16GB / 256GB |
| Core Ultra 5 235T | 16GB / 512GB |
| Core Ultra 7 265T | 32GB / 512GB |
| Core i5-14500T | 8GB / 512GB |
| Core i5-14600T | 8GB / 512GB |
Datasheet & Downloads
| Dell brochure | Dell Pro Micro desktop brochure (PDF) |
| Manuals & drivers | Dell Pro Micro QCM1250 manuals on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting QCM1250.
Frequently Asked Questions — Dell QCM1250
How many monitors can I connect?
Two as standard, via HDMI 2.1 and DisplayPort 1.4a. The optional I/O module can add another video output.
Can I add more memory or storage?
Yes. There are two DDR5 SODIMM slots (up to 64GB) and two M.2 SSD slots; a second SSD needs a heatsink, sold separately.
Can it be mounted behind a monitor?
Yes, with Dell's Pro Micro mounting accessories such as the Dual VESA Mount with Adapter Bracket.
Does it have Wi-Fi?
Yes. This configuration includes Wi-Fi with Bluetooth, plus Gigabit Ethernet. The exact wireless module depends on the supplied SKU.
What warranty do I get?
A local Dell warranty, supplied by SourceIT with a GST invoice. The distributor line does not state the term, so please confirm it with sales before ordering.
