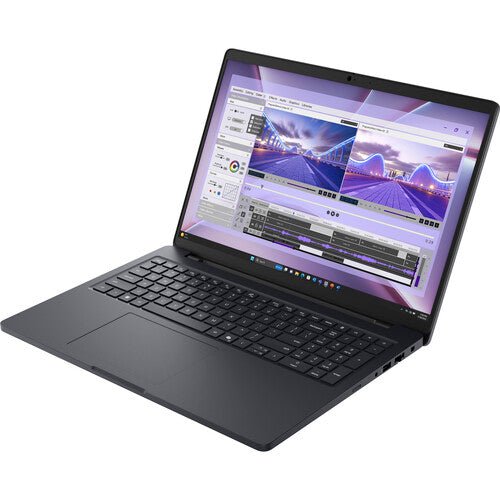

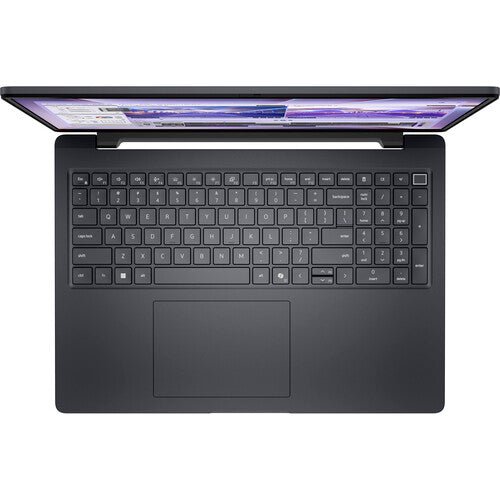

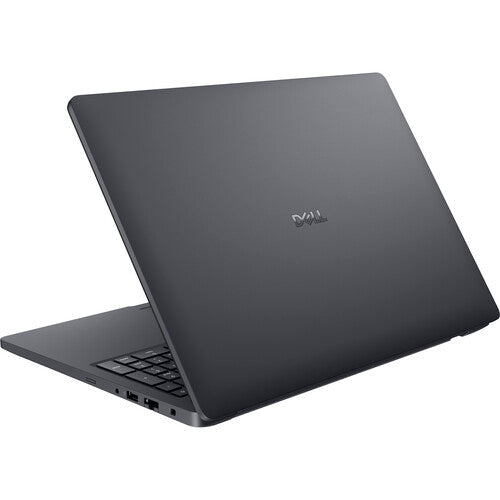

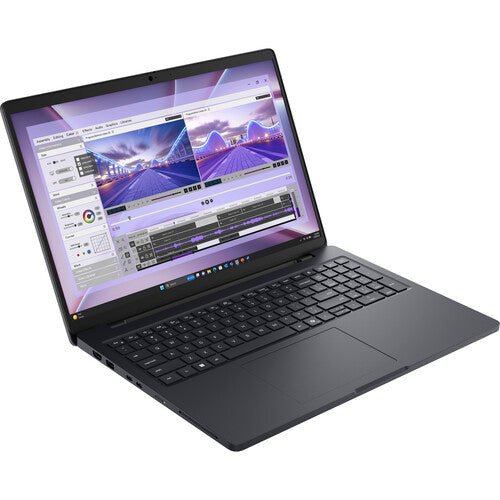

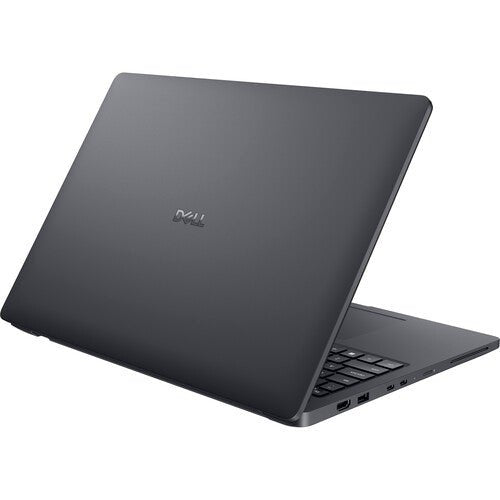

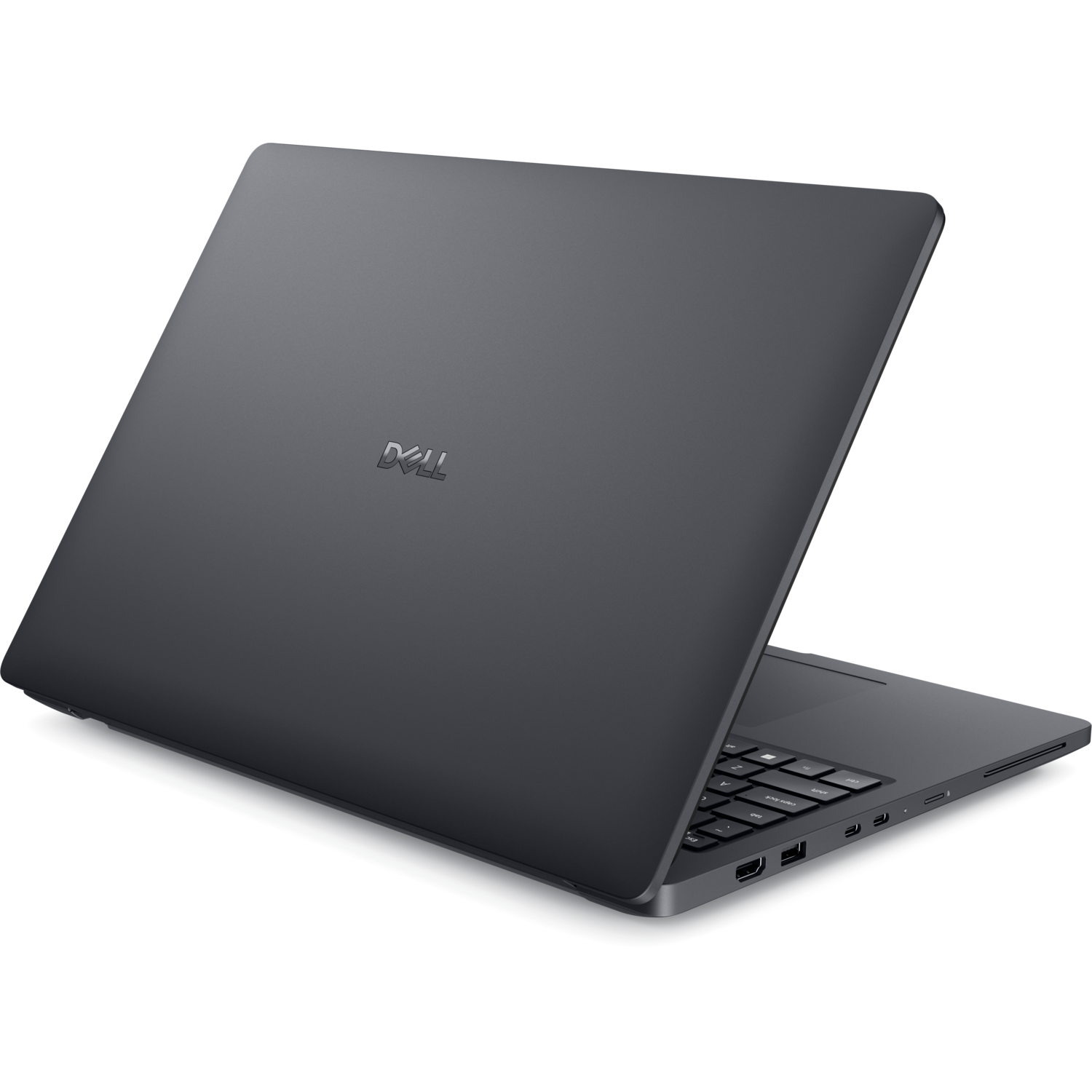

Dell Pro Max 16 MC16250 Core Ultra 7 265H RTX PRO 500 32GB 1TB Laptop
PRODUCT DESCRIPTION
Dell Pro Max 16 Mobile Workstation MC16250 Intel Core Ultra 7 265H vPro / NVIDIA RTX PRO 500 Blackwell / 32GB / 1TB SSD (DPMMC16250C732G1TBDIS) - 3 Years Local Warranty
Workstation Performance on the Move
The Dell Pro Max 16 pairs a 45 W Intel Core Ultra 7 265H vPro processor (16 cores, 6P + 10E, up to 5.30 GHz, 24 MB cache) with NVIDIA RTX PRO 500 Blackwell graphics with 6 GB GDDR7, for CAD, BIM, GIS and content-creation apps away from the desk.
Built for Growth
This configuration comes with 32GB DDR5 and a 1TB NVMe SSD. Two SODIMM slots take up to 64 GB and a second M.2 SSD slot is available for more storage.
Full-Size Connectivity
Two Thunderbolt 4 ports with Power Delivery and DisplayPort, two USB-A 5Gbps ports, HDMI 2.1, Gigabit RJ45 Ethernet and a microSD slot mean fewer dongles, on a 16-inch 16:10 anti-glare display.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell MC16250 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Pro Max 16 MC16250 |
| Part Number | DPMMC16250C732G1TBDIS |
| Processor | Intel Core Ultra 7 265H vPro (45 W) |
| Graphics | NVIDIA RTX PRO 500 Blackwell, 6 GB GDDR7 |
| Memory | 32GB DDR5 |
| Storage | 1TB M.2 PCIe NVMe SSD |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Processor & Graphics
| Processor | Intel Core Ultra 7 265H vPro: 16 cores (6P + 10E) / 16 threads, P-core 2.20–5.30 GHz, E-core 1.70–4.50 GHz, 24 MB cache |
| NPU | Intel AI Boost, up to 13 TOPS |
| Integrated Graphics | Intel Graphics |
| Discrete Graphics | NVIDIA RTX PRO 500 Blackwell, 6 GB GDDR7 |
Memory & Storage
| Memory Slots | 2 x SODIMM/CSODIMM, DDR5 5600 or 6400 MT/s, up to 64 GB |
| Storage Slots | 2 x M.2 (primary 2230/2280; secondary 2230/2280, 2230 only when WWAN is fitted) |
Display
| Size & Format | 16-inch, 16:10, WVA, anti-glare |
| Panel Options (Dell) | FHD+ 1920 x 1200 60 Hz (300 or 400 nits, touch or non-touch); QHD+ 2560 x 1600 120 Hz 100% sRGB (300 nits ComfortView Plus or 400 nits) |

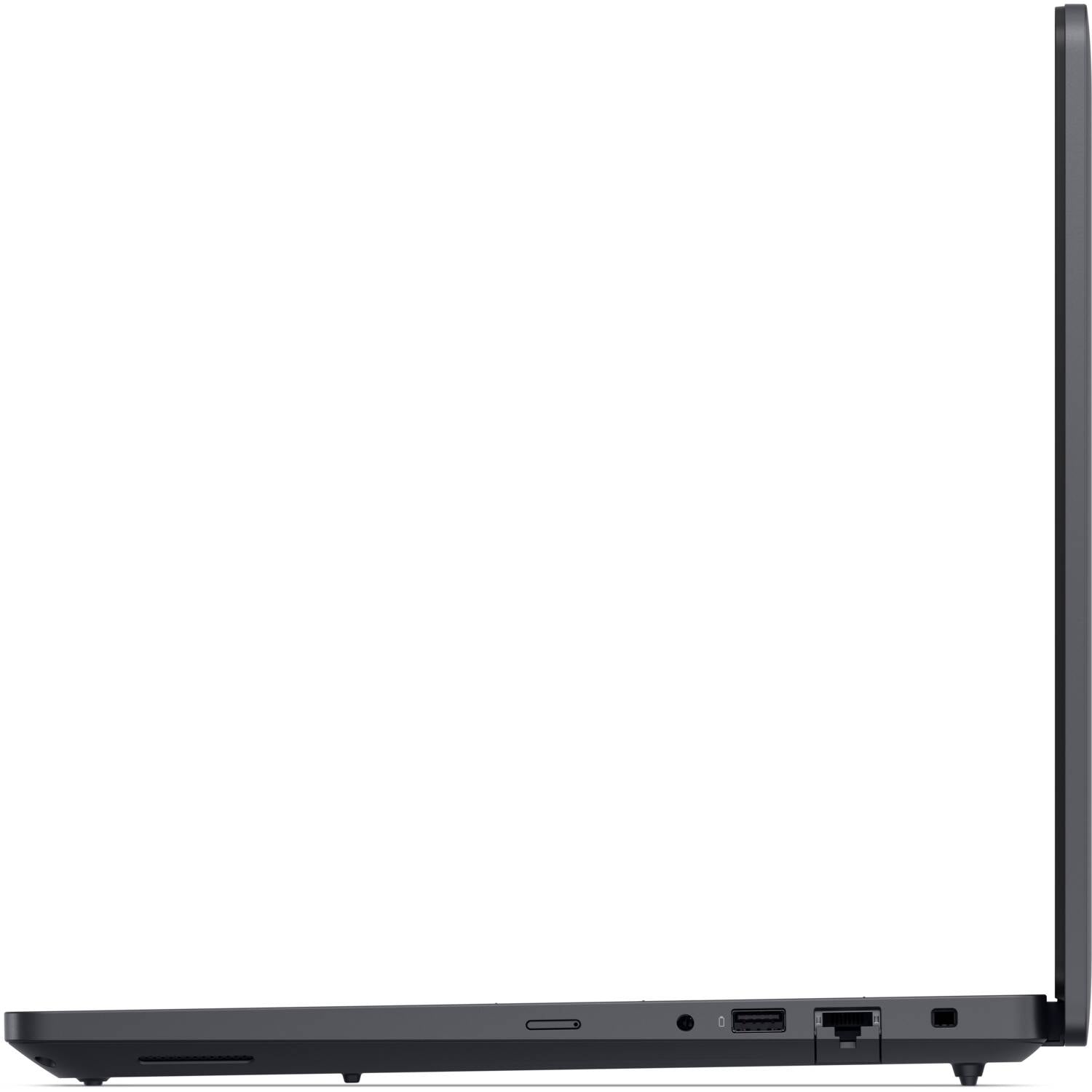

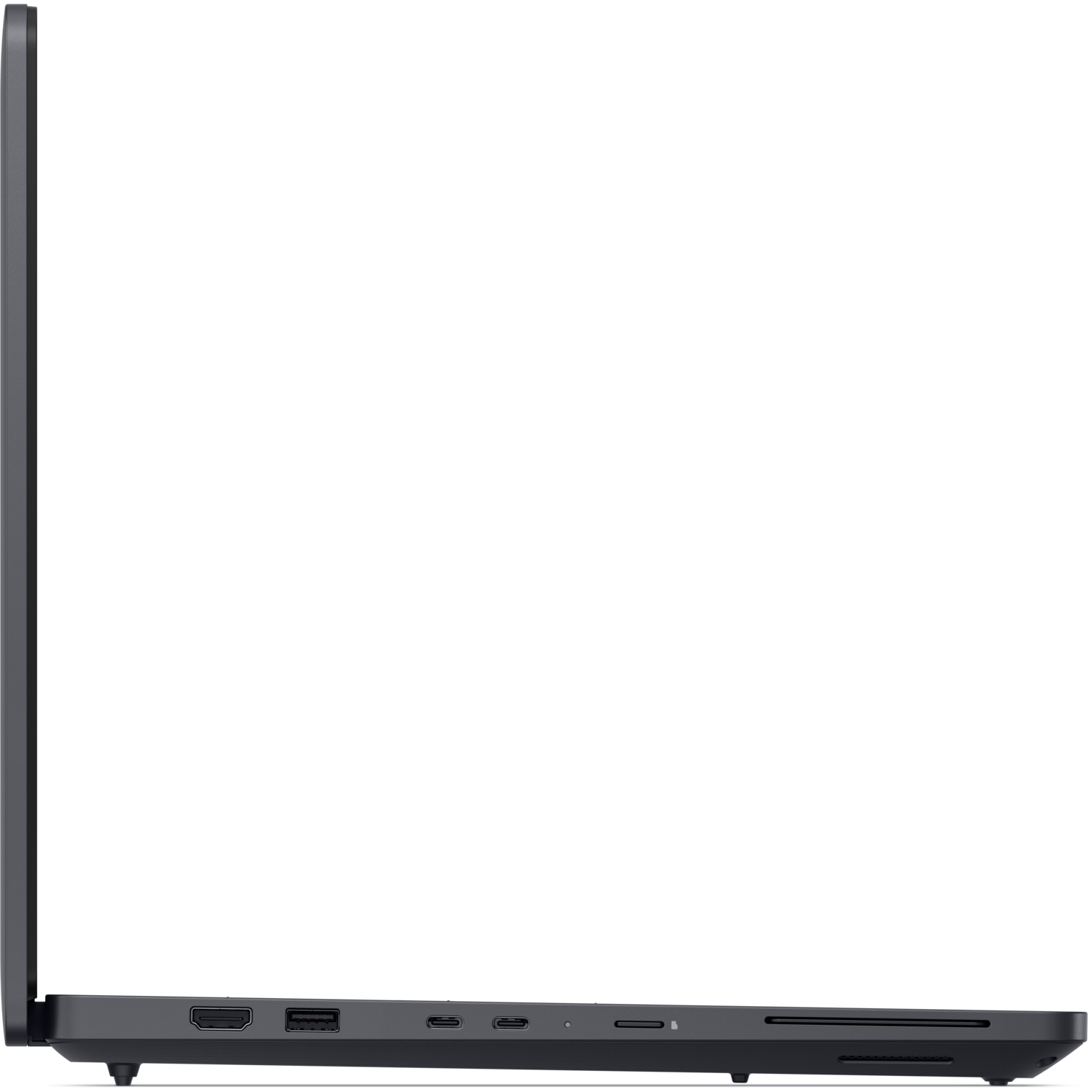

Ports & Slots
| Thunderbolt | 2 x Thunderbolt 4 (40 Gbps) with Power Delivery and DisplayPort |
| USB-A | 2 x USB 3.2 Gen 1 (5 Gbps), one with PowerShare |
| Video | 1 x HDMI 2.1 |
| Network | 1 x RJ45 Ethernet (1 Gbps) |
| Audio | 1 x global headset jack |
| Card Readers | 1 x microSD slot; optional smart-card reader |
| Other | Wedge-shaped lock slot; optional nano-SIM slot |
Wireless, Audio & Camera
| Wireless Options | Intel Wi-Fi 6E AX211 with Bluetooth 5.3, or Intel Wi-Fi 7 BE201 with Bluetooth 5.4 |
| Audio | Realtek ALC3329 with Waves MaxxAudio Pro; two speakers, 2 W x 2 average; dual-array digital microphones |
| Camera Options | FHD 1080p30 RGB; FHD RGB + IR; 8MP RGB + IR (2560 x 1440 at 30 fps) |
Power
| Battery Options | 64 Wh 4-cell or 96 Wh 6-cell lithium-ion polymer, ExpressCharge and ExpressCharge Boost |
| Power Adapter | 100 W or 130 W USB Type-C |
Security
| TPM | Discrete TPM 2.0, FIPS 140-2 certified |
| Authentication | ControlVault 3 Plus (FIPS 140-3 Level 3); optional fingerprint reader in the power button; optional contacted/contactless smart card and NFC; IR camera option |
| Storage | Self-encrypting SSD options |
Physical & Environmental
| Height | 15.08 mm (front) / 19.08 mm (rear) |
| Width x Depth | 358 mm x 256 mm |
| Weight | From 2.10 kg |

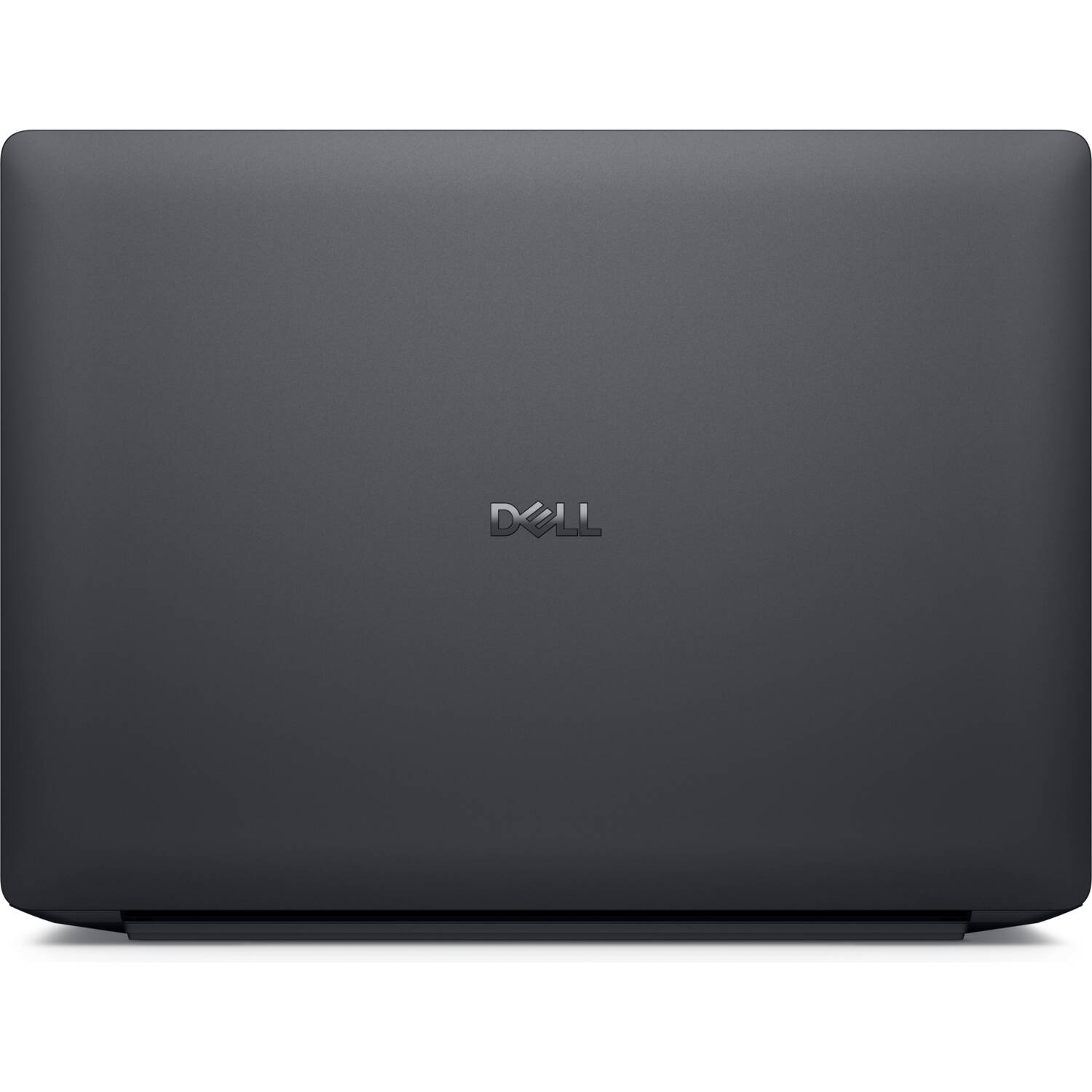

| Colour | Magnetite |
| Certifications | MIL-STD tested; EPEAT Gold registered with Climate+; ENERGY STAR; TCO Certified |
Compatibility & Software Support
Operating System
Dell offers Windows 11 Home, Windows 11 Pro and Ubuntu Linux for the Dell Pro Max 16.
Docking
The two Thunderbolt 4 ports support Power Delivery and DisplayPort, so a single-cable Thunderbolt or USB-C dock can charge the laptop and drive external monitors.
Typical Use
Engineers, architects, designers and analysts running ISV applications, 3D modelling and local AI workloads who need a workstation GPU in a 16-inch laptop.
Package Contents & Dell Pro Max 16 Ordering Information
In the Box
Dell Pro Max 16 MC16250 mobile workstation and USB Type-C power adapter.
Dell Pro Max 16 Configurations at SourceIT
| Processor / Graphics | Memory / Storage |
| Core Ultra 7 265H / RTX PRO 500 | 16GB / 512GB SSD |
| Core Ultra 7 265H / RTX PRO 500 (this listing) | 32GB / 1TB SSD |
Datasheet & Downloads
| Dell spec sheet | Dell Pro Max 16 spec sheet (PDF) |
| Manuals & drivers | Dell Pro Max 16 MC16250 owner's manual on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MC16250.
Frequently Asked Questions — Dell MC16250
Which GPU does this configuration use?
NVIDIA RTX PRO 500 Blackwell with 6 GB GDDR7 dedicated memory, alongside the processor's integrated Intel Graphics.
Can I upgrade the memory?
Yes. The MC16250 has two SODIMM slots supporting up to 64 GB DDR5; this configuration ships with 32GB.
Can I add a second SSD?
Yes. There are two M.2 slots; the second takes a 2230 or 2280 SSD (2230 only when a WWAN card is fitted).
How is it charged?
Through either Thunderbolt 4 port with the supplied USB Type-C adapter (100 W or 130 W depending on configuration).
What warranty do I get?
3 years, supplied locally by SourceIT with a GST invoice.
