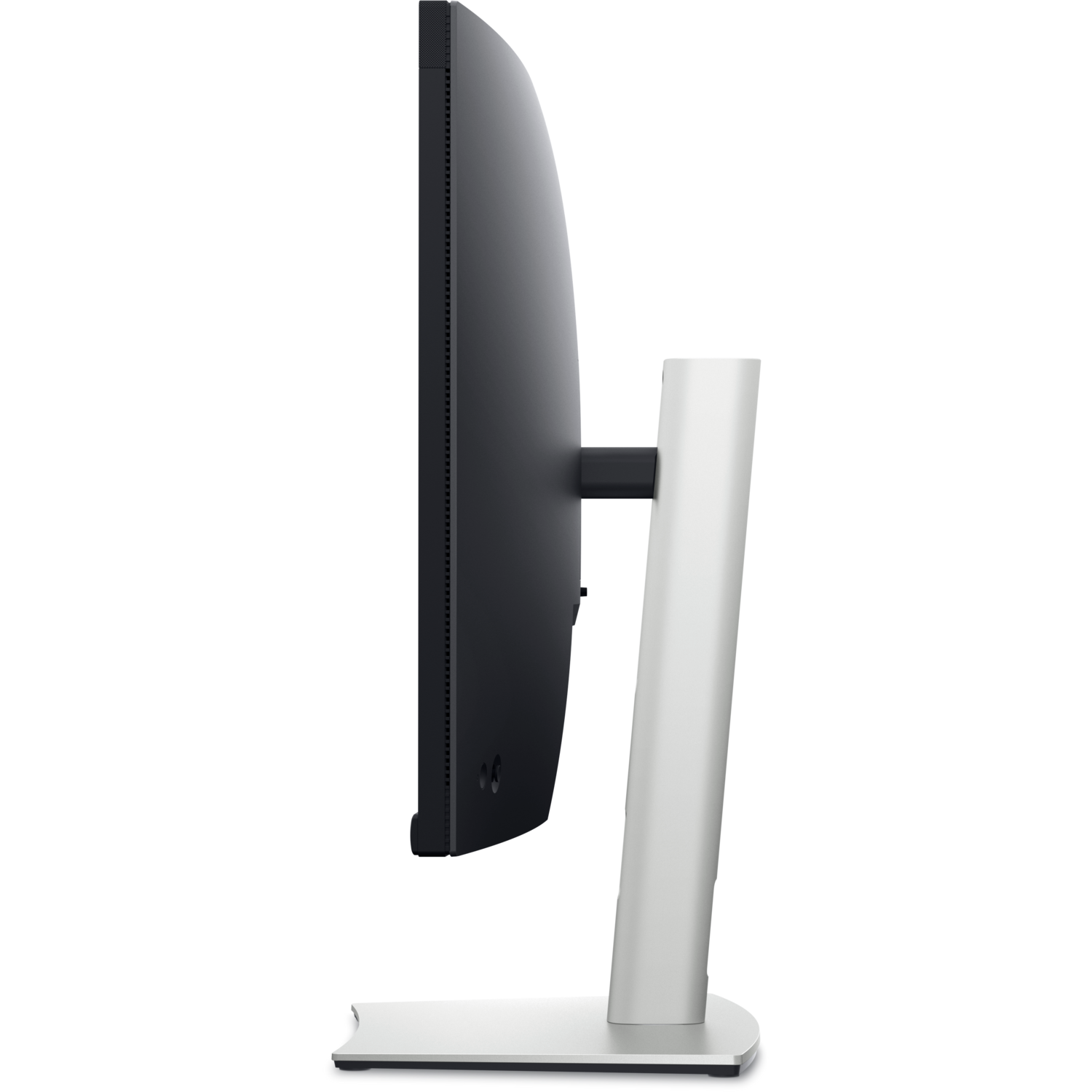

Dell Pro 34 Plus P3424WEB 34" Curved Video Conferencing Monitor
PRODUCT DESCRIPTION
Dell Pro 34 Plus Video Conferencing Monitor P3424WEB (210-BKKC) - 3 Years Local Warranty
Built for video calls
A 4MP 2K camera, two digital microphones and two 5 W speakers are built in, so meetings need no extra peripherals.
Single-cable USB-C docking
One USB-C cable carries DisplayPort video, data and up to 90 W power delivery, with RJ45 Gigabit Ethernet and a USB hub on board.
Immersive 34" curved WQHD
A 3800R curved 3440 x 1440 IPS panel with 99% sRGB colour and 1.07 billion colours gives room for side-by-side work.
Equipping a team or meeting rooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell P3424WEB Datasheet — Technical Specifications
General
| Product Name | Dell Pro 34 Plus Video Conferencing Monitor - P3424WEB |
| Model | P3424WEB |
| Dell SKU | 210-BKKC |
| Local Warranty (Singapore) | 3 years Limited Hardware Warranty with Advanced Exchange Service and Premium Panel Exchange (Dell), supplied by SourceIT with a GST invoice |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Built-in Devices | USB 3.2 Gen 1 hub, KVM ports |
| Included Software | Dell Display Manager, Dell Power Button Sync (DPBS) |
Display
| Diagonal Size | 34" |
| Viewable Size | 34.14" |
| Curved Screen | Yes, 3800R curvature |
| Panel Type | IPS |
| Aspect Ratio | 21:9 |
| Native Resolution | WQHD 3440 x 1440 at 60 Hz |
| Pixel Pitch | 0.2325 mm x 0.2325 mm |
| Pixel Per Inch | 109.68 |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 1.07 billion Colours |
| Colour Gamut | 99% sRGB |
| Response Time | 5 ms (gray-to-gray fast), 8 ms (gray-to-gray normal) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Screen Coating | Anti-glare treatment of front polarizer (3H) hard-coating |
| Backlight Technology | LED |
| Features | Dell Easy Arrange, Low Blue Light technology, 3-sided bezeless, Dell ComfortView Plus, flicker-free panel |

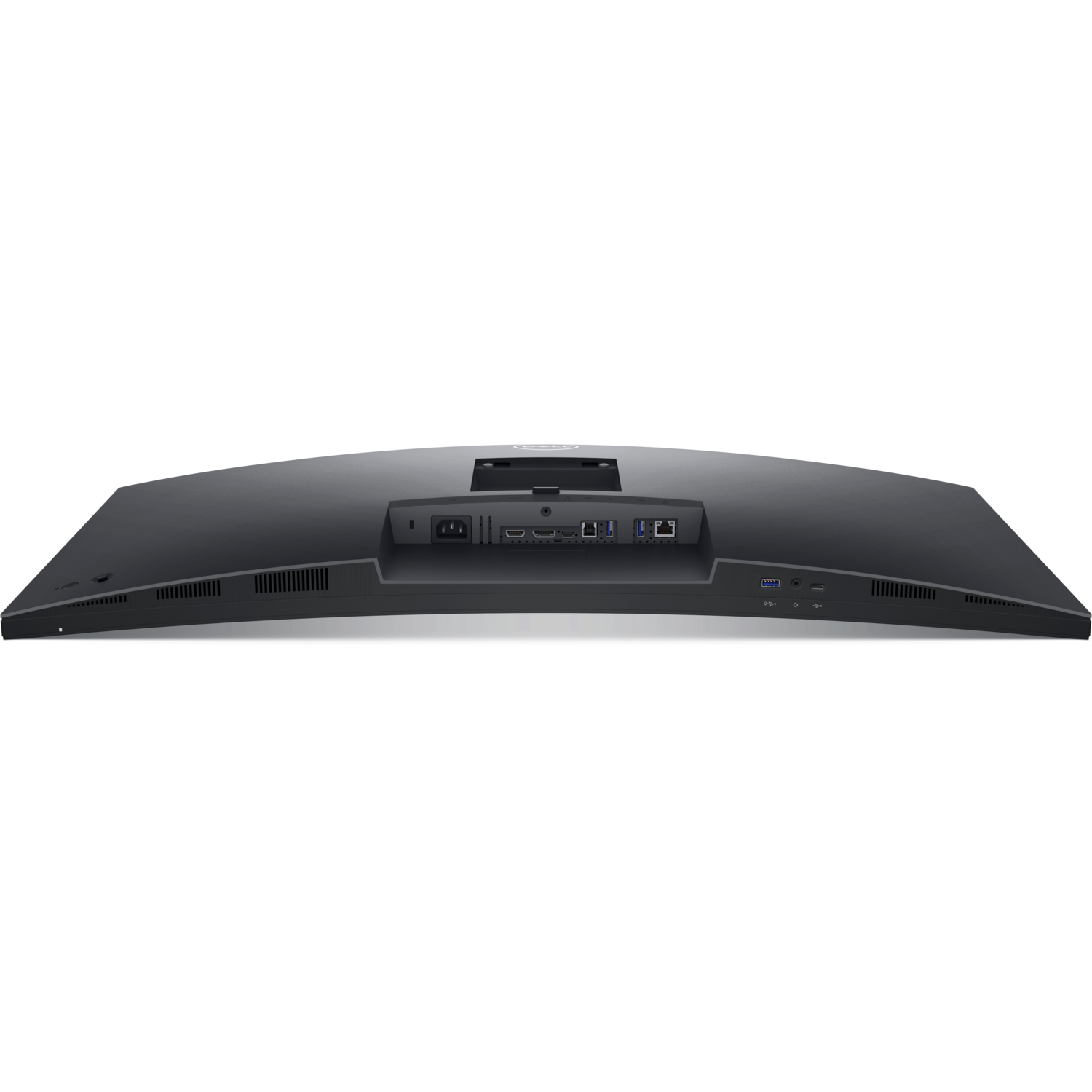

Connectivity
| HDMI | 1x HDMI (HDCP 2.2) |
| DisplayPort | 1x DP 1.2 (HDCP 2.2) |
| USB-C upstream | 1x USB 3.2 Gen1 Type-C (Alt mode with DP 1.2 upstream, up to 90W power delivery) |
| USB Type-B | 1x USB 3.2 Gen1 Type-B upstream |
| USB Type-A | 2x USB 3.2 Gen1 Type-A downstream |
| USB Type-A (charging) | 1x USB 3.2 Gen1 Type-A downstream with BC1.2 (2A max) |
| USB-C downstream | 1x USB 3.2 Gen1 Type-C downstream with up to 15W power delivery |
| Ethernet | 1x RJ45 Ethernet port, 1GbE |
| Audio | 1x 3.5mm combo headphone with microphone jack |
| USB Power Delivery | 90 Watt |
Audio & Camera
| Camera | 4MP 2K camera at 30 fps (FHD at 60 fps) |
| Microphone | 2x digital microphone |
| Speakers | 2x 5W built-in speaker |
Ergonomics
| Display Position Adjustments | Height, swivel, tilt |
| Height Adjustment | 150 mm (5.9 in) |
| Tilt Angle | -5°/+21° |
| Swivel Angle | -30°/+30° |
| VESA Mounting Interface | 100 x 100 mm |
| Security Slot Type | Kensington security slot (cable lock sold separately) |
Power
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption (On mode) | 31.5 W |
| Power Consumption (Max) | 210 W |
| Power Consumption Stand by | 0.3 W |
| Power Consumption (Networked standby) | 1.4 W |
| Power Consumption (Off Mode) | 0.3 W |
Physical
| Dimensions with Stand (W x D x H) | 81.56 cm x 24.24 cm x 44.58 cm |
| Dimensions without Stand (W x D x H) | 81.56 cm x 8.48 cm x 41.99 cm |
| Weight with Stand | 10.83 kg |
| Weight without Stand | 7.43 kg |
Environmental & Certifications
| Operating Temperature | 0°C to 40°C (32 °F to 104 °F) |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Gold |
| Compliant Standards | RoHS, TCO Certified 9.0, TCO Certified Edge |
Compatibility & Software Support
PC Connection
Connect a USB-C laptop (DisplayPort 1.2 Alt Mode) for video, camera, audio, USB data, Ethernet and up to 90 W charging over one cable. HDMI and DisplayPort 1.2 inputs are available for desktops.
Conferencing
Built-in 4MP 2K camera, 2 digital microphones and 2 x 5 W speakers, plus a 3.5 mm headset jack.
Networking and KVM
RJ45 Gigabit Ethernet and a built-in KVM to control two computers with one keyboard and mouse.
Management
Dell Display Manager and Dell Power Button Sync. VESA 100 x 100 mm mounting.
Package Contents & Dell Pro 34 Curved Monitors Ordering Information
In the Box
Monitor panel, Stand riser, Stand base, 1x Power cable, 1x DP-to-DP cable (1.8m), 1x USB 3.2 Gen1 Type C-to-C cable (1.8m), 1x USB 3.2 Gen1 Type A-to-B upstream cable (1.8m), Quick setup guide, Safety, Environmental, and Regulatory Information.
Dell Pro 34 Curved Monitors
| Model | Key feature |
| P3425WE | 34" curved WQHD, USB-C hub |
| P3424WEB (this listing) | 34" curved WQHD, 4MP camera, mics, 2 x 5 W speakers |
| P3426WEB | 34" curved WQHD 100 Hz, 4MP camera, mic, 2 x 5 W speakers |
| P3426WEV | 34" curved WQHD 100 Hz, 4MP camera |
Datasheet & Downloads
| Datasheet (PDF) | P3424WEB datasheet on delltechnologies.com |
| Manuals & drivers | P3424WEB manuals and documents on Dell Support |
| Dell product page | P3424WEB on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P3424WEB.
Frequently Asked Questions — Dell P3424WEB
Does the P3424WEB have a built-in webcam and microphone?
Yes: a 4MP 2K camera at 30 fps (FHD at 60 fps), 2x digital microphones and 2x 5W speakers.
Can it charge my laptop?
Yes, the upstream USB-C port supports DisplayPort Alt mode and up to 90 W power delivery.
Does it have wired networking?
Yes, a built-in RJ45 1GbE Ethernet port, plus a USB 3.2 Gen 1 hub with KVM.
What resolution and refresh rate?
WQHD 3440 x 1440 at 60 Hz on a 34" 3800R curved IPS panel.
What warranty do I get?
3 years Limited Hardware Warranty with Advanced Exchange Service and Premium Panel Exchange (Dell), supplied locally by SourceIT with a GST invoice.
