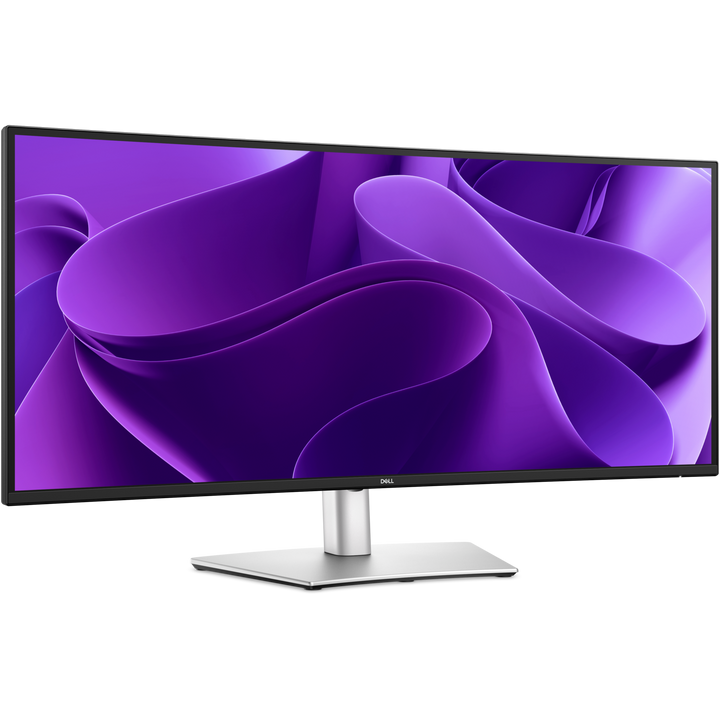

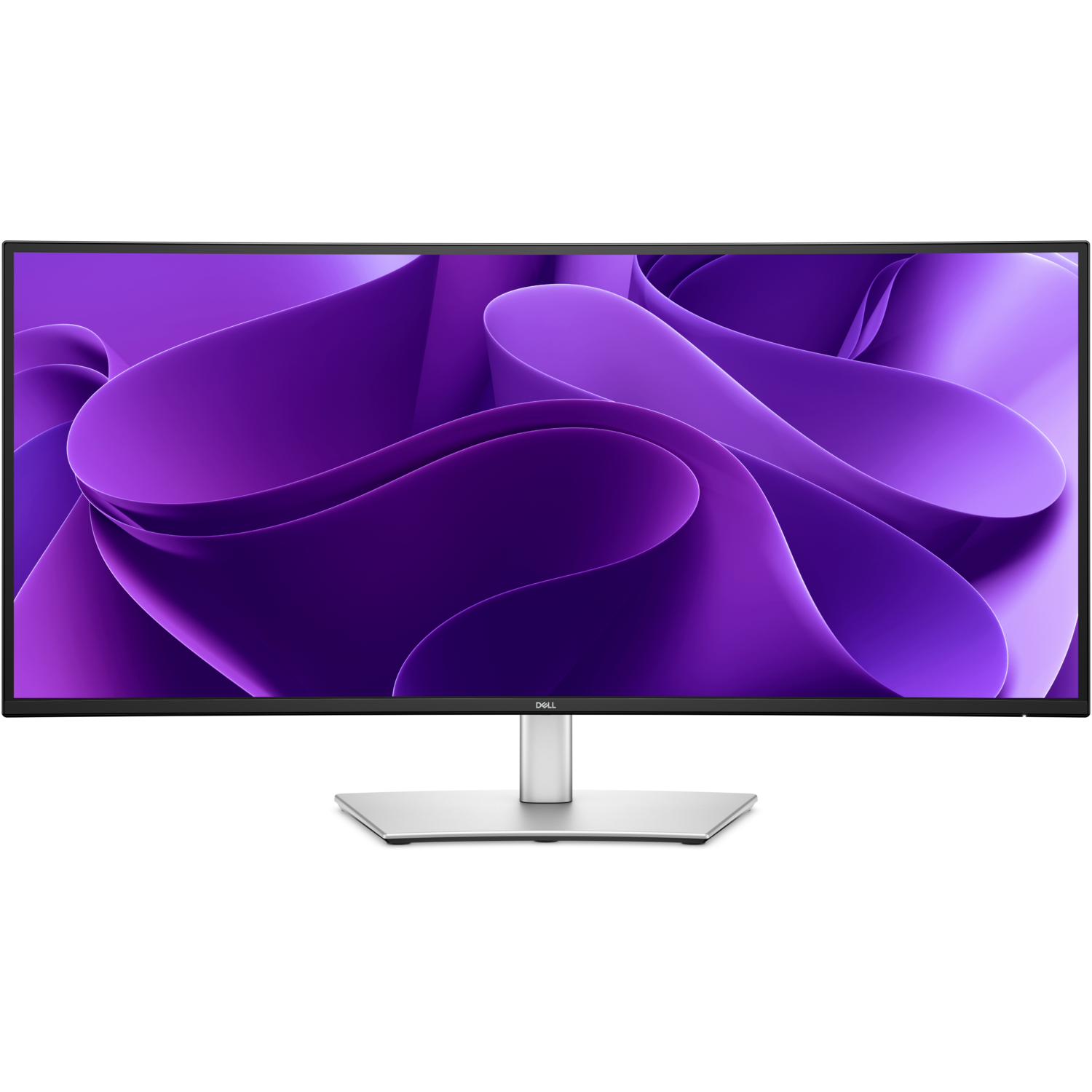

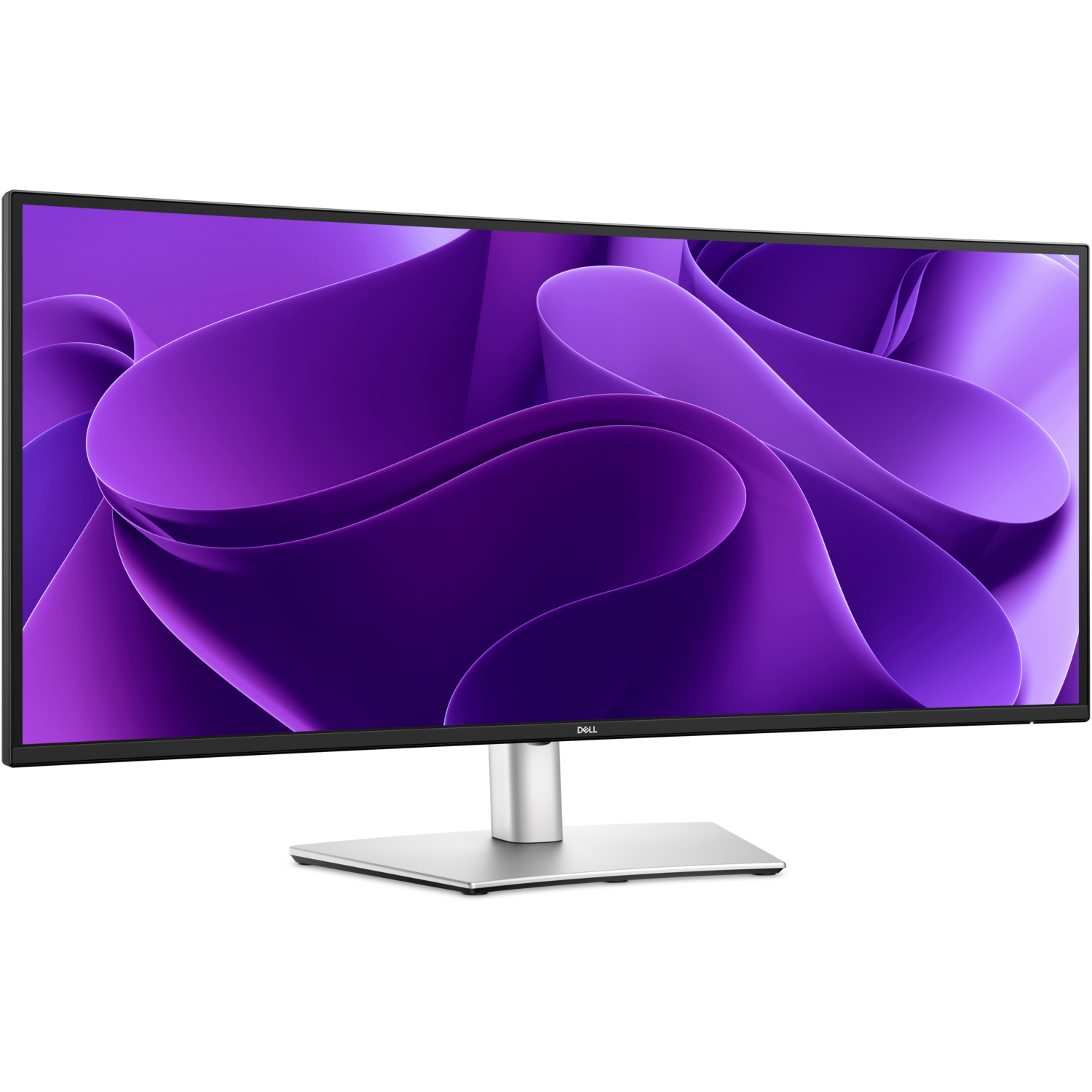

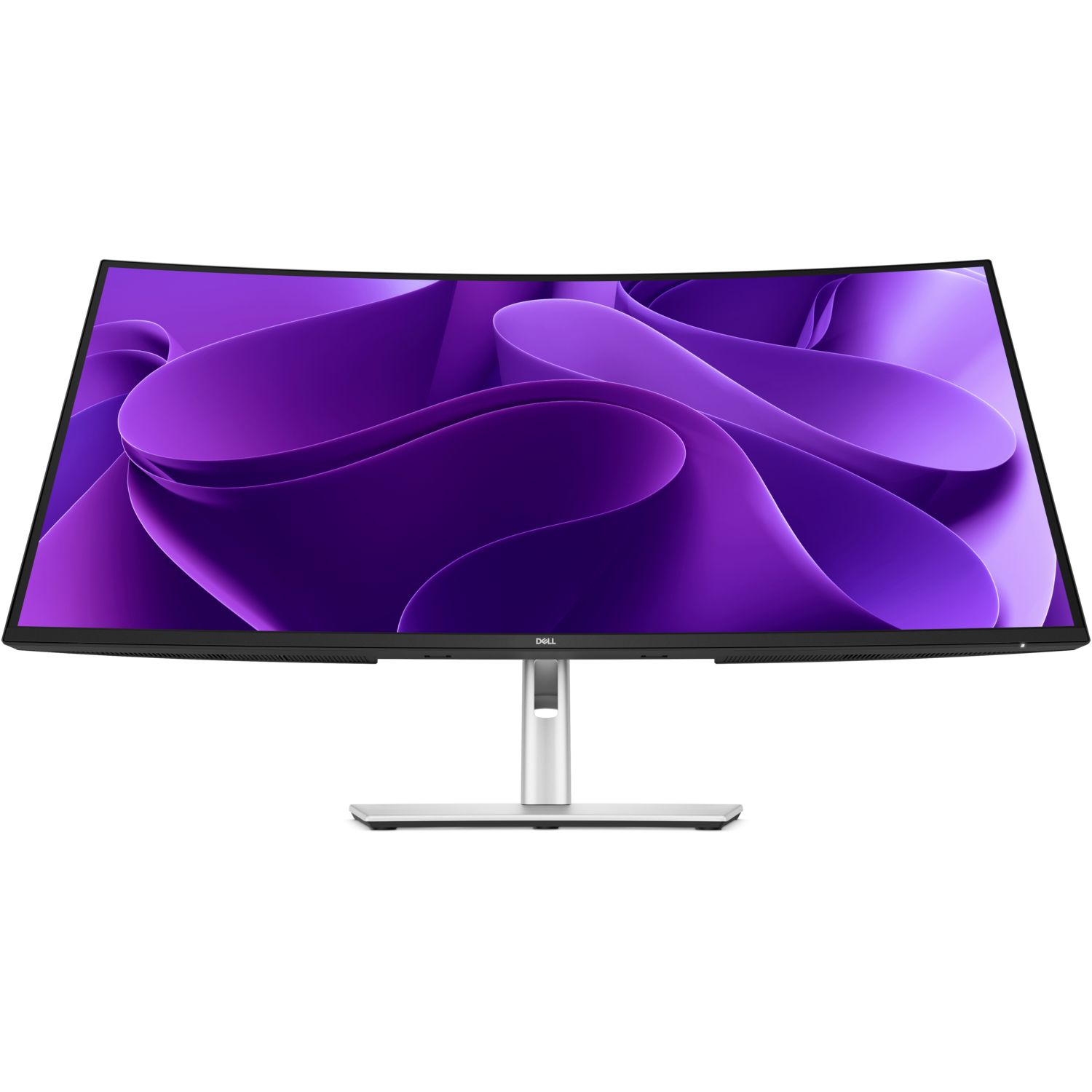

Dell Pro 34 Plus P3425WE 34" Curved USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell Pro 34 Plus USB-C Hub Monitor P3425WE (210-BQYN) - 3 Years Local Warranty

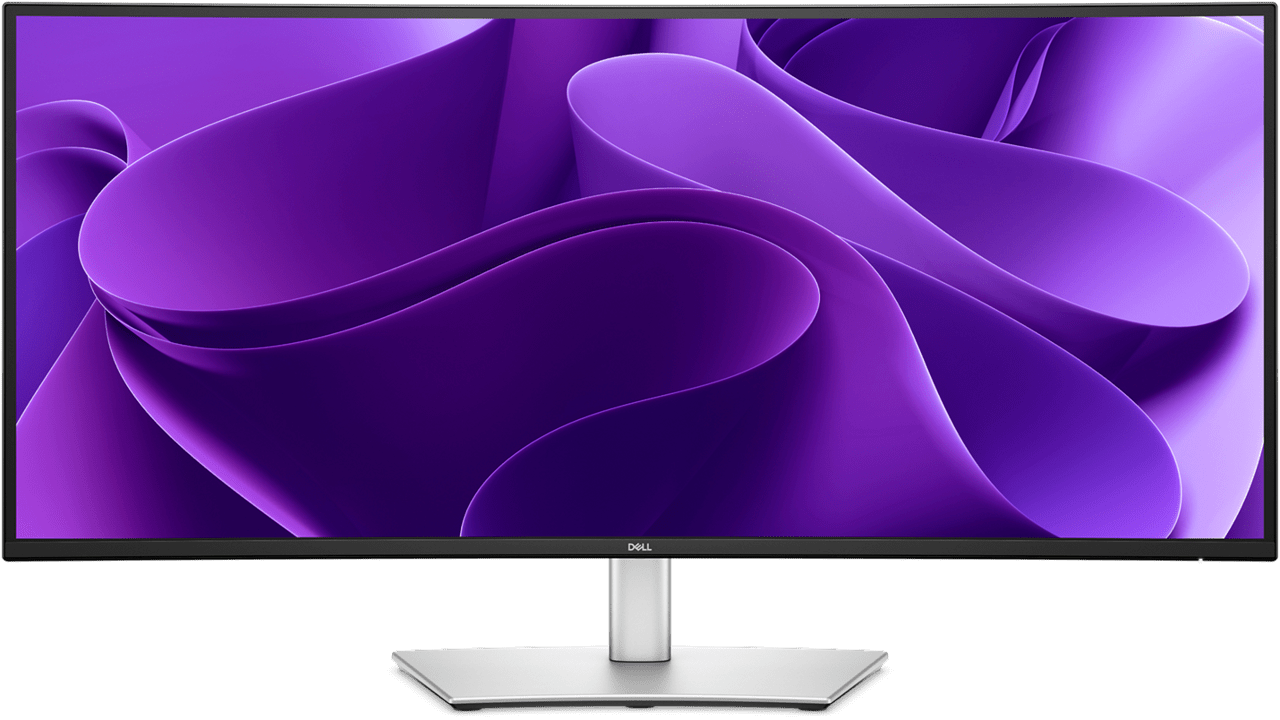

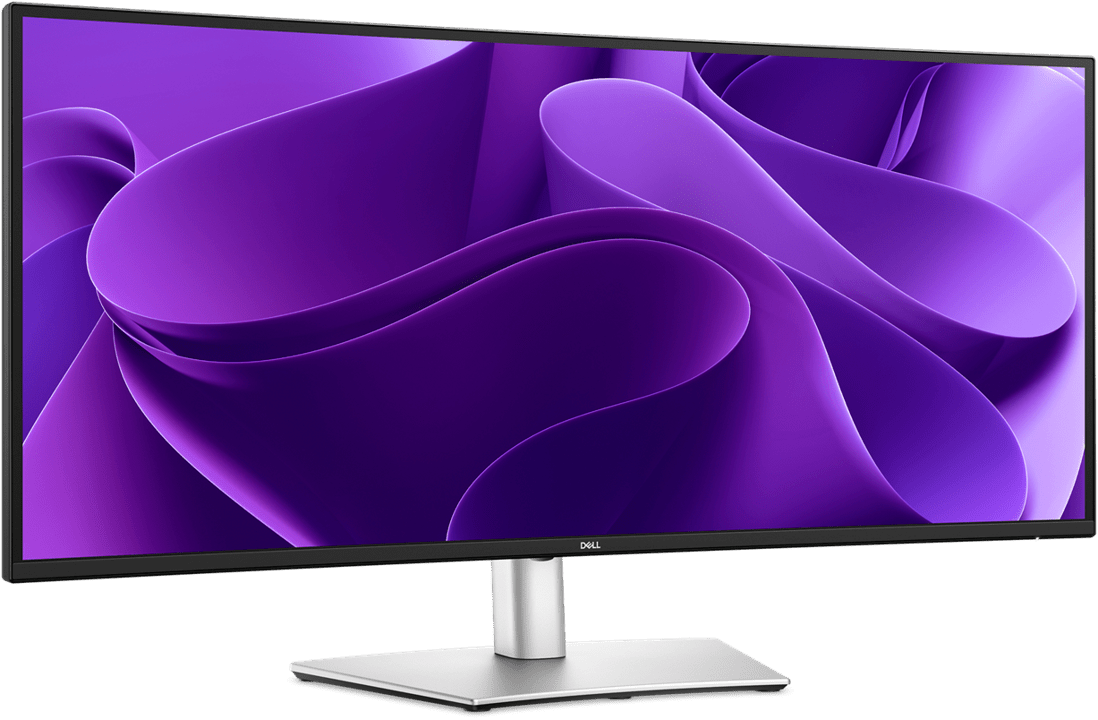

34-inch Curved Ultrawide
The Dell Pro 34 Plus P3425WE spreads 3440 x 1440 across a 34.1-inch 3800R curved IPS panel at up to 100 Hz, with 350 cd/m², 1,500:1 contrast, 99% sRGB and 1.07 billion colours.
USB-C Hub with 90 W
USB-C upstream with DisplayPort 1.4 Alternate Mode and up to 90 W power delivery, Gigabit RJ45, a 15 W USB-C and three USB-A 5Gbps downstream ports, plus a USB-B upstream for a second PC.
Multitasking Tools
KVM, Picture-by-Picture, Picture-in-Picture and Easy Arrange, with TÜV 4-star Eye Comfort and a stand offering height, tilt, swivel and slant.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell P3425WE Datasheet — Technical Specifications
General
| Product Name | Dell Pro 34 Plus USB-C Hub Monitor - P3425WE |
| Model | P3425WE |
| Dell SKU (Singapore) | 210-BQYN |
| Product Line | Dell Pro Plus |
| Local Warranty (Singapore) | 3 years Limited Hardware Warranty with Advanced Exchange Service, supplied by SourceIT with a GST invoice |
Display
| Diagonal viewing size | 34.1 in. (34" class) |
| Panel type | In-Plane Switching (IPS) Technology |
| Curvature | 3800R |
| Aspect ratio | 21:9 |
| Resolution | 3440 x 1440 at 100 Hz |
| Pixel pitch | 0.2325 mm x 0.2325 mm |
| Pixels per inch | 110 |
| Brightness | 350 cd/m² |
| Contrast ratio | 1,500:1 |
| Colour gamut | 99% sRGB (CIE 1931) |
| Colour depth | 1.07 billion colours |
| Response time | 8 ms GTG (normal); 5 ms GTG (fast) |
| Viewing angle | 178° horizontal / 178° vertical |
| Backlight | LED Edgelight System |
| Screen coating | Anti-glare, 3H hardness |
| Horizontal / vertical frequency | 28 kHz to 151 kHz / 30 Hz to 100 Hz |
Eye Comfort
| Eye comfort rating | TÜV 4 stars |
| Low blue light | ComfortView Plus |

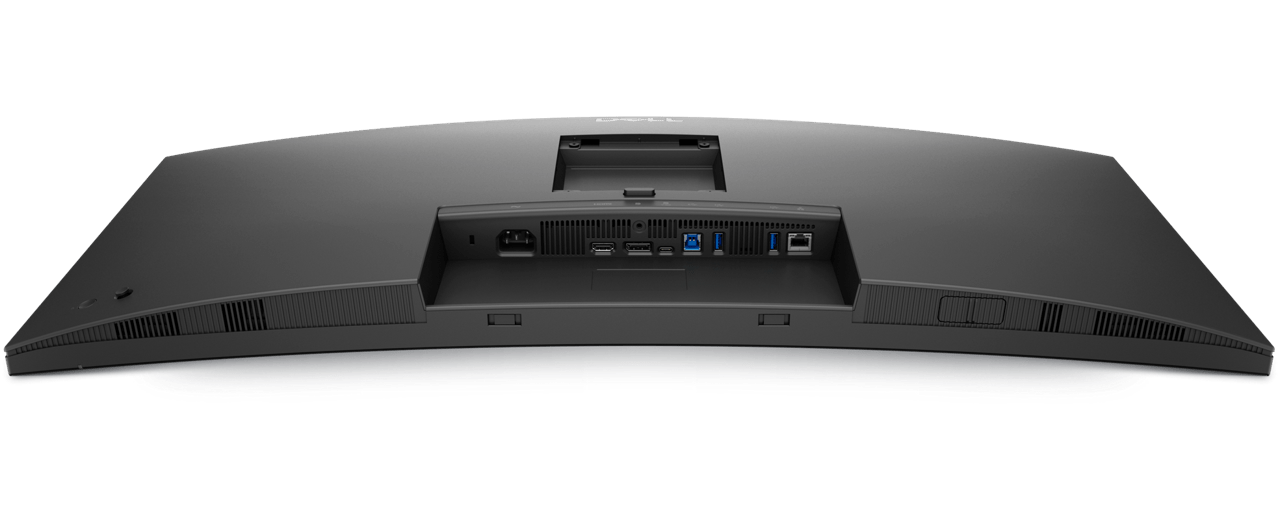

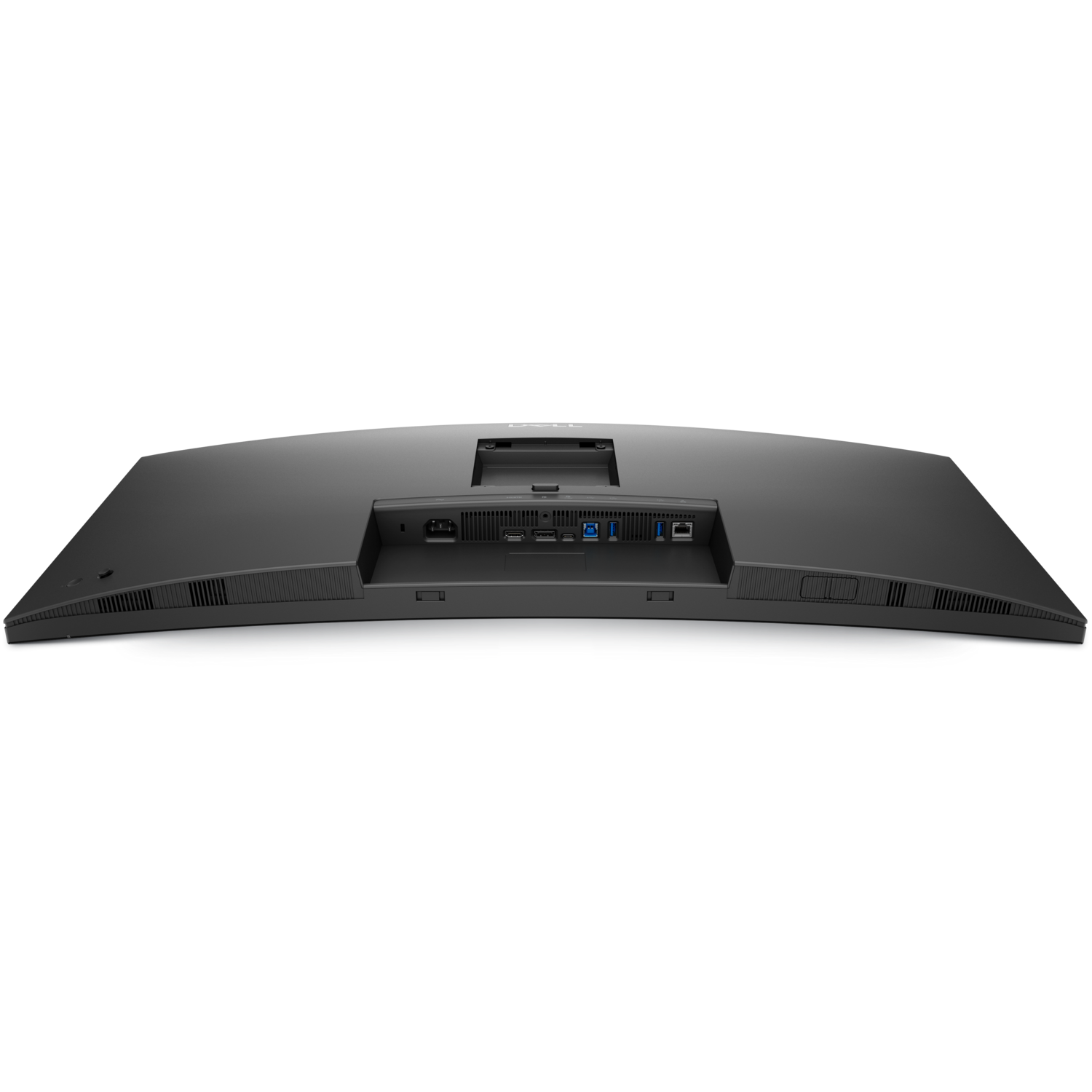

Connectivity
| HDMI | 1 x HDMI (HDCP 1.4) - up to 3440 x 1440 100 Hz (TMDS as specified in HDMI 2.1) |
| DisplayPort | 1 x DisplayPort 1.4 (HDCP 1.4) - up to 3440 x 1440 100 Hz |
| USB-C upstream | 1 x USB-C 5Gbps (DisplayPort 1.4 Alternate Mode, Power Delivery up to 90 W) |
| USB-B upstream | 1 x USB Type-B 5Gbps |
| USB-C downstream | 1 x USB-C 5Gbps (Power Delivery up to 15 W) |
| USB-A downstream | 3 x USB Type-A 5Gbps |
| Ethernet | 1 x RJ45 Gigabit Ethernet |
Features
| Multitasking | KVM, Picture by Picture, Picture in Picture, Easy Arrange |
| Other | Digital daisy chain, Color Vibrance, SmoothMotion |

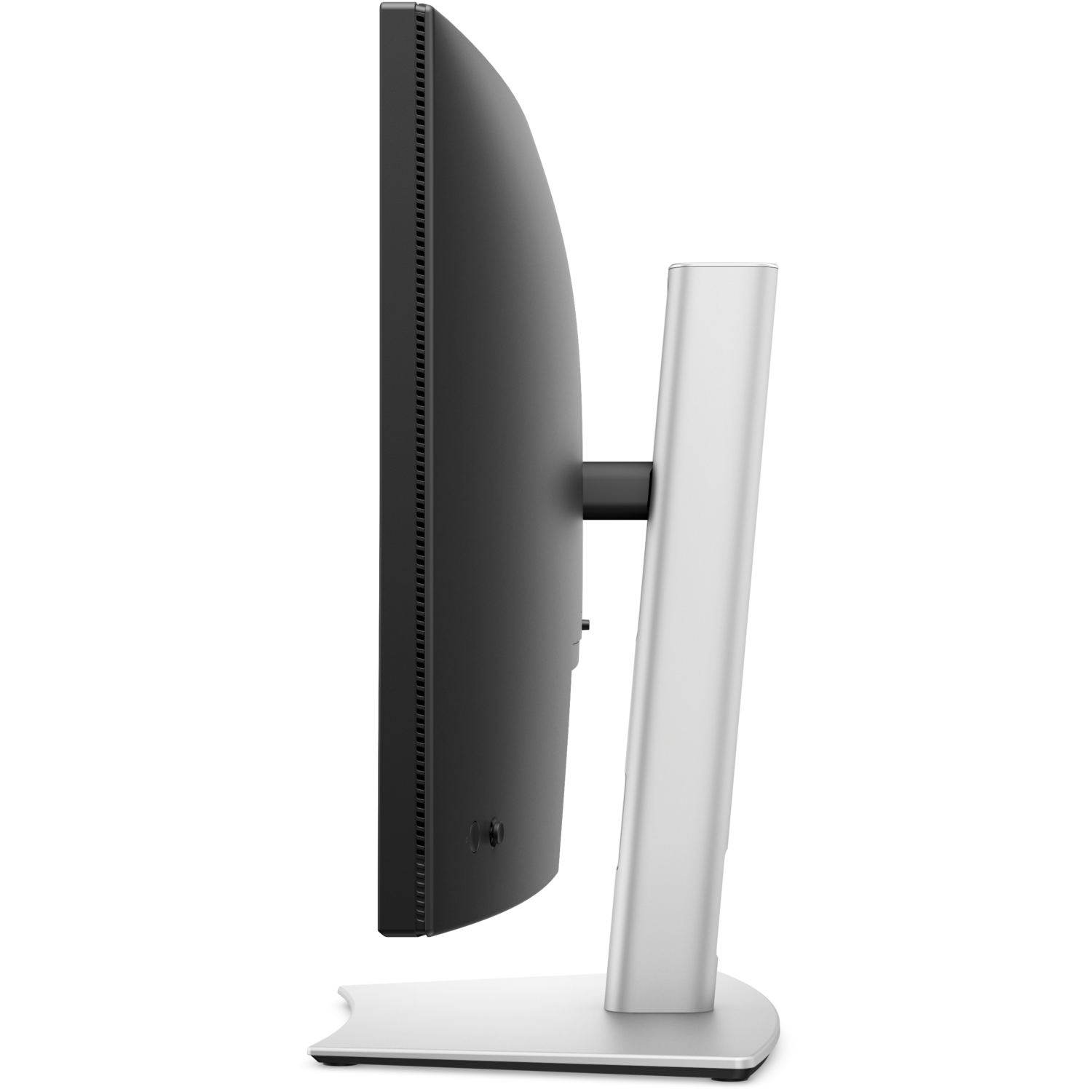

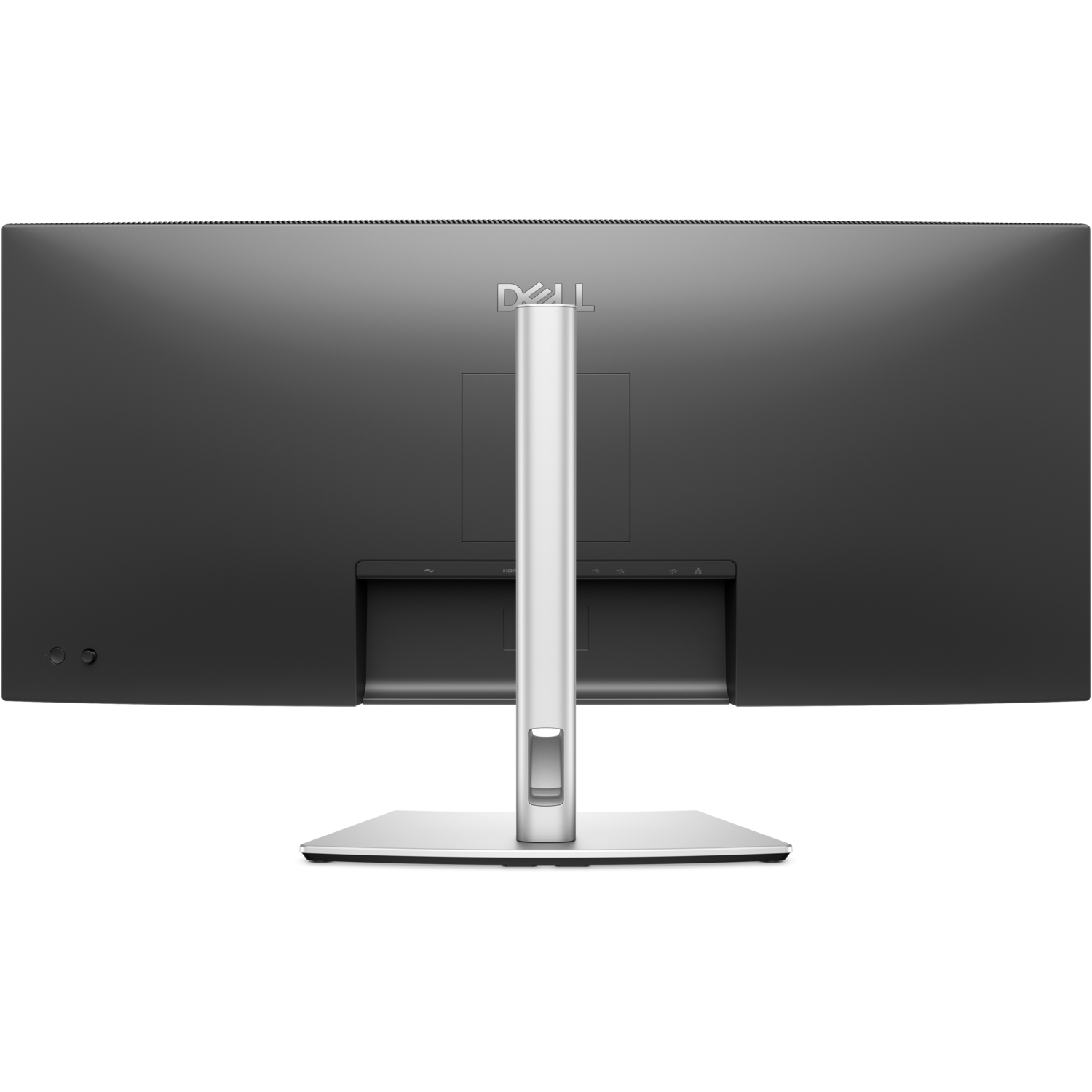

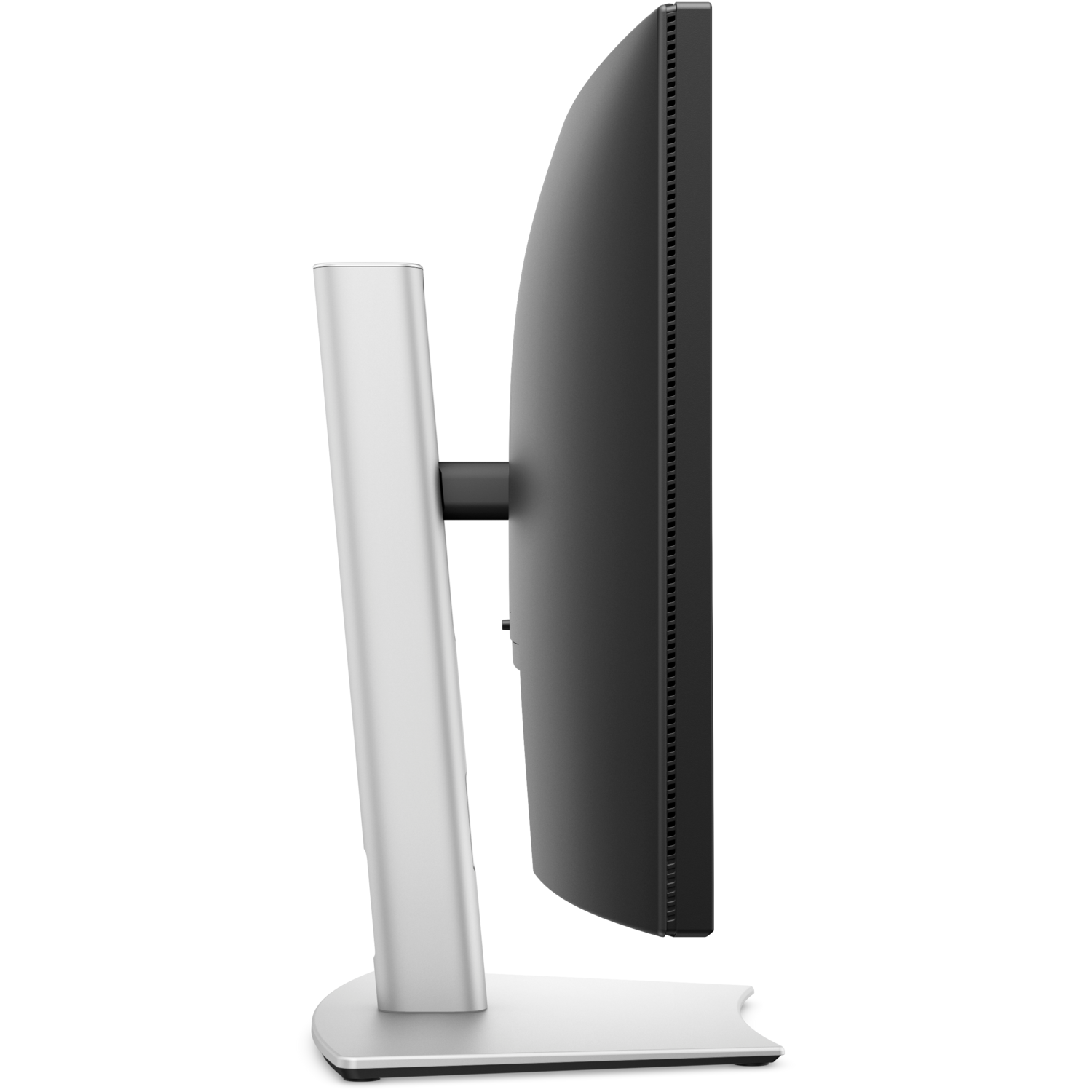

Ergonomics
| Height adjustment | 150 mm |

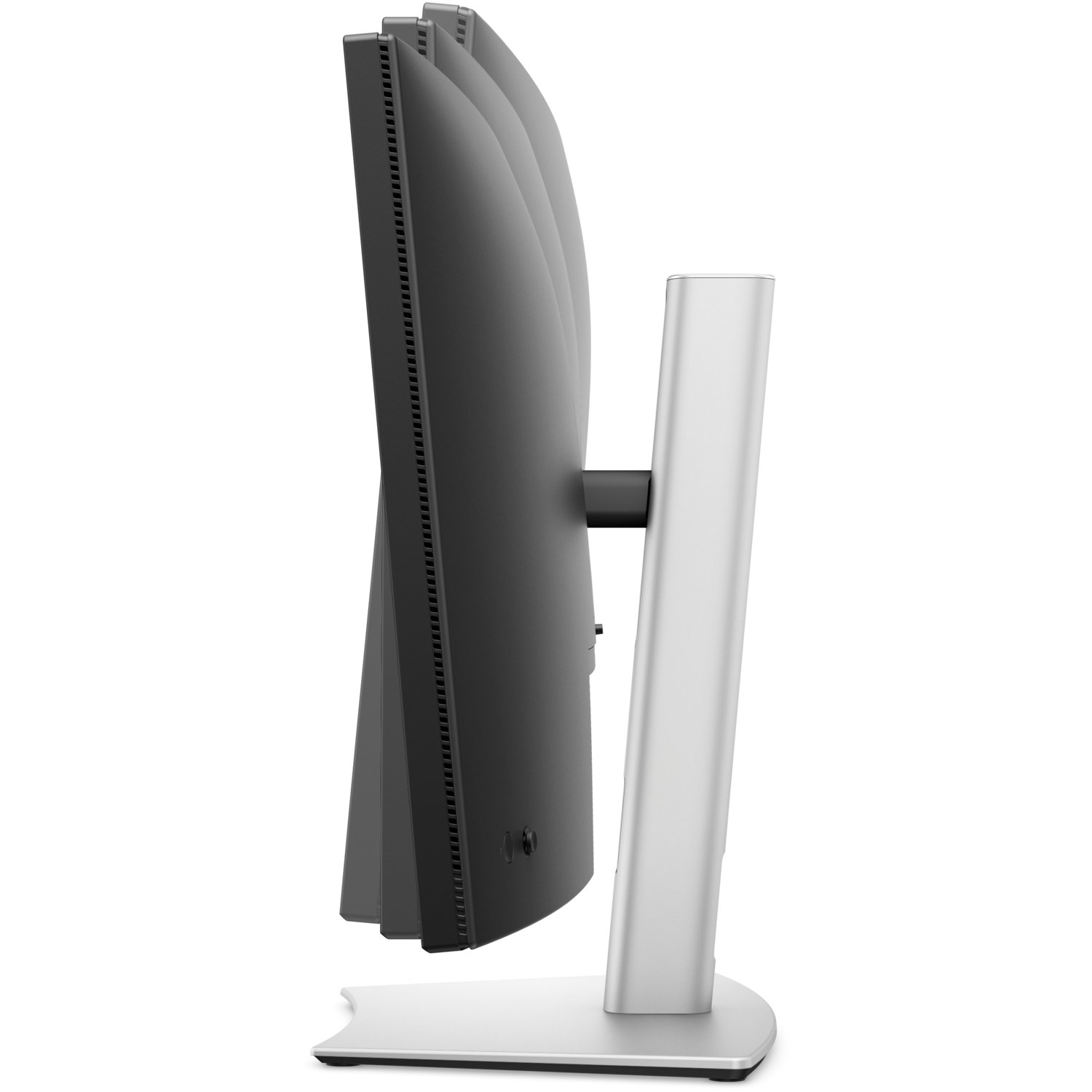

| Tilt | -5° to 21° |
| Swivel | -30° to 30° |
| Slant | -4° to 4° |
| VESA mount | 100 mm x 100 mm |
Power
| Input voltage | 100 VAC to 240 VAC, 50 Hz / 60 Hz |
| Operating | 28.7 W |
| Maximum | 200 W |
| Standby | 0.3 W |
| Off mode | 0.3 W |
Environmental
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Non-operating temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating humidity | 10% to 80% (non-condensing) |
| Non-operating humidity | 5% to 90% (non-condensing) |
| Operating altitude | 5,000 m max |
| Non-operating altitude | 12,190 m max |
Dimensions
| With stand (H extended / compressed x W x D) | 541.25 / 391.25 x 815.95 x 229.42 mm |
| Without stand (H x W x D) | 358 x 815.95 x 82.98 mm |
| Stand (H x W x D) | 433.30 x 343.20 x 229.42 mm |
| Bezel width | Top/Left/Right 8.85 mm, Bottom 14.35 mm |
Weight
| With stand | 9.91 kg (approx.) |
| Panel only | 6.90 kg (approx.) |
Certifications
| Energy | ENERGY STAR 8.0; ErP Lot 5 |
| TCO | TCO Certified, TCO Certified Edge |
| Materials | RoHS compliant; mercury-free, arsenic-free glass, BFR/PVC free |
Design & Management
| Colour | Dark Grey |
| Software | Dell Display and Peripheral Manager (DDPM), including remote asset management |
| Security | Security lock slot, stand lock |
Compatibility & Software Support
Connecting Your PC
Use the included USB-C to USB-C cable for single-cable video, data, Ethernet and up to 90 W charging. A desktop can connect over HDMI or DisplayPort with the USB-A to USB-B cable for the hub.
Two PCs
With a laptop on USB-C and a desktop on DisplayPort/HDMI plus USB-B, the built-in KVM shares one keyboard and mouse, and PbP shows both side by side.
Software
Compatible with Dell Display and Peripheral Manager for Easy Arrange layouts and remote management.
Package Contents & Dell Pro Plus Large & Ultrawide Monitors Ordering Information
In the Box
Monitor, stand, power cable, 1 x DisplayPort to DisplayPort cable (1.80 m), 1 x USB Type-C to Type-C cable (1.80 m), 1 x USB Type-A to Type-B upstream cable (1.80 m), QR card, safety/environmental/regulatory information, cable tie.
Dell Pro Plus Large & Ultrawide Monitors
| Model | Key feature |
| P2725QE | 27" 4K, USB-C hub |
| P3225QE | 32" 4K 100 Hz, USB-C hub, 90 W |
| P3425WE (this listing) | 34" curved 3440 x 1440, USB-C hub, 90 W |
| P5525QC | 55" 4K conference room, speakers, RS232 |
Datasheet & Downloads
| Dell datasheet | Dell Pro 34 Plus USB-C Hub Monitor P3425WE Datasheet (PDF) |
| Manuals & drivers | P3425WE manuals and documents on Dell Support |
| Dell product page | P3425WE on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P3425WE.
Frequently Asked Questions — Dell P3425WE
Is the screen curved?
Yes, 3800R curvature on a 34.1-inch 21:9 panel.
How much power can it deliver to my laptop?
Up to 90 W over the USB-C upstream port.
Can I connect two computers?
Yes. KVM, Picture-by-Picture and Picture-in-Picture let you use and view two PCs with one keyboard and mouse.
Does it have speakers or a webcam?
No.
What warranty do I get?
3 years Dell Limited Hardware Warranty with Advanced Exchange Service, supplied locally by SourceIT with a GST invoice.
