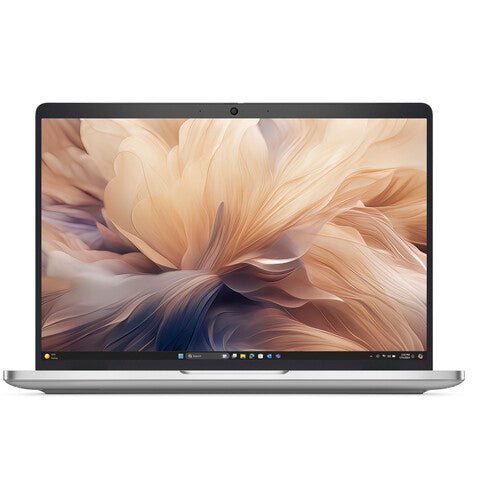

Dell Pro 14 Plus PB14250 Core Ultra 5 235U 16GB 512GB Laptop
PRODUCT DESCRIPTION
Dell Pro 14 Plus Laptop PB14250 Intel Core Ultra 5 235U vPro / 16GB / 512GB SSD (DP+PB14250U516G512ARLBTX) - 3 Years Local Warranty
Intel Core Ultra with Built-in NPU
This Dell Pro 14 Plus PB14250 runs an Intel Core Ultra 5 235U vPro processor (12 cores / 14 threads, up to 4.9 GHz) with a 12 TOPS NPU for on-device AI features, paired with 16GB of DDR5 memory at 5600 MT/s and a 512GB SSD. The 14" FHD+ 1920 x 1200 anti-glare IPS panel gives a taller 16:10 workspace.
Connected for Hybrid Work
Two Thunderbolt 4 ports, two 5Gbps USB-A ports (one with PowerShare), HDMI 2.1 and a built-in 1Gbps RJ45 Ethernet port cover docks, displays and peripherals without dongles. Both Thunderbolt ports support Power Delivery for charging and docking. Intel Wi-Fi 6E AX211 with Bluetooth 5.3 handles the wireless side, and the FHD HDR camera has a mechanical privacy shutter.
Serviceable and Secure
Two DDR5 SO-DIMM slots (up to 64GB) and an M.2 PCIe Gen 4 SSD slot keep the PB14250 upgradeable, while a discrete TPM 2.0, a fingerprint reader in the power button with ControlVault 3+ and a camera shutter meet Dell's commercial security baseline. Intel vPro is included on this Core Ultra 5 235U build.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell PB14250 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Pro 14 Plus Laptop PB14250 |
| SourceIT SKU | DP+PB14250U516G512ARLBTX |
| Processor | Intel Core Ultra 5 235U vPro |
| Memory | 16GB: 1 x 16GB DDR5, 5600 MT/s |
| Storage | 512GB SSD |
| Display | 14" FHD+ (1920 x 1200), non-touch, 300 nits, 45% NTSC, anti-glare |
| Camera | FHD HDR RGB camera with TNR, camera shutter and microphone |
| Wireless | Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth 5.3 |
| WWAN | No WWAN (WLAN only) |
| Battery | 3-cell, 45 Wh, ExpressCharge and ExpressCharge Boost capable |
| Biometrics | Fingerprint reader (no smart card reader), ControlVault 3+ |
| Keyboard | English US backlit keyboard with Copilot key, 79-key |
| Bundled | Dell EcoLoop Essential Briefcase 14-16 (CC3624) |
| Operating System | Windows 11 Pro |
| Local Warranty (Singapore) | 3 Years ProSupport (distributor configuration), supplied by SourceIT with a GST invoice |
Processor & Graphics
| Processor | Intel Core Ultra 5 235U vPro: 12 cores / 14 threads, up to 4.9 GHz; 12 TOPS NPU |
| Graphics | Integrated Intel graphics |
Memory & Storage
| Memory Slots | 2 x DDR5 SO-DIMM, up to 5600 MT/s, up to 64GB (2 x 32GB) |
| Storage Slot | 1 x M.2 2230/2280 PCIe Gen 4 NVMe SSD slot |
Display
| Size / Resolution | 14", FHD+ 1920 x 1200 (16:10) |
| Panel | IPS, anti-glare, non-touch, 300 nits, 45% NTSC, 60 Hz |
Ports & Slots
| Thunderbolt | 2 x Thunderbolt 4 (40Gbps) with DisplayPort Alt Mode / USB Type-C / USB4 / Power Delivery |
| USB-A | 1 x USB 3.2 Gen 1 (5Gbps) with PowerShare; 1 x USB 3.2 Gen 1 (5Gbps) |
| Video | 1 x HDMI 2.1 (TMDS) |
| Ethernet | 1 x RJ45 (1Gbps) — included on this configuration |
| Audio | 1 x global headset jack |
| Other | Wedge-shaped lock slot; smart card reader and nano-SIM slot are factory options |
Audio
| Speakers | 2 speakers, 2 W x 2 average (2.5 W x 2 peak) |
| Microphones | Dual-array microphones |
Power
| Battery | 3-cell, 45 Wh, ExpressCharge and ExpressCharge Boost capable |
| Power Adapter | USB Type-C AC adapter |
Security
| TPM | Discrete TPM 2.0, FIPS 140-2 certified |
| Other | Fingerprint reader in power button with ControlVault 3+; camera privacy shutter; wedge-shaped lock slot |
Physical
| Width x Depth | 313.50 x 224 mm |
| Height | 19.50 mm (front) – 21.20 mm (max) |
| Material | Aluminium chassis |
Compatibility & Software Support
Operating System
Ships with Windows 11 Pro.
Docking & Displays
The two Thunderbolt 4 ports support DisplayPort and Power Delivery, so the laptop works with Thunderbolt and USB-C docks and USB-C monitors such as the Dell Pro USB-C hub monitors, and charges through either port. HDMI 2.1 connects a projector or monitor directly.
Typical Use
Corporate fleets and hybrid workers who want a 14-inch Dell Pro Plus with a built-in Ethernet port, two SO-DIMM slots and Intel vPro options.
Package Contents & Dell Pro 14 Plus (Core Ultra 200U) Ordering Information
In the Box
Dell Pro 14 Plus PB14250 laptop, USB-C power adapter and Dell EcoLoop Essential Briefcase 14-16 (CC3624).
Dell Pro 14 Plus (Core Ultra 200U) Configurations at SourceIT
| Processor | Memory / SSD |
| Core Ultra 5 235U vPro | 16GB / 512GB (Wi-Fi 7) |
| Core Ultra 5 235U vPro (this listing) | 16GB / 512GB |
| Core Ultra 7 255U | 16GB / 512GB |
| Core Ultra 7 255U | 32GB / 1TB |
Datasheet & Downloads
| Product brochure | Dell Pro 13 / 14 / 16 Plus laptop product brochure (PDF) |
| Manuals & drivers | Dell Pro 14 Plus PB14250 manuals on Dell Support |
| Dell product page | Dell Pro 14 Plus on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PB14250.
Frequently Asked Questions — Dell PB14250
Can the memory be upgraded?
Yes. The PB14250 has two DDR5 SO-DIMM slots and supports up to 64GB. This configuration ships with 1 x 16GB DDR5, leaving one slot free.
Does it have an Ethernet port?
Yes. This PB14250 configuration includes a built-in RJ45 port (1Gbps).
Can it charge over USB-C?
Yes. Both Thunderbolt 4 ports support Power Delivery, and a USB Type-C power adapter is included.
Does it support Intel vPro?
Yes, this Core Ultra 5 235U configuration is vPro-enabled.
What warranty do I get?
3 years ProSupport, supplied locally by SourceIT with a GST invoice.
