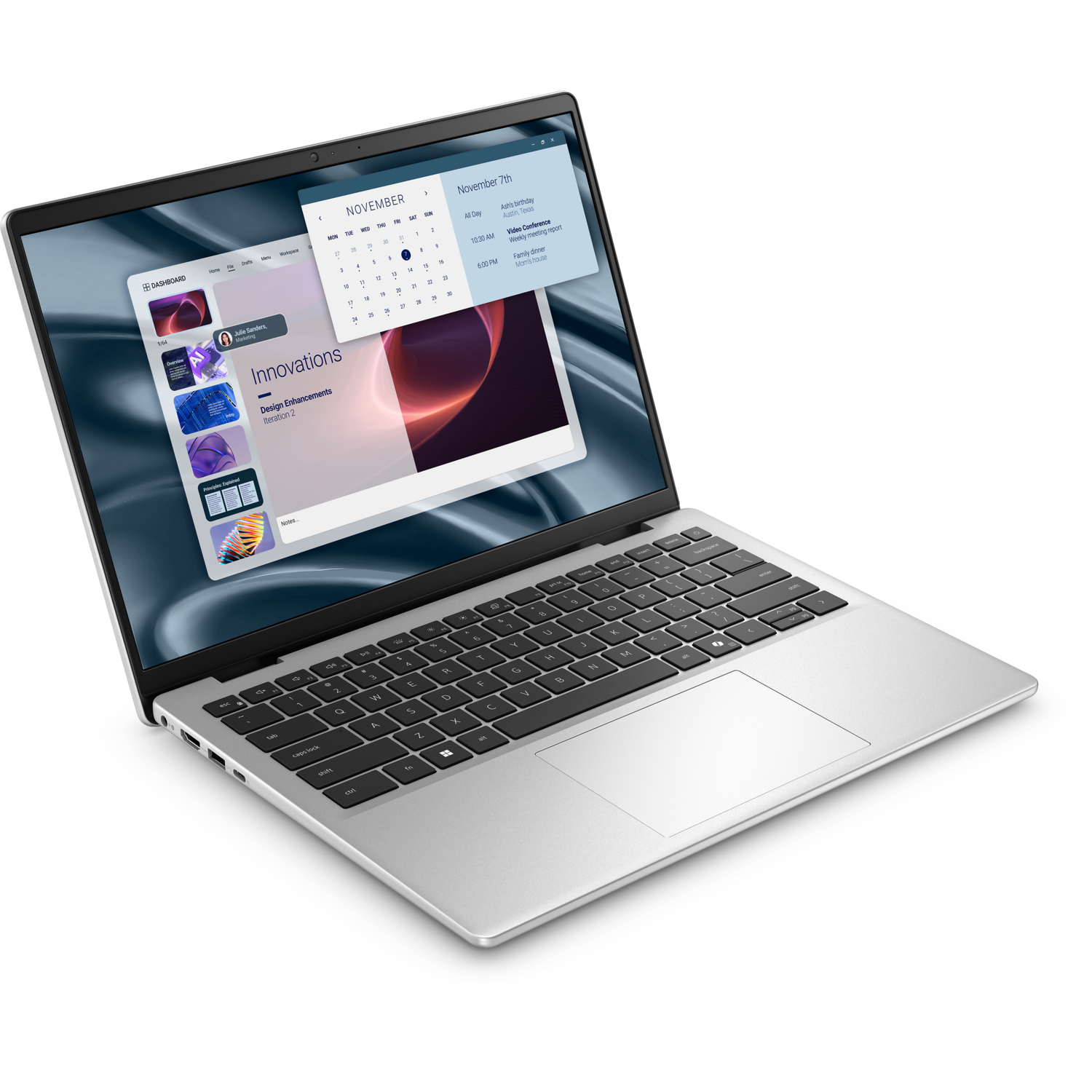

Dell Pro 14 Essential PV14255 Ryzen 5 220 8GB 512GB Laptop
PRODUCT DESCRIPTION
Dell Pro 14 Essential Laptop PV14255 AMD Ryzen 5 220 / 8GB / 512GB SSD Platinum Silver (210-BTGW / PV14255-R5220-8G-512G) - Local Dell Warranty
AMD Ryzen Performance for Everyday Business
This Dell Pro 14 Essential PV14255 runs an AMD Ryzen 5 220 processor (6 cores / 12 threads, up to 4.9 GHz), with 8GB of DDR5 memory (5600 MT/s) and a 512GB M.2 PCIe Gen 4 NVMe SSD, on a 14-inch FHD+ 1920 x 1200 16:10 display in a Platinum Silver plastic chassis.
Upgradeable Where It Counts
Two DDR5 SO-DIMM slots and an M.2 2230 PCIe Gen 4 SSD slot keep memory and storage serviceable, so the PV14255 can grow with the user instead of being replaced.
Connected for Hybrid Work
A 10Gbps USB-C port with Power Delivery and DisplayPort 1.4, two 5Gbps USB-A ports, HDMI, an SD card slot and a headset jack cover monitors, projectors and peripherals, while TPM 2.0 and a wedge-shaped lock slot cover the security basics.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell PV14255 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Pro 14 Essential PV14255 |
| SourceIT SKU | 210-BTGW / PV14255-R5220-8G-512G |
| Processor | AMD Ryzen 5 220 |
| Memory | 8GB DDR5, 5600 MT/s |
| Storage | 512GB M.2 PCIe Gen 4 NVMe SSD |
| Chassis / Colour | Platinum Silver, plastic chassis |
| Display panel, battery, keyboard, OS | Per the supplied distributor SKU - confirm with sales before ordering |
| Local Warranty (Singapore) | Local Dell warranty - term per the supplied distributor SKU; confirm with sales. Supplied by SourceIT with a GST invoice |
Processor & Graphics
| Processor | AMD Ryzen 5 220: 6 cores / 12 threads, up to 4.9 GHz |
| Graphics | Integrated AMD Radeon graphics |
Memory & Storage
| Memory Slots | 2 x DDR5 SO-DIMM, dual-channel, 5600 MT/s |
| Storage Slot | 1 x M.2 2230 PCIe Gen 4 NVMe SSD slot |
Display
| Size / Resolution | 14", FHD+ 1920 x 1200 (16:10), anti-glare, non-touch, IPS / WVA |
| Panel options | Dell also offers a 14" QHD+ 2560 x 1600 120 Hz panel; this configuration's panel is per the supplied SKU |

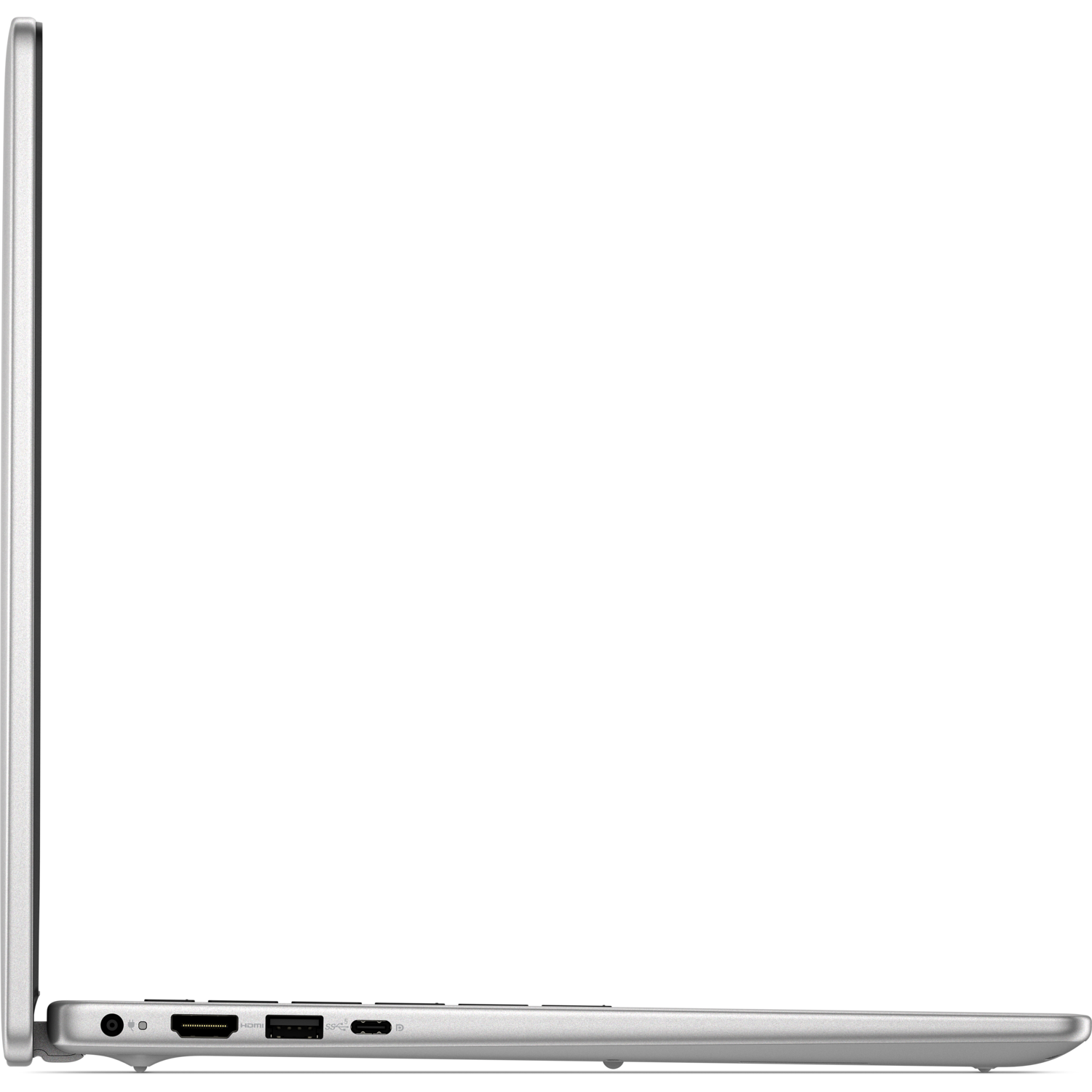

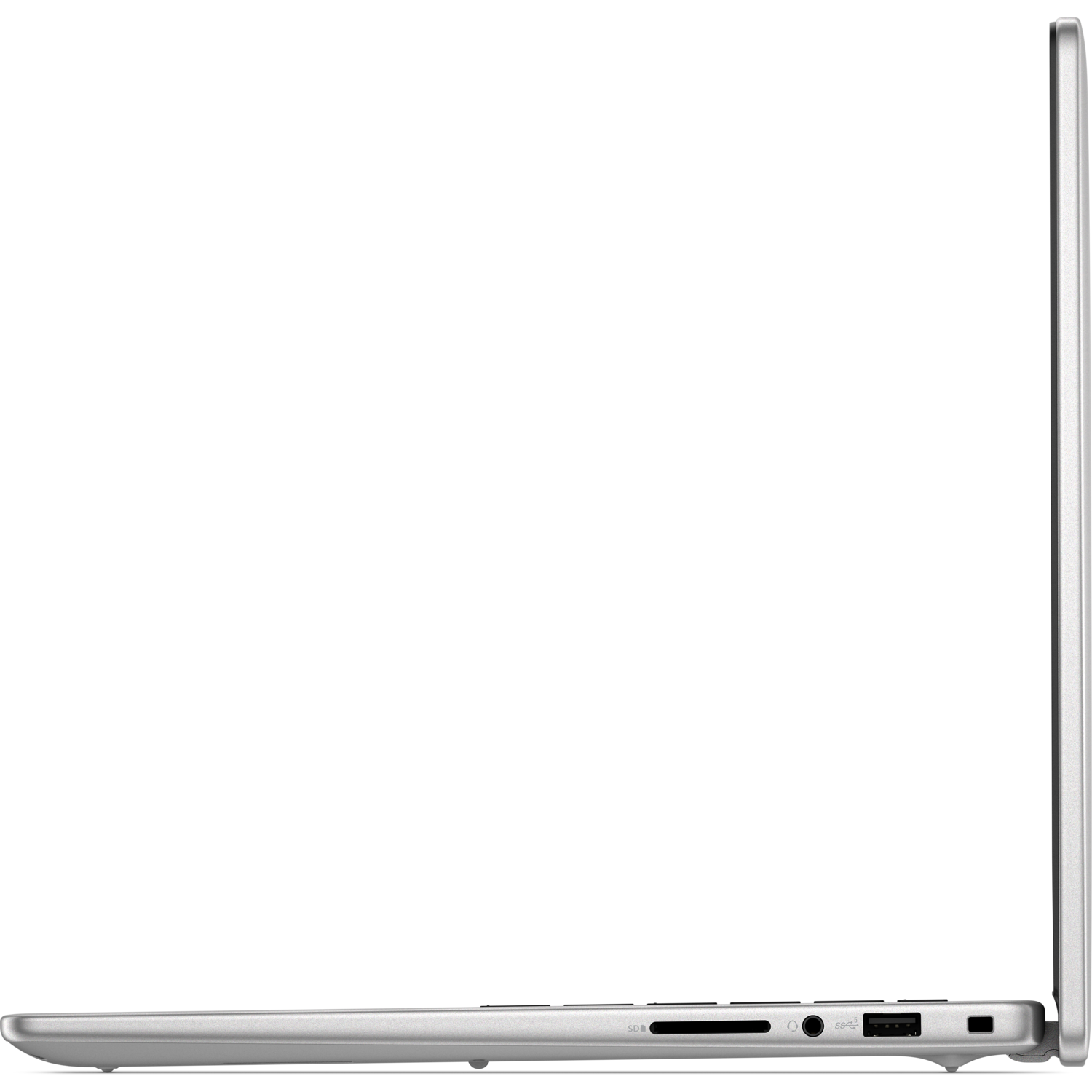

Ports & Slots
| USB-C | 1 x USB 3.2 Gen 2 (10Gbps) Type-C with Power Delivery and DisplayPort 1.4 |
| USB-A | 2 x USB 3.2 Gen 1 (5Gbps) |
| Video | 1 x HDMI 1.4 (up to 1920 x 1080 at 60 Hz) |
| Audio | 1 x headset (headphone and microphone combo) jack |
| Other | 1 x SD card slot; 4.5 mm barrel power port; wedge-shaped lock slot |
| Ethernet | Not available on this model |
Wireless, Audio & Camera
| Wireless | Realtek Wi-Fi 6 RTL8852BE, 2x2, Bluetooth 5.3 (plastic chassis) |
| Speakers | 2 x 2 W speakers |
| Camera | HD 720p camera, single microphone (plastic chassis) |
Power
| Battery options | 3-cell 41 Wh or 4-cell 54 Wh (plastic chassis) - per supplied SKU |
| Power Adapter | 65 W AC adapter, 4.5 mm barrel |
Security
| TPM | TPM 2.0 |
| Other | Wedge-shaped lock slot; fingerprint reader in power button (option) |
Physical
| Width x Depth | 314.00 x 226.15 mm |
| Height | 16.90–19.90 mm (plastic chassis) |
| Weight | 1.54–1.69 kg (plastic chassis) |
Compatibility & Software Support
Operating System
Dell offers the PV14255 Ryzen 5 220 with Windows 11 Home, Pro or Education and Ubuntu 24.04; the installed OS edition depends on the supplied SKU - confirm with sales.
Displays & Docking
The USB-C port supports DisplayPort 1.4 and Power Delivery for USB-C monitors and docks; HDMI 1.4 connects a projector or FHD monitor directly (up to 1920 x 1080 at 60 Hz).
Typical Use
Office productivity, education and SME fleets that want an AMD-based 14-inch business laptop at an entry price.
Package Contents & Dell Pro 14 Essential Ordering Information
In the Box
Dell Pro 14 Essential PV14255 laptop and 65 W AC adapter.
Dell Pro 14 Essential (AMD) Configurations at SourceIT
| Processor | Memory / SSD / Chassis |
| Ryzen 5 220 (this listing) | 8GB / 512GB / plastic |
| Ryzen 5 220 | 16GB / 512GB / plastic |
| Ryzen 7 250 | 16GB / 512GB / plastic |
| Ryzen AI 5 330 | 16GB / 512GB / aluminium |
| Ryzen AI 7 350 | 16GB / 1TB / aluminium |
| Intel PV14250 models | Carbon Black - Core 3 / Core 5 / Core 7 |
Datasheet & Downloads
| Product brochure | Dell Pro 14 Essential (PV14250 / PV14255) product brochure (PDF) |
| Manuals & drivers | Dell Pro 14 Essential PV14255 manuals on Dell Support |
| Dell product page | Dell Pro 14 Essential (AMD) on dell.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PV14255.
Frequently Asked Questions — Dell PV14255
Can the memory be upgraded?
Yes. The PV14255 has two DDR5 SO-DIMM slots (5600 MT/s). This configuration ships with 8GB.
Does it have an Ethernet port?
No. Use a USB-C or USB-A Ethernet adapter or a USB-C dock for wired networking.
What is the difference between the plastic and aluminium models?
Dell fits the aluminium PV14255 with Wi-Fi 6E and a 1080p camera with shutter; this plastic model has Wi-Fi 6 and a 720p camera. The Ryzen AI 5 330 and Ryzen AI 7 350 configurations use the aluminium chassis.
Can it output 4K over HDMI?
No. Dell states the HDMI 1.4 port supports up to 1920 x 1080 at 60 Hz; use the USB-C port with DisplayPort 1.4 for higher-resolution monitors.
Which display, battery and Windows edition does this configuration have?
These depend on the supplied distributor SKU. Email sales@sourceit.com.sg quoting 210-BTGW / PV14255-R5220-8G-512G and we will confirm before you order.
What warranty do I get?
A local Dell warranty supplied by SourceIT with a GST invoice; the term depends on the distributor SKU - please confirm with sales.
