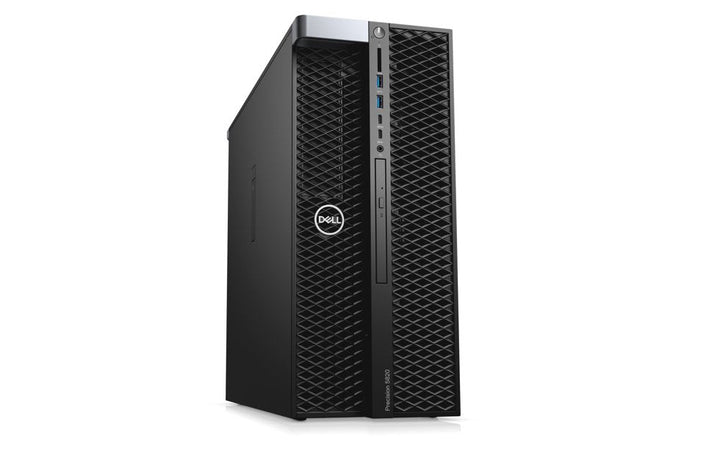

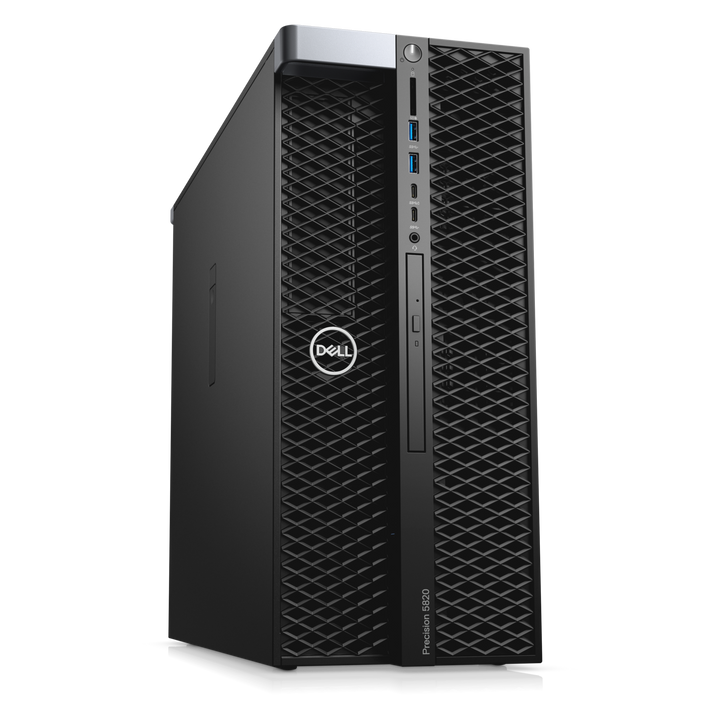

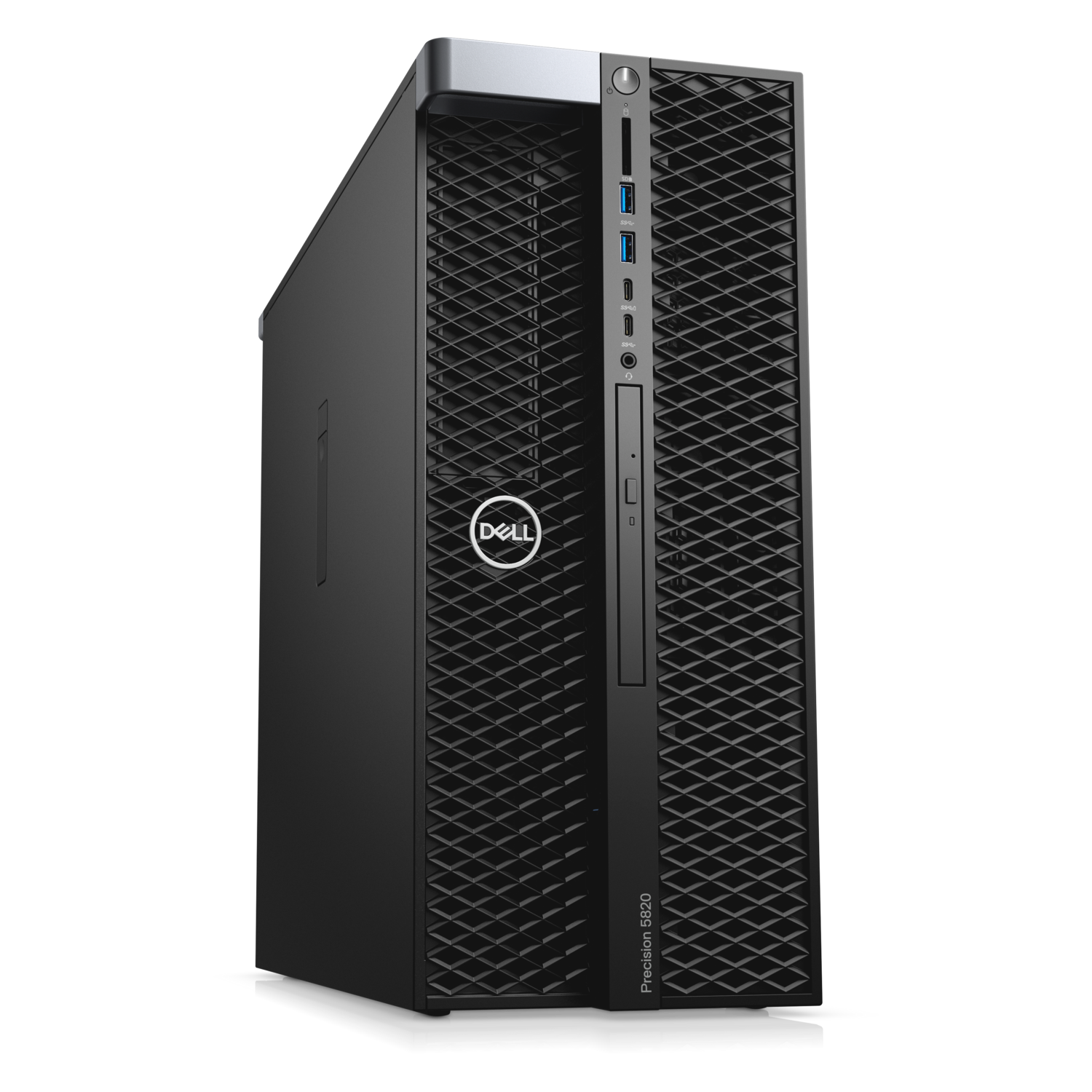

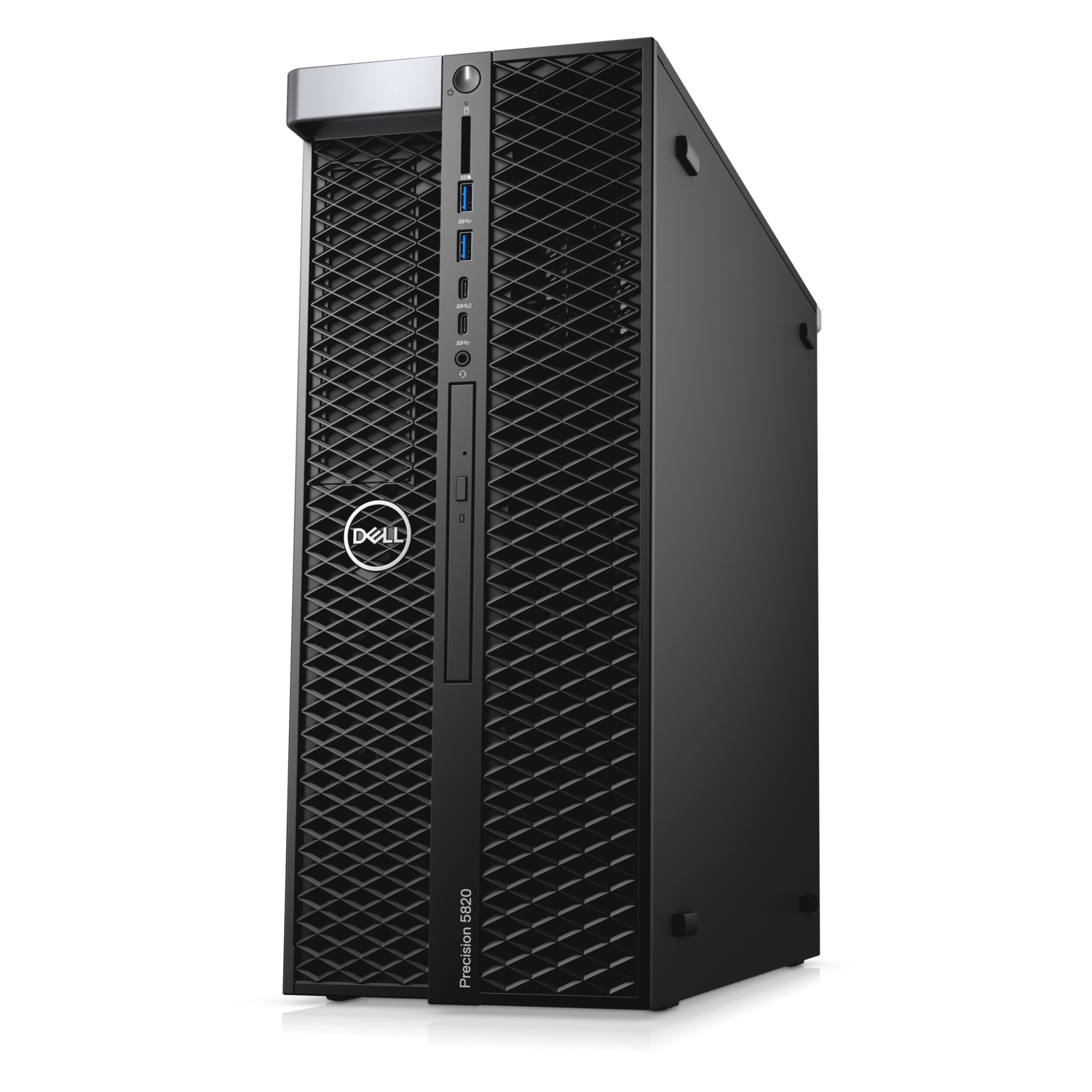

Dell Precision 5820 Tower Workstation Xeon W-2223 32GB 512GB SSD 2TB HDD T1000
PRODUCT DESCRIPTION
Dell Precision 5820 Tower Workstation Intel Xeon W-2223 / 32GB DDR4 ECC / 512GB SSD + 2TB SATA / NVIDIA T1000 / Windows 11 Pro for Workstations (AWT5820MTXeon32G2TBT1000) - 3 Years Local Onsite Warranty
Xeon W-2223 with 32GB ECC and NVIDIA T1000
Intel Xeon W-2223 quad-core, 32GB of DDR4 2933 ECC registered memory and NVIDIA T1000 professional graphics, with a 512GB NVMe SSD for applications and a 2TB 7200rpm drive for project data.
Workstation Expandability
Eight DDR4 ECC DIMM slots, FlexBay storage, front NVMe options and six expansion slots with up to 600 W for dual professional graphics cards.
Built for Long Sessions
Intel C422 platform, TPM 2.0, chassis intrusion switch and a lockable power supply, with ISV-certified drivers for CAD and content creation.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Precision 5820 Tower Datasheet — Technical Specifications
Configuration
| Product Name | Dell Precision 5820 Tower Workstation |
| Part Number | AWT5820MTXeon32G2TBT1000 |
| Processor | Intel Xeon W-2223 — 4 cores, 8 threads, 8.25 MB cache, 3.6 to 3.9 GHz, 120 W |
| Memory | 32GB (2 x 16GB) DDR4 2933 MT/s ECC RDIMM |
| Storage | 512GB M.2 PCIe NVMe SSD (Class 40) + 2TB 3.5-inch 7200rpm SATA hard drive |
| Graphics | NVIDIA T1000 4GB GDDR6, 4 x mini DisplayPort (with mDP-to-DP adapters) |
| Operating system | Windows 11 Pro for Workstations |
| Keyboard | Dell KB216 wired keyboard |
| Local Warranty (Singapore) | 3 years Dell ProSupport next-business-day onsite (per configuration) |
Processor & Graphics
| Processor | Intel Xeon W-2223 — 4 cores, 8 threads, 8.25 MB cache, 3.6 to 3.9 GHz, 120 W |
| Chipset | Intel C422 |
| Graphics support | Up to two 300 W double-width professional graphics cards (600 W total) |
Memory & Storage
| Memory support | Eight DIMM slots, DDR4 ECC RDIMM with Xeon W processors |
| Storage support | 5.25-inch bay, FlexBay drive bays, front M.2/U.2 NVMe options and M.2 NVMe via Dell Ultra-Speed Drive cards |
Expansion
| PCIe slots | Two PCIe x16, one x16 (x8 wired), one x16 (x4 wired), one x16 (x1 wired) and one PCI 32/33 |
Ports
| Rear | 6 x USB 3.1 Gen 1 Type-A, serial, RJ45 network, 2 x PS/2, audio line-in/mic and line-out |
| Front | USB 3.1 Gen 1 ports and universal audio jack |
Power, Security & Physical
| Power supply options (Dell) | 425 W or 950 W with Xeon W processors |
| Security | TPM 2.0, chassis intrusion switch, Kensington lock slot, padlock ring, lockable power supply, optional smart card reader |
| Dimensions (H x W x D) | 417.9 x 176.5 x 518.3 mm |
Compatibility & Software Support
Operating System
Dell lists Windows 10 Pro for Workstations, Red Hat Enterprise Linux 8.0 and Ubuntu 18.04 for the Precision 5820 Tower; configurations supplied with Windows 11 Pro for Workstations are stated in the configuration table.
Professional Applications
Precision workstations are ISV-certified for leading CAD, BIM and content-creation applications, with Dell Precision Optimizer.
Upgrades
Eight DIMM slots, FlexBay storage and six expansion slots give room to add memory, storage and graphics.
Manageability
Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell Precision 5820 Tower Ordering Information
In the Box
Dell Precision 5820 Tower workstation, Dell KB216 keyboard, mini DisplayPort to DisplayPort adapters, power cable and documentation.
Dell Precision Tower Workstations at SourceIT
| Model | Configuration |
| Precision 3650 Tower (10th/11th Gen) | Core i7 / 16GB / 2TB SATA (with or without WX 3200) |
| Precision 3660 Tower (12th/13th Gen) | Core i7 / 16GB / 512GB SSD or 2TB SATA (with or without WX 3200) |
| Precision 3660 Tower | Core i7-12700 / 16GB / 2TB SATA / WX 3200 |
| Precision 3660 Tower | Core i7-12700 / 16GB / 512GB SSD / T400 |
| Precision 3660 Tower | Core i7-13700 / 16GB / 512GB SSD + 2TB SATA / T400 |
| Precision 3680 Tower (14th Gen) | Core i7-14700 / 16GB / 512GB SSD + 2TB SATA / T400 |
| Precision 5820 Tower (Xeon W) | Xeon W-2223 / 16GB or 32GB / T1000 or P2200 |
| Precision 5820 Tower (this listing) | Xeon W-2223 / 32GB / 512GB SSD + 2TB SATA / T1000 |
| Precision 5860 Tower (Xeon W) | Xeon W3-2423 / 32GB / 512GB SSD + 2TB SATA / T1000 |
Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner's manual & specifications | Precision 5820 Tower Owner's Manual — System Specifications (Dell) |
| Datasheet | Precision 5820 Tower Spec Sheet (Dell) |
| Manuals & drivers | Precision 5820 Tower on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Precision 5820 Tower.
Frequently Asked Questions — Dell Precision 5820 Tower
How many displays can it drive?
The NVIDIA T1000 has four mini DisplayPort outputs, supplied with DisplayPort adapters.
What replaced the Precision 5820?
The Precision 5860 Tower with Xeon W-2400 processors and DDR5 — see the family table above, or email sales@sourceit.com.sg for current stock.
Can I upgrade the memory?
Yes — eight DIMM slots take DDR4 ECC registered memory; Dell quotes up to 512GB with Cascade Lake Xeon W processors such as the W-2223.
What warranty do I get?
3 years local onsite warranty, supplied locally by SourceIT with a GST invoice.
