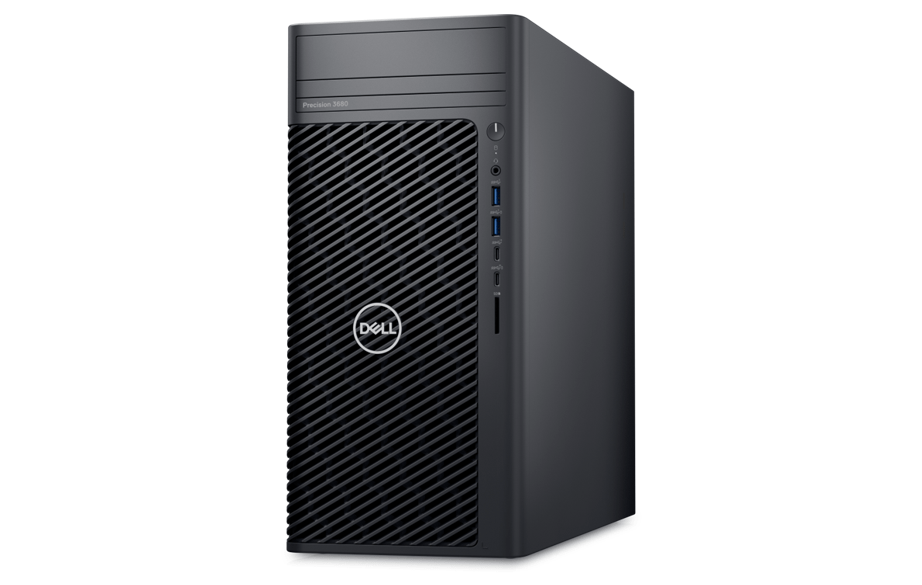

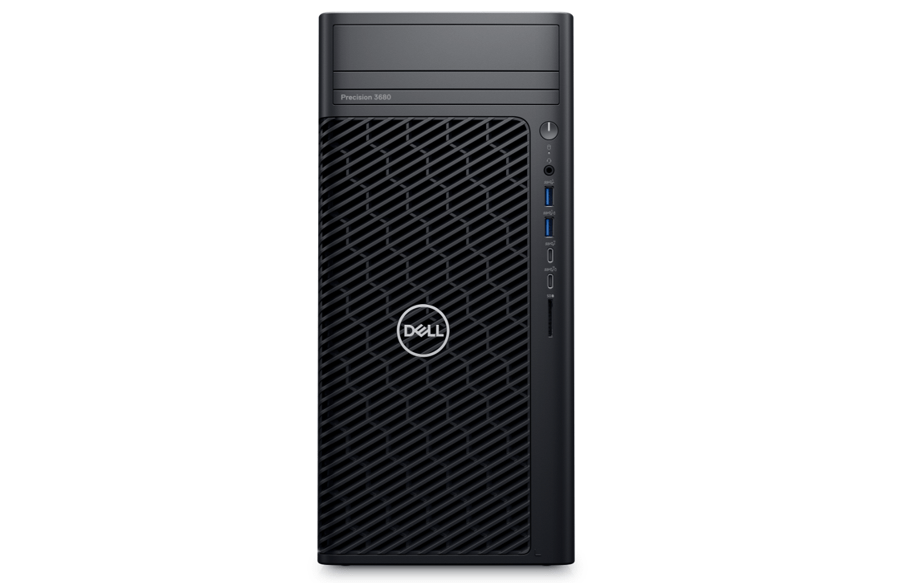

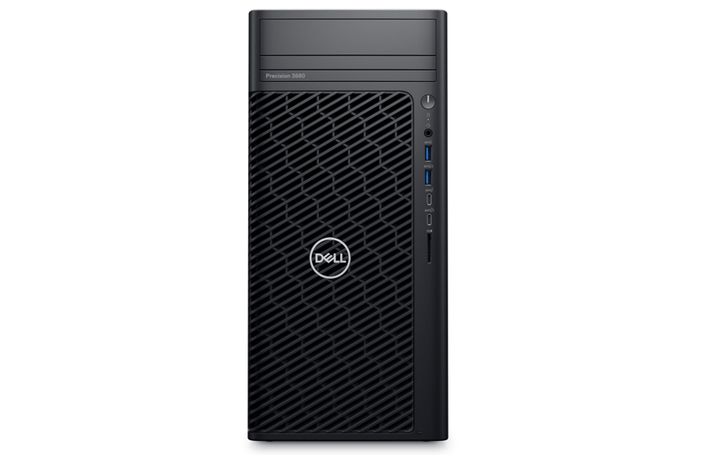

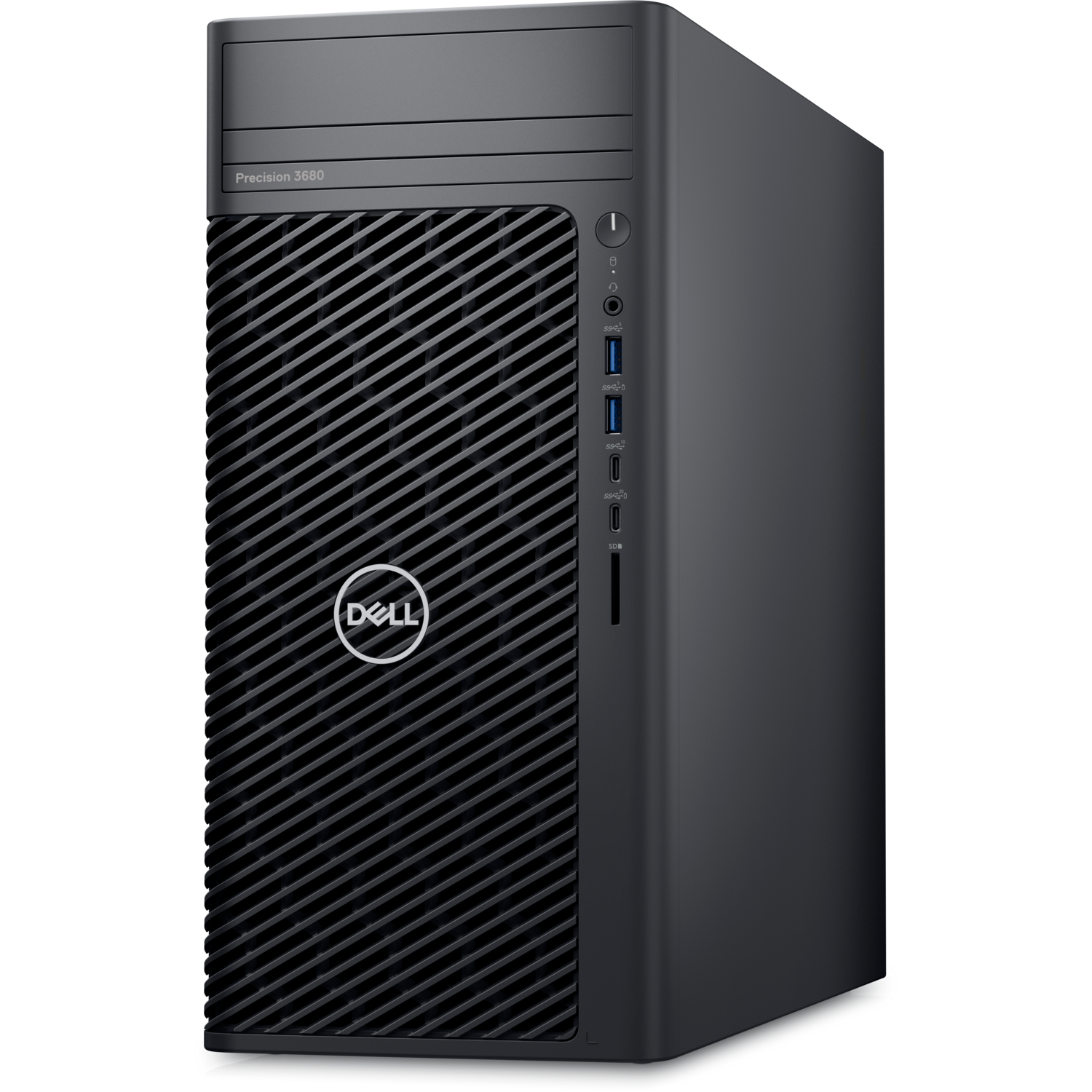

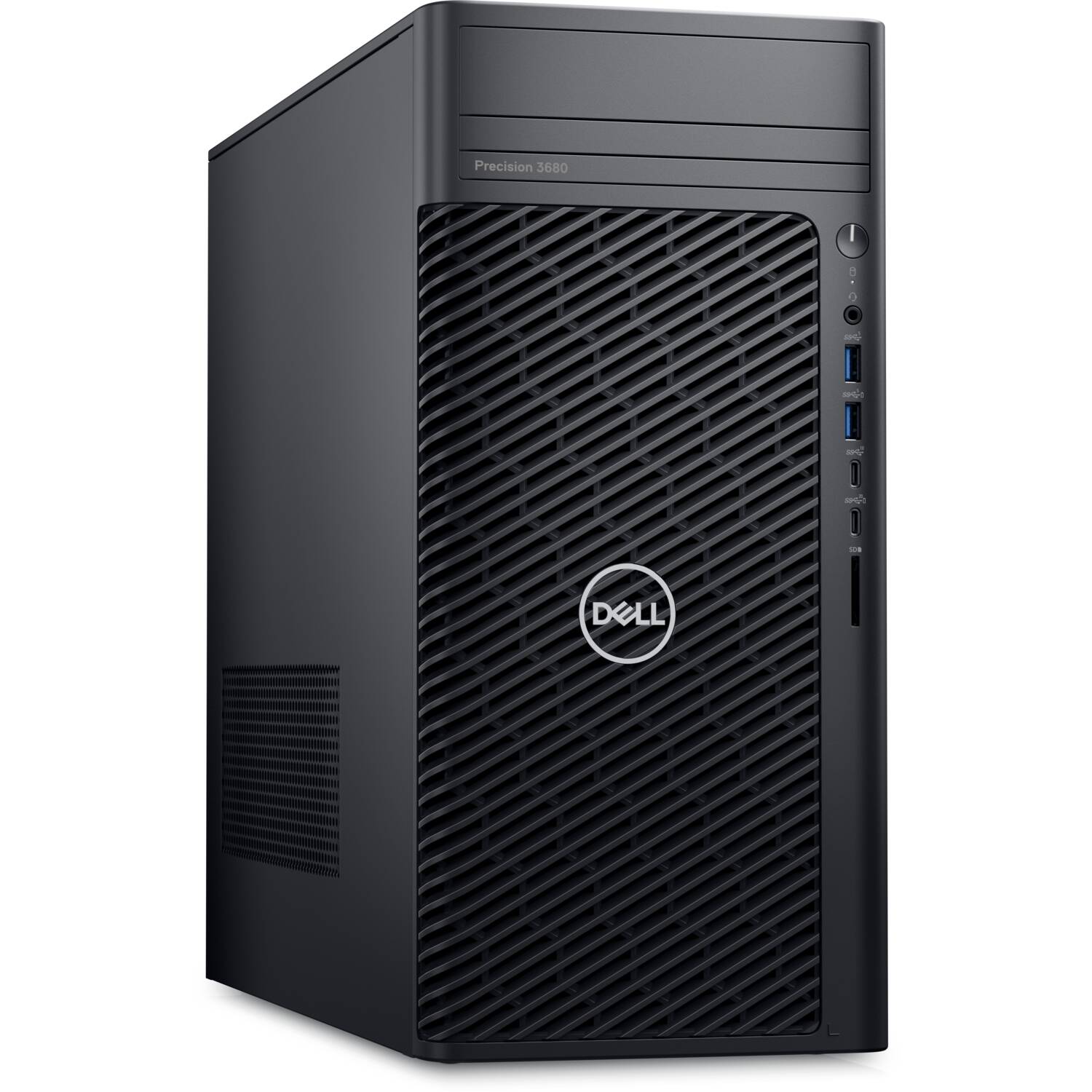

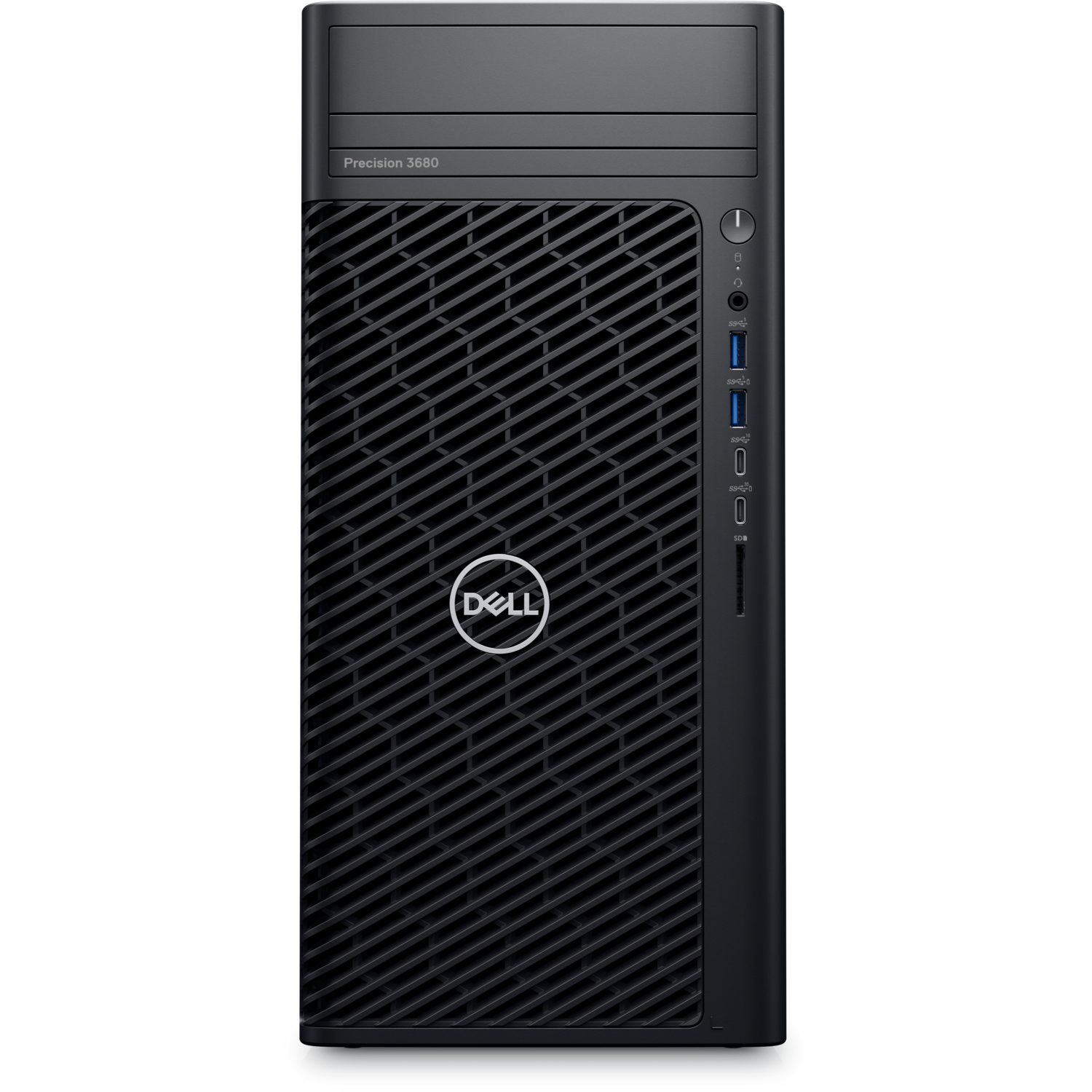

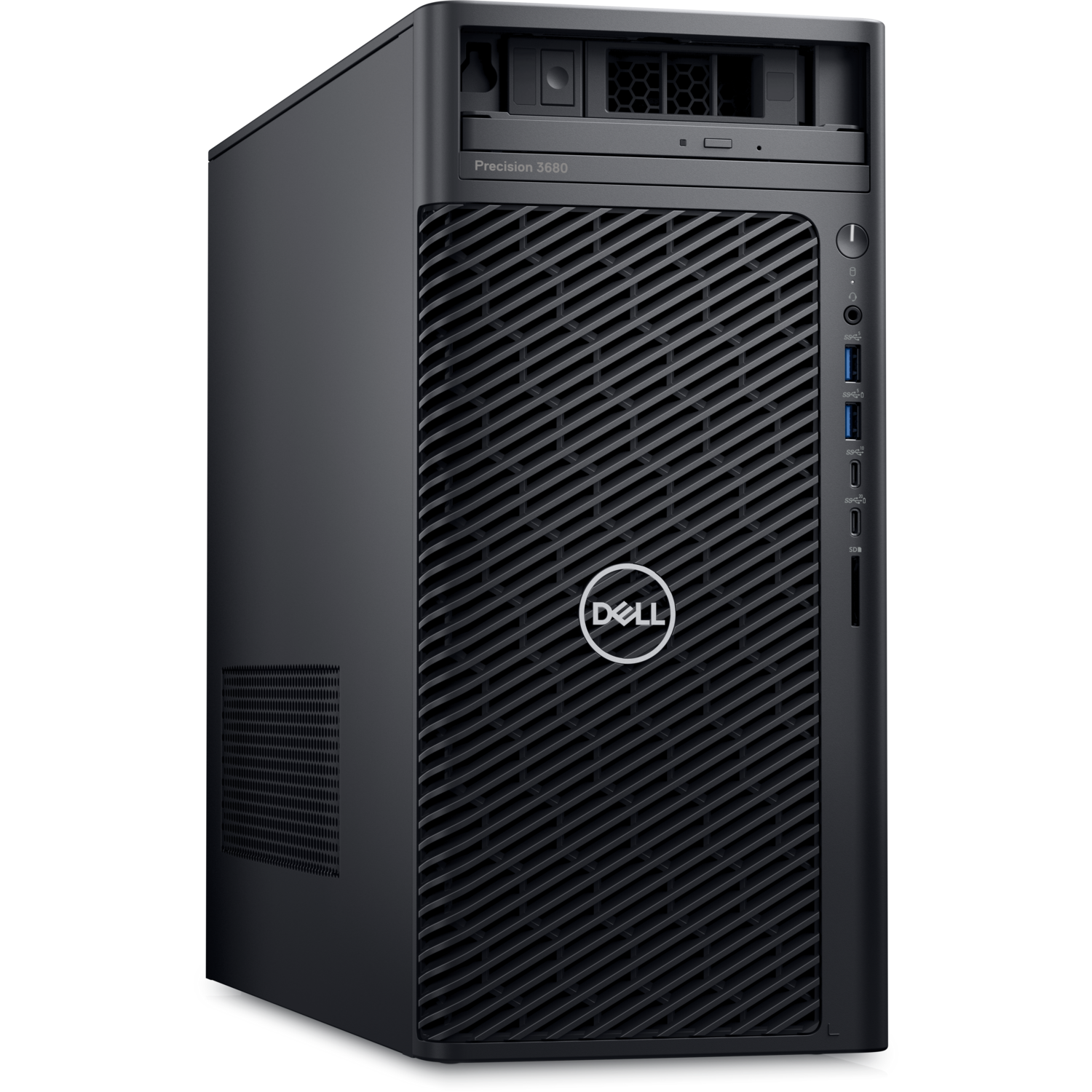

Dell Precision 3680 Tower Workstation Core i7-14700 16GB 512GB SSD 2TB HDD T400
PRODUCT DESCRIPTION
Dell Precision 3680 Tower Workstation Intel Core i7-14700 / 16GB DDR5 ECC / 512GB SSD + 2TB SATA / NVIDIA T400 / Windows 11 Pro (AWT3680MTI713165122TBT400) - 3 Years Local Onsite Warranty
14th Gen Core i7-14700 with NVIDIA T400
A 20-core Intel Core i7-14700 vPro, 16GB of ECC DDR5 and NVIDIA T400 professional graphics, with a 512GB Gen 4 NVMe SSD for applications and a 2TB 7200rpm drive for project data.
Room to Grow
Four DDR5 DIMM slots (up to 128GB), three M.2 NVMe slots, up to three 3.5-inch SATA bays and a PCIe Gen 5 x16 graphics slot let the 3680 scale with the workload.
Front USB-C 20 Gbps and Workstation Security
Front USB-C 3.2 Gen 2x2 and SD card slot, rear DisplayPort 1.4a and USB 3.2 Gen 2, plus TPM 2.0, chassis intrusion switch and Dell SafeBIOS.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Precision 3680 Tower Datasheet — Technical Specifications
Configuration
| Product Name | Dell Precision 3680 Tower Workstation |
| Part Number | AWT3680MTI713165122TBT400 |
| Processor | Intel Core i7-14700 vPro — 20 cores, 28 threads, 33 MB cache, 2.1 to 5.4 GHz, 65 W |
| Memory | 16GB (1 x 16GB) DDR5 ECC, 4400 MT/s |
| Storage | 512GB M.2 2280 PCIe Gen 4 NVMe SSD + 2TB 3.5-inch 7200rpm SATA hard drive |
| Graphics | NVIDIA T400 4GB GDDR6 (3 x mini DisplayPort) + Intel UHD Graphics 770 |
| Power supply | 300 W, 80 Plus Platinum |
| Optical drive | 8x DVD+/-RW 9.5mm |
| Operating system | Windows 11 Pro |
| Keyboard & mouse | Dell KB216 wired keyboard and MS116 wired mouse |
| Local Warranty (Singapore) | 3 years Dell ProSupport next-business-day onsite (per configuration) |
Processor & Graphics
| Processor | Intel Core i7-14700 vPro — 20 cores, 28 threads, 33 MB cache, 2.1 to 5.4 GHz, 65 W |
| Chipset | Intel W680, PCIe up to Gen 5 |
| Discrete graphics | NVIDIA T400 4GB, three mini DisplayPort outputs |
| Integrated graphics | Intel UHD Graphics 770 |
| Graphics support | One PCIe x16 Gen 5 slot for cards up to 450 W (with a suitable power supply) |
Memory & Storage
| Memory supplied | 16GB DDR5 ECC (1 x 16GB) |
| Memory support | Four DDR5 DIMM slots, ECC or non-ECC, up to 128GB; 4400 MT/s with one DIMM per channel, 4000/3600 MT/s with two |
| Storage supplied | 512GB M.2 NVMe SSD + 2TB SATA hard drive |
| Storage support | Three M.2 NVMe Gen 4 SSD slots (two 2230/2280, one 2280) and up to three 3.5-inch SATA drives; RAID 0/1/5 |
Expansion
| PCIe slots | One PCIe x16 Gen 5, one PCIe x4 Gen 4 (open-ended), one PCIe x4 Gen 3 — all full height |
Ports
| Front | USB 3.2 Gen 1, USB 3.2 Gen 1 with PowerShare, USB-C 3.2 Gen 2, USB-C 3.2 Gen 2x2 (20 Gbps) with PowerShare, universal audio jack, SD card slot |
| Rear | 2 x DisplayPort 1.4a, 2 x USB 2.0 with Smart Power On, 2 x USB 3.2 Gen 2 Type-A, 2 x USB-C 3.2 Gen 2, RJ45 1 GbE (Intel I219-LM), line-out |
| Optional | One video port (VGA / HDMI 2.0 / DisplayPort 1.4a / USB-C), 2.5 GbE port, Wi-Fi 6E + Bluetooth 5.3 card |
Power, Security & Physical
| Power supply options (Dell) | 300 W, 500 W or 1000 W, 80 Plus Platinum |
| Security | TPM 2.0 (FIPS 140-2), chassis intrusion switch, lock slot, padlock loop, optional lockable cable cover and front bay bezel, Dell SafeBIOS |
| Dimensions (H x W x D) | 372.9 x 173.0 x 420.2 mm |
| Weight | From 7.58 kg (up to 16.05 kg depending on configuration) |
Compatibility & Software Support
Operating System
Supplied with Windows 11 Pro. Dell also lists Windows 11 Pro for Workstations and Ubuntu 22.04 LTS for the Precision 3680 Tower.
Professional Applications
Precision workstations are ISV-certified for leading CAD, BIM and content-creation applications, with Dell Precision Optimizer.
Upgrades
Spare DIMM slots, two more M.2 SSD slots, SATA bays and three full-height PCIe slots leave room to add memory, storage and graphics later. Higher-power GPUs need the 500 W or 1000 W supply.
Manageability
Intel vPro, Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell Precision 3680 Tower Ordering Information
In the Box
Dell Precision 3680 Tower workstation, Dell KB216 keyboard, Dell MS116 mouse, power cable and documentation.
Dell Precision Tower Workstations at SourceIT
| Model | Configuration |
| Precision 3650 Tower (10th/11th Gen) | Core i7 / 16GB / 2TB SATA (with or without WX 3200) |
| Precision 3660 Tower (12th/13th Gen) | Core i7 / 16GB / 512GB SSD or 2TB SATA (with or without WX 3200) |
| Precision 3660 Tower | Core i7-12700 / 16GB / 2TB SATA / WX 3200 |
| Precision 3660 Tower | Core i7-12700 / 16GB / 512GB SSD / T400 |
| Precision 3660 Tower | Core i7-13700 / 16GB / 512GB SSD + 2TB SATA / T400 |
| Precision 3680 Tower (this listing) | Core i7-14700 / 16GB / 512GB SSD + 2TB SATA / T400 |
| Precision 5820 Tower (Xeon W) | Xeon W-2223 / 16GB or 32GB / T1000 or P2200 |
| Precision 5820 Tower (Xeon W) | Xeon W-2223 / 32GB / 512GB SSD + 2TB SATA / T1000 |
| Precision 5860 Tower (Xeon W) | Xeon W3-2423 / 32GB / 512GB SSD + 2TB SATA / T1000 |
Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner's manual & specifications | Precision 3680 Tower Owner's Manual — Specifications (Dell) |
| Datasheet | Precision 3680 Tower Spec Sheet (Dell Technologies) |
| Manuals & drivers | Precision 3680 Tower on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Precision 3680 Tower.
Frequently Asked Questions — Dell Precision 3680 Tower
What does the 3680 add over the Precision 3660?
14th Gen Intel Core processors on the same W680 platform, with DisplayPort 1.4a rear ports and an optional Wi-Fi 6E + Bluetooth 5.3 card — see the family table above.
Can I upgrade the memory?
Yes — four DIMM slots take up to 128GB of DDR5, ECC or non-ECC.
Can I fit a bigger graphics card later?
The PCIe Gen 5 x16 slot supports cards up to 450 W, but the supplied 300 W power supply is only for entry graphics such as the T400 — larger GPUs need the 500 W or 1000 W supply. Email sales@sourceit.com.sg for an upgrade quote.
What warranty do I get?
3 years local onsite warranty (Dell ProSupport next business day per configuration), supplied locally by SourceIT with a GST invoice.
