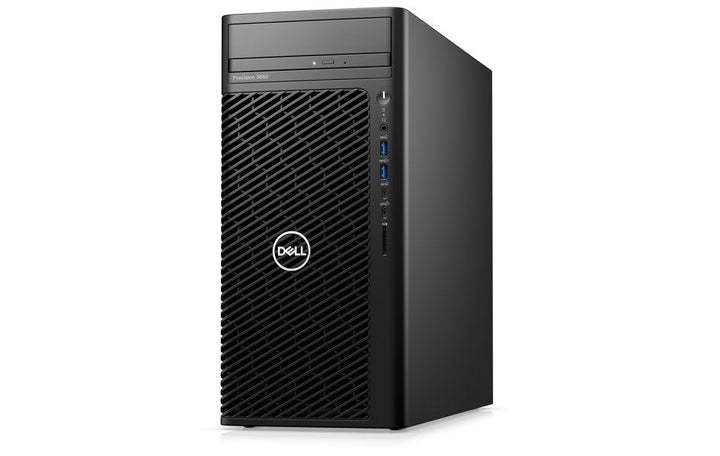

Dell Precision 3660 Tower Workstation Core i7-12700 16GB 2TB HDD WX 3200
PRODUCT DESCRIPTION
Dell Precision 3660 Tower Workstation Intel Core i7-12700 / 16GB DDR5 / 2TB SATA / AMD Radeon Pro WX 3200 (AWT3660MTi716G2TB-WX3200) - 3 Years Local Onsite Warranty
No Longer Available. New or Similar items below:
Dell Precision 3660 Tower Workstation Core i7-13700 16GB 512GB SSD 2TB HDD T400
Dell Precision 3680 Tower Workstation Core i7-14700 16GB 512GB SSD 2TB HDD T400
12th Gen Core i7-12700 with Radeon Pro WX 3200
A 12-core Intel Core i7-12700 vPro, 16GB of DDR5 and AMD Radeon Pro WX 3200 4GB professional graphics drive CAD and design work, with a 2TB SATA drive for project files.
Built to Expand

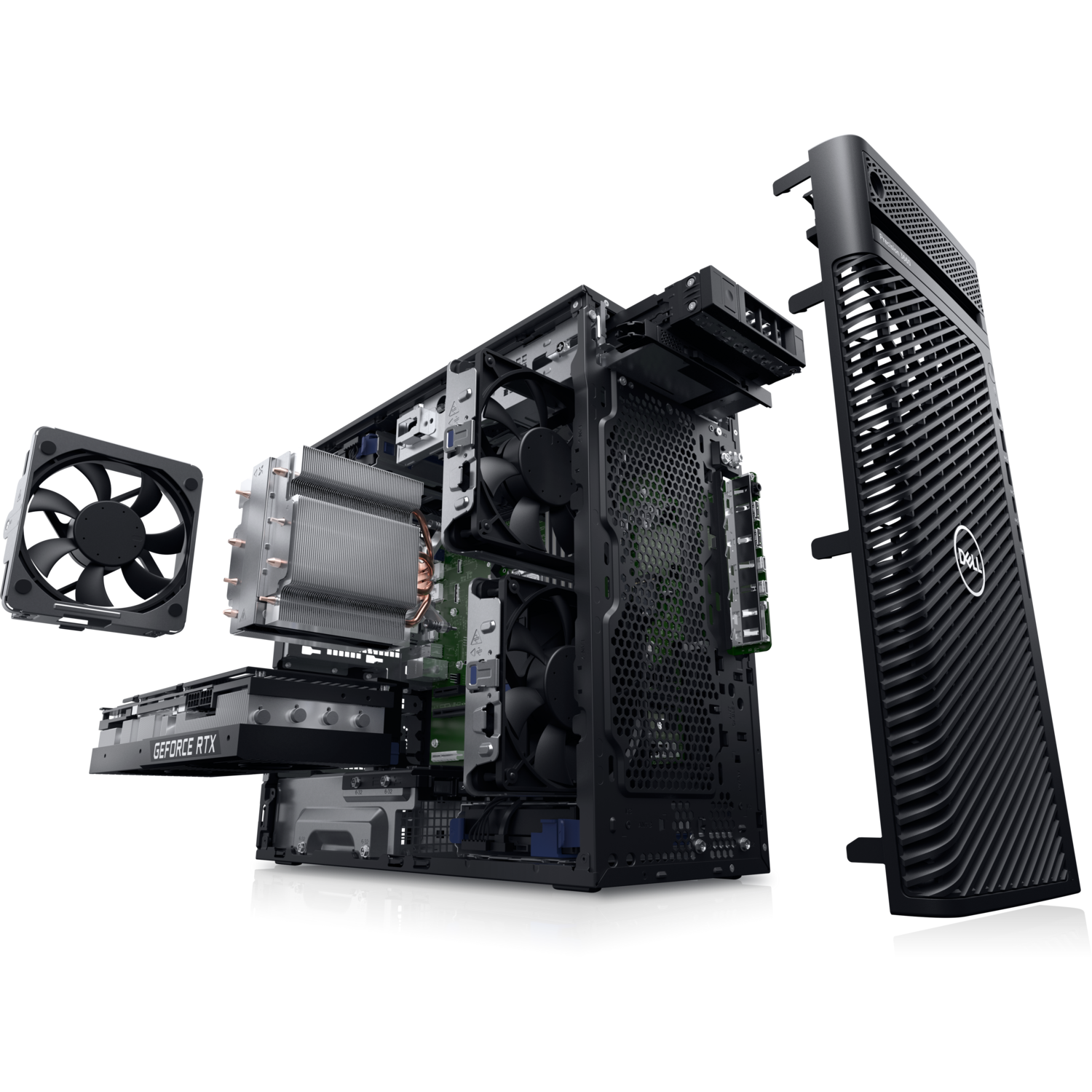

Four DDR5 DIMM slots (up to 128GB), three M.2 NVMe SSD slots, SATA bays and a PCIe Gen 5 x16 graphics slot let the 3660 grow with the workload.
Front USB-C 20 Gbps and Workstation Security
Front USB-C 3.2 Gen 2x2 and SD card slot, rear DisplayPort 1.4 and USB 3.2 Gen 2, plus TPM 2.0, chassis intrusion switch and lockable drive bay.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Precision 3660 Tower Datasheet — Technical Specifications
Configuration
| Product Name | Dell Precision 3660 Tower Workstation |
| Part Number | AWT3660MTi716G2TB-WX3200 |
| Processor | Intel Core i7-12700 vPro — 12 cores (8P + 4E), 20 threads, 25 MB cache, 2.1 to 4.9 GHz, 65 W |
| Memory | 16GB DDR5 |
| Storage | 2TB SATA hard drive |
| Graphics | AMD Radeon Pro WX 3200 4GB + Intel UHD Graphics 770 |
| Local Warranty (Singapore) | 3 years Dell onsite service |
Processor & Graphics
| Processor | Intel Core i7-12700 vPro — 12 cores (8P + 4E), 20 threads, 25 MB cache, 2.1 to 4.9 GHz, 65 W |
| Chipset | Intel W680, PCIe up to Gen 5 |
| Discrete graphics | AMD Radeon Pro WX 3200 4GB |
| Integrated graphics | Intel UHD Graphics 770 |
Memory & Storage
| Memory supplied | 16GB DDR5 |
| Memory support | Four DIMM slots, DDR5 ECC or non-ECC, up to 128GB |
| Storage supplied | 2TB SATA hard drive |
| Storage support | Three M.2 NVMe SSD slots (two 2230/2280, one 2280) and up to three 3.5-inch or four 2.5-inch SATA drives; RAID 0/1/5/10 |
Expansion
| PCIe slots | One PCIe x16 Gen 5 (graphics, up to 450 W cards), one PCIe x4 Gen 4, one PCIe x4 Gen 3 — all full height |
Ports
| Front | USB 3.2 Gen 1 with PowerShare, USB 3.2 Gen 1, USB-C 3.2 Gen 2 (10 Gbps), USB-C 3.2 Gen 2x2 (20 Gbps) with PowerShare, universal audio jack, SD card slot |

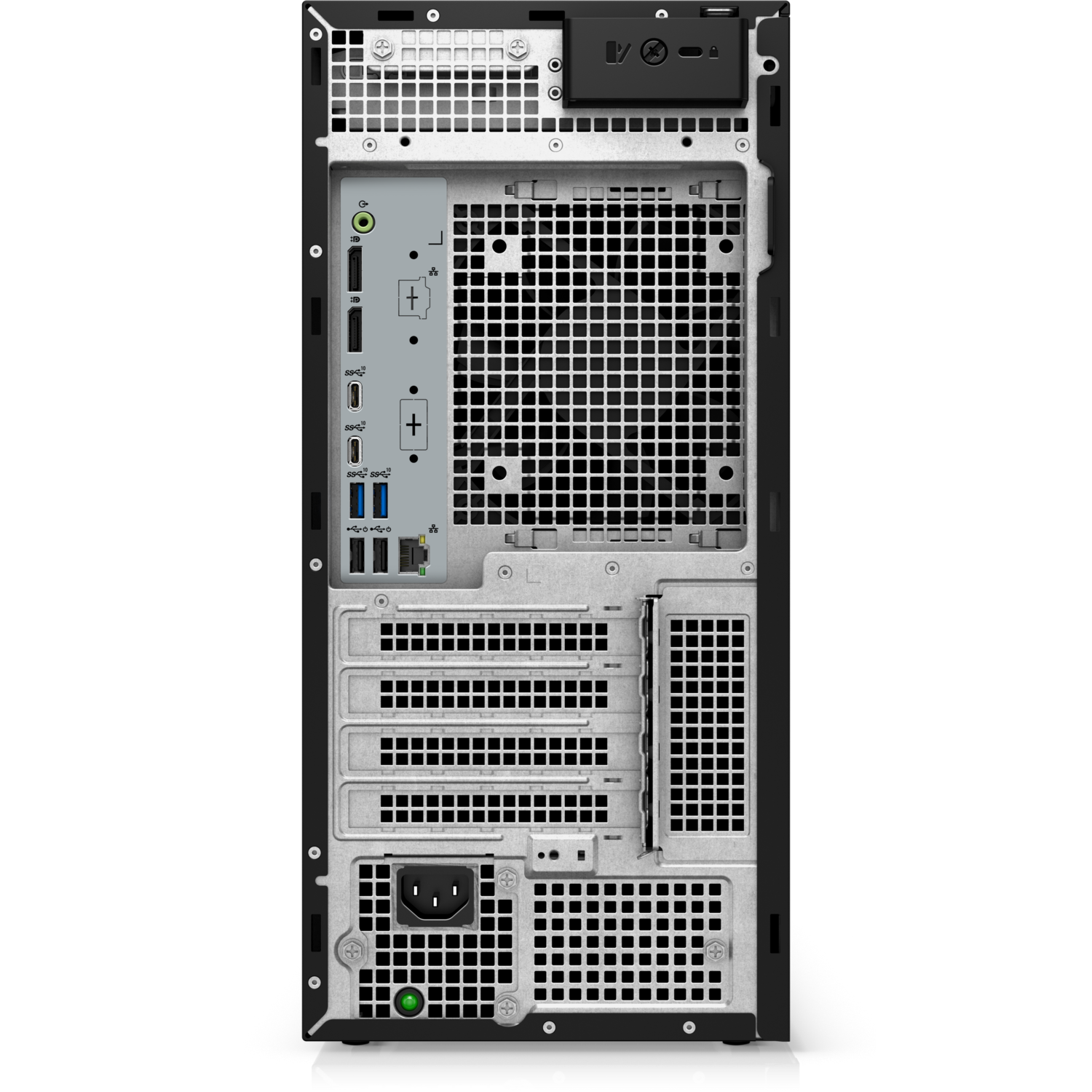

| Rear | 2 x DisplayPort 1.4, optional video port (HDMI 2.0 / DisplayPort 1.4 / VGA / USB-C), 2 x USB 2.0 with Smart Power On, 2 x USB 3.2 Gen 2 Type-A, 2 x USB-C 3.2 Gen 2, RJ45 1 GbE (Intel I219-LM), line-out, lock slot |
| Optional networking | Intel I225 2.5 GbE port; Intel AX211 or Qualcomm WCN6856 Wi-Fi 6E card |
Power & Security
| Power supply options (Dell) | 300 W to 1000 W, 92% efficient, 80 Plus Platinum |
| Security | TPM 2.0 (FIPS 140-2), chassis intrusion switch, padlock loop, lock slot, lockable front drive bay, SafeBIOS, self-encrypting drive options |
Compatibility & Software Support
Operating System
Dell lists Windows 11 Pro / Home, Windows 10 via downgrade, Ubuntu 22.04 LTS and Red Hat Enterprise Linux 8.6 (12th Gen) for the Precision 3660 Tower.
Professional Applications
Precision workstations are ISV-certified for leading CAD, BIM and content-creation applications, with Dell Precision Optimizer.
Upgrades
Four DIMM slots, three M.2 SSD slots, SATA bays and three full-height PCIe slots leave room to add memory, storage and graphics later.
Manageability
Intel vPro, Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell Precision 3660 Tower Ordering Information
In the Box
Dell Precision 3660 Tower workstation, power cable and documentation. Keyboard and mouse as supplied with the configuration — confirm with sales.
Dell Precision Tower Workstations at SourceIT
| Model | Configuration |
| Precision 3650 Tower (10th/11th Gen) | Core i7 / 16GB / 2TB SATA (with or without WX 3200) |
| Precision 3660 Tower (12th/13th Gen) | Core i7 / 16GB / 512GB SSD or 2TB SATA (with or without WX 3200) |
| Precision 3660 Tower (this listing) | Core i7-12700 / 16GB / 2TB SATA / WX 3200 |
| Precision 3660 Tower | Core i7-12700 / 16GB / 512GB SSD / T400 |
| Precision 3660 Tower | Core i7-13700 / 16GB / 512GB SSD + 2TB SATA / T400 |
| Precision 3680 Tower (14th Gen) | Core i7-14700 / 16GB / 512GB SSD + 2TB SATA / T400 |
| Precision 5820 Tower (Xeon W) | Xeon W / T1000 |
| Precision 5820 Tower (Xeon W) | Xeon W-2223 / 32GB / 512GB / T1000 |
| Precision 5860 Tower (Xeon W) | Xeon W3-2423 / 32GB / 512GB SSD + 2TB / T1000 |
Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Setup & specifications | Precision 3660 Tower Setup and Specifications (Dell) |
| Datasheet | Precision 3660 Tower Spec Sheet (Dell Technologies) |
| Manuals & drivers | Precision 3660 Tower on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Precision 3660 Tower.
Frequently Asked Questions — Dell Precision 3660 Tower
Is this model still available?
This configuration is no longer available to order. See the Precision 3660 i7-13700 and Precision 3680 listings linked above, or email sales@sourceit.com.sg for current stock.
Does it have an SSD?
This configuration lists a 2TB SATA hard drive only. An M.2 NVMe SSD can be added in one of the three M.2 slots — ask us for a quote.
How many displays can it drive?
Displays connect to the AMD Radeon Pro WX 3200 outputs; the rear DisplayPort 1.4 ports run from the Intel integrated graphics. Email sales@sourceit.com.sg for a multi-monitor setup.
What warranty do I get?
3 years local onsite warranty, supplied locally by SourceIT with a GST invoice.
