Dell Pro 55 Plus P5525QC 55" 4K Conference Room Monitor
PRODUCT DESCRIPTION
Dell Pro 55 Plus 4K Monitor P5525QC (210-BNTB) - 3 Years Local Warranty
55-inch 4K for Meeting Rooms
The Dell Pro 55 Plus P5525QC shows 3840 x 2160 at 60 Hz on a 54.6-inch IPS panel with 400 cd/m², 1,200:1 contrast and 1.07 billion colours, sized for huddle and conference rooms.
USB-C Laptop Connection
Presenters plug in one USB-C cable for DisplayPort 1.4 video and up to 90 W charging, with two HDMI 2.0, DisplayPort 1.4, DP-out (MST), RJ45 and RS232 for room control.
Room-Ready Package
Two built-in speakers, remote control, VESA 400 x 300 mounting and an OptiPlex holder with power cable to mount a Dell OptiPlex system behind the screen.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell P5525QC Datasheet — Technical Specifications
General
| Product Name | Dell Pro 55 Plus 4K Monitor - P5525QC |
| Model | P5525QC |
| Dell SKU (Singapore) | 210-BNTB |
| Product Line | Dell Pro Plus |
| Local Warranty (Singapore) | 3 years Limited Hardware Warranty with Advanced Exchange Service, supplied by SourceIT with a GST invoice |
Display
| Diagonal viewing size | 54.6 in. (55" class) |
| Panel type | In-Plane Switching (IPS) Technology |
| Aspect ratio | 16:9 |
| Resolution | 3840 x 2160 (4K UHD) at 60 Hz |
| Active display area (H x V) | 1209.60 mm x 680.40 mm |
| Pixel pitch | 0.3150 mm x 0.3150 mm |
| Pixels per inch | 81 |
| Brightness | 400 cd/m² |
| Contrast ratio | 1,200:1 |
| Colour gamut | 72% NTSC |
| Colour depth | 1.07 billion colours |
| Response time | 8 ms GTG |
| Viewing angle | 178° horizontal / 178° vertical |
| Backlight | Edge LED |
| Screen coating | Anti-glare, 3H hardness |
| Eye comfort | Flicker-free, low blue light |
Audio
| Speakers | 2 x 10 W |
| Audio out | 1 x 3.5 mm analog 2.0 line out |
Connectivity
| HDMI | 2 x HDMI 2.0 |
| DisplayPort in | 1 x DisplayPort 1.4 (supports 2 x 4K 60 Hz displays with DSC) |
| DisplayPort out | 1 x DP-out (MST) |
| USB-C upstream | 1 x USB-C (DisplayPort 1.4 Alternate Mode, Power Delivery up to 90 W) |
| USB-C downstream | 1 x USB-C 3.2 Gen 1 (5Gbps), 15 W |
| USB-A downstream | 2 x USB-A 3.2 Gen 1 (5Gbps) |
| USB-B upstream | 1 x USB-B 3.2 Gen 1 (5Gbps) |
| Ethernet | 1 x RJ45 |
| Control | 1 x RS232 |
Mounting

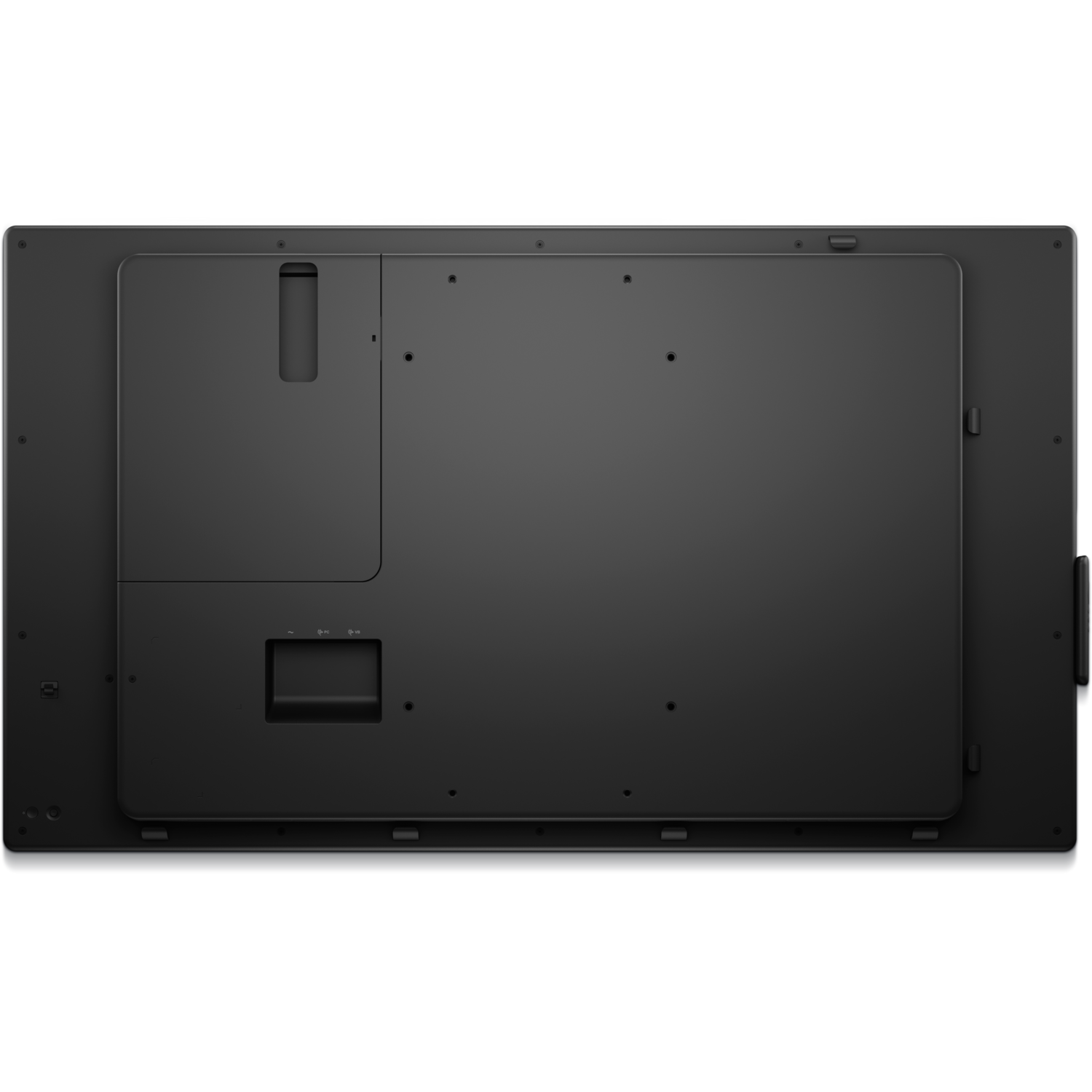

| VESA mount | 400 mm x 300 mm |
Power
| Operating | 77.1 W |
| Maximum | 300 W |
| Standby | 0.5 W |
| Off mode | 0.3 W |
Environmental
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Non-operating temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating humidity | 10% to 80% (non-condensing) |
| Non-operating humidity | 5% to 90% (non-condensing) |
| Operating altitude | 16,404 ft (5,000 m) max |
| Non-operating altitude | 40,000 ft (12,192 m) max |
Dimensions & Weight
| Panel (H x W x D) | 727.83 x 1247.43 x 79.80 mm |
| Weight (panel) | 22.40 kg (approx.) |
| Weight with stand | 23.30 kg (approx.) |
Certifications
| Energy | ENERGY STAR |
| EPEAT | Gold, Climate+ |
| TCO | TCO Certified Displays, TCO Certified Edge |
| Materials | RoHS compliant; mercury-free, arsenic-free glass, BFR/PVC free |
Management
| Software | Dell Display Manager; remote asset management via Dell Command |
| Security | Security lock slot |
Compatibility & Software Support
Connecting Laptops and Room PCs
Guests connect a laptop with the included USB-C cable for 4K video and up to 90 W charging, or over HDMI. A Dell OptiPlex system can be mounted on the rear with the included holder and dedicated power cable to act as the room PC.
Room Control
RS232 and RJ45 ports are provided for room control and management systems, and a remote control is included.
Mounting
VESA 400 x 300 for wall mounts and trolleys (sold separately).
Package Contents & Dell Pro Plus Large & Ultrawide Monitors Ordering Information
In the Box
Monitor, OptiPlex holder, remote control, 2 x AAA batteries, Quick Setup Guide, safety/environmental/regulatory information, power cable, power cable for connecting an OptiPlex system to the display, DisplayPort to DisplayPort cable (3.0 m), HDMI to HDMI cable (3.0 m), USB-C Gen 1 C-to-C cable (1.8 m), USB 3.2 Gen 1 Type-A to B upstream cable (1.8 m).
Dell Pro Plus Large & Ultrawide Monitors
| Model | Key feature |
| P2725QE | 27" 4K, USB-C hub |
| P3225QE | 32" 4K 100 Hz, USB-C hub, 90 W |
| P3425WE | 34" curved 3440 x 1440, USB-C hub, 90 W |
| P5525QC (this listing) | 55" 4K conference room, speakers, RS232 |
Datasheet & Downloads
| Dell datasheet | Dell 55 4K Conference Room Monitor P5525QC Datasheet (PDF) |
| Manuals & drivers | P5525QC manuals and documents on Dell Support |
| Dell product page | P5525QC on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P5525QC.
Frequently Asked Questions — Dell P5525QC
Is it a touch screen?
No. For touch, see the Dell Pro 65 Plus 4K Touch Monitor P6524QT or the 75-inch P7525QT.
Does it have speakers?
Yes, 2 x 10 W built-in speakers.
Can I charge a laptop over USB-C?
Yes, up to 90 W.
Can it be wall-mounted?
Yes, it is VESA 400 x 300 compatible (mount sold separately).
What warranty do I get?
3 years Dell Limited Hardware Warranty with Advanced Exchange Service, supplied locally by SourceIT with a GST invoice.
