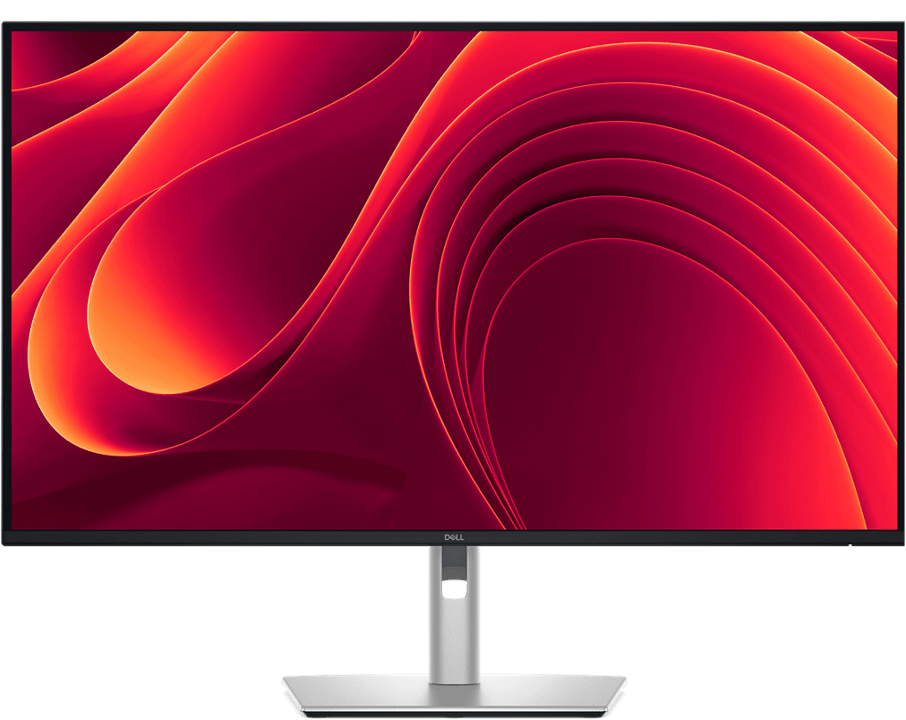

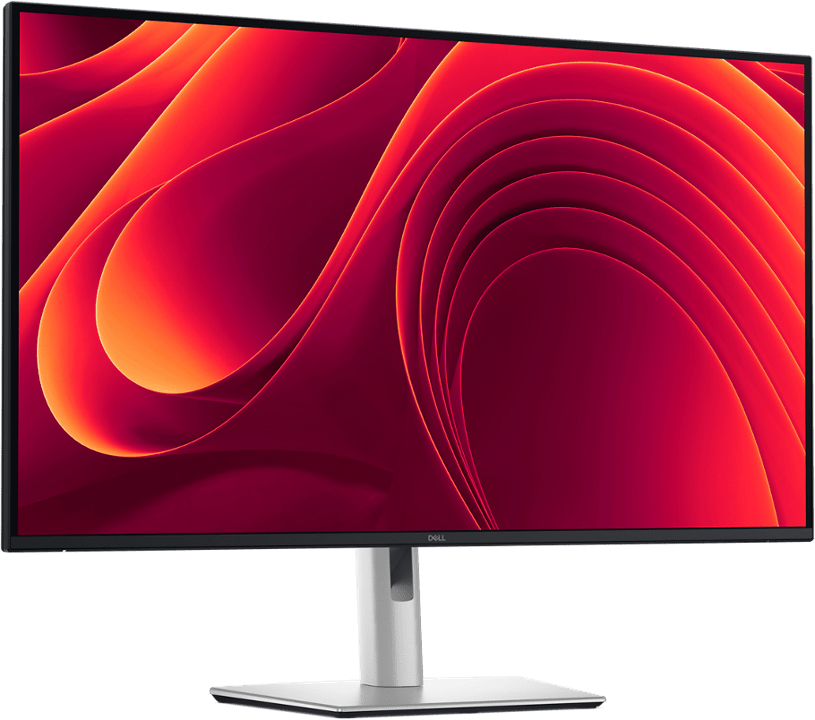

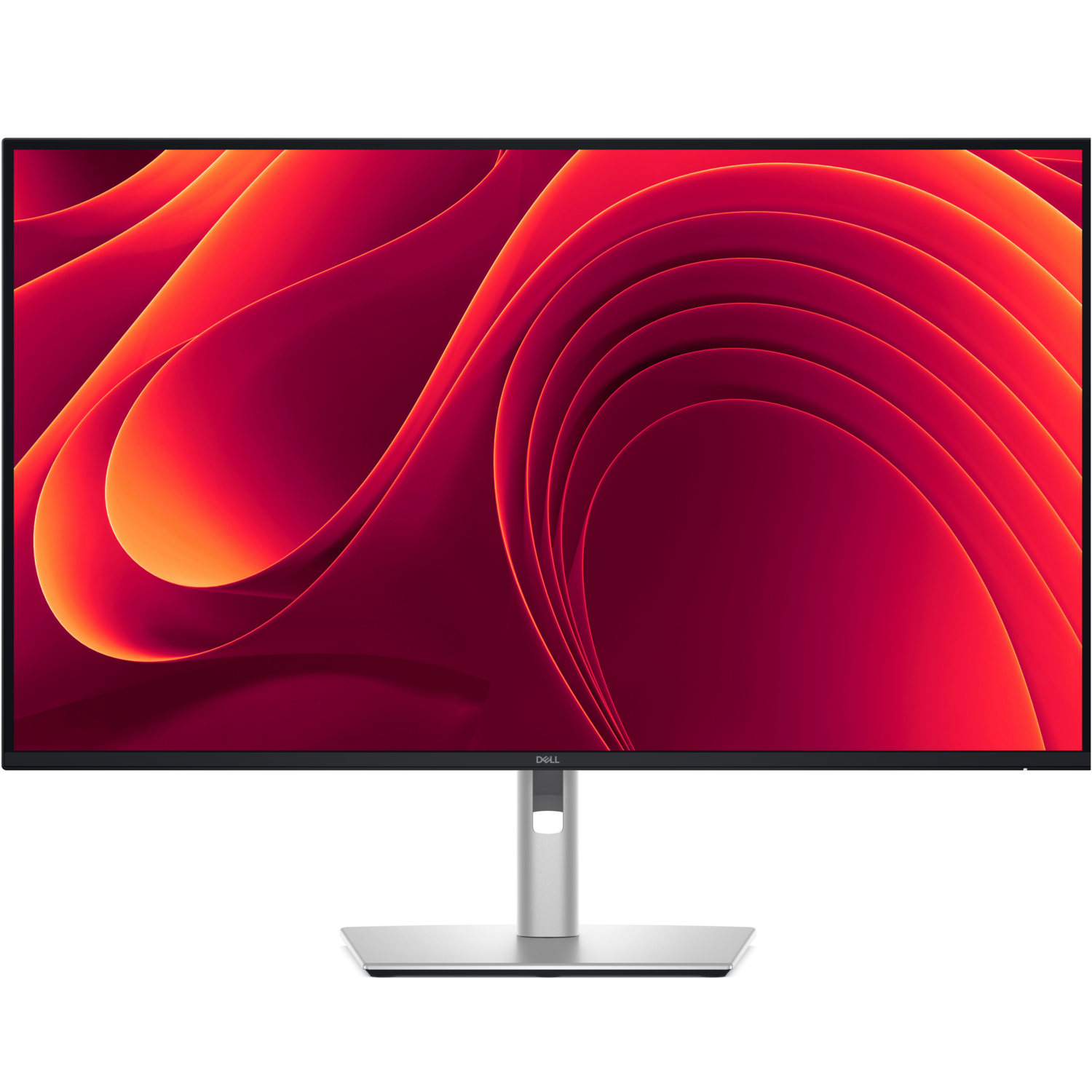

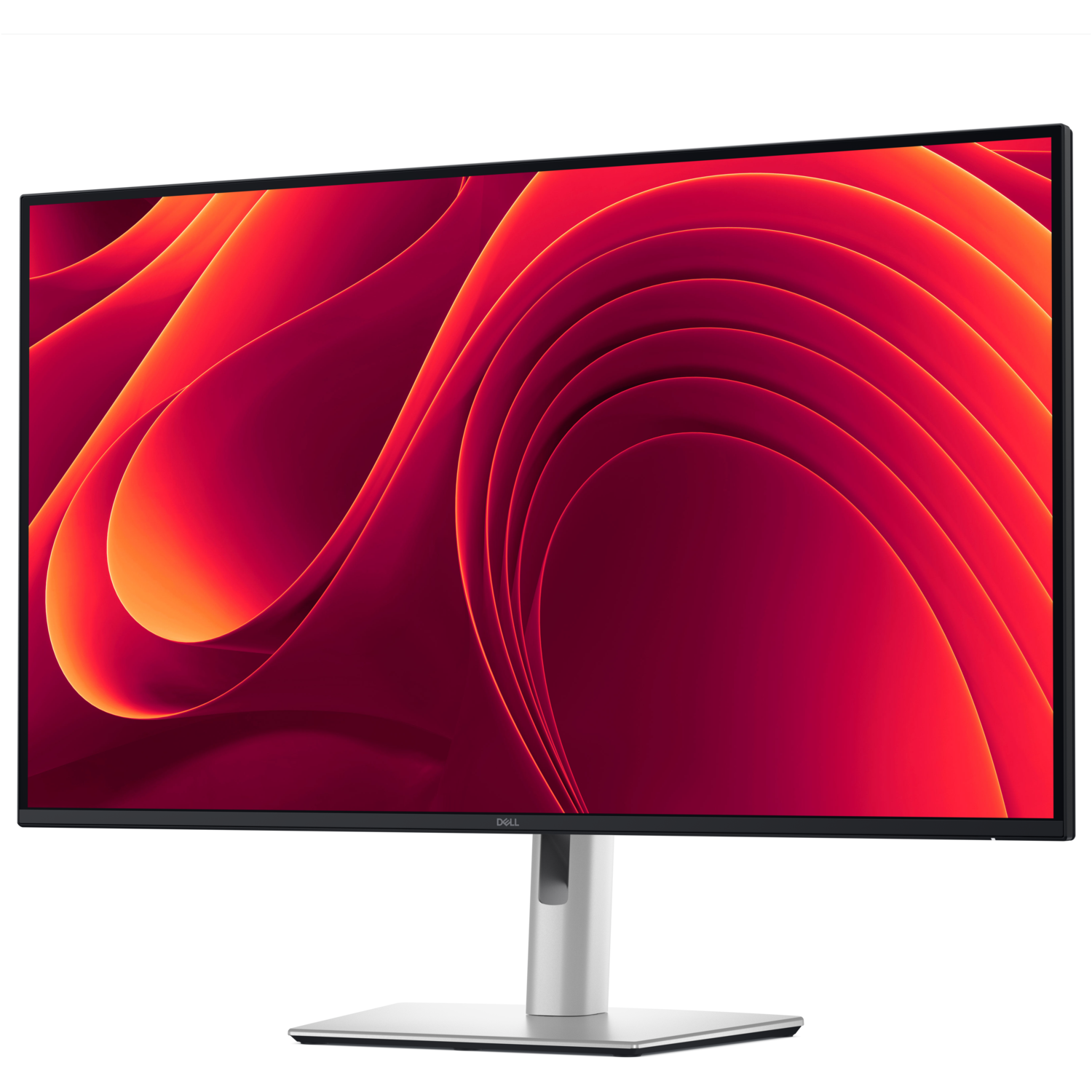

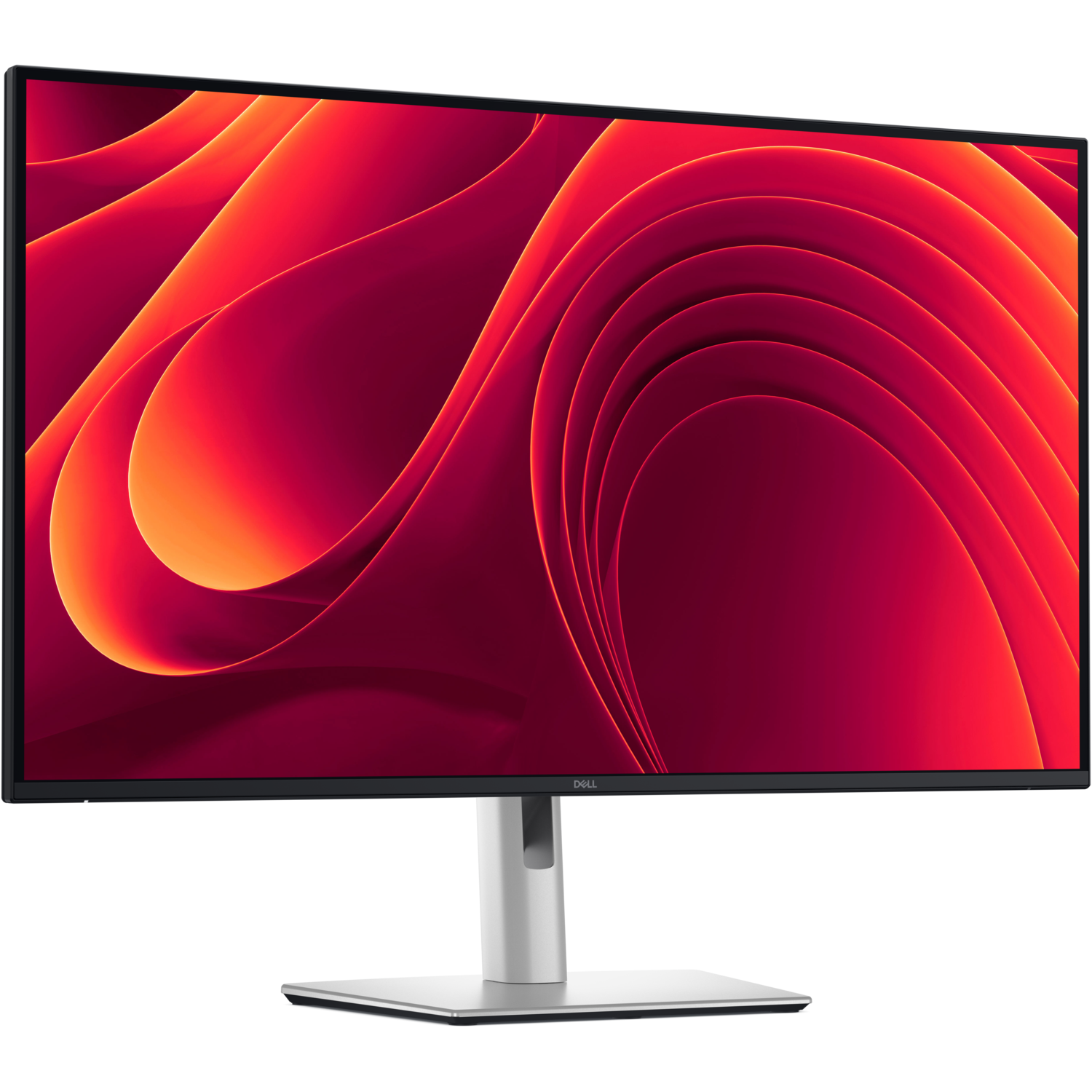

Dell Pro 32 Plus P3225QE 32" 4K USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell Pro 32 Plus 4K USB-C Hub Monitor P3225QE (210-BQYP) - 3 Years Local Warranty
32-inch 4K at 100 Hz
The Dell Pro 32 Plus P3225QE puts 3840 x 2160 on a 31.5-inch IPS panel (140 ppi) at up to 100 Hz, with 350 cd/m², 1,500:1 contrast, 99% sRGB and 1.07 billion colours.
USB-C Hub with 90 W and RJ45
USB-C 5Gbps upstream with DisplayPort 1.4 Alternate Mode and 90 W power delivery, plus Gigabit RJ45, a 15 W USB-C and three USB-A 5Gbps downstream ports.
Room to Adjust

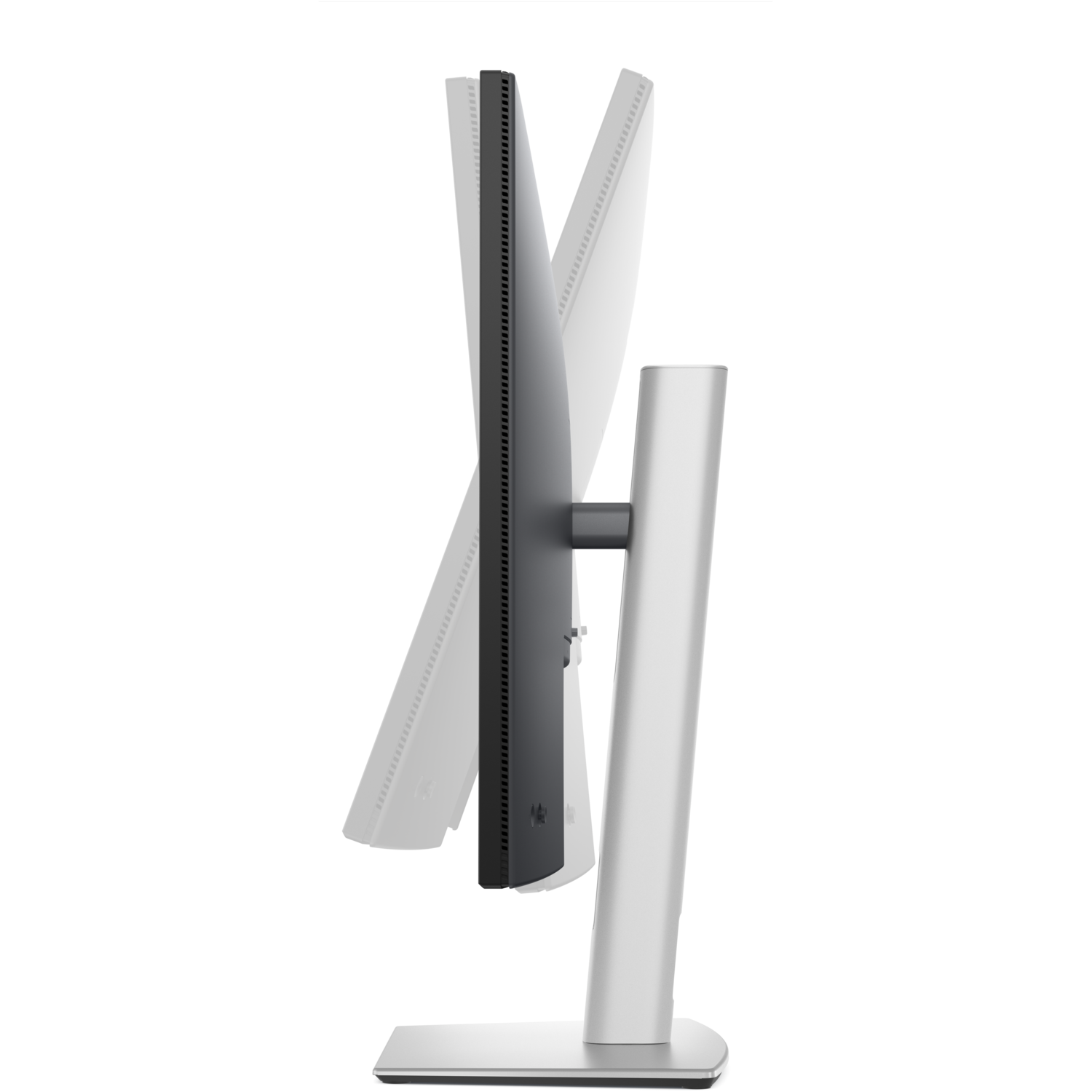

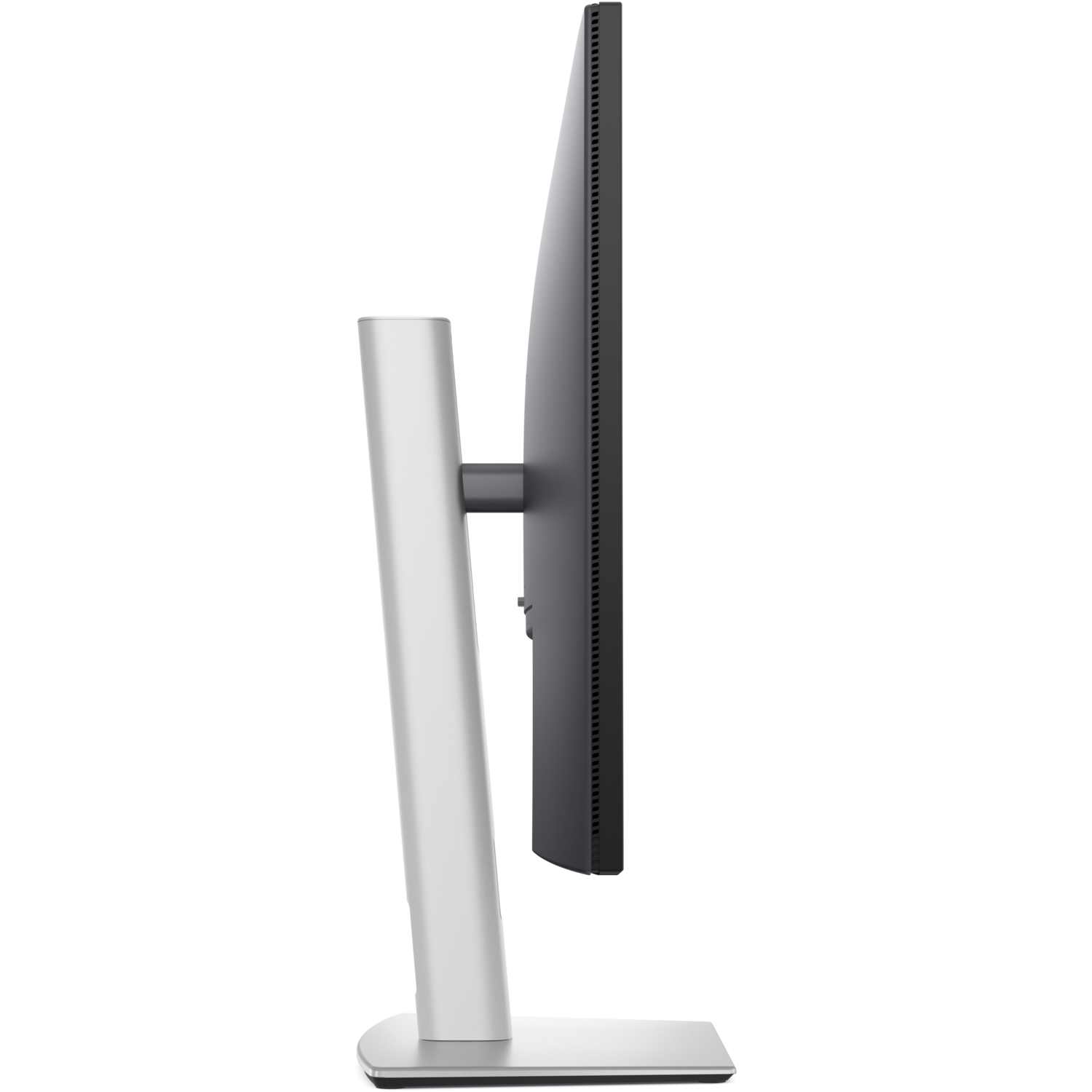

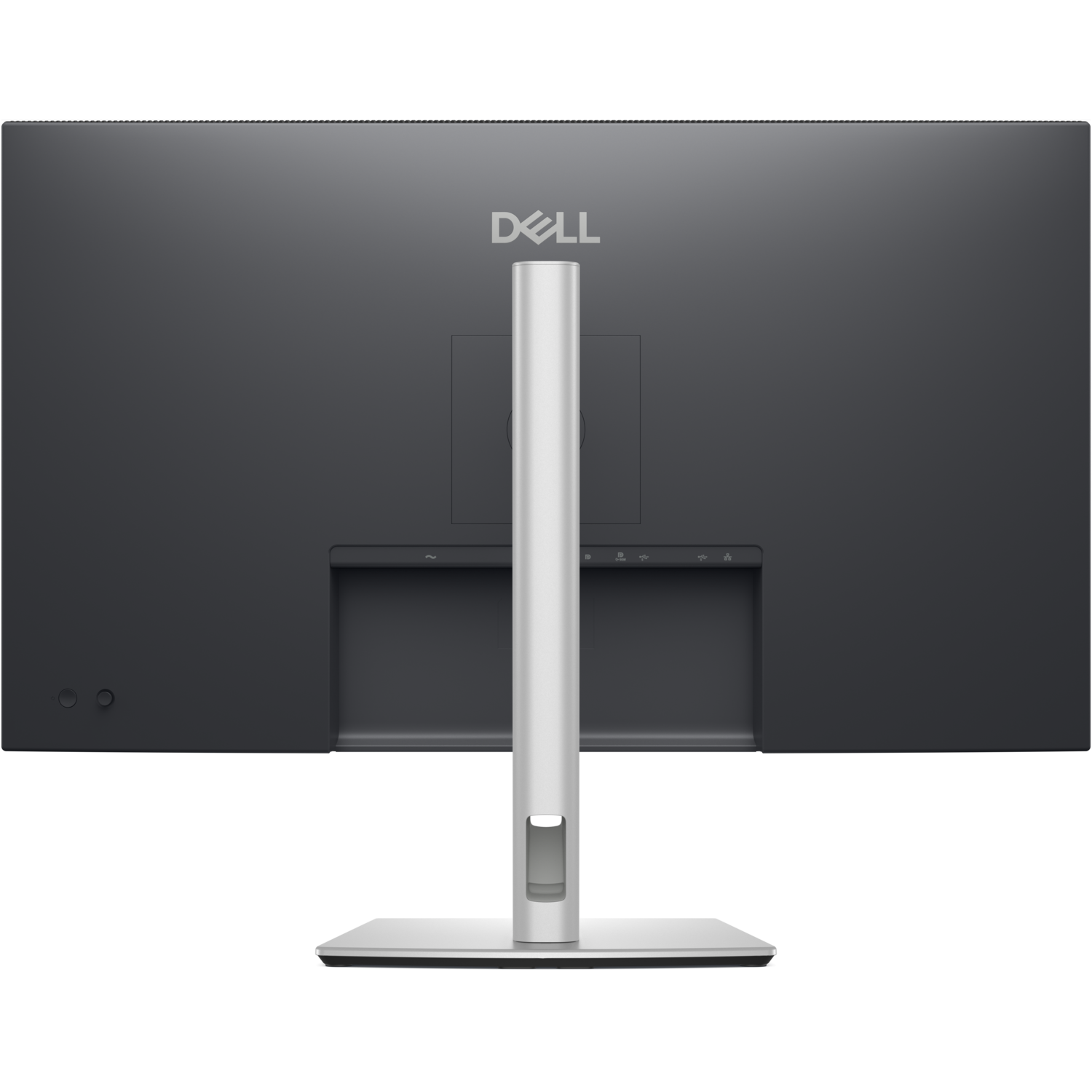

150 mm height, -5°/21° tilt, ±30° swivel and ±90° pivot, with VESA 100 x 100 mounting.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell P3225QE Datasheet — Technical Specifications
General
| Product Name | Dell Pro 32 Plus 4K USB-C Hub Monitor - P3225QE |
| Model | P3225QE |
| Dell SKU (Singapore) | 210-BQYP |
| Product Line | Dell Pro Plus |
| Local Warranty (Singapore) | 3 years Limited Hardware Warranty with Advanced Exchange Service, supplied by SourceIT with a GST invoice |
Display
| Diagonal viewing size | 31.5 in. (32" class) |
| Panel type | In-Plane Switching (IPS) Technology |
| Aspect ratio | 16:9 |
| Resolution | 3840 x 2160 (4K UHD) at 100 Hz |
| Pixel pitch | 0.1816 mm x 0.1816 mm |
| Pixels per inch | 140 |
| Brightness | 350 cd/m² |
| Contrast ratio | 1,500:1 |
| Colour gamut | 99% sRGB (CIE 1931) |
| Colour depth | 1.07 billion colours |
| Response time | 8 ms GTG (normal); 5 ms GTG (fast) |
| Viewing angle | 178° horizontal / 178° vertical |
| Backlight | LED Edgelight System |
| Screen coating | Anti-glare, 3H hardness |
| Horizontal / vertical frequency | 30 kHz to 230 kHz / 48 Hz to 100 Hz |

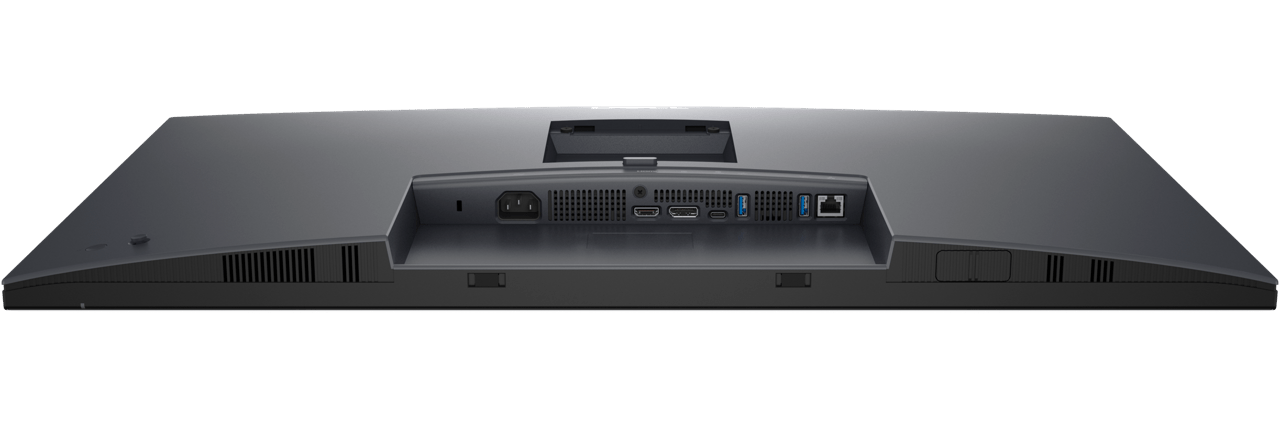

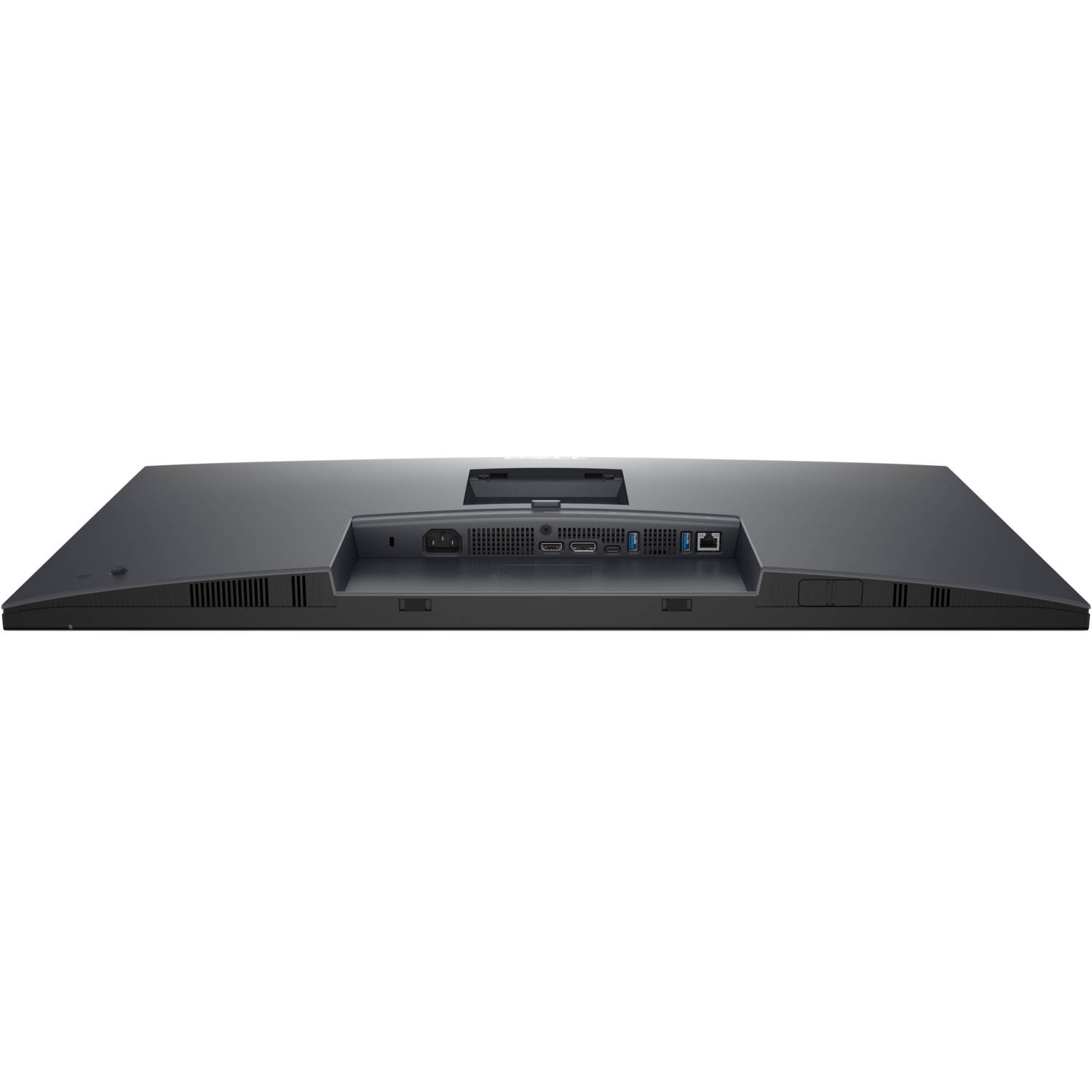

Connectivity
| HDMI | 1 x HDMI (HDCP 2.3) - UHD 3840 x 2160 100 Hz |
| DisplayPort | 1 x DisplayPort 1.4 (HDCP 2.3) - 3840 x 2160 100 Hz |
| USB-C upstream | 1 x USB-C 5Gbps (DisplayPort 1.4 Alternate Mode, Power Delivery up to 90 W) |
| USB-C downstream | 1 x USB-C 5Gbps downstream (up to 15 W) |
| USB-A downstream | 3 x USB 5Gbps Type-A downstream |
| Ethernet | 1 x RJ45, 1GbE |

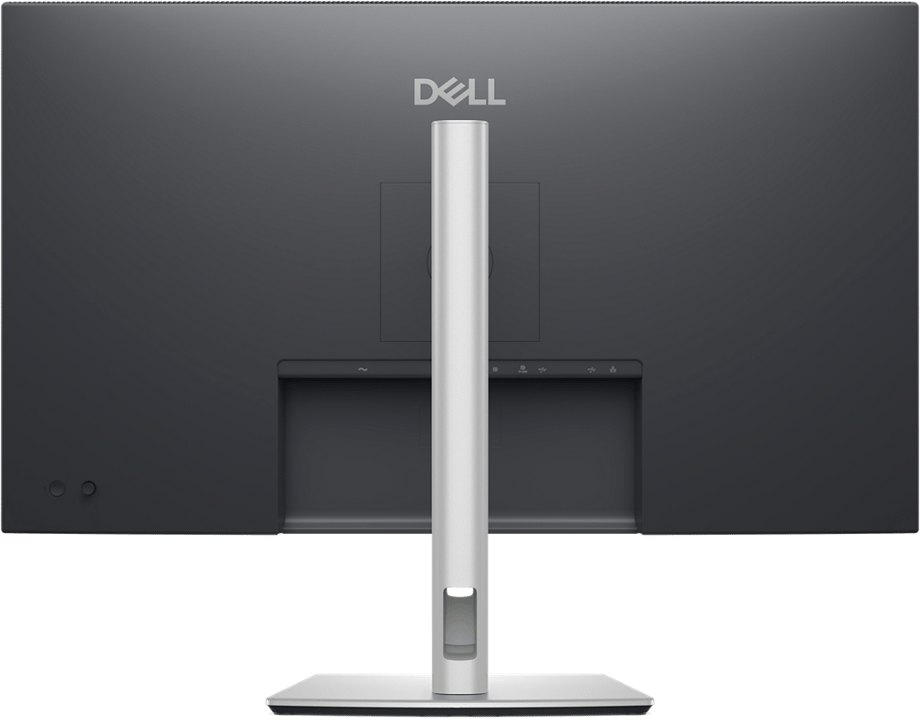

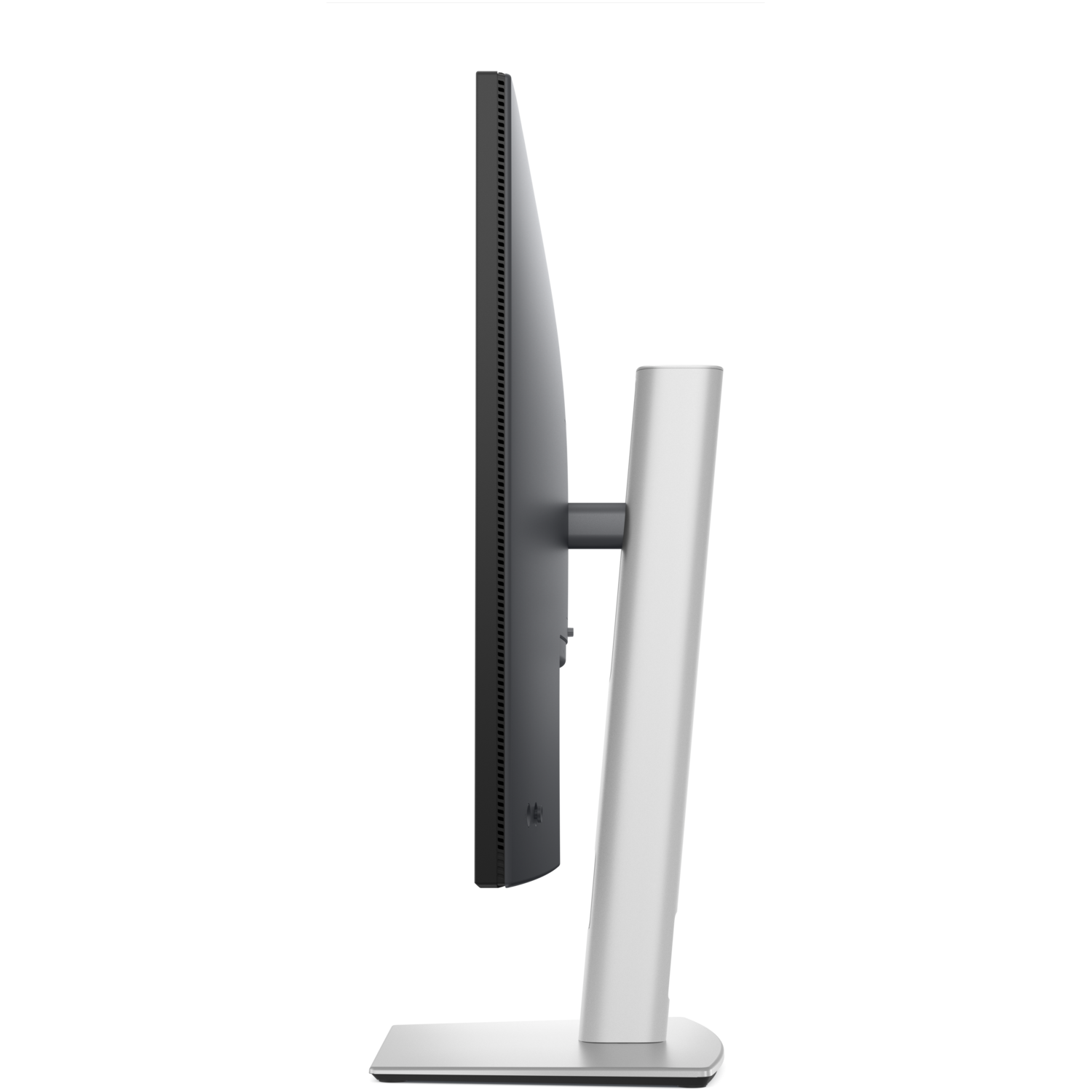

Ergonomics
| Height adjustment | 150 mm |
| Tilt | -5° to 21° |
| Swivel | -30° to 30° |
| Pivot | -90° to 90° |
| VESA mount | 100 mm x 100 mm |
Power
| Input voltage | 100 VAC to 240 VAC, 50 Hz / 60 Hz, 2.80 A |
| Operating | 27.8 W |
| Maximum | 205 W |
| Networked standby | 0.8 W |
| Standby | 0.4 W |
| Off mode | 0.3 W |
Environmental
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Non-operating temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating humidity | 10% to 80% (non-condensing) |
| Non-operating humidity | 5% to 90% (non-condensing) |
| Operating altitude | 16,400 ft (4,998 m) max |
| Non-operating altitude | 40,000 ft (12,192 m) max |
Dimensions
| With stand (H extended / compressed x W x D) | 619 / 469 x 713.40 x 215 mm |
| Without stand (H x W x D) | 413.15 x 713.40 x 49.95 mm |
| Stand (H x W x D) | 483.30 x 287.50 x 215 mm |
| Bezel width | Top 7.88 mm, Left/Right 8.05 mm, Bottom 13.03 mm |
Weight
| With stand | 9.552 kg (approx.) |
| Panel only | 6.65 kg (approx.) |
| Stand assembly | 2.51 kg |
| With packaging | 12.94 kg |
Certifications
| Energy | ENERGY STAR 8.0 |
| EPEAT | Climate+ |
| TCO | TCO Certified Edge |
| Materials | RoHS compliant; mercury-free, arsenic-free glass, BFR/PVC free |
Management
| Software | Dell Display Manager; remote asset management via DDPM |
| Security | Security lock slot, stand lock |
Compatibility & Software Support
Connecting Your PC
Use the included USB-C to USB-C cable for single-cable 4K video, data, Ethernet and up to 90 W charging from a USB-C laptop with DisplayPort Alternate Mode. HDMI and DisplayPort 1.4 both support 3840 x 2160 at 100 Hz.
Software
Compatible with Dell Display Manager and Dell Display and Peripheral Manager for layouts and remote management.
Typical Use
Finance, engineering and design desks that need 4K detail and a large canvas on a single cable.
Package Contents & Dell Pro Plus Large & Ultrawide Monitors Ordering Information
In the Box
Monitor, stand, QR card, safety information, cable tie, power cable, 1 x DisplayPort to DisplayPort 1.4 cable (1.80 m), 1 x USB-C to C 10Gbps 100W cable (1.00 m), 1 x USB Type-C to Type-A 5Gbps cable (1.80 m).
Dell Pro Plus Large & Ultrawide Monitors
| Model | Key feature |
| P2725QE | 27" 4K, USB-C hub |
| P3225QE (this listing) | 32" 4K 100 Hz, USB-C hub, 90 W |
| P3425WE | 34" curved 3440 x 1440, USB-C hub, 90 W |
| P5525QC | 55" 4K conference room, speakers, RS232 |
Datasheet & Downloads
| Dell datasheet | Dell Pro 32 Plus 4K USB-C Hub Monitor P3225QE Datasheet (PDF) |
| Manuals & drivers | P3225QE manuals and documents on Dell Support |
| Dell product page | P3225QE on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P3225QE.
Frequently Asked Questions — Dell P3225QE
Can I run 4K at 100 Hz?
Yes, over HDMI or DisplayPort 1.4.
How much power can it deliver to my laptop?
Up to 90 W over the USB-C upstream port.
Does it have Ethernet?
Yes, a Gigabit RJ45 port.
Does it have speakers or a webcam?
No.
What warranty do I get?
3 years Dell Limited Hardware Warranty with Advanced Exchange Service, supplied locally by SourceIT with a GST invoice.
