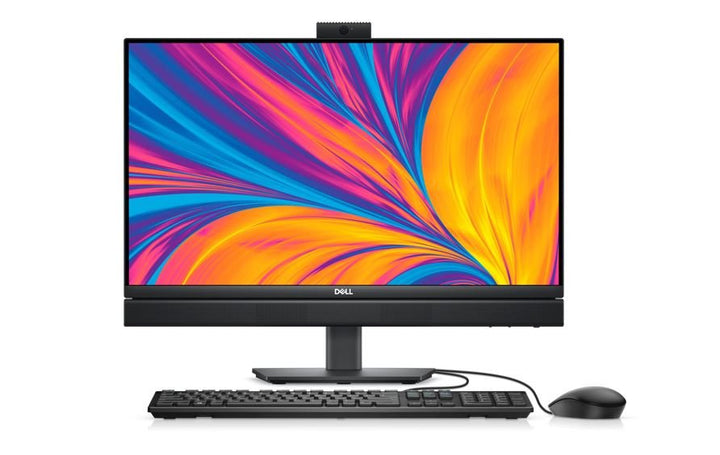

Dell OptiPlex All-in-One 7420 Core i5-14500 16GB 512GB SSD 23.8" Touch Desktop
PRODUCT DESCRIPTION
Dell OptiPlex All-in-One 7420 23.8" FHD Touch Desktop Intel Core i5-14500 vPro / 16GB / 512GB SSD (210-BLDW / AO7420AIOI516G512GBT) - 3 Years ProSupport NBD Onsite Warranty
14th Gen Intel Core i5-14500 vPro in an All-in-One
The 65 W Intel Core i5-14500 vPro with Intel UHD Graphics 770 on the Intel Q670 chipset, 16GB of DDR5 memory and a 512GB PCIe Gen 4 NVMe SSD give desktop-class performance with no separate tower on the desk.
23.8-inch FHD Touch Display Built for Collaboration
A 10-point touch, anti-glare IPS panel (300 nits, 99% sRGB) with ComfortView Plus, a retractable FHD HDR camera, dual microphones and stereo speakers make video meetings simple, while HDMI-in lets the screen double as a display for a laptop.
Business-Class Security and Manageability
Discrete TPM 2.0, Dell SafeBIOS with off-host BIOS verification, Dell SafeID, a chassis intrusion switch and a Kensington lock slot, with Intel Wi-Fi 6E and 3 years of Dell ProSupport next-business-day onsite service included.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell OptiPlex All-in-One 7420 Datasheet — Technical Specifications
Configuration
| Product Name | Dell OptiPlex All-in-One 7420 |
| Part Number | 210-BLDW / AO7420AIOI516G512GBT |
| Processor | Intel Core i5-14500 vPro — 14 cores (6P + 8E), 20 threads, 24 MB cache, up to 5.0 GHz, 65 W |
| Memory | 16GB (1 x 16GB) DDR5 SO-DIMM, 5600 MT/s module, runs at 4800 MT/s with the Core i5-14500 |
| Storage | 512GB M.2 2230 PCIe Gen 4 NVMe SSD |
| Display | 23.8-inch FHD (1920 x 1080) touch |
| Camera | Retractable FHD HDR camera |
| Wireless | Intel AX211 Wi-Fi 6E 2x2 with Bluetooth |
| Power Supply | Internal 160 W 80 Plus Bronze |
| Operating System | Windows 11 Pro |
| Keyboard & Mouse | Dell Pro Wireless Keyboard and Mouse KM5221W |
| Local Warranty (Singapore) | 3 years Dell ProSupport, next business day onsite |
Processor & Graphics
| Processor | Intel Core i5-14500 vPro — 14 cores (6P + 8E), 20 threads, 24 MB cache, up to 5.0 GHz, 65 W |
| Graphics | Intel UHD Graphics 770 (integrated) |
| Chipset | Intel Q670, PCIe up to Gen 4 |
Memory & Storage
| Memory supplied | 16GB (1 x 16GB) DDR5 SO-DIMM |
| Memory support | DDR5 SO-DIMM, two slots, up to 64GB |
| Storage supplied | 512GB M.2 2230 PCIe Gen 4 NVMe SSD |
| Storage support | Up to two M.2 2230/2280 PCIe Gen 4 x4 NVMe SSDs |
Display, Camera & Audio
| Display | 23.8-inch (604.7 mm) FHD 1920 x 1080 IPS, anti-glare, 10-point touch, 300 nits, 99% sRGB, 60 Hz, 1000:1 typical contrast, ComfortView Plus |
| Camera | Retractable FHD HDR camera, 1920 x 1080 at 30 fps, 82° diagonal field of view |
| Microphones | Dual microphones in the camera assembly |
| Audio | Realtek ALC3289 with two 2 W stereo speakers (2.5 W peak) |
Ports
| Rear | 3 x USB 3.2 Gen 2 (10 Gbps), 2 x USB 3.2 Gen 1 (5 Gbps) with SmartPower On, DisplayPort++ 1.4a, HDMI-out 2.1, HDMI-in 1.4b, retaskable line-out audio, RJ45 Gigabit Ethernet |
| Right side | 1 x USB 3.2 Gen 2 (10 Gbps) with PowerShare |
| Left side | Universal audio jack |
| Bottom | 1 x USB 3.2 Gen 2 (10 Gbps) Type-C, SD card slot |
Power & Physical
| Power | Internal 160 W 80 Plus Bronze power supply, 90–264 VAC |
| Dimensions (without stand) | 354.3 x 540 x 57.9 mm (H x W x D) |
| Weight (without stand) | 5.61–6.32 kg |
| Colour | Dark grey |
| Mounting | VESA 100 x 100 mm |
Security
| Security | Discrete TPM 2.0, Dell SafeBIOS with off-host BIOS verification, BIOS resilience and recovery, Dell SafeID, chassis intrusion switch, Kensington lock slot |
Compatibility & Software Support
Operating System
Supplied with Windows 11 Pro. Dell also lists Windows 11 Home, Windows 11 Pro National Education, Windows 11 IoT Enterprise LTSC 2024 and Ubuntu 22.04 LTS for the OptiPlex All-in-One 7420.
Displays
Add a second screen through DisplayPort++ 1.4a (up to 5120 x 3200 at 60 Hz) or HDMI-out 2.1 (up to 4096 x 2160 at 60 Hz). HDMI-in 1.4b lets another device use the built-in 23.8-inch display.
Upgrades
Memory: DDR5 SO-DIMM, two slots, up to 64GB. Storage: a second M.2 2230/2280 PCIe Gen 4 NVMe SSD slot.
Manageability
Intel vPro, Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell OptiPlex All-in-One 7420 Ordering Information
In the Box
Dell OptiPlex All-in-One 7420 with stand, power cable, Dell Pro Wireless Keyboard and Mouse KM5221W and documentation.
Dell OptiPlex All-in-One 7420 Family at SourceIT
| Model / Processor | Memory / SSD |
| OptiPlex AIO 7420 Core i5-14500 (this listing) | 16GB / 512GB SSD |
| OptiPlex AIO 7420 Core i5-14500 | 16GB / 1TB SSD |
| OptiPlex AIO 7420 Core i7-14700 | 16GB / 512GB SSD |
| OptiPlex AIO 7420 Core i7-14700 | 16GB / 1TB SSD |
The OptiPlex All-in-One 7420 replaces the 13th Gen OptiPlex All-in-One 7410: OptiPlex AIO 7410 Core i5-13500 16GB / 512GB SSD, OptiPlex AIO 7410 Core i5-13600 16GB / 1TB SSD, OptiPlex AIO 7410 Core i7-13700 16GB / 512GB SSD, OptiPlex AIO 7410 Core i7-13700 16GB / 1TB SSD. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner’s manual & specifications | OptiPlex All-in-One 7420 Owner’s Manual (Dell) |
| Datasheet | OptiPlex All-in-One 7420 Spec Sheet (Dell Technologies) |
| Manuals & drivers | OptiPlex All-in-One 7420 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting OptiPlex All-in-One 7420.
Frequently Asked Questions — Dell OptiPlex All-in-One 7420
Is the processor vPro?
Yes — the Intel Core i5-14500 vPro is an Intel vPro processor, supporting Intel vPro remote management.
Can I use it as a monitor for my laptop?
Yes — the rear HDMI-in 1.4b port lets an external device use the 23.8-inch display.
Can I upgrade the memory and storage?
Yes — DDR5 SO-DIMM, two slots, up to 64GB (the supplied 16GB module leaves one slot free), plus a second M.2 PCIe NVMe SSD slot.
Is the camera built in?
Yes — a retractable FHD HDR camera with dual microphones sits at the top of the display and retracts for privacy.
What warranty do I get?
3 years Dell ProSupport next business day onsite, supplied locally by SourceIT with a GST invoice.
