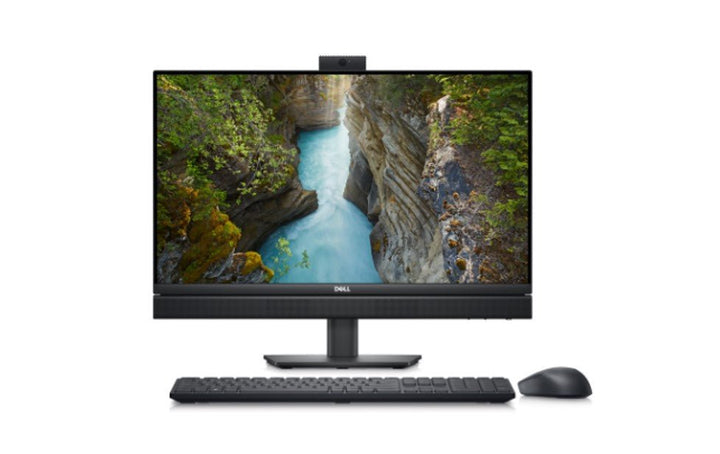

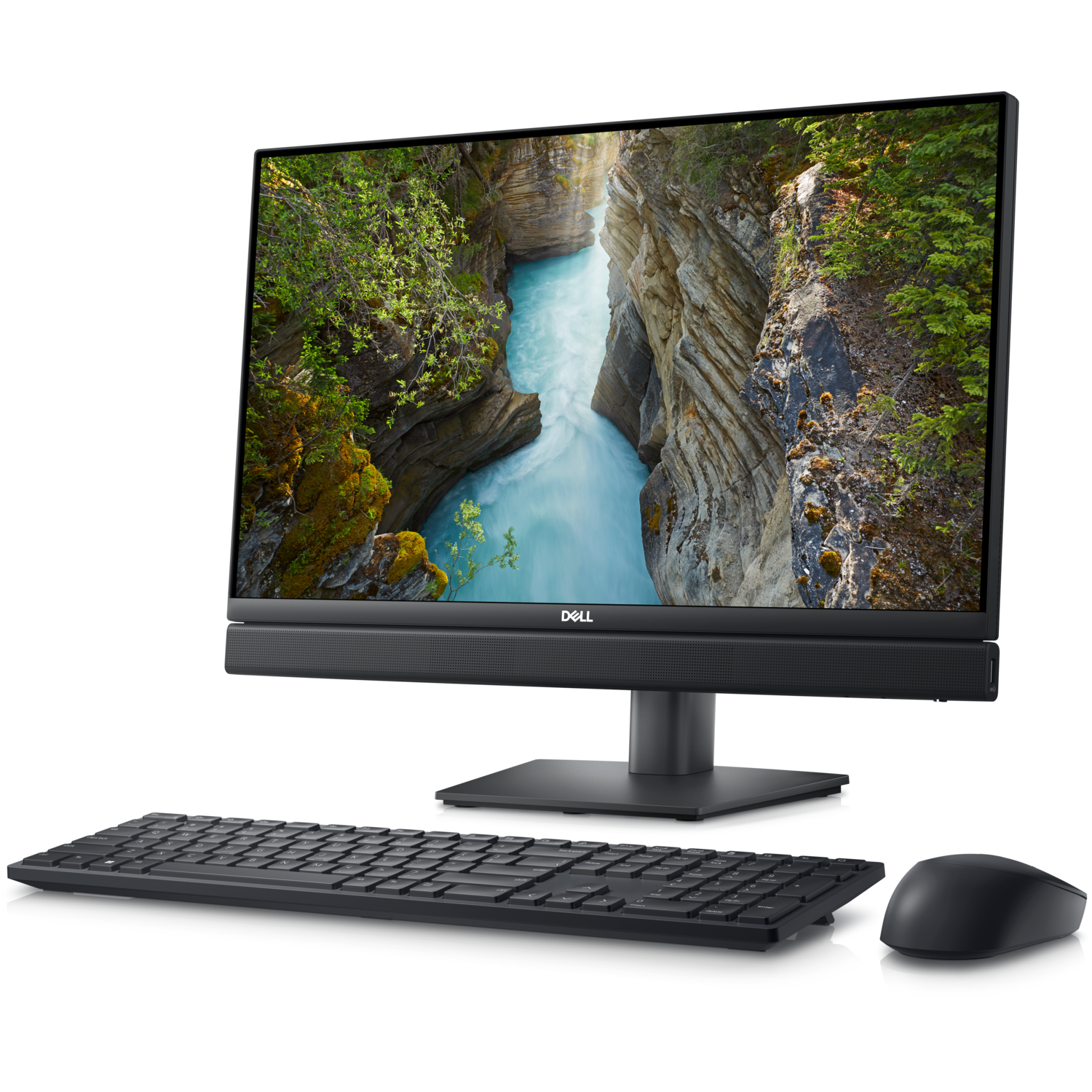

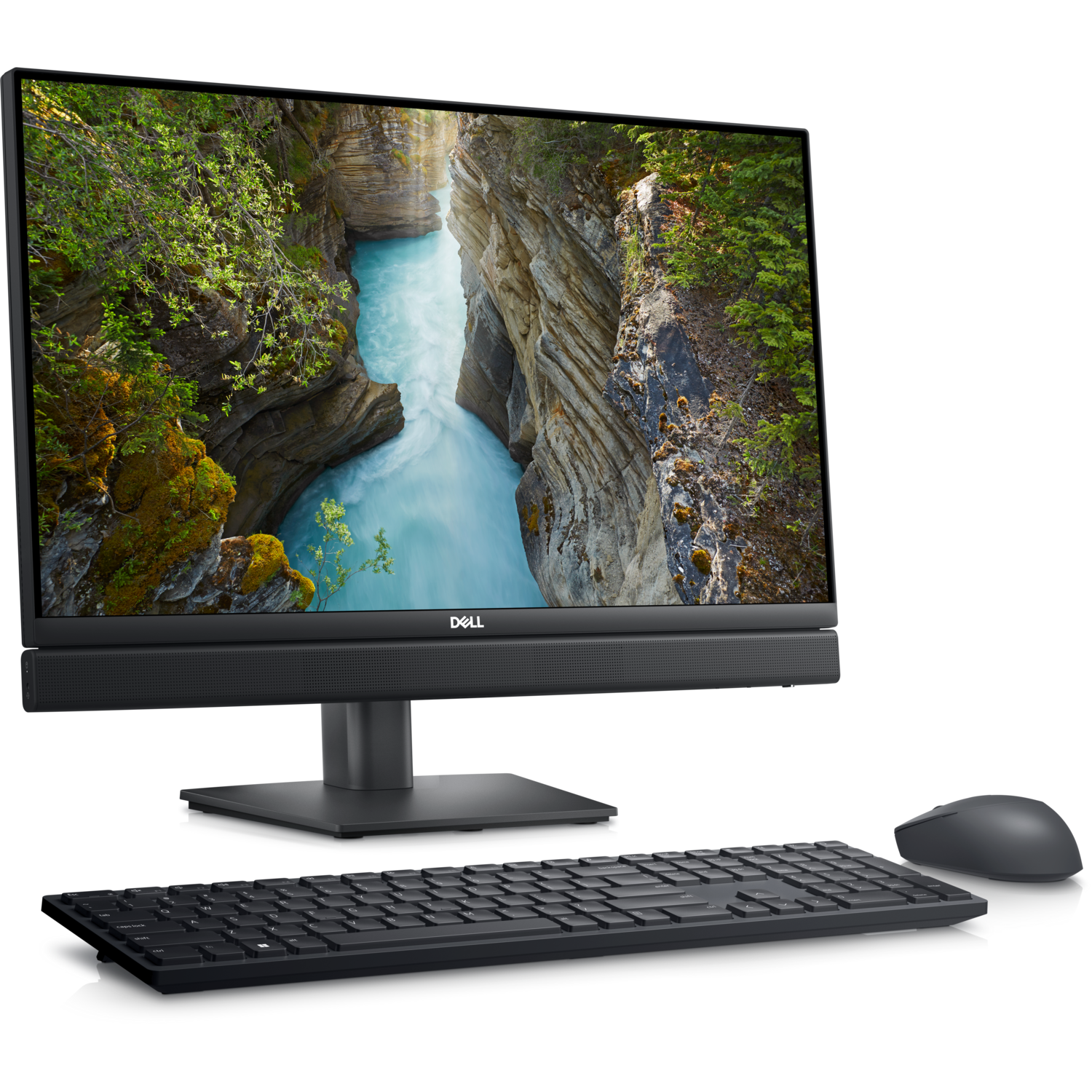

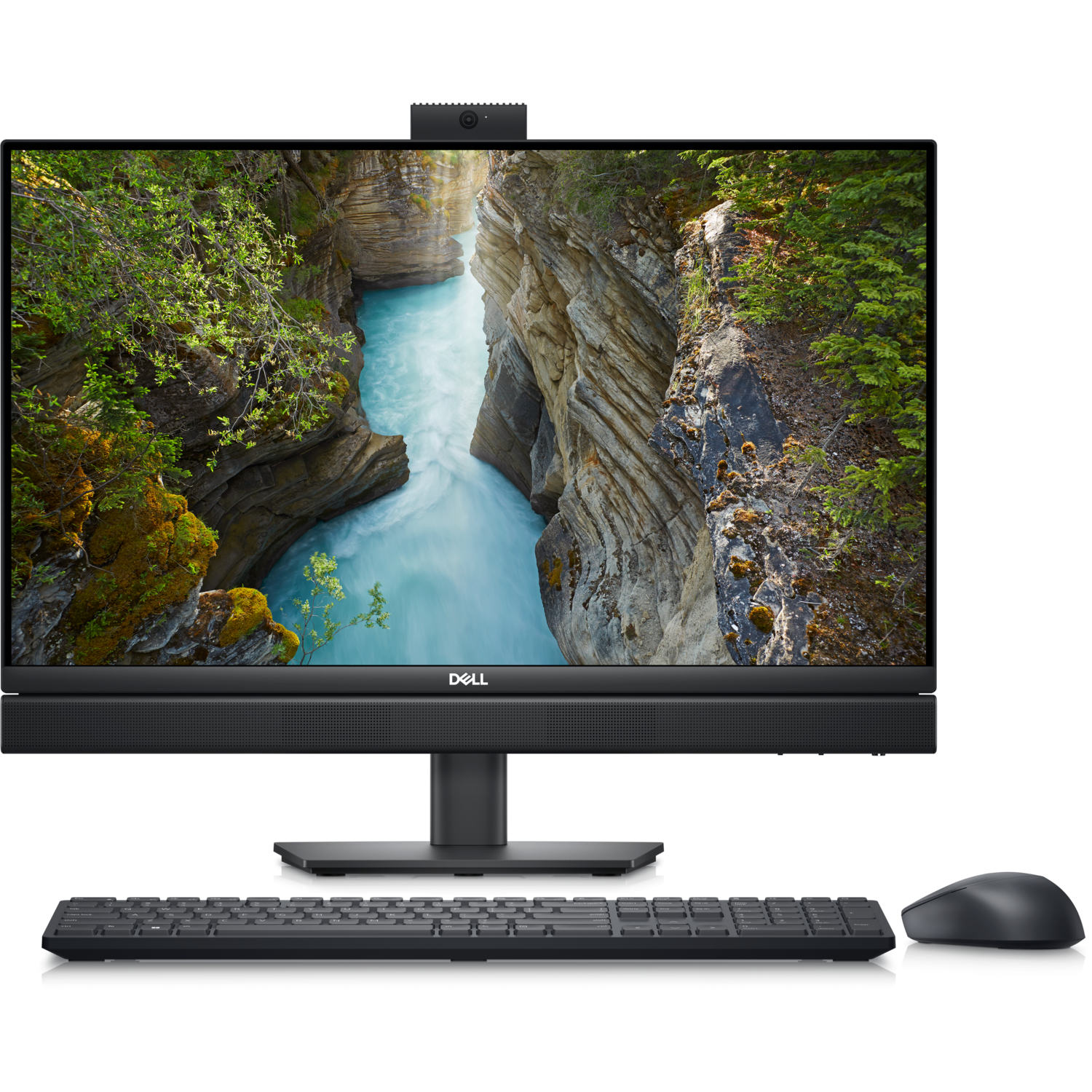

Dell OptiPlex All-in-One 7410 Core i7-13700 16GB 512GB SSD 23.8" Touch Desktop
PRODUCT DESCRIPTION
Dell OptiPlex All-in-One 7410 23.8" FHD Touch Desktop Intel Core i7-13700 / 16GB / 512GB SSD (210-BFWY / AO7410AIOI716G512GB-T) - 3 Years ProSupport NBD Onsite Warranty
No Longer Available. New or Similar items below:
Dell OptiPlex AIO 7420 Core i5-14500 16GB/512GB 23.8" Touch
Dell OptiPlex AIO 7420 Core i5-14500 16GB/1TB 23.8" Touch
Dell OptiPlex AIO 7420 Core i7-14700 16GB/512GB 23.8" Touch
Dell OptiPlex AIO 7420 Core i7-14700 16GB/1TB 23.8" Touch
13th Gen Intel Core i7-13700 in an All-in-One
The 65 W Intel Core i7-13700 with Intel UHD Graphics 770 on the Intel Q670 chipset, 16GB of DDR5 memory and a 512GB PCIe NVMe SSD give desktop-class performance with no separate tower on the desk.
23.8-inch FHD Touch Display Built for Collaboration
A 10-point touch, anti-glare IPS panel (300 nits, 99% sRGB) with ComfortView Plus, a retractable FHD camera, dual microphones and stereo speakers make video meetings simple, while HDMI-in lets the screen double as a display for a laptop.
Business-Class Security and Manageability
Discrete TPM 2.0, Dell SafeBIOS and SafeID, a chassis intrusion switch and a Kensington lock slot, with Intel Wi-Fi 6E and 3 years of Dell ProSupport next-business-day onsite service included.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell OptiPlex All-in-One 7410 Datasheet — Technical Specifications
Configuration
| Product Name | Dell OptiPlex All-in-One 7410 |
| Part Number | 210-BFWY / AO7410AIOI716G512GB-T |
| Processor | Intel Core i7-13700 — 16 cores (8P + 8E), 24 threads, 30 MB cache, 65 W |
| Memory | 16GB (1 x 16GB) DDR5 SO-DIMM, 4800 MT/s |
| Storage | 512GB M.2 2230 PCIe NVMe SSD |
| Display | 23.8-inch FHD (1920 x 1080) touch |
| Camera | FHD camera |
| Wireless | Intel AX211 Wi-Fi 6E 2x2 with Bluetooth |
| Power Supply | Internal 160 W 80 Plus Bronze |
| Operating System | Windows 11 Pro |
| Keyboard & Mouse | Dell Pro Wireless Keyboard and Mouse KM5221W |
| Local Warranty (Singapore) | 3 years Dell ProSupport, next business day onsite |
Processor & Graphics
| Processor | Intel Core i7-13700 — 16 cores (8P + 8E), 24 threads, 30 MB cache, 65 W |
| Graphics | Intel UHD Graphics 770 (integrated) |
| Chipset | Intel Q670, PCIe up to Gen 3 |
Memory & Storage
| Memory supplied | 16GB (1 x 16GB) DDR5 SO-DIMM |
| Memory support | DDR5 SO-DIMM, two slots, up to 64GB (4800 MT/s) |
| Storage supplied | 512GB M.2 2230 PCIe NVMe SSD |
| Storage support | Two M.2 2230/2280 PCIe Gen 3 x4 NVMe SSD slots, one M.2 2230 Wi-Fi/Bluetooth slot |
Display, Camera & Audio
| Display | 23.8-inch (604.7 mm) FHD 1920 x 1080 IPS, anti-glare, 10-point touch, 300 nits, 99% sRGB, 60 Hz, 1000:1 contrast, ComfortView Plus |
| Camera | Retractable FHD RGB camera, 1920 x 1080 at 30 fps, 82° diagonal field of view |
| Microphones | Dual microphones |
| Audio | Realtek ALC3289 with two 2 W stereo speakers (2.5 W peak) |
Ports
| Rear | 2 x USB 3.2 Gen 2 (10 Gbps), 2 x USB 3.2 Gen 1 (5 Gbps) with Smart Power On, DisplayPort++ 1.4a, HDMI-out 2.1, HDMI-in 1.4b, line-out audio, RJ45 Gigabit Ethernet |
| Side | 1 x USB 3.2 Gen 2 (10 Gbps) with PowerShare, universal audio jack |
| Bottom | 1 x USB 3.2 Gen 2 (10 Gbps) Type-C, SD card reader (SD/SDHC/SDXC) |
Power & Physical
| Power | Internal 160 W 80 Plus Bronze power supply, 90–264 VAC |
| Dimensions (without stand) | 354.3 x 540 x 57.9 mm (H x W x D) |
| Weight (without stand) | 5.61–6.32 kg |
Security
| Security | Discrete TPM 2.0, Dell SafeBIOS, Dell SafeID, chassis intrusion switch, Kensington lock slot |
Compatibility & Software Support
Operating System
Supplied with Windows 11 Pro. Dell also lists Windows 11 Home, Windows 11 Pro National Education, Windows 11 IoT Enterprise LTSC 2024 and Ubuntu 22.04 LTS for the OptiPlex All-in-One 7410.
Displays
Add a second screen through DisplayPort++ 1.4a (up to 5120 x 3200 at 60 Hz) or HDMI-out 2.1 (up to 4096 x 2160 at 60 Hz). HDMI-in 1.4b lets another device use the built-in 23.8-inch display.
Upgrades
Memory: DDR5 SO-DIMM, two slots, up to 64GB. Storage: a second M.2 2230/2280 PCIe NVMe SSD slot.
Manageability
Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell OptiPlex All-in-One 7410 Ordering Information
In the Box
Dell OptiPlex All-in-One 7410 with stand, power cable, Dell Pro Wireless Keyboard and Mouse KM5221W and documentation.
Dell OptiPlex All-in-One 7410 Family at SourceIT
| Model / Processor | Memory / SSD |
| OptiPlex AIO 7410 Core i5-13500 | 16GB / 512GB SSD |
| OptiPlex AIO 7410 Core i5-13600 | 16GB / 1TB SSD |
| OptiPlex AIO 7410 Core i7-13700 (this listing) | 16GB / 512GB SSD |
| OptiPlex AIO 7410 Core i7-13700 | 16GB / 1TB SSD |
The OptiPlex All-in-One 7410 is being replaced by the 14th Gen OptiPlex All-in-One 7420: OptiPlex AIO 7420 Core i5-14500 16GB / 512GB SSD, OptiPlex AIO 7420 Core i5-14500 16GB / 1TB SSD, OptiPlex AIO 7420 Core i7-14700 16GB / 512GB SSD, OptiPlex AIO 7420 Core i7-14700 16GB / 1TB SSD. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner’s manual & specifications | OptiPlex All-in-One 7410 Owner’s Manual (Dell) |
| Datasheet | OptiPlex All-in-One Spec Sheet (Dell Technologies) |
| Manuals & drivers | OptiPlex All-in-One 7410 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting OptiPlex All-in-One 7410.
Frequently Asked Questions — Dell OptiPlex All-in-One 7410
Is this model still available?
The OptiPlex All-in-One 7410 is no longer available to order. See the OptiPlex All-in-One 7420 listings linked above, or email sales@sourceit.com.sg for current stock.
Is the processor vPro?
Dell sells the Core i7-13700 in the OptiPlex All-in-One 7410 as a vPro processor; the supplied configuration does not state vPro, so please confirm with sales if you need Intel vPro management.
Can I use it as a monitor for my laptop?
Yes — the rear HDMI-in 1.4b port lets an external device use the 23.8-inch display.
Can I upgrade the memory?
Yes — DDR5 SO-DIMM, two slots, up to 64GB. The supplied 16GB (1 x 16GB) module leaves one slot free.
What warranty do I get?
3 years Dell ProSupport next business day onsite, supplied locally by SourceIT with a GST invoice.
