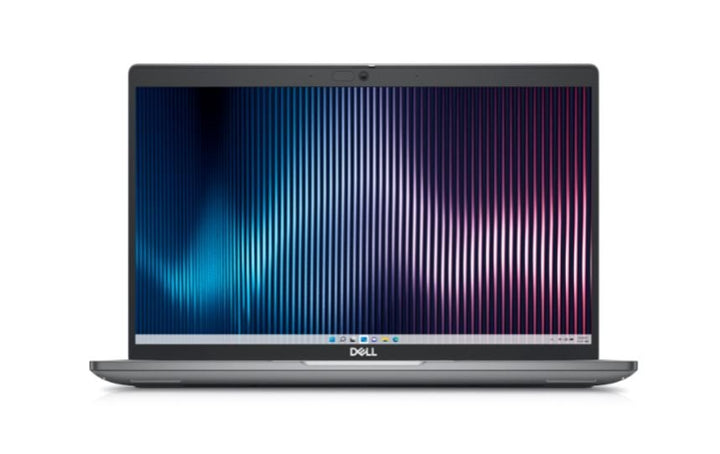

Dell Latitude 5340 13" Business Laptop
PRODUCT DESCRIPTION
Dell Latitude 5340 13.3-inch Laptop 13th Gen Intel Core i5 / i7 / Windows 11 Pro - multiple configurations - 3 Years ProSupport NBD Local Warranty
13th Gen Intel Core i5 and i7
Choose the Core i5-1335U with 8GB, the Core i5-1345U vPro with 16GB or the Core i7-1365U vPro with 16GB — all with LPDDR5-4800 memory, a 512GB PCIe NVMe SSD and Windows 11 Pro.
Compact 13.3-inch FHD
A 13.3-inch Full HD anti-glare IPS display, backlit keyboard and FHD camera in a chassis starting at 1.23 kg, with a 42 Wh or 54 Wh ExpressCharge battery.
Thunderbolt 4 Connectivity
Two Thunderbolt 4 ports with DisplayPort and Power Delivery, two USB-A ports and HDMI 2.0, plus Wi-Fi 6/6E and Bluetooth 5.3.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Latitude 5340 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Latitude 5340 (13.3-inch) — select a configuration |
| Lati5340i58G512 (i5/8GB/512GB SSD) | Intel Core i5-1335U, 8GB LPDDR5, 512GB SSD, 54 Wh battery, fingerprint reader |
| S002L534013SG_VP (i5/16GB/512GB SSD) | Intel Core i5-1345U vPro, 16GB LPDDR5, 512GB SSD, 42 Wh battery, smart card reader with NFC and fingerprint reader |
| Lati5340i716G512 (i7/16GB/512GB SSD) | Intel Core i7-1365U vPro, 16GB LPDDR5, 512GB SSD, 54 Wh battery, smart card reader with NFC and fingerprint reader |
| Display | 13.3" FHD 1920 x 1080, non-touch, IPS, 250 nits, anti-glare |
| Operating System | Windows 11 Pro |
| Local Warranty (Singapore) | 3 years Dell ProSupport Next Business Day |
Processor & Graphics
| Processor (i5/8GB) | Intel Core i5-1335U: 10 cores (2P + 8E) / 12 threads, 12 MB cache, up to 4.6 GHz, 15 W |
| Processor (i5/16GB) | Intel Core i5-1345U vPro: 10 cores (2P + 8E) / 12 threads, 12 MB cache, up to 4.7 GHz, 15 W |
| Processor (i7/16GB) | Intel Core i7-1365U vPro: 10 cores (2P + 8E) / 12 threads, 12 MB cache, up to 5.2 GHz, 15 W |
| Graphics | Integrated Intel Iris Xe Graphics |
Memory & Storage
| Memory | 8GB or 16GB LPDDR5 4800 MT/s on board, dual channel, per configuration; not upgradeable (platform max 32GB) |
| Storage | 512GB M.2 2230 PCIe NVMe SSD (Class 35) |
| Card Reader | None (media-card reader not supported) |
Display
| Panel | 13.3" FHD (1920 x 1080) IPS, non-touch, anti-glare |
| Brightness / Colour | 250 nits, 45% NTSC |
| Refresh Rate | 60 Hz |
Ports
| Thunderbolt / USB-C | 2 x Thunderbolt 4 (USB4 / USB Type-C) with DisplayPort Alt Mode and Power Delivery |
| USB-A | 2 x USB 3.2 Gen 1 (one with PowerShare) |
| Video | 1 x HDMI 2.0 |
| Network | No RJ45 Ethernet port (use a USB-C / Thunderbolt dock or adapter) |
| Other | Universal audio jack, USB Type-C power input, wedge-shaped security-cable slot |
Wireless, Audio & Camera
| Wireless | Wi-Fi 6 (Realtek RTL8852BE) or Wi-Fi 6E (Intel AX211) with Bluetooth 5.3 (module per SKU); WLAN only in these configurations |
| Camera | FHD camera |
| Audio | Two 2 W speakers, Waves MaxxAudio Pro, dual-array microphones |
Power
| Battery | 3-cell 54 Wh (i5/8GB, i7/16GB) or 3-cell 42 Wh (i5/16GB), ExpressCharge |
| Charging | USB Type-C power input (Dell 60 W / 65 W / 100 W USB-C adapters supported) |
Security
| Hardware | TPM 2.0 (FIPS 140-2), fingerprint reader on all configurations; smart card reader with NFC on the 16GB configurations; wedge-shaped lock slot |
| Keyboard | Backlit, spill-resistant, English US 79-key |
Physical
| Dimensions (W x D x H) | 305.70 x 207.50 x 16.79–18.44 mm |
| Starting weight | 1.23 kg |
| Operating temperature | 0°C to 35°C |
Compatibility & Software Support
Operating System
Windows 11 Pro.
Docks & Displays
Two Thunderbolt 4 ports with DisplayPort Alt Mode and Power Delivery work with Dell Thunderbolt and USB-C docks; HDMI 2.0 adds another display.
Upgrades
Memory is LPDDR5 soldered on board and cannot be upgraded. Storage uses a single M.2 2230 PCIe NVMe Gen4 slot (Dell offers up to 2TB).
Package Contents & Dell Latitude 5000 Series Ordering Information
In the Box
Dell Latitude 5340 laptop, USB-C AC adapter, documentation, plus a Dell Essential Briefcase 15 (ES1520C) per the supplied configuration.
Dell Latitude 13 5000 Series at SourceIT
| Model / Processor | Memory / SSD |
| Latitude 5320 | 11th Gen Core i5 / i7 — multiple options (previous generation) |
| Latitude 5330 / 5430 | 12th Gen Core i5 / i7 — multiple options (previous generation) |
| Latitude 5340 (this listing) | 13th Gen Core i5 / i7 — multiple options |
| Latitude 5340 Core i5-1335U | 8GB / 512GB SSD |
| Latitude 5340 Core i5-1345U vPro | 16GB / 512GB SSD |
| Latitude 5340 Core i7-1365U vPro | 16GB / 512GB SSD |
| Latitude 5350 Core Ultra 5 125U | 16GB / 512GB SSD (successor) |
| Latitude 5350 Core Ultra 7 165U | 16GB / 512GB SSD (successor) |
Looking for the current generation? See the Dell Latitude 5350. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Spec sheet | Dell Latitude 5000 series (5x40) spec sheet (PDF) |
| Setup & specifications | Dell Latitude 5340 Owner's Manual — Specifications |
| Manuals & drivers | Dell Latitude 5340 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Latitude 5340.
Frequently Asked Questions — Dell Latitude 5340
Can I upgrade the memory?
No. The Latitude 5340 uses LPDDR5-4800 memory soldered on board (8GB, 16GB or 32GB from the factory), so choose the capacity you need at purchase.
Does it have an Ethernet port or SD card reader?
No. The 13-inch Latitude 5340 has no RJ45 port and no media-card reader. It has two Thunderbolt 4 ports, two USB-A ports and HDMI 2.0; use a dock or adapter for wired Ethernet.
Does it support Windows Hello?
Yes, via the fingerprint reader on every configuration. The FHD camera has no IR.
Is it still available?
Dell has replaced the Latitude 5340 with the Latitude 5350. Check stock with sales, or see the Latitude 5350 Core Ultra 5 and Latitude 5350 Core Ultra 7 listings.
What warranty do I get?
3 years Dell ProSupport Next Business Day, supplied locally by SourceIT with a GST invoice.
