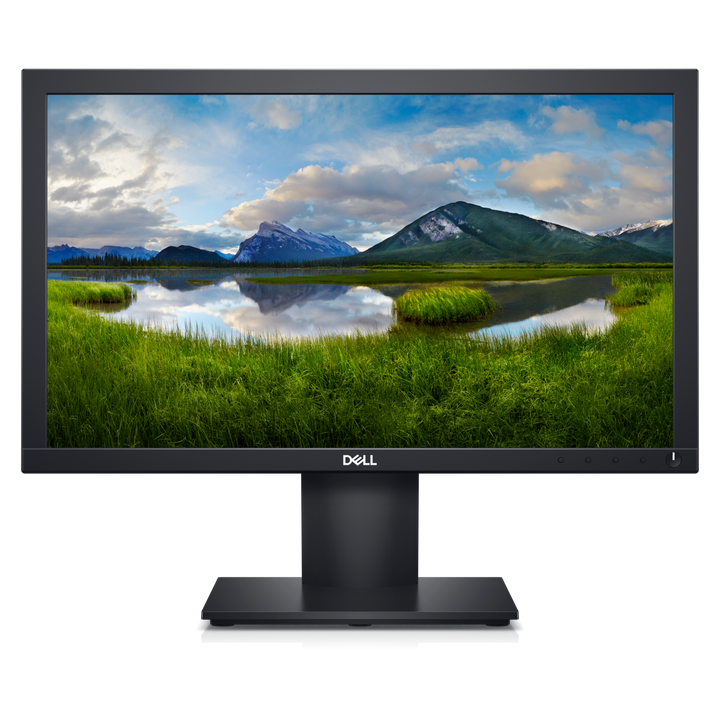

Dell E1920H 19" HD Monitor
PRODUCT DESCRIPTION
Dell 19 Monitor E1920H (210-AUXL) - Local Dell Warranty
Compact 19-inch Class Display
An 18.5-inch viewable 16:9 TN screen at 1366 x 768, sized for reception desks, labs and space-limited workstations.
DisplayPort and VGA
Connect current PCs over DisplayPort 1.2 or older systems over VGA, and mount the panel on a VESA 100 mm arm.
Energy-Conscious
Typical power of 10 W, under 0.3 W in standby, with ENERGY STAR and TCO certification.
Equipping a whole office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell E1920H Datasheet — Technical Specifications
Display
| Screen Size | 18.5 in viewable (19-inch class) |
| Panel | TN, LED backlight |
| Resolution | 1366 x 768 at 60Hz |
| Aspect Ratio | 16:9 |
| Response Time | 5 ms (grey to grey, normal) |
| Contrast Ratio | 600:1 (typical) |
| Colours | 16.7 million |
| Viewing Angle | 90° horizontal / 65° vertical |
| Pixel Pitch | 0.300 mm (85 ppi) |
| Coating | Anti-glare, 3H hardness |
Connectivity
| Video Inputs | 1 x DisplayPort 1.2, 1 x VGA |
Ergonomics
| Tilt | -5° to 21° |
| VESA | 100 mm |
| Security | Security lock slot |
Power
| AC Input | 100-240 VAC, 50/60 Hz |
| Typical / Maximum | 10 W / 13.8 W |
| Standby | Less than 0.3 W |
Physical
| With Stand (W x D x H) | 445.4 x 171.0 x 359.6 mm |
| Without Stand (W x D x H) | 445.4 x 50.1 x 266.0 mm |
| Weight (with stand) | 2.93 kg |
| Weight (panel only) | 2.19 kg |
Warranty
| Local Warranty (Singapore) | Dell lists 3 years Advanced Exchange Service and Limited Hardware Warranty (dell.com US/UK/India); supplied by SourceIT with a GST invoice (confirm the term with sales) |
Compatibility & Software Support
Connections
DisplayPort for current PCs and docks; VGA for legacy systems.
Software
Dell Display Manager (Windows).
Package Contents & Dell E-Series Monitors Ordering Information
In the Box
Monitor, stand riser and base, VESA screw cover, power cable, DisplayPort cable and Quick Setup Guide (cable set varies by region).
Dell E-Series Monitors
| Model | Key feature |
| E1715S 17" 5:4 | 1280 x 1024 TN, VGA + DisplayPort |
| E1920H 19" (this listing) | 1366 x 768 TN, VGA + DisplayPort |
| Pro 20 E2020H 19.5" | 1600 x 900, VGA + DisplayPort |
| E2222H 22" | Full HD VA, VGA + DisplayPort, tilt |
| E2222HS 22" | Full HD VA, HDMI + DP + VGA, speakers, height adjust |
| E2420H 24" | Full HD IPS |
| E2422H 23.8" | Full HD IPS |
| E2422HS 23.8" | Full HD IPS, HDMI, speakers |
| E2424HS 24" | Full HD VA, speakers |
| E2425HS 24" | Full HD VA |
| E2720HS 27" | Full HD IPS, speakers |
Datasheet & Downloads
| User guide | Dell E1920H User's Guide (PDF) |
| Manuals & drivers | E1920H on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting E1920H.
Frequently Asked Questions — Dell E1920H
What resolution is it?
1366 x 768 at 60Hz (16:9).
Does it have HDMI?
No. Inputs are DisplayPort 1.2 and VGA.
Is the E1920H still current?
Dell no longer lists the E1920H in Singapore; the Dell Pro 20 E2026H is the current compact model. Email sales for availability.
What warranty do I get?
Dell lists 3 years Advanced Exchange Service and Limited Hardware Warranty; supplied locally by SourceIT with a GST invoice. Please confirm the term with sales.
