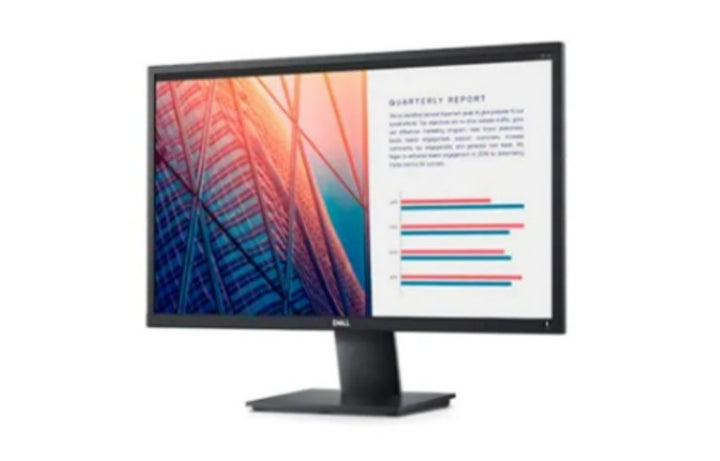

Dell E2420H 24" Full HD IPS Monitor
PRODUCT DESCRIPTION
Dell 24 Monitor E2420H - Local Dell Warranty
Full HD IPS on a 23.8-inch Screen
A 23.8-inch viewable IPS panel at 1920 x 1080 with 178° viewing angles and an anti-glare 3H coating.
Comfortable All Day
Flicker-free screen and ComfortView low blue light, on a tilt stand with VESA 100 mm mounting.
Simple Office Connectivity
DisplayPort 1.2 and VGA inputs cover both current and legacy office PCs.
Equipping a whole office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell E2420H Datasheet — Technical Specifications
Display
| Screen Size | 23.8 in viewable (604.70 mm) |
| Panel | IPS, LED light bar backlight |
| Resolution | 1920 x 1080 at 60 Hz (Full HD) |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms (normal), 5 ms (fast) |
| Brightness | 250 cd/m² (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Colour | 16.7 million colours, 72% CIE 1931 / 83% CIE 1976 |
| Viewing Angle | 178° / 178° |
| Pixel Pitch | 0.2745 mm |
| Coating | Anti-glare, 3H hardness |
Connectivity
| Video Inputs | 1 x DisplayPort 1.2, 1 x VGA |
| Speakers | None |
Ergonomics
| Tilt | -5° to 21° |
| Height Adjustment | None |
| VESA | 100 x 100 mm |
| Security | Security lock slot (cable lock sold separately) |
Eye Comfort
| Features | Flicker-free, ComfortView low blue light |
Power
| AC Input | 100-240 VAC, 50/60 Hz, 0.8 A |
| On Mode / Maximum | 11.9 W / 22 W |
| Standby / Off | 0.3 W / 0.2 W |
Physical
| With Stand (W x D x H) | 550.60 x 171.00 x 419.70 mm |
| Without Stand (W x D x H) | 550.60 x 52.40 x 326.50 mm |
| Weight | 4.27 kg with stand and cables, 3.25 kg panel only |
| Environmental | ENERGY STAR, EPEAT registered, TCO Certified, RoHS compliant |
Warranty
| Local Warranty (Singapore) | Local Dell warranty — contact us to confirm the term for current stock |
Compatibility & Software Support
Connections
DisplayPort 1.2 for current PCs and docks; VGA for legacy systems. There is no HDMI input on the E2420H.
Software
Dell Display Manager (Windows).
Package Contents & Dell E-Series Monitors Ordering Information
In the Box
Monitor, stand riser and base, VESA screw cover, power cable, DisplayPort cable, Quick Start Guide and safety information (per the Dell user's guide; VGA cable in EMEA and Japan only).
Dell E-Series Monitors
| Model | Key feature |
| E1715S 17" 5:4 | 1280 x 1024 TN, VGA + DisplayPort |
| E1920H 19" | 1366 x 768 TN, VGA + DisplayPort |
| Pro 20 E2020H 19.5" | 1600 x 900, VGA + DisplayPort |
| E2222H 22" | Full HD VA, VGA + DisplayPort, tilt |
| E2222HS 22" | Full HD VA, HDMI + DP + VGA, speakers, height adjust |
| E2420H 24" (this listing) | Full HD IPS, VGA + DisplayPort, tilt |
| E2422H 23.8" | Full HD IPS, VGA + DisplayPort, tilt |
| E2422HS 23.8" | Full HD IPS, HDMI + DP + VGA, speakers, height adjust |
| E2424HS 23.8" | Full HD VA, HDMI + DP + VGA, speakers, height/swivel |
| E2425HS 23.8" | Full HD 75 Hz VA, HDMI + DP + VGA, speakers, height/swivel |
| E2720HS 27" | Full HD IPS, HDMI + VGA, speakers, height adjust |
Datasheet & Downloads
| User guide | Dell E2420H User's Guide (PDF) |
| Manuals & drivers | Dell Support product page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting E2420H.
Frequently Asked Questions — Dell E2420H
Does the E2420H have HDMI?
No. It has DisplayPort 1.2 and VGA. For HDMI and speakers see the E2422HS or E2424HS.
Can I adjust the height?
No, the stand tilts from -5° to 21°. It is VESA 100 mm compatible for monitor arms.
Is the E2420H still current?
Dell no longer lists the E2420H for sale; email us for remaining stock or the current Dell equivalent.
What warranty do I get?
Local Dell warranty; contact us to confirm the term for the unit you order.
