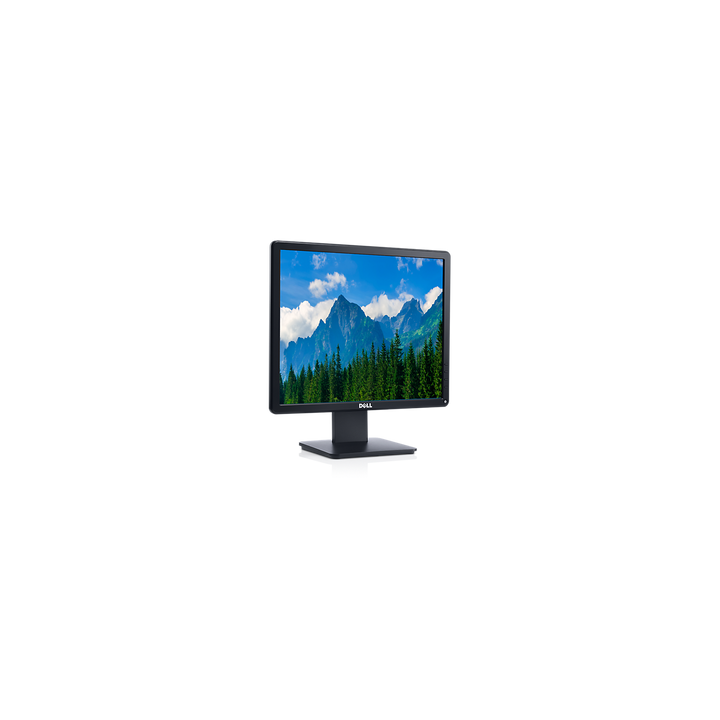

Dell E1715S 17" 5:4 SXGA Monitor
PRODUCT DESCRIPTION
Dell 17 Monitor E1715S (210-ALYU) - 3 Years Local Warranty
Classic 5:4 Format
A 17-inch 1280 x 1024 screen in the square 5:4 shape that suits point-of-sale, control-room and legacy business applications.
VGA and DisplayPort Inputs
Connect older PCs over VGA or newer systems over DisplayPort, and mount on a VESA 100 mm arm if desk space is tight.
Low-Power Everyday Display
LED backlight, 250 cd/m² brightness, anti-glare 3H coating and ENERGY STAR, EPEAT Gold and TCO certifications.
Equipping a whole office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell E1715S Datasheet — Technical Specifications
Display
| Screen Size | 17 in (43.2 cm viewable) |
| Panel | TN, LED backlight |
| Resolution | 1280 x 1024 at 60Hz |
| Aspect Ratio | 5:4 |
| Response Time | 5 ms (typical) |
| Brightness | 250 cd/m² (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Viewing Angle | 170° horizontal / 160° vertical |
| Pixel Pitch | 0.264 mm |
| Coating | Anti-glare, 3H hard coating |
Connectivity
| Video Inputs | 1 x VGA, 1 x DisplayPort 1.2 |
Ergonomics
| Tilt | -5° to 21° (typical) |
| VESA | 100 x 100 mm |
| Security | Security lock slot |
Physical
| With Stand (W x D x H) | 374.5 x 165.5 x 389.5 mm |
| Without Stand (W x D x H) | 374.5 x 46.5 x 306.9 mm |
| Weight (with stand) | 2.68 kg |
| Environmental | ENERGY STAR, EPEAT Gold, TCO Certified Displays |
Warranty
| Dell SKU (Singapore) | 210-ALYU |
| Local Warranty (Singapore) | 3 years Limited Warranty with 3 years Advanced Exchange Service, per dell.com Singapore |
Compatibility & Software Support
Connections
VGA for legacy PCs and thin clients; DisplayPort for current desktops and docks.
Software
Dell Display Manager for display settings and asset management (Windows).
Package Contents & Dell E-Series Monitors Ordering Information
In the Box
Monitor, stand, VESA screw cover, power cable and VGA cable (per dell.com Singapore). No DisplayPort cable is included.
Dell E-Series Monitors
| Model | Key feature |
| E1715S 17" 5:4 (this listing) | 1280 x 1024 TN, VGA + DisplayPort |
| E1920H 19" | 1366 x 768 TN, VGA + DisplayPort |
| Pro 20 E2020H 19.5" | 1600 x 900, VGA + DisplayPort |
| E2222H 22" | Full HD VA, VGA + DisplayPort, tilt |
| E2222HS 22" | Full HD VA, HDMI + DP + VGA, speakers, height adjust |
| E2420H 24" | Full HD IPS |
| E2422H 23.8" | Full HD IPS |
| E2422HS 23.8" | Full HD IPS, HDMI, speakers |
| E2424HS 24" | Full HD VA, speakers |
| E2425HS 24" | Full HD VA |
| E2720HS 27" | Full HD IPS, speakers |
Datasheet & Downloads
| Dell product page | Product page on dell.com (Singapore) |
| Dell datasheet | Dell 17 Monitor E1715S Spec Sheet (PDF) |
| Manuals & drivers | E1715S on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting E1715S.
Frequently Asked Questions — Dell E1715S
What resolution is it?
1280 x 1024 at 60Hz, in a 5:4 aspect ratio.
Which cable is included?
A VGA cable, per dell.com Singapore. Use your own DisplayPort cable for the DP input.
Can it be wall or arm mounted?
Yes, it has a VESA 100 x 100 mm mount.
What warranty do I get?
3 years Limited Warranty with Advanced Exchange Service, per dell.com Singapore.
