Dell 15 DC15250 Core i5-1334U 16GB 512GB Laptop
PRODUCT DESCRIPTION
Dell 15 Laptop DC15250 Intel Core i5-1334U / 16GB / 512GB SSD (210-BRNX / 6661176) - Local Dell Warranty
Everyday performance
A 13th Gen Intel Core i5-1334U with 10 cores (2 Performance-cores + 8 Efficient-cores) and up to 4.6 GHz handles email, documents, presentations and video calls, with 16GB of memory and a 512GB NVMe SSD.

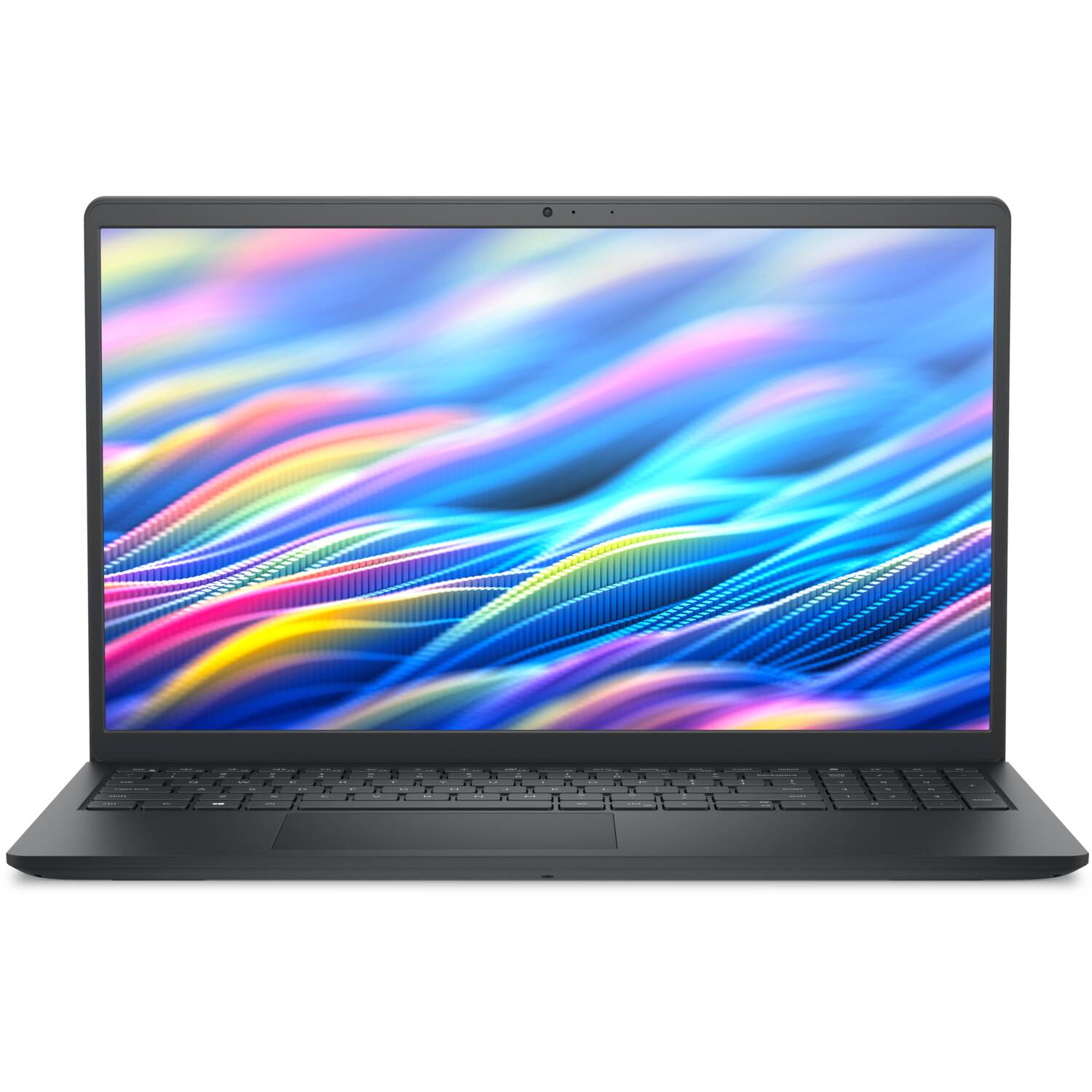

Comfortable 15.6-inch workspace
A 15.6-inch Full HD anti-glare display with Dell ComfortView low blue light software and a full-size keyboard with numeric keypad suit long working days.
Charge fast, stay secure
ExpressCharge support, a USB-C port with DisplayPort Alt Mode and Power Delivery, and a hardware TPM 2.0 chip, with an optional fingerprint reader in the power button.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell DC15250 Datasheet — Technical Specifications
Configuration
| Product Name | Dell 15 Laptop DC15250 |
| SourceIT SKU | 210-BRNX / 6661176 |
| Processor | 13th Gen Intel Core i5-1334U |
| Memory | 16GB (Dell maximum for this model) |
| Storage | 512GB M.2 PCIe NVMe SSD |
| Display, wireless, camera, battery, keyboard, colour, OS | Per the supplied distributor SKU - see platform options below; confirm with sales before ordering |
| Local Warranty (Singapore) | Dell Basic Hardware Service with Collect and Return (as listed on dell.com Singapore), supplied by SourceIT with a GST invoice; coverage length per supplied SKU - confirm with sales |
Processor & Graphics
| Processor | 13th Gen Intel Core i5-1334U (10 cores: 2 P-cores + 8 E-cores, 12 threads, up to 4.6 GHz, 12 MB cache, 15 W) |
| Chipset | Integrated with the processor |
| PCIe bus | Up to Gen3/Gen4 (13th Gen Intel Core i5/i7) |
| Graphics | Integrated Intel Iris Xe Graphics / Intel UHD Graphics, shared system memory |
Memory & Storage
| Memory slots | Two SODIMM slots |
| Memory type | Options: DDR4 or DDR5 (varies by configuration) |
| Maximum memory | 16 GB |
| Memory size per slot | 8 GB or 16 GB |
| Storage slot | One M.2 Key-M slot for solid state drive |
| Storage interface | M.2 PCIe NVMe SSD (PCIe NVMe Gen4 x4 per owner's manual); up to 1 TB |
| Other M.2 slot | One M.2 2230 Key-E slot for Wi-Fi and Bluetooth combo card |
Display (platform options)
| Panel options | Options: 15.6" FHD (1920 x 1080) 120 Hz non-touch WVA, 250 nits, anti-glare; 15.6" FHD 60 Hz touch WVA, 220 nits, anti-glare; 15.6" FHD 60 Hz non-touch IPS, 300 nits, anti-glare |
| Colour gamut | 45% NTSC |
| Pixels per inch | 141 |
| ComfortView | Dell ComfortView low blue light software |

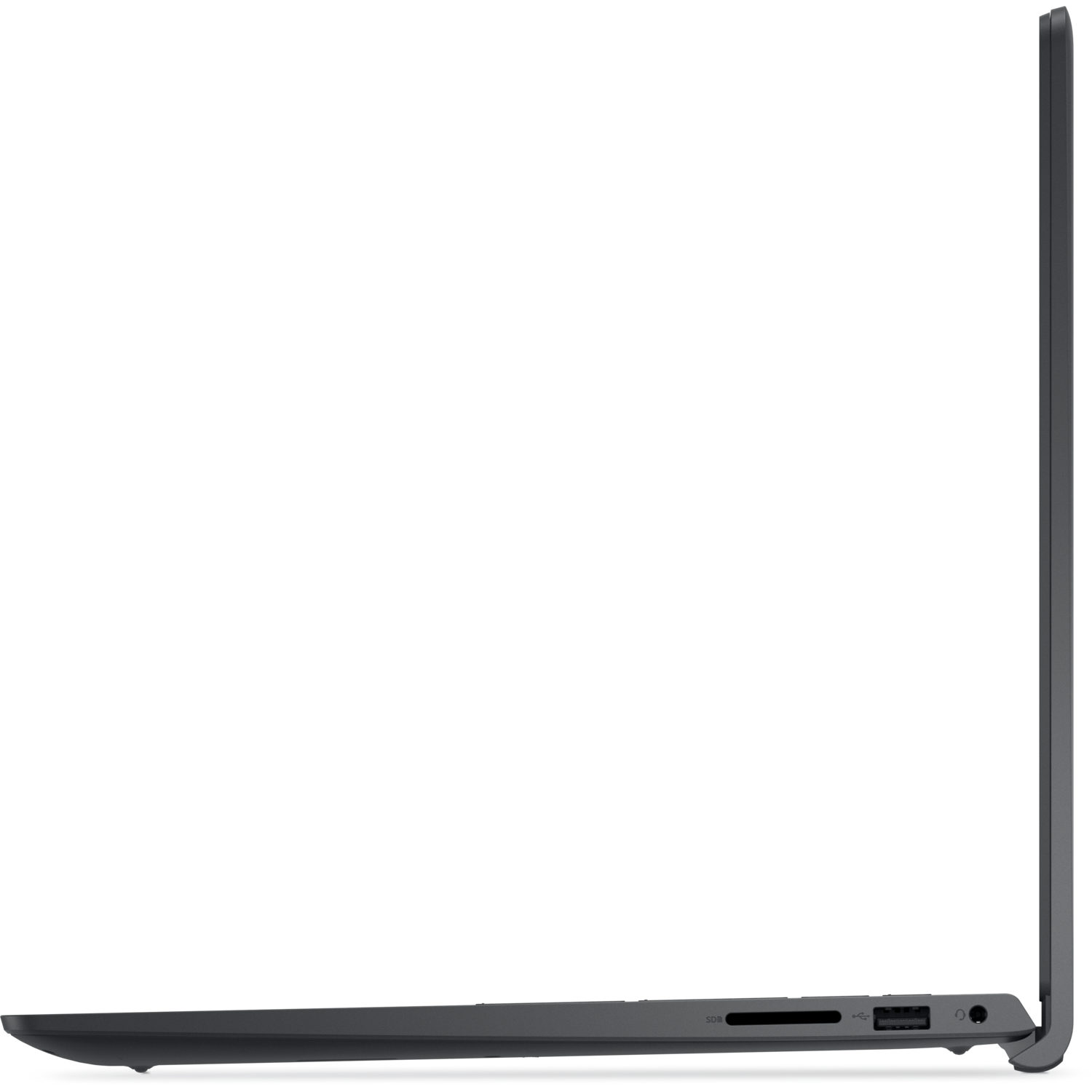

Ports & Slots
| USB | 1 x USB 3.2 Gen 1 (5 Gbps); 1 x USB 2.0 (480 Mbps); 1 x USB 3.2 Gen 1 (5 Gbps) Type-C; 1 x USB 3.2 Gen 1 (5 Gbps) Type-C with DisplayPort Alt Mode 1.4/Power Delivery |
| Video | 1 x HDMI 1.4 (max 1920 x 1080 at 60 Hz); USB-C with DisplayPort Alt Mode 1.4 |
| Audio | 1 x Universal Audio port |
| Media-card reader | 1 x SD-card slot |
| Power | 1 x DC-in port (4.50 mm) |
| Security-cable slot | Not supported |
| Ethernet (RJ-45) | Not listed |
Wireless options
| Wireless | Options: Realtek RTL8821CE Wi-Fi 5 (802.11ac), up to 433 Mbps, Bluetooth 5.0; Realtek RTL8852BE Wi-Fi 6 (802.11ax) 2x2, up to 1201 Mbps, Bluetooth 5.3 |
Camera
| Camera | Options: HD (1280 x 720 at 30 fps) RGB camera (plastic chassis); FHD (1920 x 1080 at 30 fps) RGB camera (aluminum chassis) |
Audio
| Audio controller | Realtek ALC3204 or Realtek ALC3254 |
| Speakers | Two; 2 W x 2 = 4 W average, 2.5 W x 2 = 5 W peak |
| Microphone | Options: single integrated (plastic chassis) or dual-array (aluminum chassis) |
Power
| Battery | Options: 3-cell 41 Wh or 4-cell 54 Wh Lithium Ion Polymer, ExpressCharge |
| Power adapter | 65 W AC adapter, 4.50 mm barrel connector, 100-240 VAC, 50-60 Hz |
Security
| TPM | Trusted Platform Module 2.0 |
| Fingerprint reader | Optional fingerprint reader in power button (Windows Hello) |

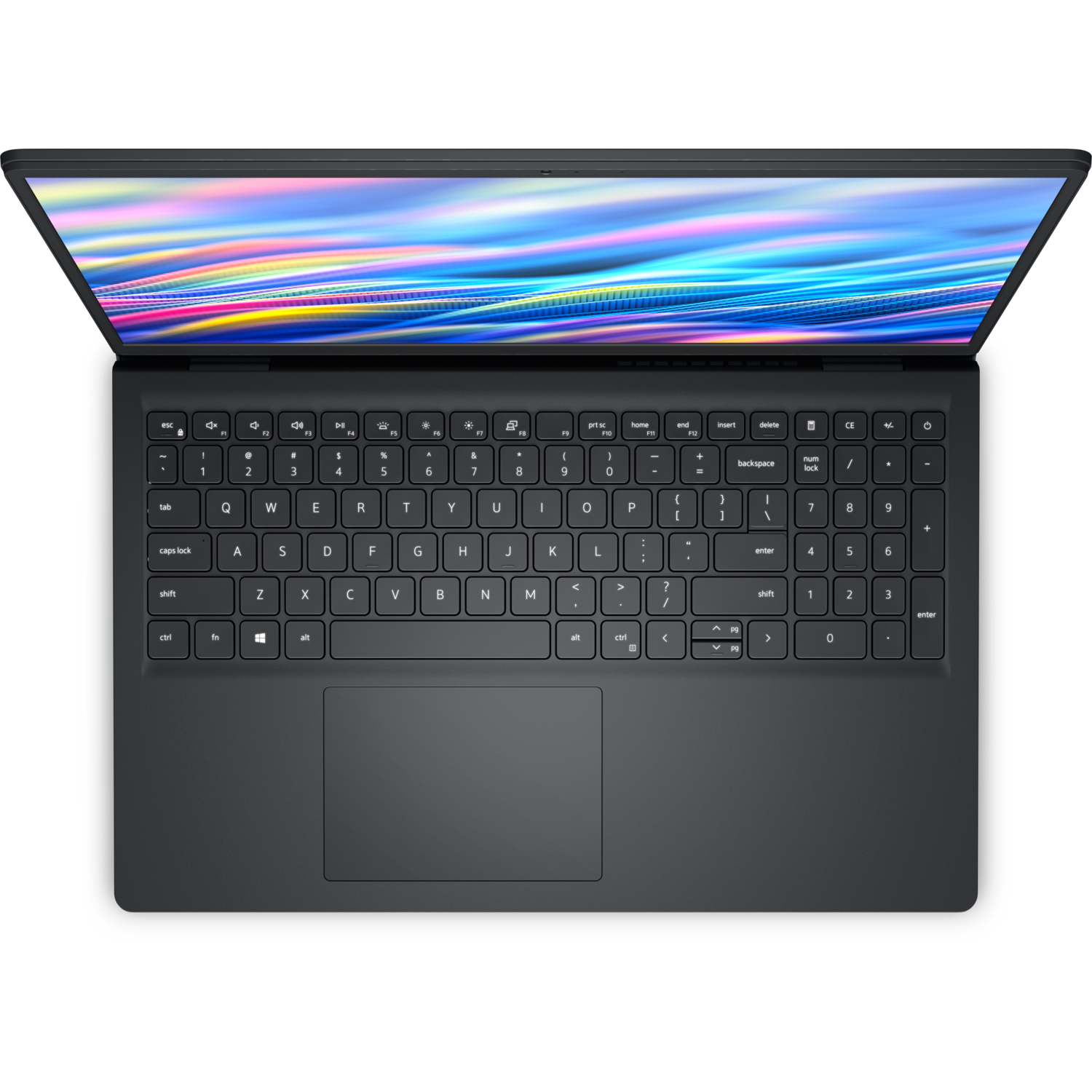

Keyboard
| Keyboard | Options: standard backlit or non-backlit keyboard |
| Numeric keypad | Full-size keyboard with numeric pad |
| Touchpad | 115.00 mm x 80.00 mm |
Physical
| Dimensions (plastic chassis) | Height 16.96 mm (front) - 18.99 mm (rear) x Width 358.50 mm x Depth 235.56 mm |
| Dimensions (aluminum chassis) | Height 15.52 mm (front) - 17.50 mm (rear) x Width 358.50 mm x Depth 234.90 mm |
| Weight | Starting at 1.62 kg (3.59 lb); maximum 1.90 kg (plastic) / 1.94 kg (aluminum), varies by configuration |
| Colour | Options: Carbon Black (plastic), Platinum Silver (plastic), Platinum Silver (aluminum) |
Operating System options
| Operating system | Options: Windows 11 Home, Windows 11 Pro, Ubuntu Linux 22.04 LTS (manual also lists Windows 11 Home in S mode and Windows 11 Pro National Academic) |
Compatibility & Software Support
Operating System
Dell offers Windows 11 Home, Windows 11 Pro and Ubuntu Linux 22.04 LTS on this platform; the installed OS depends on the supplied SKU - confirm with sales.
Displays & Accessories
Connect an external display through HDMI 1.4 (up to 1920 x 1080 at 60 Hz) or the USB-C port with DisplayPort Alt Mode 1.4. The same USB-C port supports Power Delivery; the laptop ships with a 65 W barrel adapter.
Typical Use
Small offices, home offices and students who want an affordable 15.6-inch Dell laptop with a numeric keypad, an SD-card slot and Wi-Fi connectivity.
Package Contents & Dell 15 DC15250 Ordering Information
In the Box
Dell 15 DC15250 laptop and 65 W AC adapter.
Dell 15 DC15250
| Processor | Memory / SSD |
| Core i5-1334U (this listing) | 16GB / 512GB SSD |
| Core i5-1334U | 16GB / 1TB SSD |
Datasheet & Downloads
| Product brochure | Dell 15 DC15250 product brochure (PDF) |
| Spec sheet | Dell 15 DC15250 / DC15255 spec sheet (PDF) |
| Manuals & drivers | Dell 15 DC15250 specifications on Dell Support |
| Dell product page | Dell 15 Laptop on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DC15250.
Frequently Asked Questions — Dell DC15250
Can I upgrade the RAM?
The DC15250 has two SODIMM slots, but Dell lists 16GB as the maximum memory, so this 16GB configuration is already at Dell's stated maximum.
Can I add a second SSD?
No. There is one M.2 slot for the SSD; the other M.2 slot holds the Wi-Fi/Bluetooth card. Dell lists storage up to 1TB.
Does it charge over USB-C?
One USB 3.2 Gen 1 Type-C port supports DisplayPort Alt Mode 1.4 and Power Delivery. A 65 W adapter with a 4.50 mm DC-in connector is included.
Does it have an Ethernet port?
No. The DC15250 has no RJ45 port; networking is via Wi-Fi (or a USB/USB-C Ethernet adapter, sold separately).
What warranty do I get?
Dell lists Basic Hardware Service with Collect and Return for this model in Singapore. Please confirm the coverage length for this SKU with sales@sourceit.com.sg before ordering.
