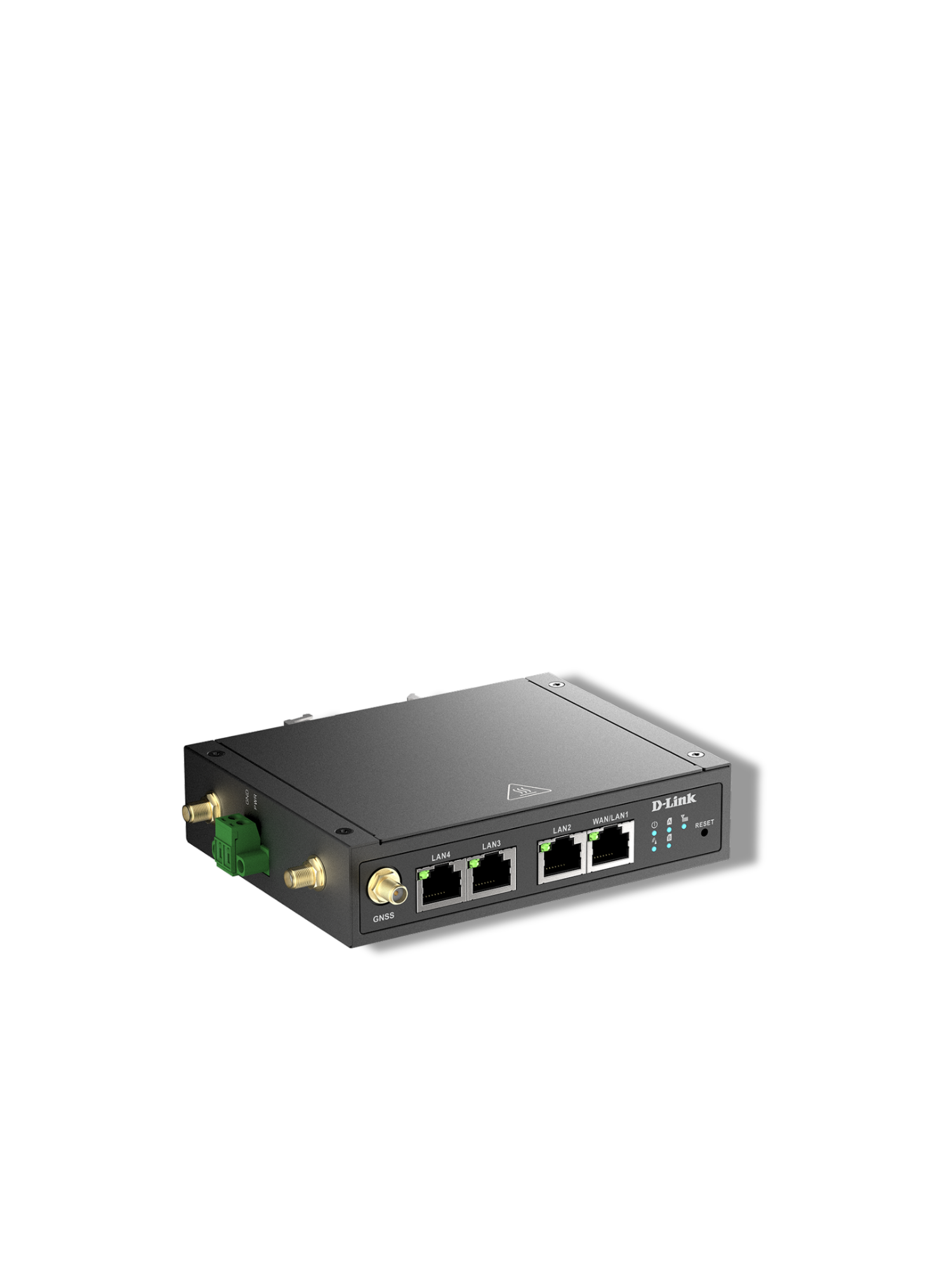

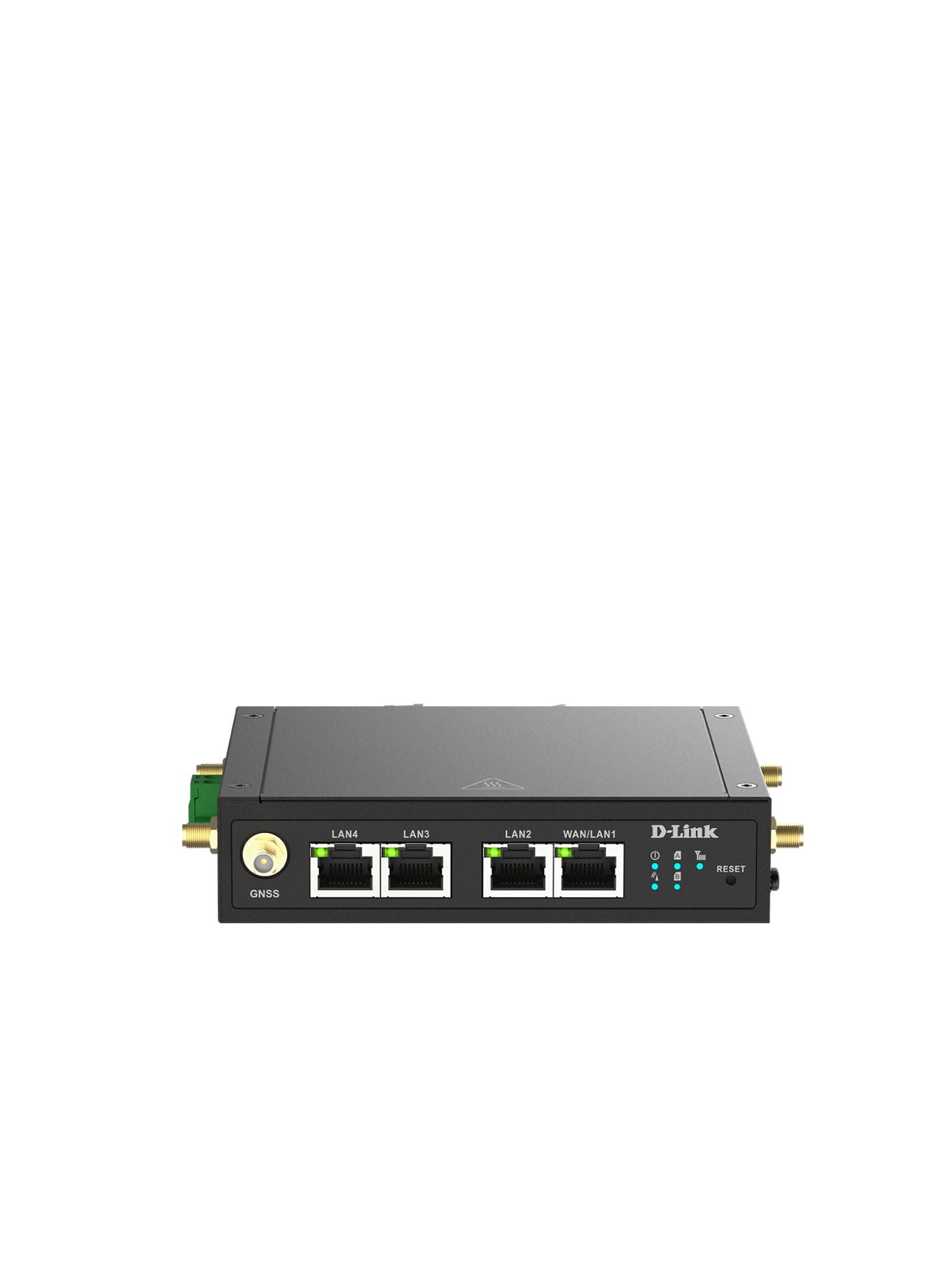

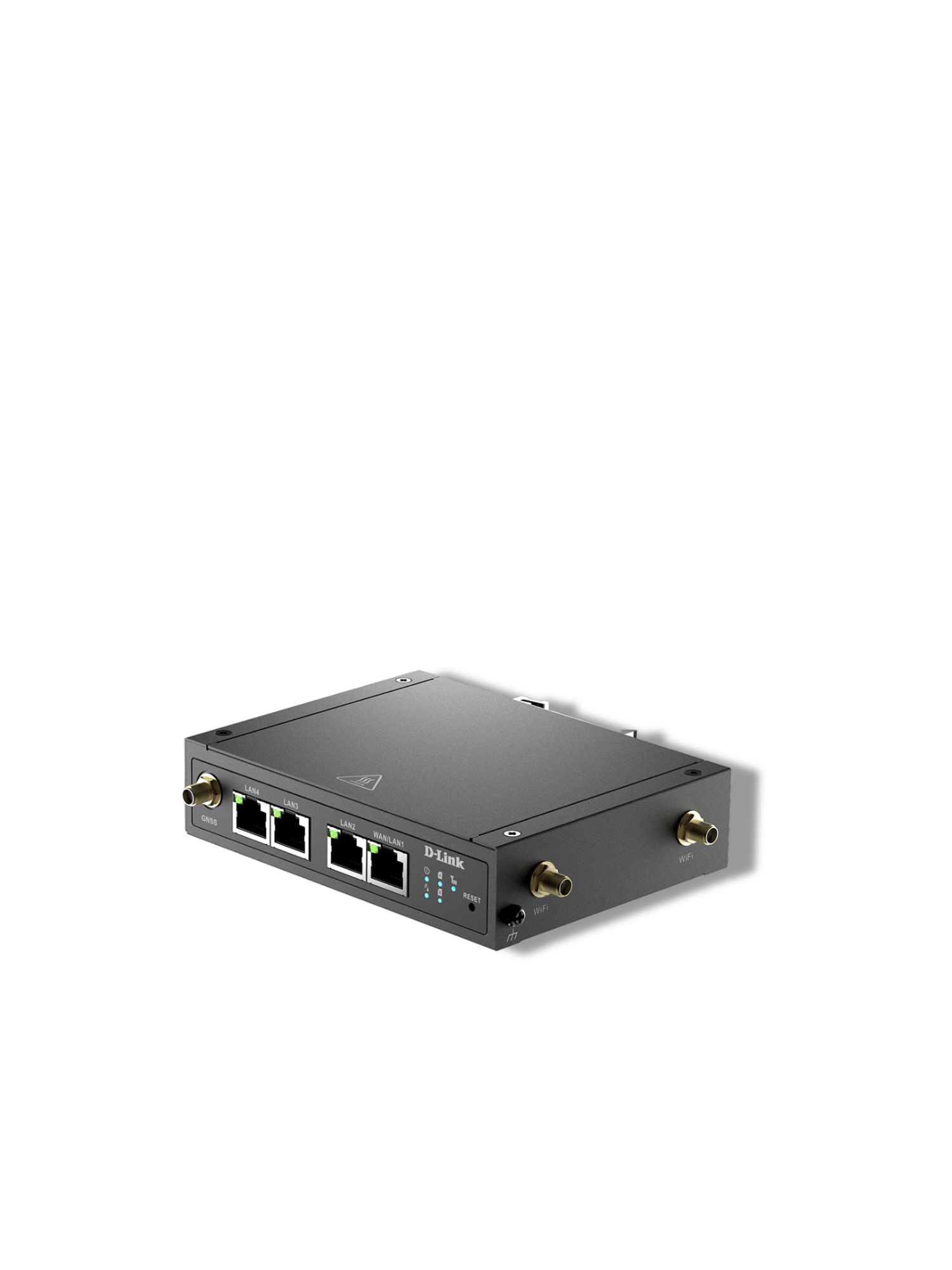

D-Link DWM-530-T 4G LTE Industrial M2M Wi-Fi VPN Router
PRODUCT DESCRIPTION
D-Link DWM-530-T 4G LTE Industrial M2M Wi-Fi VPN Router (DWM-530-T) - 3 Years Local Warranty
Four Ports and Wi-Fi over 4G
The D-Link DWM-530-T combines a 4G LTE Cat.4 module (up to 150 Mbps down / 50 Mbps up) with four Fast Ethernet ports, one configurable as WAN, and 2.4 GHz Wi-Fi N300 to connect several wired and wireless devices on site.
Carrier Diversity and Redundancy
Two Micro-SIM slots and multi-WAN (cellular plus Ethernet WAN with failover) keep critical systems online if a carrier or line drops.
Built for Harsh Environments
A metal case, -30 to 70 °C operating range, DC 9-36 V terminal-block input and included DIN-rail kit suit outdoor cabinets and industrial panels.
Secure, Located and Logged
IPSec, OpenVPN, PPTP, L2TP and GRE VPN, an SPI firewall with IPS, GPS/GLONASS positioning and a Micro SD slot for logs, managed via Web UI, SNMP or D-Link D-ECS2.
Need help choosing? Email sales@sourceit.com.sg with your site, carriers and bandwidth needs and we will recommend the right M2M router.
D-Link DWM-530-T Datasheet — Technical Specifications
General
| Product Name | D-Link DWM-530-T 4G M2M Router |
| Part Number | DWM-530-T |
| Series | D-Link 5G/4G LTE Industrial M2M Routers |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Cellular
| Cellular Module | 4G LTE Cat.4 |
| LTE Throughput | 150 Mbps (DL) / 50 Mbps (UL) |
| LTE Bands (EU SKU, HW A1) | FDD B1/B3/B7/B8/B20/B28A; TDD B38/B40/B41 |
| LTE Bands (US SKU, HW A2) | B2/B4/B5/B12/B13/B14/B66 |
| SIM Slots | 2 x SIM (Micro SIM) |
Interfaces & Wi-Fi
| Ethernet | 1 x WAN/LAN FE, 3 x LAN FE |
| Wi-Fi | IEEE 802.11 n/b/g, 2.4 GHz, 300 Mbps, AP router mode; Multi-SSID, WMM |
| Wi-Fi Security | WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, 802.1x |
| Antenna Connectors | 2 x SMA(F) cellular, 2 x SMA(RP-F) Wi-Fi, 1 x SMA(F) GPS |
| GNSS | GPS/GLONASS |
| Storage | 1 x Micro SD for log |
| Power Input | DC 9-36V (terminal block, 2-pin) |
Network, Security & Administration
| WAN | Multi-WAN: cellular, Ether-WAN, failover |
| Network Features | DHCP server/relay, port/tag-based VLAN, DMZ, virtual server, VPN pass-through, DDNS (DynDNS, No-IP, Dynamic DO), IGMP, IPv4/v6 |
| VPN | IPSec, OpenVPN, PPTP, L2TP, GRE |
| Firewall | SPI firewall with stealth mode, IPS, Block WAN Ping |
| Access Control | Packet filter, URL blocking, MAC control |
| Routing | Static, dynamic RIPv1/v2, OSPF, BGP |
| Configuration | Web UI, CLI, command script |
| Management | SNMPv1/2/3, D-Link D-ECS2 |
| Cellular Toolkit | Data usage, SMS, SIM PIN, network scan; event management and notifying events |
Physical & Environmental
| Dimensions | 131 x 99 x 31 mm |
| Housing & Mounting | Metal casing; DIN-rail kit included |
| Operating Temperature | -30 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | Operating 10% to 95%; storage 0% to 95% (non-condensing) |
| Certifications | CE, UKCA |
Compatibility & Software Support
Management
Web UI, CLI and command script locally; SNMPv1/2/3 and D-Link D-ECS2 for central management; SMS event notifications.
Typical Use
Primary or backup cellular connectivity for transport and roadside cabinets, retail, remote branches and IoT gateways needing GPS location and local logging.
Package Contents & M2M Router Ordering Information
Package Contents
2 x cellular SMA antennas, 2 x Wi-Fi RP-SMA antennas, 1 x RJ-45 cable, 1 x power adapter, 1 x terminal block (2-pin), 1 x DIN-rail kit.
D-Link M2M Router Models
| Model | Cellular | Ports / Wi-Fi | Part No. |
| DWM-313 | 4G LTE Cat.4, 2 SIM | 1 x WAN/LAN FE + 1 x LAN FE / N150 | DWM-313 |
| DWM-530-T (this listing) | 4G LTE Cat.4, 2 SIM | 1 x WAN/LAN FE + 3 x LAN FE / N300 | DWM-530-T |
| DWM-550-G | 5G NR / 4G LTE, 2 SIM | 1 x WAN/LAN GE + 3 x LAN GE / Wi-Fi 6 AX1800 | DWM-550-G |
Datasheet & Downloads
| D-Link datasheet | DWM-530-T Datasheet (PDF) |
| D-Link product page | DWM-530-T on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DWM-530-T.
Frequently Asked Questions — D-Link DWM-530-T
Does it support dual-SIM failover?
Yes, two Micro-SIM slots with multi-WAN failover between cellular and Ethernet WAN.
Does it have GPS?
Yes, GPS/GLONASS with a dedicated SMA GPS connector.
How many devices can I connect by cable?
Up to four via the Fast Ethernet ports (one is configurable as WAN).
What power input does it need?
DC 9-36V via a 2-pin terminal block; a power adapter is included.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
