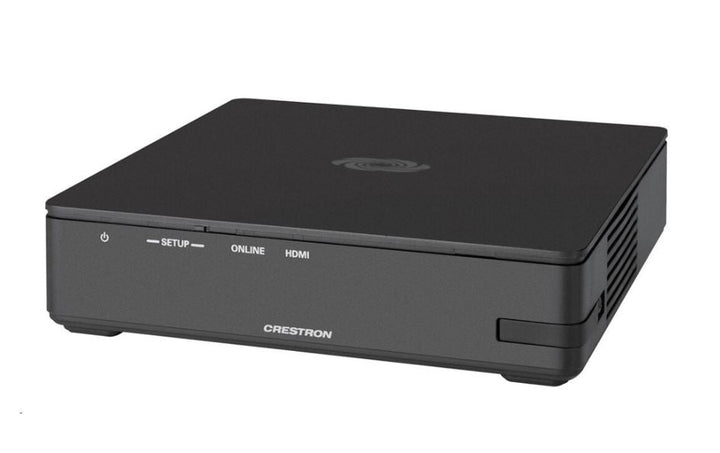

Crestron AirMedia Receiver 3000 with Wi-Fi Network Connectivity, International
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Crestron AirMedia Receiver 3000 with Wi-Fi Network Connectivity, International - Local Warranty
A compact AirMedia wireless presentation receiver for meeting rooms, huddle spaces and lobbies, letting users share laptop, phone or tablet content to a display up to 4K over Wi-Fi or the network.
Key Features
- Wireless presentation from Windows, macOS, Chrome OS, iOS and Android devices
- AirMedia Canvas shows up to four sources simultaneously
- HDMI output up to 4K60 with HDCP 2.2 and CEC
- Built-in Wi-Fi (802.11ax) and Bluetooth 5.0
- Welcome screen with Exchange, Google Calendar or Crestron Fusion room schedule
- PoE+ powered; XiO Cloud and Crestron Fusion management
- 802.1X, Active Directory and AES encryption; TAA compliant
AM-3000-WF-I Datasheet — Technical Specifications
General
| Product Name | AirMedia® Receiver 3000 with Wi-Fi® Network Connectivity, International |
| Brand | Crestron |
| Part Numbers | AM-3000-WF-I |
| Regulatory Model | M202018001 |
| Government Use | TAA compliant |
Communications
| Ethernet | 100/1000 Mbps; TCP/IP, UDP/IP, DHCP, SSL, TLS, SSH, SFTP, IEEE 802.1X, Active Directory authentication, HTTPS web setup, XiO Cloud; 802.3at compliant |
| AirMedia | Via Ethernet: IPv4, mDNS, TLS, AES; via wireless access point: IEEE 802.11b/g/n/ac/ax, 2.4 GHz or 5 GHz |
| Bluetooth | Version 5.0 |
| USB Device | USB 3.0 computer console (setup and firmware update) |
| HDMI Output | HDCP 2.2, EDID, CEC |
Video & Audio
| Input Signal Types | AirMedia; up to four sources on screen with AirMedia Canvas (AirMedia apps, Apple Screen Mirroring, Chrome extension); up to three via Miracast or AirMedia Connect devices |
| Maximum Input Resolution | AirMedia presentation: 1920x1080@30Hz; AirMedia Connect adaptor: 3840x2160@30Hz |
| Output Signal Type | HDMI (DVI compatible) |
| HDMI Output Resolutions | 720p50/60, 1280x800, 1366x768, 1440x900, 1600x900, 1600x1200, 1680x1050, 1080p50/60, 3840x2160@30/50/60Hz |
| Audio Format | 2-channel LPCM via HDMI |
| Background & Logo Files | JPEG, PNG |
AirMedia Software
| OS Support | Apple iOS, Android, Windows 10, Windows 11, macOS, Chrome OS |
| Video Frame Rate | Up to 30 fps, audio supported |
| Bitrate | 0.25 to 8.5 Mbps peak (content dependent); 1.4 Mbps average typical |
| Audio Format | Stereo |
Connectors
| HDMI Output | 1 x HDMI Type A |
| USB | 2 x USB Type A; 1 x USB Type B (USB 3.0 device port for computer console) |
| LAN PoE+ | 1 x RJ-45, 100Base-TX/1000Base-T, PoE+ Class 4 |
| Power Input | 1 x 2.1 x 5.5 mm DC, 24 VDC 1.25 A (PW-2412WU power pack sold separately) |
| microSD | 1 x slot for caching digital signage content |
Power, Environmental & Physical
| Power | PoE+ IEEE 802.3at Class 4 powered device, or optional PW-2412WU power pack (100-240 VAC in, 24 VDC 1.25 A out) |
| Power Consumption | 13.5 W typical |
| Heat Dissipation | 46.0 BTU/hr |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Humidity | 10% to 90% RH (non-condensing) |
| Chassis | Plastic, black finish, 4 integrated mounting holes, vented sides |
| Mounting | Freestanding, surface mount |
| Dimensions (H x W x D) | 31 x 127 x 127 mm (1.21 x 5 x 5 in) |
| Weight | 330 g (11.64 oz) |
| Compliance | ETL Listed for the US and Canada to UL/IEC 62368-1; CE compliant |
Compatibility & Software Support
Ecosystem
| Presenting Devices | Laptops and desktops via AirMedia client software or the AirMedia extension for Google Chrome, Miracast (Windows 10 and Windows 11); Android and iOS devices via the AirMedia app; Apple Screen Mirroring |
| AirMedia Connect Devices | AM-TX3-100 Connect Adaptor and AM-TX3-200 Connect Endpoint (up to three sources on screen when presenting via Connect devices or Miracast) |
| Room Scheduling | Microsoft Exchange Server (Outlook and Microsoft 365), Google Calendar, Crestron Fusion |
| Management | XiO Cloud provisioning and management service, Crestron Fusion monitoring, HTTPS web browser setup |
| Add-on Control | 7 in. or 10 in. Crestron TS-70 or TSW-70 series touch screen (sold separately); CEN-ODT-C-POE PoE occupancy sensor (sold separately) |
| Digital Signage | Appspace or other web-based signage providers |
| Security | 802.1X network access control, Active Directory authentication, AES content encryption |
Package Contents & Ordering Information
Models
| Configuration | Part number |
| AirMedia Receiver 3000 with Wi-Fi, International | AM-3000-WF-I |
Optional (sold separately): PW-2412WU power pack, TS-70/TSW-70 series touch screen, CEN-ODT-C-POE occupancy sensor, CBL-HD-DVI cable.
Datasheet & Downloads
| Product page | Crestron AM-3000-WF-I product page |
| XiO Cloud | Works with XiO Cloud (Crestron docs) |
Frequently Asked Questions — AM-3000-WF-I
How many sources can be shown on screen at once?
Up to four sources with AirMedia Canvas when presenting via the AirMedia applications, Apple Screen Mirroring or the Chrome extension, and up to three when using Miracast or AirMedia Connect devices (AM-TX3-100 or AM-TX3-200).
Which devices can present to the AM-3000-WF-I?
Windows, macOS and Chrome OS computers via the AirMedia client software or Chrome extension, Windows 10/11 via Miracast, and iOS and Android devices via the AirMedia app.
How is the receiver powered?
By PoE+ (IEEE 802.3at Class 4) on its LAN port, or by the optional PW-2412WU 24 VDC power pack sold separately.
What output resolution does it support?
The HDMI output supports resolutions up to 3840x2160@60Hz; all inputs are scaled to the selected output resolution.
Can it be managed centrally?
Yes. It works with the XiO Cloud service for provisioning and management, and with Crestron Fusion for monitoring and room scheduling.
