Cisco ISR 1100 C1111-8P Dual GE WAN Router, 8-Port GE LAN
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

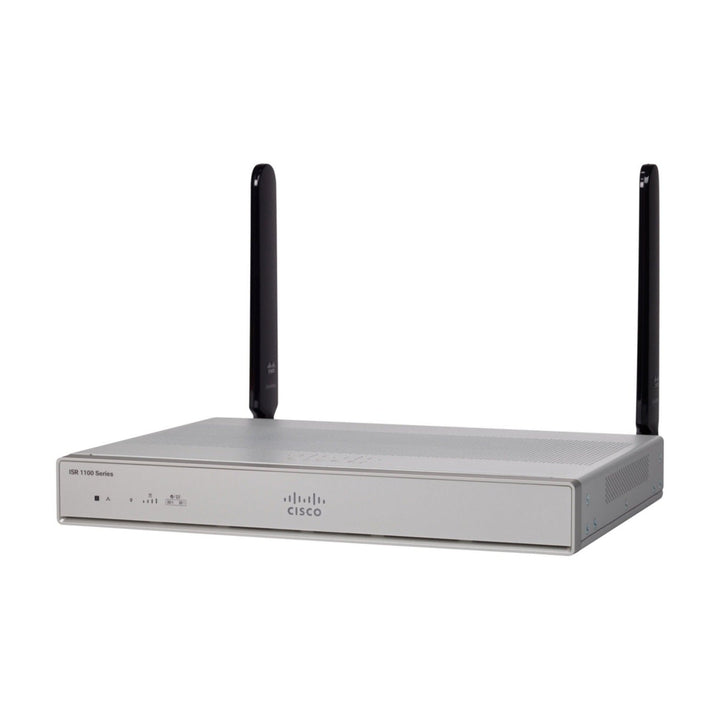

Cisco ISR 1100 8 Ports Dual GE WAN Ethernet Router (C1111-8P) — Local Warranty
IOS XE branch router
The Cisco C1111-8P is a Cisco 1000 Series Integrated Services Router (ISR 1100) for small branches and remote offices. It runs Cisco IOS XE, operating either as a traditional (autonomous) router or as a Cisco SD-WAN edge device.
Dual Gigabit WAN, 8-port LAN
Two WAN interfaces are provided: one Gigabit Ethernet copper/SFP combo port and one Gigabit Ethernet copper port. An integrated 8-port Gigabit Ethernet LAN switch connects local devices without a separate switch.
Higher throughput than the 4-port model
Cisco rates the C1111-8P at up to 1,800 Mbps IPv4 forwarding and up to 600 Mbps IPsec in autonomous mode, and up to 650 Mbps IPsec (512-byte packets) in SD-WAN mode.
4 GB memory
The base model has 4 GB DRAM and 4 GB flash, and Cisco lists maximum power consumption of 19.2 W excluding power supply losses.
Optional PoE
Cisco offers optional PoE/PoE+ on the LAN ports (4 PoE or 2 PoE+), which requires the 150 W power supply instead of the standard 66 W supply.
Cisco ISR 1100 C1111-8P Datasheet — Technical Specifications
Interfaces
| WAN | 2 x Gigabit Ethernet: 1 x copper/SFP combo port + 1 x copper port |
| LAN | 8 x Gigabit Ethernet switch ports |
| PoE (optional) | 4 PoE / 2 PoE+ on the LAN ports with 150 W power supply |
| Console | Integrated RJ-45 / micro-USB console |
| USB | Type A USB 3.0 for storage |
Performance
| IPv4 forwarding (autonomous) | Up to 1,800 Mbps |
| IPsec (autonomous) | Up to 600 Mbps |
| IPsec (SD-WAN, 512B) | Up to 650 Mbps |
| SD-WAN profile (IPsec + QoS + DPI + NetFlow) | Up to 250 Mbps |
Software & Memory
| Operating system | Cisco IOS XE (autonomous or SD-WAN mode) |
| DRAM / flash | 4 GB / 4 GB |
| Licences | IP Base (default); APP, UC, SEC technology packages |
Power
| Power supply | External, 66 W maximum output (150 W supply for optional PoE) |
| Power consumption | 19.2 W maximum (excluding power supply losses) |
Physical & Environmental
| Dimensions (H x W x D) | 1.75 x 12.70 x 9.015 in. |
| Weight | 1.98 kg (4.37 lb) |
| Operating temperature | 0° to 40°C at sea level (1°C per 1,000 ft derating) |
| Operating humidity | 10% to 85% non-condensing |
Compatibility & Software Support
Operating modes
The C1111-8P runs Cisco IOS XE. In autonomous mode it is configured by CLI or the IOS XE Web UI; in SD-WAN mode it is managed as a Cisco Catalyst SD-WAN edge through the SD-WAN controllers.
Licensing
IP Base is the default. Application Experience (APP), Unified Communications (UC) and Security (SEC) packages enable additional features such as zone-based firewall and IPsec VPN.
End-of-Sale notice
Cisco's end-of-sale and end-of-life announcement for the Cisco ISR 1111 Series Ethernet routers covers the C1111-8P. Milestones: End-of-Sale 28 July 2026; Last Ship Date 27 October 2026; End of SW Maintenance Releases 28 July 2027; End of Vulnerability/Security Support 27 July 2029; Last Date of Support 31 July 2031. Cisco names the C1121-8P (ISR 1100 8P Dual GE SFP Router) as the replacement product.
Warranty
Sold by SourceIT as a Singapore unit with local warranty. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Branch Router Ordering Information
What the Part Number Covers
C1111-8P is the ISR 1100 router with an external 66 W power supply. The Cisco datasheet does not publish a full in-the-box list.
Cisco Branch Router Family
| Model | Key difference |
| C1111-8P (this listing) | Dual GE WAN (1 GE/SFP combo + 1 GE), 8-port GE LAN, up to 1,800 Mbps IPv4 |
| Cisco ISR 1100 C1111-4P | Same WAN design with a 4-port GE LAN, up to 1,600 Mbps IPv4 |
| C1121-8P | Cisco-named replacement: ISR 1100 8P Dual GE SFP Router |
| Cisco 900 Series ISR C921-4P | Classic IOS, 2 x GE WAN, 4-port GE LAN, internal PSU; also end-of-sale |
Datasheet & Downloads
| Document | Link |
| Cisco 1000 Series ISR data sheet | www.cisco.com |
| Cisco 1000 Series ISR support & documentation | www.cisco.com |
| End-of-Sale notice: ISR 1111 Series Ethernet Routers | www.cisco.com |
Frequently Asked Questions — Cisco ISR 1100 C1111-8P
How does the C1111-8P differ from the C1111-4P?
It has eight Gigabit Ethernet LAN ports instead of four, and Cisco rates it higher: up to 1,800 Mbps IPv4 forwarding and 600 Mbps IPsec in autonomous mode.
Does the C1111-8P support SD-WAN?
Yes. It runs Cisco IOS XE and can operate in SD-WAN mode, where Cisco rates IPsec throughput at up to 650 Mbps (512-byte packets).
Does it provide PoE?
PoE is optional. Cisco offers 4 PoE or 2 PoE+ on the LAN ports when the 150 W power supply is used; the standard supply is 66 W.
Is the C1111-8P end-of-sale?
Yes. End-of-Sale was 28 July 2026 and the last ship date is 27 October 2026. Security support continues to 27 July 2029 and support ends 31 July 2031. Cisco names the C1121-8P as the replacement.
