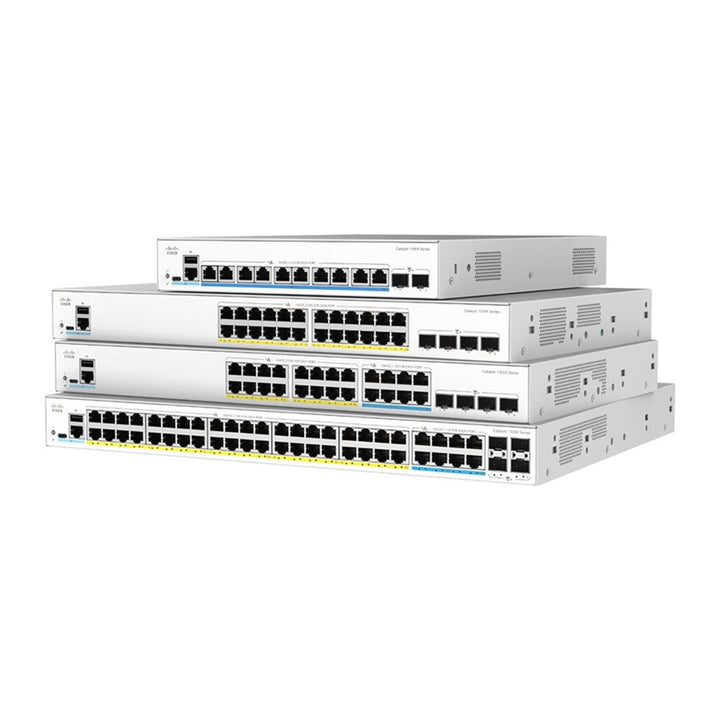

Cisco Catalyst 1300X C1300X-48T-4X 48-Port Gigabit, 4x 10G SFP28 Uplinks Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Catalyst 1300X 48-Port Gigabit Managed Switch with 10G Uplinks (C1300X-48T-4X) — Limited Lifetime Warranty
Managed access switching for branch and SMB networks
The Cisco C1300X-48T-4X is a 1U rack-mount 48-port Gigabit Layer 3 switch with 10G uplinks in the Cisco Catalyst 1300X Series, which Cisco designs for enterprise branch offices and small and medium business networks. It provides 48 x 10/100/1000 downlink ports and 4 x 10G SFP28 uplink ports.
10G SFP28 uplinks and stacking
The four SFP28 ports run as 10G uplinks. Cisco reserves 25G operation on these ports for stacking only: up to eight Catalyst 1300X switches can be stacked through the front panel and managed as a single system with hardware failover.
Layer 3 routing with OSPF
Catalyst 1300X models add OSPFv2 and OSPFv3 to the wire-speed IPv4 routing, static routes, RIPv2 and policy-based routing of the Catalyst 1300, with up to 7,168 IPv4 routes and 256 IP interfaces.
Simple management
The switch can be managed through Cisco Business Dashboard (with an embedded probe, so no separate on-site server is needed), the Cisco Business mobile app, a web user interface over HTTP/HTTPS, a scriptable CLI and SNMP v1/v2c/v3. A USB Type-C port on the front panel simplifies file and image management.
Security for the access edge
IEEE 802.1X authentication with RADIUS, ACLs (up to 3,072 rules), DHCP snooping, IP Source Guard, Dynamic ARP Inspection, IPv6 First Hop Security, port security and storm control help protect the network edge.
Cisco Catalyst 1300X C1300X-48T-4X Datasheet — Technical Specifications
Interfaces
| Downlink ports | 48 x 10/100/1000 |
| Uplink ports | 4 x 10G SFP28 (10G uplink; 25G available for stacking only) |
| Console | Cisco standard RJ-45 console port and USB Type-C port |
| USB | USB Type-C on the front panel for file and image management |
Performance & Memory
| Switching capacity | 176 Gbps |
| Forwarding rate (64-byte packets) | 130.95 mpps |
| MAC address table | 32,000 addresses |
| VLANs | Up to 4,094 |
| Jumbo frames | Up to 9,000 bytes |
| DRAM / flash | 2 GB DDR4 / 1 GB SLC |
Layer 3 & Stacking
| IPv4 routing | Wire-speed; static routes, RIPv2, policy-based routing; OSPFv2/OSPFv3 |
| Route / interface scale | Up to 7,168 IPv4 routes (dynamic + static), up to 256 IP interfaces |
| ACLs | Up to 3,072 rules |
| Stacking | Up to 8 units, front-panel stacking, managed as a single system |
Power
| Power supply | Internal, 100-240 VAC 50-60 Hz |
| Power consumption | 66.7 W system (110 V) |
Physical & Environmental
| Dimensions (W x D x H) | 444.3 x 270 x 43.94 mm |
| Weight | 3.6 kg |
| Cooling / acoustics | 1 fan, 21.6 dBA at 25°C |
| Mounting | Rack-mountable |
| Operating temperature | -5° to 50°C |
| MTBF | 324,549 hours at 25°C |
Compatibility & Software Support
Management
The C1300X-48T-4X is supported by Cisco Business Dashboard and the Cisco Business mobile app, and can also be configured directly through its web user interface or CLI. SNMP v1, v2c and v3 and RMON are supported for third-party monitoring tools.
Licensing
All Layer 2 and Layer 3 features listed on the data sheet are included with the switch; Cisco does not list any feature licence for the Catalyst 1300/1300X Series.
Stacking compatibility
The switch stacks with other Catalyst 1300X models (up to 8 units). Cisco states that only switches from the same family can be stacked together; cross-stacking between families is not supported.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states a limited lifetime warranty with return-to-factory replacement for the Catalyst 1300/1300X Series in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Catalyst 1300X Ordering Information
What's in the Box
- Cisco C1300X-48T-4X switch
- Power cord
- Mounting kit
- Pointer card
Cisco Catalyst 1300X Series Models
| Model | Key difference |
| C1300X-24T-4X | 24x GE, 4x 10G SFP28 |
| C1300X-24P-4X | 24x GE PoE+ (385 W), 4x 10G SFP28 |
| C1300X-48T-4X (this listing) | 48x GE, 4x 10G SFP28 |
| C1300X-48P-4X | 48x GE PoE+ (740 W), 4x 10G SFP28 |
| C1300X-24MU-4X | 16x 2.5G PoE+ and 8x 2.5G 60 W PoE++, 4x 10G SFP28, 740 W |
| C1300X-48NGU-4X | 40x GE PoE+ and 8x 5G 60 W PoE++, 4x 10G SFP28, 740 W |
Datasheet & Downloads
Frequently Asked Questions — Cisco Catalyst 1300X C1300X-48T-4X
Are the SFP28 ports 25G uplinks?
No. Cisco specifies the four SFP28 ports as 10G uplinks; 25G operation on these ports is available for stacking only.
Does the switch provide PoE?
No. The C1300X-48T-4X is a non-PoE model. The C1300X-48P-4X is the PoE+ version.
Can it route between VLANs?
Yes. It supports wire-speed IPv4 routing with static routes, RIPv2 and policy-based routing, plus OSPFv2 and OSPFv3.
Can it be stacked?
Yes, up to eight Catalyst 1300X switches can be stacked through the front-panel SFP28 ports and managed as one system.
Is it fanless?
No. Cisco lists one fan, with an acoustic rating of 21.6 dBA at 25°C.
