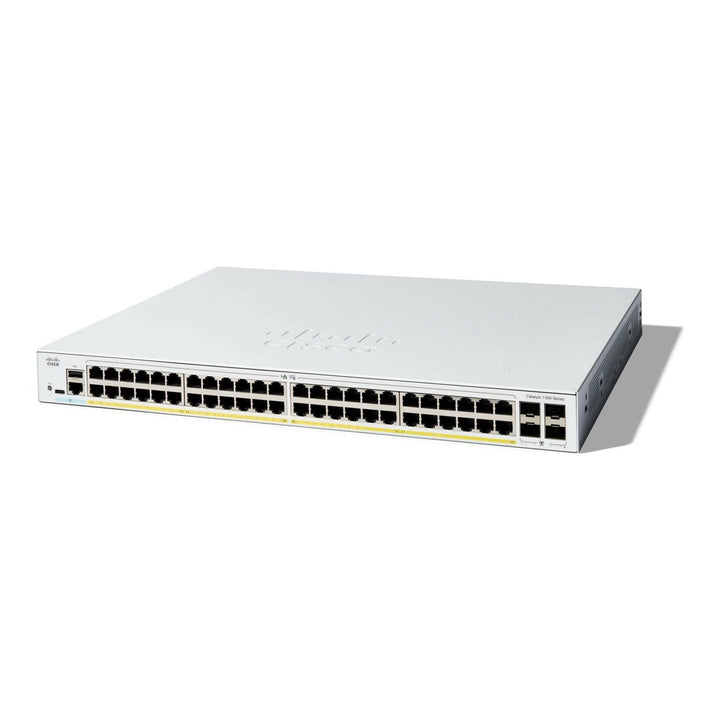

Cisco Catalyst 1300 C1300-48P-4G 48-Port Gigabit PoE+ 370W, 4x 1G SFP Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Catalyst 1300 48-Port Gigabit PoE+ Managed Switch (C1300-48P-4G) — Limited Lifetime Warranty
Managed access switching for branch and SMB networks
The Cisco C1300-48P-4G is a 1U rack-mount Gigabit PoE+ access switch in the Cisco Catalyst 1300 Series, which Cisco designs for enterprise branch offices and small and medium business networks. It provides 48 x 10/100/1000 PoE+ downlink ports and 4 x Gigabit SFP uplink ports.
370 W PoE+ budget
Every copper port supports IEEE 802.3af PoE and 802.3at PoE+ at up to 30 W, sharing a 370 W power budget for access points, IP phones and cameras. Persistent PoE keeps power flowing to connected devices while the switch reboots.
Layer 3 routing
Wire-speed IPv4 routing, static routes, RIPv2 dynamic routing and policy-based routing let the switch route between VLANs without a separate router, with up to 990 IPv4 routes and 128 IP interfaces.
Simple management
The switch can be managed through Cisco Business Dashboard (with an embedded probe, so no separate on-site server is needed), the Cisco Business mobile app, a web user interface over HTTP/HTTPS, a scriptable CLI and SNMP v1/v2c/v3. A USB Type-C port on the front panel simplifies file and image management.
Security for the access edge
IEEE 802.1X authentication with RADIUS, ACLs (up to 1,024 rules), DHCP snooping, IP Source Guard, Dynamic ARP Inspection, IPv6 First Hop Security, port security and storm control help protect the network edge.
Cisco Catalyst 1300 C1300-48P-4G Datasheet — Technical Specifications
Interfaces
| Downlink ports | 48 x 10/100/1000 PoE+ (30 W per port) |
| Uplink ports | 4 x Gigabit SFP |
| Console | Cisco standard RJ-45 console port and USB Type-C port |
| USB | USB Type-C on the front panel for file and image management |
Performance & Memory
| Switching capacity | 104 Gbps |
| Forwarding rate (64-byte packets) | 77.38 mpps |
| MAC address table | 16,000 addresses |
| VLANs | Up to 4,094 |
| Jumbo frames | Up to 9,000 bytes |
| Packet buffer | 1.5 MB |
| DRAM / flash | 1 GB DDR4 / 1 GB SLC |
Layer 3 & Stacking
| IPv4 routing | Wire-speed; static routes, RIPv2, policy-based routing |
| Route / interface scale | Up to 990 IPv4 routes (dynamic + static), up to 128 IP interfaces |
| ACLs | Up to 1,024 rules |
| Stacking | Not supported on this model |
Power & PoE
| PoE standard | IEEE 802.3af PoE and 802.3at PoE+ |
| PoE budget | 370 W (up to 30 W per port) |
| Power supply | Internal, 100-240 VAC 50-60 Hz |
| Power consumption | 44.81 W system; 450.65 W with full PoE load (110 V) |
Physical & Environmental
| Dimensions (W x D x H) | 444.3 x 350 x 43.94 mm |
| Weight | 5.43 kg |
| Cooling / acoustics | 1 fan, 37.3 dBA at 25°C |
| Mounting | Rack-mountable |
| Operating temperature | -5° to 50°C |
| MTBF | 1,662,884 hours at 25°C |
Compatibility & Software Support
Management
The C1300-48P-4G is supported by Cisco Business Dashboard and the Cisco Business mobile app, and can also be configured directly through its web user interface or CLI. SNMP v1, v2c and v3 and RMON are supported for third-party monitoring tools.
Licensing
All Layer 2 and Layer 3 features listed on the data sheet are included with the switch; Cisco does not list any feature licence for the Catalyst 1300/1300X Series.
Stacking compatibility
Cisco does not list this model among the stackable Catalyst 1300 models. Stacking in the Catalyst 1300 Series is available on the 10G-uplink, Multigigabit and 10G models.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states a limited lifetime warranty with return-to-factory replacement for the Catalyst 1300/1300X Series in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Catalyst 1300 Ordering Information
What's in the Box
- Cisco C1300-48P-4G switch
- Power cord
- Mounting kit
- Pointer card
Cisco Catalyst 1300 Series Models
| Model | Key difference |
| C1300-8T-E-2G | 8x GE, 2x GE copper/SFP combo, external PSU |
| C1300-8P-E-2G | 8x GE PoE+ (67 W), 2x GE copper/SFP combo, external PSU |
| C1300-8FP-2G | 8x GE PoE+ (120 W), 2x GE copper/SFP combo |
| C1300-24P-4G | 24x GE PoE+ (195 W), 4x 1G SFP |
| C1300-48T-4G | 48x GE, 4x 1G SFP |
| C1300-48P-4G (this listing) | 48x GE PoE+ (370 W), 4x 1G SFP |
| C1300-48FP-4G | 48x GE PoE+ (740 W), 4x 1G SFP |
Datasheet & Downloads
Frequently Asked Questions — Cisco Catalyst 1300 C1300-48P-4G
What uplinks does it have?
The C1300-48P-4G has 4 x Gigabit SFP uplink ports for connecting to the core or another switch.
How much PoE power is available?
All copper ports support PoE+ at up to 30 W per port, from a total budget of 370 W.
Can it route between VLANs?
Yes. It supports wire-speed IPv4 routing with static routes, RIPv2 and policy-based routing.
Can it be stacked?
No. Cisco does not list this model as stackable.
Is it fanless?
No. Cisco lists one fan, with an acoustic rating of 37.3 dBA at 25°C.
