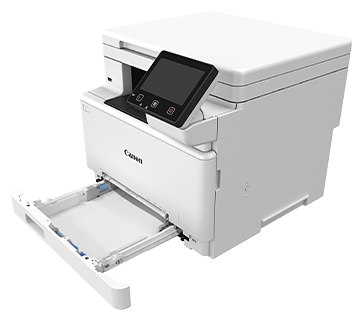

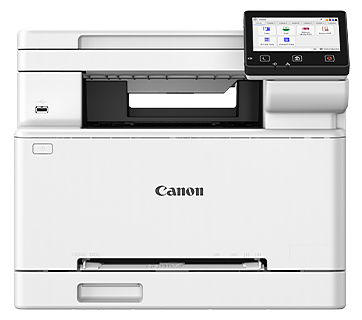

Canon imageCLASS MF662Cdw Wireless Colour Laser All-in-One Printer
PRODUCT DESCRIPTION
Canon imageCLASS MF662Cdw Wireless Colour Laser All-in-One Printer (6928C018AA) - 3 Years Local Warranty
The Canon imageCLASS MF662Cdw is Canon's the MF662Cdw offers duplex printing, a user-friendly touchscreen, and secure operation — perfect for businesses that value simplicity and speed. It has a rated print speed of 25 / 25 ppm, with Wi-Fi, Ethernet and USB connectivity.
V² Colour Profile
Create an impactful business document with beautiful colours that complement the razor-sharp quality text. Canon's V² colour technology delivers vivid and vibrant professional looking printout.
5" Colour LCD Touchscreen
Navigate and configure the printer settings easily with the colour touchscreen display panel that comes with a vari-angle mechanism for greater viewing flexibility and clarity.
Auto Duplex Printing
Print two-sided documents to effectively reduce paper usage while lowering carbon footprint and operating costs.
Application Library
The Application Library helps you work smarter and more efficiently. You can print frequently-used forms directly from the device with just a tap of the button. With Standby Slide function, a series of images or running text is displayed on the operation panel, ensuring sharing of important information or announcement.
Flexible Connectivity
Connect the printer to your office network wirelessly or utilise the printer's built-in Access Point Mode to directly connect to mobile devices without additional router.
Canon PRINT App
With Canon's latest mobile business solution, you can print and scan documents, photos, web pages and emails all with just one app.
Enhanced Data Security
Safeguard print data against tampering by encrypting communication data with the latest protocol, TLS 1.3. Monitor system integrity during startup with Verify System at Startup.
Key Highlights
- Print, Scan, Copy
- Print Speed: Up to 25 / 25 ppm (Mono/Colour)
- 5" Touchscreen LCD
- Auto 2-sided Printing
- Wi-Fi, LAN, Direct Wireless, AirPrint®, Mopria® Print Service
- Mobile Printing
- Print & Scan to/from USB
- Secure Print
Ideal For
Small and medium offices in Singapore that want colour laser printing, scanning and copying (and fax where fitted) from one managed multifunction device. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
imageCLASS MF662Cdw Datasheet — Technical Specifications
General
| Model | imageCLASS MF662Cdw |
| Official Product Name | imageCLASS MF662Cdw |
| Canon Product Code | 6928C018AA |
| EAN / UPC | 4549292242225 |
| Brand | Canon |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years on-site warranty by Canon Singapore |
| Printing Method | Colour Laser Beam Printing |
| Print Speed A4 (Mono/Colour) | 25 / 25 ppm |
| Print Speed Letter (Mono/Colour) | 26 / 26 ppm |
| 2-Sided Print Speed A4 (Mono/Colour) | 15 / 15 ipm |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement | 1,200 x 1,200 dpi (equivalent) |
| Warm-Up Time | 13 sec or less |
| FPOT A4 (Mono/Colour) | 10.4 / 10.5 sec |
| Print Language | UFR II |
| Auto Duplex Print | Yes |
| Print Margins | Top/Bottom/Left/Right: 5 mm; Envelope: 10 mm |
| USB Direct Print File Formats | JPEG, TIFF, PDF |
Copy
| Copy Speed A4 (Mono/Colour) | 25 / 25 ppm |
| Copy Resolution | Up to 600 x 600 dpi |
| FCOT A4 (Mono/Colour) | 11.0 / 11.2 sec |
| Reduce/Enlargement | 25 - 400% in 1% increments |
| Copy Features | Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy |
Scan
| Optical Scan Resolution | Up to 600 x 600 dpi |
| Driver Enhanced Resolution | Up to 9,600 x 9,600 dpi |
| Scan Type | Colour Contact Image Sensor |
| Maximum Scan Size (Platen Glass) | Up to 216 x 297 mm |
| Scan Speed A4 (Mono/Colour) | 1.8 / 1.9 sec |
| Colour Depth | 24-bit |
| Pull Scan | Yes, USB and Network |
| Push Scan (Scan To PC) | Yes, USB and Network |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
Send
| Send Method | SMB, Email, FTP |
| Colour Mode | Full Colour, Greyscale, Monochrome |
| Scan Resolution | 300 x 600 dpi |
| File Format | JPEG (single page), TIFF, PDF, Compact PDF, PDF (OCR) |
Paper Handling
| Cassette Capacity | 250 sheets |
| Manual Feed Slot | 1 sheet |
| Maximum Input Capacity | 251 sheets |
| Output Tray Capacity | 100 sheets |
| Cassette Media Sizes | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm) |
| Manual Feed Sizes | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm) |
| 2-Sided Printing Sizes | A4, Legal, Letter, Foolscap, Indian Legal, Custom (min. 182.0 x 257.0 mm to max. 216 x 355.6 mm) |
| Media Type | Plain Paper, Recycled Paper, Colour Paper, Bond Paper |
| Cassette Media Weight | 60 - 200 g/m² |
| Manual Feed Weight | 60 - 200 g/m² |
Connectivity & Software
| USB Interface | USB 2.0 |
| Wired Network | 10Base-T/100Base-TX/1000Base-T |
| Wireless | Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS) |
| Print Protocols | LPD, RAW, IPP, IPPS, WSD-Print (IPv4, IPv6) |
| Scan Protocols | Email, SMB, WSD-Scan (IPv4, IPv6), FTP, OAuth 2.0 |
| TCP/IP Services | mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6) |
| Management | SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP |
| Wired Security | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3 |
| Wireless Security (Infrastructure) | WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES) |
| Wireless Security (Access Point) | WPA2-PSK(AES), WPA3-SAE(AES) |
| Mobile Solutions | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print |
| Compatible OS | Windows®, Windows Server®, macOS®, Linux, Chrome OS™ |
| Other Features | Department ID, Secure Print, Application Library |
| Available Software | Printer Driver, Scanner Driver, MF Scan Utility, Toner Status |
General
| Device Memory | 1 GB |
| Storage (eMMC) | 2 GB |
| Display | 5" LCD Touchscreen |
| Power Requirements | AC 220 - 240 V, 50/60 Hz |
| Operation Power Consumption | 580 W (max. 980 W) |
| Standby Power Consumption | 12 W |
| Sleep Power Consumption | 1 W |
| Operating Temperature | 10 - 30°C |
| Operating Humidity | 20% - 80% RH (no condensation) |
| Monthly Duty Cycle | 30,000 pages |
| Dimensions (W x D x H) | 425 x 461 x 360 mm |
| Weight (excluding toner) | 16.49 kg |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the imageCLASS MF662Cdw. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Driver Enhanced Resolution | Up to 9,600 x 9,600 dpi |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
| Mobile Solutions | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print |
| Compatible OS | Windows®, Windows Server®, macOS®, Linux, Chrome OS™ |
Package Contents & Ordering Information
Ordering Information
| Model | imageCLASS MF662Cdw |
| Canon Product Code | 6928C018AA |
| EAN / UPC | 4549292242225 |
| Recommended Retail Price (incl. GST) | S$549.00 |
| Consumables | Cartridge 075 Black 1,400 pages; Cartridge 075 Cyan/Magenta/Yellow 1,300 pages each; Cartridge 075H Black 3,500 pages; Cartridge 075H Cyan/Magenta/Yellow 2,500 pages each. Bundled (starter) cartridges: Black 1,400 pages; C/M/Y 500 pages each. |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — imageCLASS MF662Cdw
What warranty does the imageCLASS MF662Cdw come with?
3 Years Local Warranty from Canon Singapore: 3 years on-site warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the imageCLASS MF662Cdw use?
Cartridge 075 Black 1,400 pages; Cartridge 075 Cyan/Magenta/Yellow 1,300 pages each; Cartridge 075H Black 3,500 pages; Cartridge 075H Cyan/Magenta/Yellow 2,500 pages each. Bundled (starter) cartridges: Black 1,400 pages; C/M/Y 500 pages each. Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the imageCLASS MF662Cdw?
Yes. Canon lists the following mobile and cloud printing support: MF Scan Utility; Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
