BenQ TK705STi 4K HDR 3000lm 4LED Short Throw Google TV Projector
PRODUCT DESCRIPTION
BenQ TK705STi 4K HDR 3000lm 4LED Short Throw Google TV Projector (TK705STi) - Local Warranty Support
4LED Light Source: 20,000 Hours With No Lamp to Replace
The TK705STi is lit by a 4LED engine rated at 20,000 hours in Normal mode and 30,000 hours in ECO mode, so there is no consumable lamp module to budget for and no mid-life brightness cliff. For a Singapore household or a small screening room that runs the projector several nights a week, that is well over a decade of ordinary use on the original light engine. LED also reaches full brightness almost immediately from a cold start and tolerates repeated on-off cycles far better than a lamp, which matters when the projector is switched on for an hour at a time rather than left running.
Short Throw for HDB and Condominium Living Rooms
With a fixed 0.8 throw ratio the TK705STi fills a 100-inch 16:9 screen from roughly 1.8 metres and a 120-inch screen from roughly 2.1 metres. That puts the projector on a low console or a side shelf rather than on a ceiling mount at the back of the room, which is the practical difference between a big screen working and not working in a typical local living room. Auto vertical and horizontal keystone, auto focus and auto screen fit mean the image squares itself up after the unit is moved, so it can be set down, aimed and used without a manual alignment session.
Google TV Built In, Not a Dongle Hanging Off the Back
Google TV (Android 11) is integrated into the projector itself, with Wi-Fi 6 across 2.4GHz and 5GHz and Bluetooth 5.2. There is no HDMI stick to power, hide or lose, and no separate remote for the streaming layer. Google Cast and iOS mirroring are supported for pushing content from a phone or laptop, and the two HDMI 2.1 ports remain free for a console and a soundbar. For a room where the projector is the main screen rather than an occasional accessory, having the apps, the input switching and the picture modes on one remote keeps the setup genuinely usable by everyone in the household.
4K HDR With 98% Rec.709 and 5ms Input Lag
The TK705STi projects 4K UHD (3840x2160) at 3,000 ANSI lumens with a 600,000:1 FOFO contrast ratio and covers 98% of Rec.709, the colour standard that broadcast and streaming content is actually mastered to. HDR10, HDR10+ and HLG are all supported, along with dedicated HDR Auto Cinema, HDR FPS and HDR RPG picture modes. Input lag is 5ms, low enough that the same projector serves for console gaming without a separate low-latency display. The 30-bit colour processing gives 1.07 billion colours, which shows up most in smooth sky and skin-tone gradients rather than in headline numbers.
BenQ TK705STi Datasheet — Technical Specifications
General
| Product | BenQ TK705STi 4K HDR Short Throw Home Entertainment Projector |
| Part Number (SKU) | TK705STi |
| Projection System | DLP |
| Light Source | 4LED |
| Platform | Google TV (Android 11) |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice and local warranty support |
Optics & Light Source
| Light Source Life | Normal 20,000 hrs; ECO 30,000 hrs |
| Throw Ratio | 0.8 |
| Zoom Ratio | Fixed |
| Lens | F/# = 1.8, f = 8.498 |
| Projection Offset | 100% (full height) |
| Keystone Adjustment | 2D, auto vertical +/-30 degrees; auto horizontal +/-20 degrees |
| Native Resolution | 4K UHD (3840 x 2160) |
| Brightness | 3,000 ANSI lumens |
| Contrast Ratio | 600,000:1 (FOFO) |
| Display Colour | 30-bit (1.07 billion colours) |
| Colour Gamut | 98% Rec.709 coverage |
| HDR Support | HDR10, HDR10+, HLG; HDR Auto Cinema, HDR FPS, HDR RPG picture modes |
| Input Lag | 5 ms |
Connectivity
| HDMI | HDMI-1 (2.1 / HDCP2.2), HDMI-2 (2.1 / HDCP2.2) |
| USB Type-A | x1 |
| USB Type-C | DisplayPort / PD out |
| Audio Out | 3.5mm mini jack x1 |
| Wi-Fi | 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz) |
| Bluetooth | 5.2 |
| Wireless Projection | Google Cast, iOS mirroring |
Audio
| Speaker | 8W x2 |
| Noise Level | 26 dBA (typical) / 24 dBA (Eco) |
Physical & Environmental

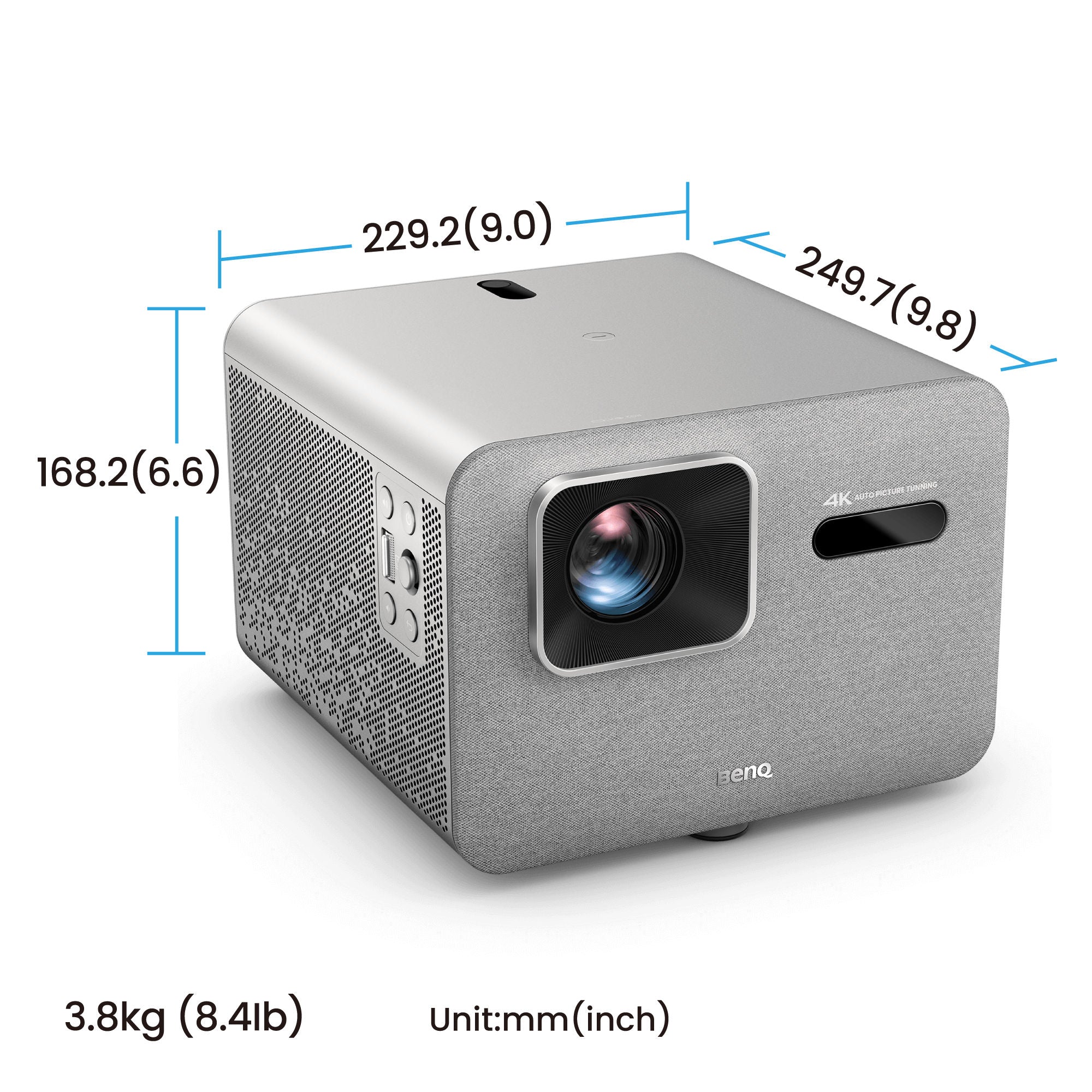

| Dimensions (W x H x D) | 229.2 x 168.2 x 249.7 mm |
| Net Weight | 3.8 kg |
Power
| Power Consumption | 250W typical (110V) |
| Standby Power | <0.5W |
| Network Standby | <2W |
Specifications are taken from BenQ's published product data for this model. Where BenQ does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Throw distance and screen size
The TK705STi has a fixed 0.8 throw ratio, so screen width equals throw distance divided by 0.8. Working from that published figure: a 100-inch 16:9 screen is 2.21 metres wide and needs about 1.8 metres of throw distance; a 120-inch screen is 2.66 metres wide and needs about 2.1 metres; an 80-inch screen is 1.77 metres wide and needs about 1.4 metres. Projection offset is 100% full height, so the bottom edge of the image sits level with the centre of the lens when the projector is placed upright on a table or console.
Mounting and alignment

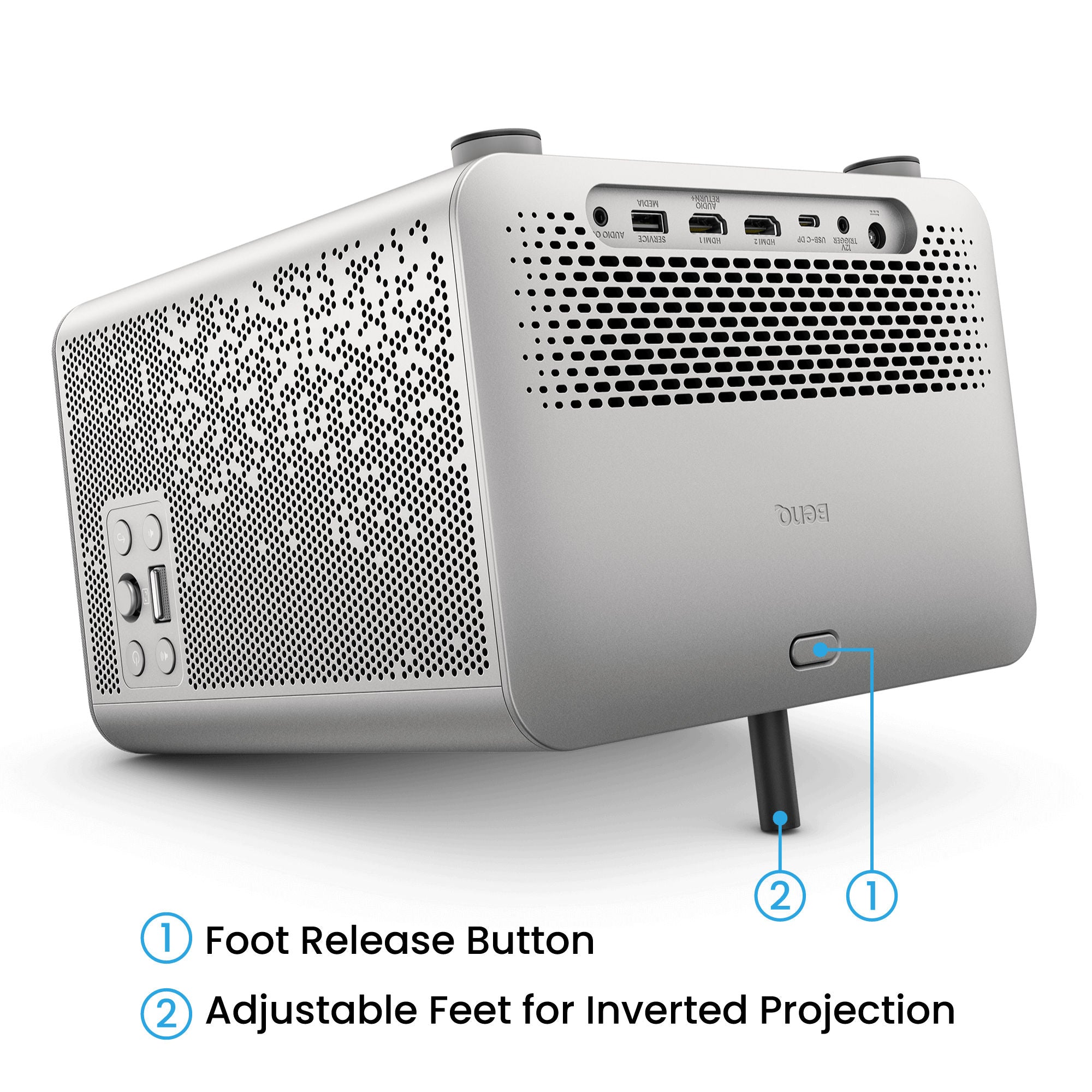

The projector can be table-mounted or ceiling-mounted (inverted). Because the lens is fixed with no optical zoom, screen size is set by where the unit sits, so measure the throw distance before fixing a ceiling bracket. 2D keystone gives auto vertical correction of +/-30 degrees and auto horizontal correction of +/-20 degrees, and the auto focus and auto screen fit routines square the image to the screen after the projector is moved.
What it connects to
Two HDMI 2.1 ports with HDCP 2.2 take a games console, a 4K streaming box or a laptop. USB Type-C carries DisplayPort video with PD power out, and one USB Type-A port is available for media and firmware. Audio leaves over the 3.5mm output or over Bluetooth 5.2 to a wireless speaker or headphones.
Network and content
Google TV (Android 11) runs on the projector itself over Wi-Fi 6 (2.4GHz / 5GHz), so streaming apps, Google Cast and iOS mirroring work without any external player. For a room that already has a media source, the HDMI inputs simply bypass the smart platform.
Related models
If the room is deep enough for a standard throw, the BenQ TK705i is the same platform with a 1.0-1.3 zoom lens. For a laser light source and a lower input lag ceiling, see the BenQ TK710STi.
Package Contents & BenQ 4K Home Range
In the box
- BenQ TK705STi projector
- Remote control with battery
- Power cord
- Quick start guide
- Warranty card
Package contents follow BenQ's product data for this model; items not listed by BenQ are not claimed here.
BenQ 4K home range
| Model | Key specification |
| TK705STi (this listing) | 4K UHD, 3,000 lm, 4LED, 0.8 short throw, Google TV |
| TK705i | 4K UHD, 3,000 lm, 4LED, 1.0-1.3 throw, Google TV |
| TH575C | 1080p, 3,800 lm, lamp, no smart platform |
| TK710 | 4K UHD, 3,200 lm, laser |
| TK710STi | 4K UHD, 3,200 lm, laser, short throw |
| W4100i | 4K UHD, 4LED, home cinema |
| W5800 | 4K UHD, 2,600 lm, laser home cinema |
| GP520 | 4K UHD, 2,600 lm, Google TV |
Datasheet & Downloads
SourceIT can email the current data sheet revision together with a quotation, including throw distance tables for your room and mounting accessory options.
Frequently Asked Questions — BenQ TK705STi
What is the light source, and will I ever have to replace it?
The TK705STi uses a 4LED light source rated at 20,000 hours in Normal mode and 30,000 hours in ECO mode. There is no user-replaceable lamp module in the way a lamp projector has one, so there is no consumable to re-order and no scheduled lamp change. This is the main running-cost difference between the TK705STi and a lamp model such as the TH575C, whose lamp is rated at 6,000 hours in Normal mode.
How is 4LED different from laser?
Both are solid-state and both avoid lamp replacement. BenQ rates the 4LED engine in the TK705STi at 20,000 hours Normal / 30,000 hours ECO, the same published figures as its laser models such as the LH655. In practice LED engines tend to be quieter and cooler, while laser models in this range go brighter: the TK705STi is 3,000 ANSI lumens against 3,200 for the laser TK710STi.
How far back does the projector need to sit?
The throw ratio is a fixed 0.8. A 100-inch 16:9 screen is 2.21 metres wide, so it needs about 1.8 metres of throw distance; a 120-inch screen needs about 2.1 metres. There is no optical zoom, so the distance sets the image size.
Does it need a streaming stick?
No. Google TV (Android 11) is built into the projector, with Wi-Fi 6 and Bluetooth 5.2. Google Cast and iOS mirroring are supported. Both HDMI 2.1 ports stay free for a console or a media player.
Is it suitable for console gaming?
BenQ publishes 5 ms input lag for this model, and it carries HDR FPS and HDR RPG picture modes alongside HDR10, HDR10+ and HLG. Both HDMI ports are HDMI 2.1 with HDCP 2.2.
How noisy is it in a quiet room?
BenQ publishes 26 dBA typical and 24 dBA in Eco mode.
What is the difference between the TK705STi and the TK705i?
They share the 4K UHD panel, 3,000 ANSI lumens, the 4LED engine, Google TV and the 600,000:1 contrast figure. The TK705STi has a fixed 0.8 short throw lens for close placement; the TK705i has a 1.0-1.3 zoom lens for a conventional throw distance.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every unit sold by SourceIT is supplied with local Singapore warranty support and a GST invoice. BenQ's projector warranty terms vary by model and by light source, and the light engine is usually covered on its own separate terms, so please ask us to confirm the exact term in writing with your quotation.
