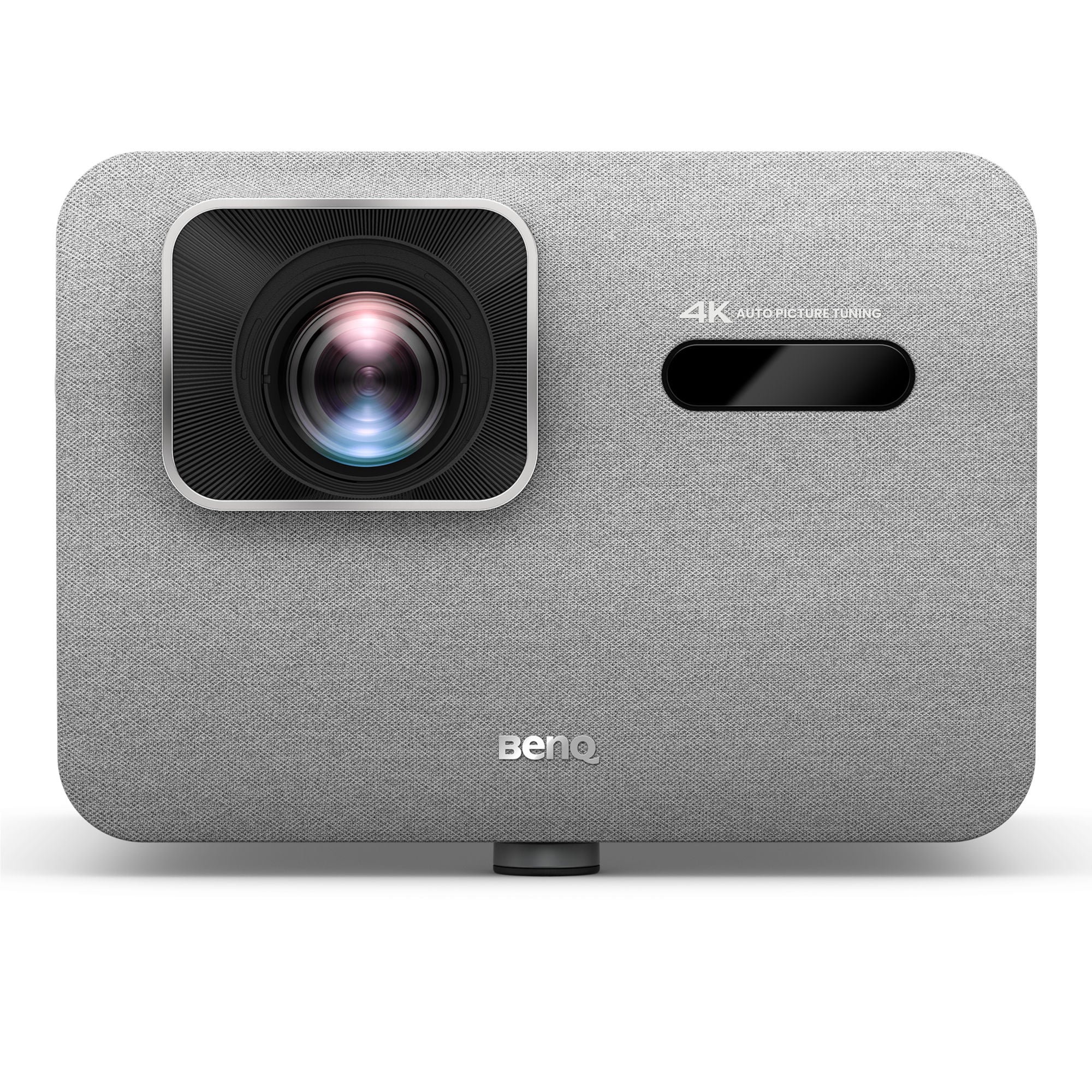

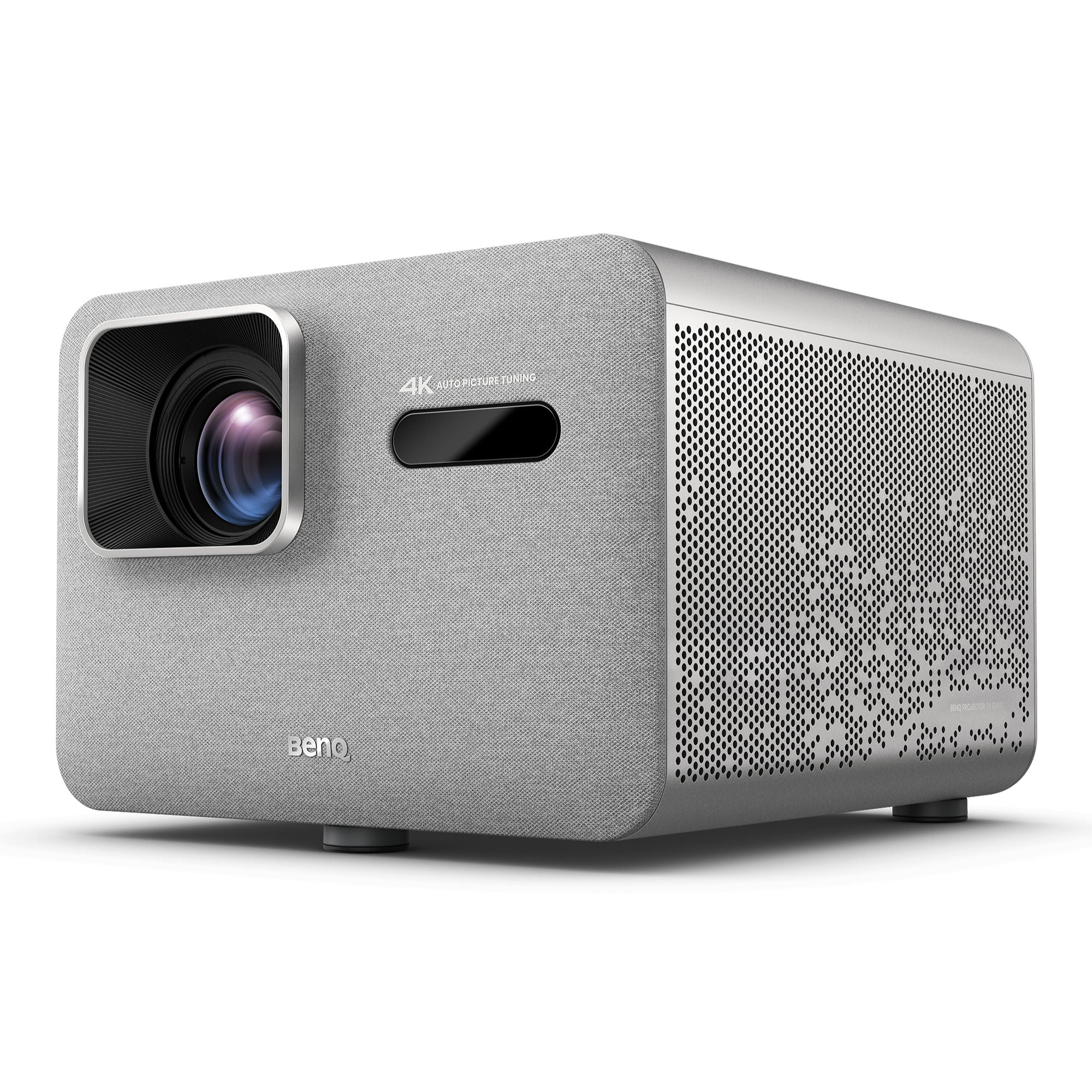

BenQ TK705i 4K HDR 3000lm 4LED Google TV Projector
PRODUCT DESCRIPTION
BenQ TK705i 4K HDR 3000lm 4LED Google TV Projector (TK705i) - Local Warranty Support
4LED Light Source: No Lamp Module, No Scheduled Replacement
The TK705i runs on a 4LED engine rated at 20,000 hours in Normal mode and 30,000 hours in ECO mode. Nothing has to be re-ordered part way through the projector's life and there is no lamp-change downtime to plan around, which is the single biggest difference in ownership cost between this model and a lamp projector. LED also strikes at full output almost immediately, so the projector suits rooms where it is switched on for an hour and off again rather than left running all evening. Cooling load is lower too, which is why the published noise figure is 26 dBA.
1.3x Zoom Lens for Ordinary Room Depths
A 1.0 to 1.3 throw ratio with 1.3x optical zoom gives real placement latitude: a 100-inch 16:9 screen needs somewhere between roughly 2.2 and 2.9 metres of throw distance, which covers most living rooms, study rooms and small meeting spaces without forcing the projector into an awkward position. Zoom means the mounting point does not have to be measured to the centimetre before the bracket goes up. Auto vertical and horizontal keystone, auto focus and auto screen fit then square the image to the screen, so a projector moved between rooms does not need re-aligning by hand each time.
Google TV Built In With Two HDMI 2.1 Inputs Free
Google TV (Android 11) is integrated into the projector rather than supplied as a dongle, with Wi-Fi 6 on 2.4GHz and 5GHz and Bluetooth 5.2. That leaves both HDMI 2.1 ports available for a console, a media player or a laptop, and it means one remote drives apps, inputs and picture modes. USB Type-C carries DisplayPort video with 30W power delivery out, and the audio path includes eARC over HDMI for 7.1-channel output to an AV receiver or soundbar, plus a 3.5mm analogue output and Bluetooth for a wireless speaker.
4K HDR, 98% Rec.709 and 5ms Input Lag
The TK705i projects native 4K UHD (3840x2160) at 3,000 ANSI lumens with a published 600,000:1 contrast ratio and 98% Rec.709 coverage, the gamut broadcast and streaming material is graded against. HDR10, HDR10+ and HLG are supported with dedicated HDR Auto Cinema, HDR FPS and HDR RPG modes, and 30-bit processing gives 1.07 billion colours for cleaner gradients. Input lag is 5ms at 1080p, 2K and 4K 60Hz, so the same projector handles film nights and console gaming without a compromise setting. A 12V trigger output is provided for a motorised screen.
BenQ TK705i Datasheet — Technical Specifications
General
| Product | BenQ TK705i 4K HDR Home Entertainment Projector |
| Part Number (SKU) | TK705i |
| Projection System | DLP |
| Light Source | 4LED |
| Platform | Google TV (Android 11) |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice and local warranty support |
Optics & Light Source
| Light Source Life | Normal 20,000 hrs; ECO 30,000 hrs |
| Throw Ratio | 1.0 ~ 1.3 |
| Zoom Ratio | 1.3x |
| Lens | F/# = 1.8 ~ 1.85, f = 10.55 ~ 13.68 |
| Projection Offset | 100% (full height) |
| Keystone Adjustment | 2D, auto vertical +/-30 degrees; auto horizontal +/-20 degrees |
| Native Resolution | 4K UHD (3840 x 2160) |
| Native Aspect Ratio | 16:9 |
| Brightness | 3,000 ANSI lumens |
| Contrast Ratio | 600,000:1 |
| Display Colour | 30-bit (1.07 billion colours) |
| Colour Gamut | 98% Rec.709 coverage |
| HDR Support | HDR10, HDR10+, HLG; HDR Auto Cinema, HDR FPS, HDR RPG picture modes |
| Input Lag | 5 ms (1080p 60Hz), 5 ms (2K 60Hz), 5 ms (4K 60Hz) |
Connectivity
| HDMI | HDMI-1 (2.1 / HDCP2.2), HDMI-2 (2.1 / HDCP2.2) |
| USB Type-A | x1 (2.0 / reader / firmware upgrade) |
| USB Type-C | DisplayPort / PD out (30W) |
| Audio Out | 3.5mm mini jack; eARC 7.1 channel over HDMI |
| Trigger | DC 12V, 3.5mm jack |
| Wi-Fi | 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz) |
| Bluetooth | 5.2 |
| Wireless Projection | Google Cast, iOS mirroring |
Audio
| Speaker | 8W total, 2 speakers |
| Noise Level | 26 dBA (Normal) / 24 dBA (Eco) |
Physical & Environmental

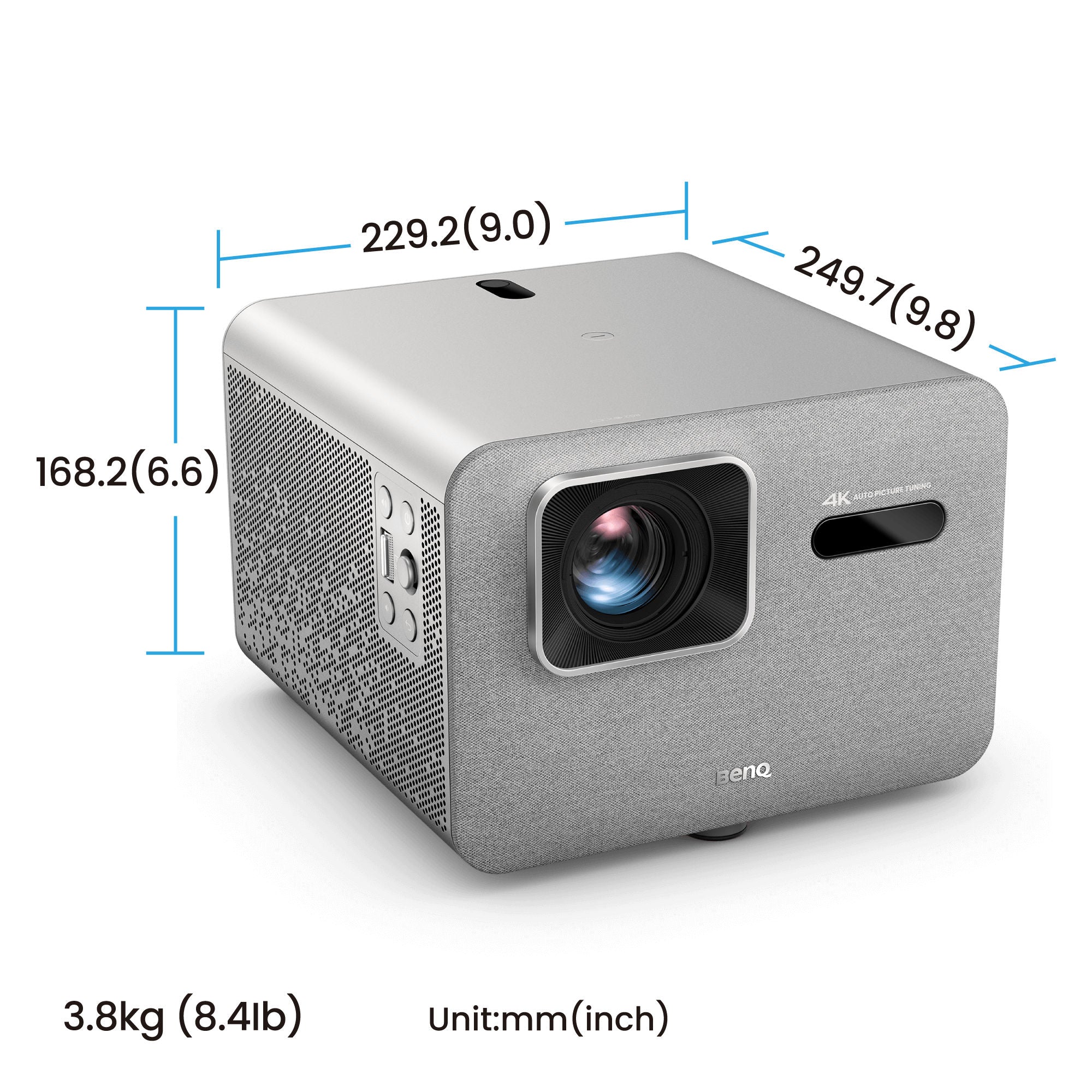

| Dimensions (W x H x D) | 229.2 x 168.2 x 249.7 mm |
| Net Weight | 3.8 kg |
| Operating Temperature | 0 ~ 40 degrees C |
Power
| Power Consumption | 250W (Normal, 110V) |
| Standby Power | <0.5W |
| Network Standby | <2W |
Specifications are taken from BenQ's published product data for this model. Where BenQ does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Throw distance and screen size
Throw ratio is 1.0 to 1.3 with 1.3x zoom, so screen width multiplied by the ratio gives the throw distance. Working from BenQ's published figures: a 100-inch 16:9 screen is 2.21 metres wide and sits between about 2.2 and 2.9 metres from the lens; a 120-inch screen is 2.66 metres wide and sits between about 2.7 and 3.5 metres. Projection offset is 100% full height, so the image bottom edge lines up with the lens centre in a normal table-up orientation.
Mounting and alignment

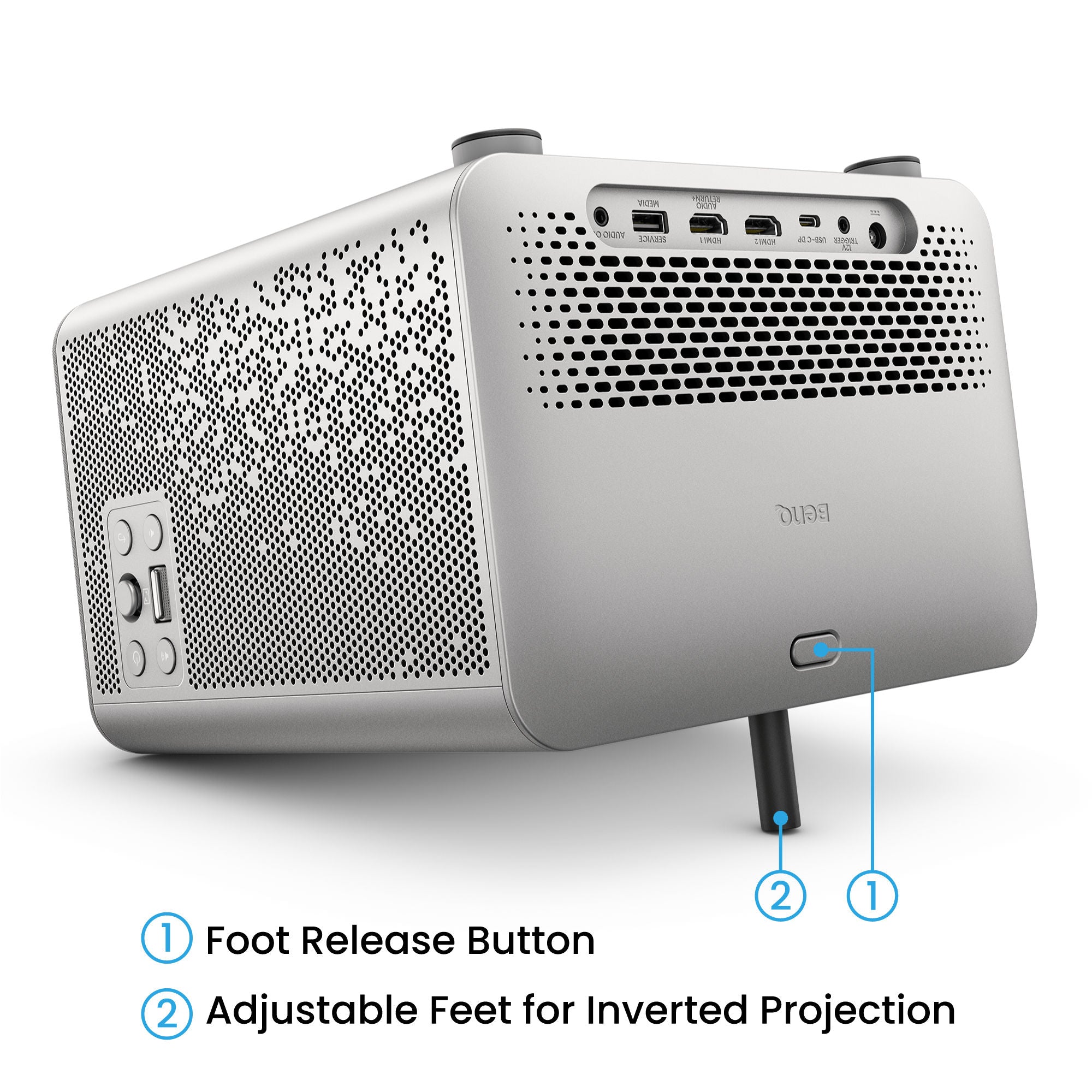

Table or inverted ceiling mounting are both supported, and BenQ lists the CM00G3 as the optional ceiling mount for this model. The 1.3x zoom means the bracket position has some tolerance. 2D keystone gives auto vertical correction of +/-30 degrees and auto horizontal correction of +/-20 degrees, with auto focus and auto screen fit for alignment.
What it connects to
Two HDMI 2.1 ports with HDCP 2.2 handle a games console, a 4K player or a laptop. USB Type-C carries DisplayPort video with 30W power delivery out for a single-cable laptop connection, and USB Type-A reads media and takes firmware updates. Audio goes out over eARC for 7.1 channels to a receiver, over the 3.5mm jack, or over Bluetooth 5.2. A 12V trigger jack drives a motorised screen.
Network and content
Google TV (Android 11) runs on the projector over Wi-Fi 6 (2.4GHz / 5GHz) with Google Cast and iOS mirroring, so no external streaming device is needed. The HDMI inputs bypass the smart platform entirely if the room already has a source.
Related models
Where the projector has to sit close to the screen, the BenQ TK705STi is the same platform with a fixed 0.8 short throw lens. For a laser light source at 3,200 lumens, see the BenQ TK710.
Package Contents & BenQ 4K Home Range
In the box
- BenQ TK705i projector
- Remote control RCI079 with battery
- Power cord (1.0m, regional variant)
- Quick start guide
- Warranty card
Package contents follow BenQ's product data for this model; items not listed by BenQ are not claimed here. BenQ lists the CM00G3 ceiling mount as an optional accessory.
BenQ 4K home range
| Model | Key specification |
| TK705i (this listing) | 4K UHD, 3,000 lm, 4LED, 1.0-1.3 throw, Google TV |
| TK705STi | 4K UHD, 3,000 lm, 4LED, 0.8 short throw, Google TV |
| TH575C | 1080p, 3,800 lm, lamp, no smart platform |
| TK710 | 4K UHD, 3,200 lm, laser |
| TK710STi | 4K UHD, 3,200 lm, laser, short throw |
| W4100i | 4K UHD, 4LED, home cinema |
| W5800 | 4K UHD, 2,600 lm, laser home cinema |
| GP520 | 4K UHD, 2,600 lm, Google TV |
Datasheet & Downloads
SourceIT can email the current data sheet revision together with a quotation, including throw distance tables for your room and ceiling mount options.
Frequently Asked Questions — BenQ TK705i
What is the light source, and is there a lamp to replace?
The TK705i uses a 4LED light source rated at 20,000 hours Normal and 30,000 hours ECO. There is no consumable lamp module, so there is no replacement part to budget for and no lamp-change downtime. A lamp projector such as the TH575C is rated at 6,000 hours in Normal mode by comparison, and its lamp is a serviceable item.
How does 4LED compare with laser on running cost?
Both are solid-state and neither needs a lamp change. BenQ publishes the same 20,000 hour Normal / 30,000 hour ECO figures for the 4LED engine here and for its laser business models. The practical differences in this range are brightness, where laser models such as the TK710 reach 3,200 ANSI lumens against 3,000 here, and noise, where this model is rated at 26 dBA.
How far from the screen should it sit?
The throw ratio is 1.0 to 1.3 with 1.3x zoom. A 100-inch 16:9 screen is 2.21 metres wide, so it needs roughly 2.2 to 2.9 metres of throw distance. A 120-inch screen needs roughly 2.7 to 3.5 metres.
Do I need a streaming stick or an Android box?
No. Google TV (Android 11) is built in, with Wi-Fi 6, Bluetooth 5.2, Google Cast and iOS mirroring. Both HDMI 2.1 ports remain free for other sources.
Can I run it from a laptop over one cable?
Yes. The USB Type-C port carries DisplayPort video and provides 30W power delivery out, so a compatible laptop can send video and draw power over a single cable.
What audio options are there?
Two built-in speakers totalling 8W, eARC over HDMI for 7.1-channel output to a receiver or soundbar, a 3.5mm analogue output, and Bluetooth 5.2 for a wireless speaker or headphones.
What does the "i" in TK705i mean?
On BenQ's home projectors the lower-case "i" marks a model with the smart platform included. On the TK705i that is Google TV running on Android 11, built into the projector.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every unit sold by SourceIT is supplied with local Singapore warranty support and a GST invoice. BenQ's projector warranty terms vary by model and by light source, and the light engine is usually covered on separate terms, so please ask us to confirm the exact term in writing with your quotation.
