BenQ MA320UG 31.5" 4K 120Hz Thunderbolt Monitor for Mac
PRODUCT DESCRIPTION
BenQ MA320UG 31.5" 4K 120Hz Thunderbolt Monitor for Mac (MA320UG) - 3 Year Local Warranty
The Flagship 32-Inch Mac Companion: Thunderbolt 4 and 120 Hz
The MA320UG sits at the top of BenQ's Mac-ready MA family. It pairs a 31.5-inch 4K UHD Nano Gloss panel with Thunderbolt 4 docking and a 120 Hz refresh rate, so macOS animation, trackpad scrolling and pointer movement look as fluid on the external screen as they do on a MacBook's own ProMotion display. Colour covers 99% sRGB and 98% Display P3 over 1.07 billion colours, with M-book and Display P3 modes so images keep their character when they move from the notebook to the big panel.
One Thunderbolt 4 Cable: 4K Video, 96W Charging and Daisy-Chain Out
A single Thunderbolt 4 cable, supplied in the box, carries 4K display, 40 Gbps of data and 96W of Power Delivery to a MacBook Pro, Mac Studio or Mac mini. A second Thunderbolt 4 port runs downstream for a daisy-chained display or a Thunderbolt SSD and supplies 15W, while a separate USB-C port gives 35W for an iPad or phone. Two HDMI 2.1 inputs stay free for a console or a second machine — one connector for the Mac, one for everything else.
Nano Gloss Panel with 2000:1 Native Contrast
Nano Gloss holds the saturated, high-contrast look Mac users expect from a glossy screen while cutting the mirror reflections plain glass gives. Native contrast is 2000:1 — high for an IPS panel — at 450 nits with HDR10 support, so dark interface panels, graded footage and shadow detail keep their separation rather than greying out. For a bright, uncontrolled office, the Nano Matte MA320U is the anti-glare alternative in the same size.
150 mm Stand Travel, Auto Pivot and Display Pilot 2
The stand travels 150 mm in height, tilts -5 to 20 degrees, swivels 15 degrees each way and pivots 90 degrees, with Auto Pivot rotating the image as the panel turns — useful for code, long documents and portrait layouts. VESA 100 x 100 mm mounting takes a monitor arm where desk depth is limited. Display Pilot 2 adds desktop partitioning, hotkey control and ICCsync so the macOS colour profile follows the monitor's active colour mode.
BenQ MA320UG Datasheet — Technical Specifications
General
| Product | BenQ MA320UG 31.5" 4K 120Hz Thunderbolt Monitor for Mac |
| Part Number (SKU) | MA320UG |
| Series | BenQ MA Series (Mac-ready monitors) |
| Panel Type | IPS, LED backlight |
| Panel Finish | Nano Gloss |
| Local Warranty (Singapore) | 3 Year Local Warranty — supplied by SourceIT with GST invoice |
Display
| Screen Size | 31.5 inch, 16:9 |
| Resolution (max.) | 3840 x 2160 (4K UHD) |
| Pixel Density | 140 PPI |
| Brightness (typ.) | 450 nits |
| Native Contrast | 2000:1 |
| Response Time (GtG) | 5 ms |
| Refresh Rate | 120 Hz |
| HDR | HDR10 |
| Display Colours | 1.07 billion colours |
Colour
| Colour Gamut | 99% sRGB, 98% Display P3 |
| Colour Modes | Display P3, sRGB, M-book and further preset modes |
| ICCsync | Yes |
Audio
| Built-in Speakers | 3W x 2 |
| Headphone Jack | Yes |
Connectivity
| HDMI | 2 x HDMI 2.1 |
| Thunderbolt 4 (upstream) | 1 x Thunderbolt 4 — 96W Power Delivery, DisplayPort Alt Mode, data |
| Thunderbolt 4 (downstream) | 1 x Thunderbolt 4 out — 15W Power Delivery, daisy-chain |
| USB-C | 1 x USB-C — 35W Power Delivery, DisplayPort Alt Mode, data |
Ergonomics & Physical

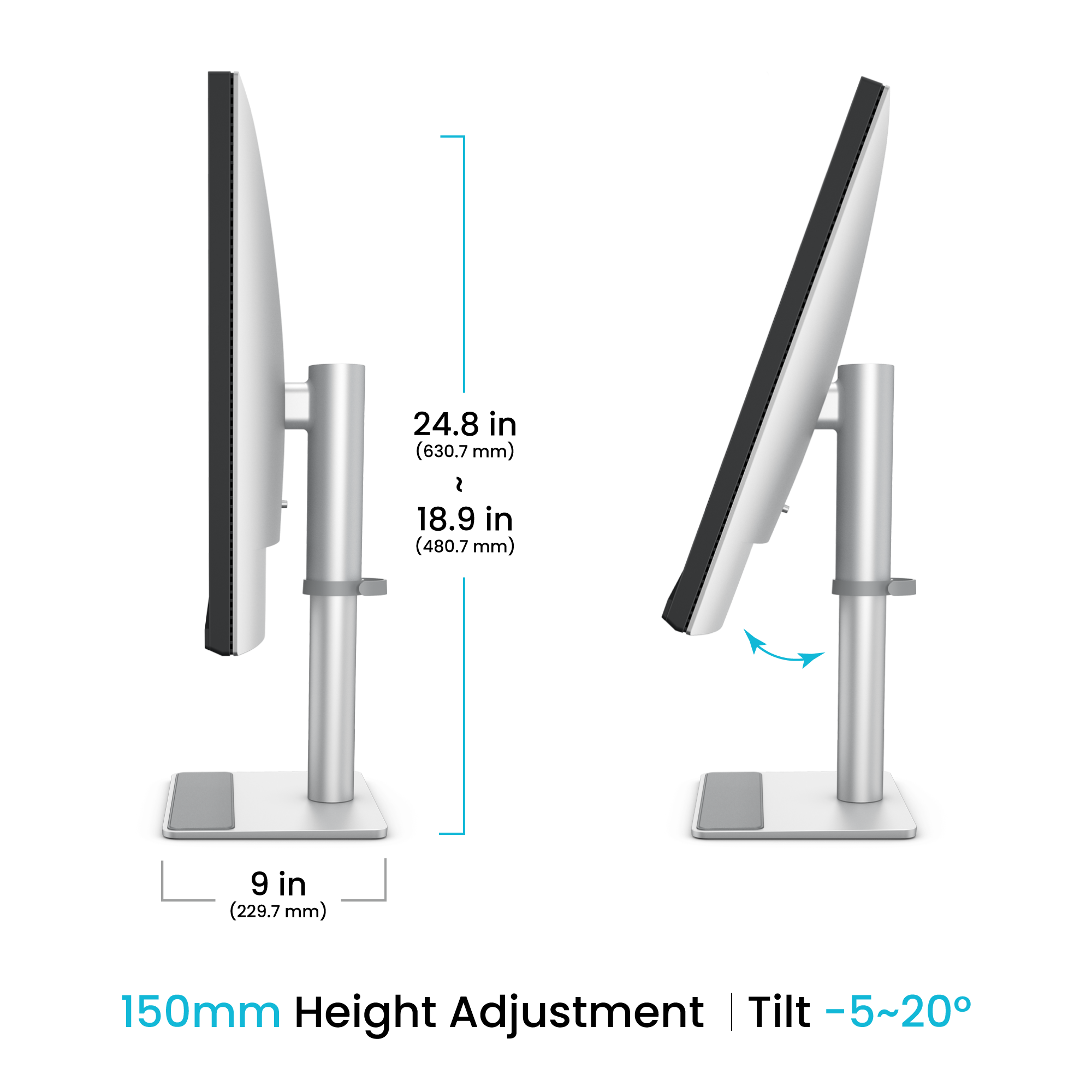

| Height Adjustment | 150 mm |
| Tilt (down/up) | -5° to 20° |
| Swivel (left/right) | 15° / 15° |
| Pivot | 90° |
| Auto Pivot | Yes |
| VESA Wall Mount | 100 x 100 mm |
| Dimensions (H x W x D) | 630.69-480.69 x 714.7 x 229.7 mm |
| Net Weight | 9.64 kg |
Power
| Power Consumption (normal) | 29 W |
| Power Delivery to Host | 96 W over Thunderbolt 4 (35W over USB-C) |
Specifications are taken from BenQ's published product data for this model. Where BenQ does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mac connection
A Thunderbolt 4 cable is supplied for a MacBook Pro, MacBook Air, Mac mini or Mac Studio: one lead carries 4K video at 120 Hz, 40 Gbps data and 96W of charging. Use the Thunderbolt input where the full 120 Hz refresh rate matters.
Daisy-chaining and peripherals
The downstream Thunderbolt 4 port carries a second display or Thunderbolt storage from the same host connection and supplies 15W; a separate USB-C port provides 35W for charging an iPad or phone.
Other sources
Two HDMI 2.1 inputs accept a console, a Windows laptop or a second machine on the same desk.
Mounting and orientation
150 mm of height travel, -5° to 20° tilt, 15° swivel each way and a 90° pivot with Auto Pivot. VESA 100 x 100 mm mounting is provided; check an arm's rating against the 9.64 kg net weight.
Elsewhere in the range
For the same size with USB-C docking at 60 Hz, see the MA320UP (Nano Gloss) or MA320U (Nano Matte); for 5K density at 27 inches, the MA270S.
Package Contents & BenQ MA Series Range
In the box
- BenQ MA320UG monitor with stand
- Thunderbolt 4 cable (1 m) and USB-C cable (signal cables may vary by region)
- Power cable
- Cleaning cloth
- Quick Start Guide
- Safety Instruction
Package contents follow BenQ's product data for this model; items not listed by BenQ are not claimed here.
BenQ MA Series range
| Model | Size, Resolution & Panel Finish |
| MA270U | 27", 4K UHD, Nano Matte, 90W USB-C |
| MA270UP | 27", 4K UHD, Nano Gloss, 90W USB-C |
| MA270S | 27", 5K, Nano Gloss, Thunderbolt 4 |
| MA320U | 31.5", 4K UHD, Nano Matte, 90W USB-C |
| MA320UP | 31.5", 4K UHD, Nano Gloss, 90W USB-C |
| MA320UG (this listing) | 31.5", 4K UHD 120 Hz, Nano Gloss, Thunderbolt 4 |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the MA320UG on request with a quotation.
Frequently Asked Questions — BenQ MA320UG
What does the UG suffix mean, and how does it differ from UP and U?
UG — this model — is the Thunderbolt 4 build: 96W charging, a Thunderbolt daisy-chain output and a 120 Hz Nano Gloss panel. UP (MA320UP, MA270UP) keeps the Nano Gloss panel but docks over USB-C at 90W and runs at 60 Hz. Plain U (MA320U, MA270U) is the base model: Nano Matte panel, 90W USB-C, 60 Hz. The MA270S is the 5K Thunderbolt 4 model at 27 inches.
Do I actually notice 120 Hz on a Mac?
Yes, in motion rather than in stills: window dragging, trackpad scrolling and cursor movement are visibly smoother than at 60 Hz, which is the same reason Apple's own ProMotion displays run above 60 Hz. It does not change colour accuracy or resolution.
Will one cable charge my MacBook Pro?
Yes. The Thunderbolt 4 upstream port delivers 96W together with 4K video and 40 Gbps data, which runs and charges a 14-inch or 16-inch MacBook Pro from the single supplied cable.
Can I daisy-chain a second monitor?
Yes — the second Thunderbolt 4 port is a downstream output for a further display or a Thunderbolt drive, with 15W of charging power on that port.
Nano Gloss or Nano Matte?
Nano Gloss, fitted here, keeps the deep blacks and saturation of a glossy screen with far less mirroring than plain glass, and suits a room with controlled lighting. For a bright office or a desk facing a window, the Nano Matte MA320U is the easier screen to live with.
Can I use it in portrait or on an arm?
Yes. The stand pivots 90° and Auto Pivot rotates the image with it; the rear carries a VESA 100 x 100 mm pattern for arms and wall brackets.
How does it compare with the 27-inch MA270S?
The MA270S is 5K at 27 inches and 70 Hz — maximum pixel density for text and retouching. The MA320UG is 4K on a larger 31.5-inch panel at 120 Hz — more workspace and smoother motion. Both dock over Thunderbolt 4.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every BenQ MA320UG sold by SourceIT carries the 3 year BenQ Singapore local warranty on monitors, and a GST invoice is issued with every unit.
