BenQ MA270S 27" 5K Nano Gloss Thunderbolt Monitor for Mac
PRODUCT DESCRIPTION
BenQ MA270S 27" 5K Nano Gloss Thunderbolt Monitor for Mac (MA270S) - 3 Year Local Warranty
5K Retina-Class Density for Mac Creators
The MA270S is the flagship of BenQ's Mac-ready MA family: a 27-inch panel running 5120 x 2880 at 218 pixels per inch, the density Mac users mean when they say Retina. Text renders at native macOS scaling without softening, and a 4K timeline or a full-size RAW file sits on screen with room for tool palettes. Colour covers 99% sRGB and 99% Display P3 across 1.07 billion colours, with M-book and Display P3 modes so the external screen agrees with the MacBook's own panel instead of drifting.
Thunderbolt 4 Docking with 96W Power Delivery and Daisy-Chain Out
A single Thunderbolt 4 cable carries 5K video, 40 Gbps data and 96W of charging to a MacBook Pro, Mac Studio or Mac mini setup. A second Thunderbolt 4 port runs downstream for daisy-chaining a second display or a fast external SSD, and a separate USB-C port supplies 35W for an iPad or phone. Two HDMI 2.1 inputs remain free for a console or a second machine. For a Singapore studio desk that has to swap between a personal Mac and a client's laptop, that is one cable each way.
Nano Gloss Panel, 2000:1 Contrast and DisplayHDR 400
Nano Gloss keeps the saturated, high-contrast look Mac users expect from a glossy screen while suppressing the mirror reflections plain glass produces. Native contrast is 2000:1 — unusually high for an IPS panel — with 450 nits of brightness and VESA DisplayHDR 400 certification alongside HDR10 support, so graded footage and dark UI panels hold their separation. A 70 Hz refresh rate gives slightly smoother scrolling and pointer movement than the usual 60 Hz without demanding anything of the Mac.

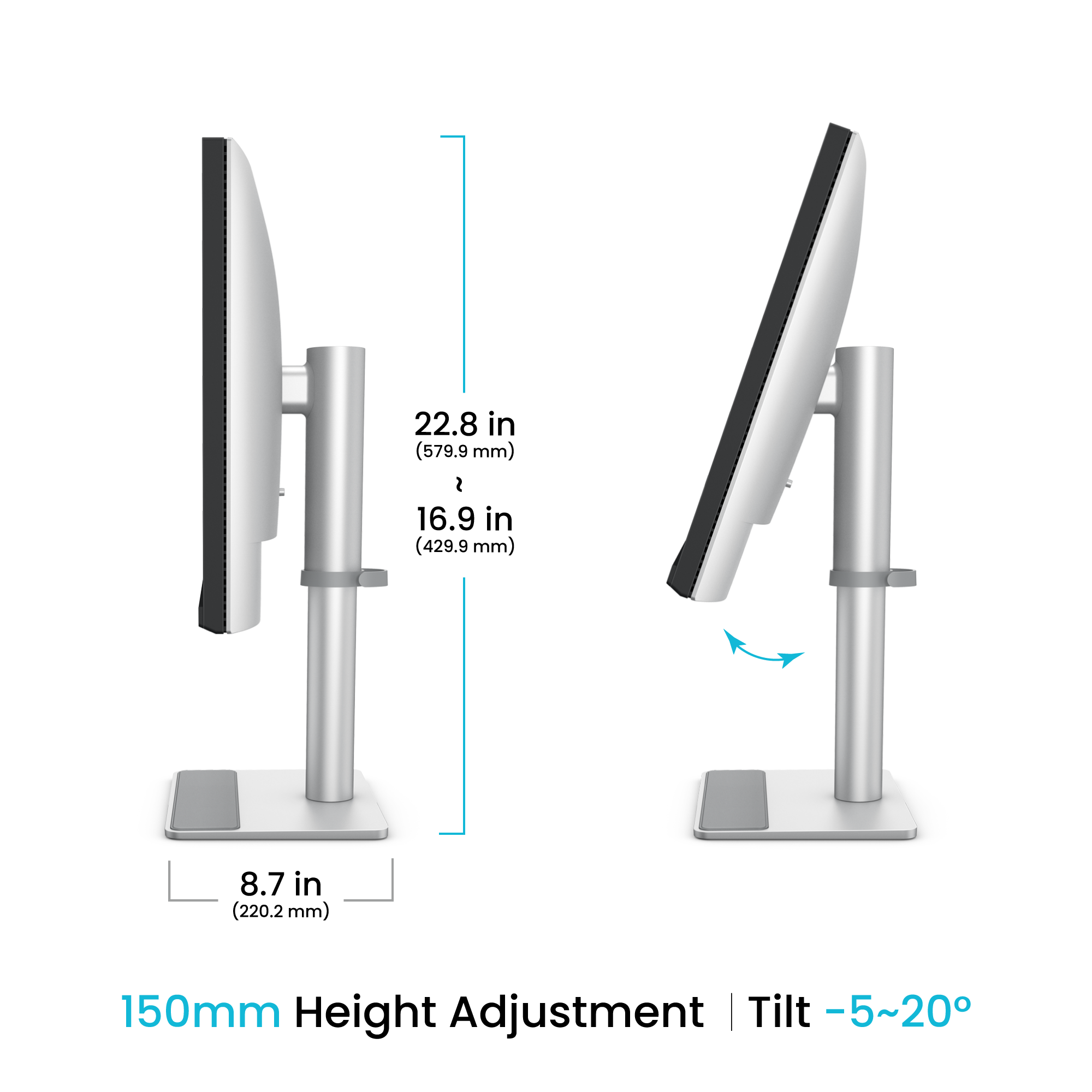

150 mm Stand Travel, Auto Pivot and Display Pilot 2
The stand travels 150 mm in height, tilts -5 to 20 degrees, swivels 15 degrees each way and pivots 90 degrees, with Auto Pivot rotating the image as the panel turns — useful for long documents, code and portrait retouching. VESA 100 x 100 mm mounting is available for arms. BenQ's Display Pilot 2 software adds desktop partitioning, hotkey control and ICCsync so the macOS colour profile follows the monitor's active colour mode rather than being set once and forgotten.
BenQ MA270S Datasheet — Technical Specifications
General
| Product | BenQ MA270S 27" 5K Nano Gloss Thunderbolt Monitor for Mac |
| Part Number (SKU) | MA270S |
| Series | BenQ MA Series (Mac-ready monitors) |
| Panel Type | IPS, LED backlight |
| Panel Finish | Nano Gloss |
| Local Warranty (Singapore) | 3 Year Local Warranty — supplied by SourceIT with GST invoice |
Display
| Screen Size | 27 inch, 16:9 |
| Resolution (max.) | 5120 x 2880 (5K) |
| Pixel Density | 218 PPI |
| Brightness (typ.) | 450 nits |
| Native Contrast | 2000:1 |
| Response Time (GtG) | 5 ms |
| Refresh Rate | 70 Hz |
| HDR | HDR10, VESA DisplayHDR 400 |
| Display Colours | 1.07 billion colours |
Colour
| Colour Gamut | 99% sRGB, 99% Display P3 |
| Colour Modes | Display P3, sRGB, M-book and further preset modes |
| ICCsync | Yes |
Audio
| Built-in Speakers | 3W x 2 |
| Headphone Jack | Yes |
Connectivity
| HDMI | 2 x HDMI 2.1 |
| Thunderbolt 4 (upstream) | 1 x Thunderbolt 4 — 96W Power Delivery, DisplayPort Alt Mode, data |
| Thunderbolt 4 (downstream) | 1 x Thunderbolt 4 out — 15W Power Delivery, daisy-chain |
| USB-C | 1 x USB-C — 35W Power Delivery, DisplayPort Alt Mode, data |
Ergonomics & Physical
| Height Adjustment | 150 mm |
| Tilt (down/up) | -5° to 20° |
| Swivel (left/right) | 15° / 15° |
| Pivot | 90° |
| Auto Pivot | Yes |
| VESA Wall Mount | 100 x 100 mm |
| Dimensions (H x W x D) | 579.91-429.91 x 614 x 220.2 mm |
| Net Weight | 8.64 kg |
Power
| Power Consumption (normal) | 29 W |
| Power Delivery to Host | 96 W over Thunderbolt 4 (35W over USB-C) |
Specifications are taken from BenQ's published product data for this model. Where BenQ does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mac connection
A Thunderbolt 4 cable is supplied for a MacBook Pro, MacBook Air, Mac mini or Mac Studio: one lead carries 5K video, 40 Gbps data and 96W of charging. Driving 5120 x 2880 at full refresh is a Thunderbolt or DisplayPort task, so use the Thunderbolt input rather than HDMI where 5K matters.
Daisy-chaining and peripherals
The downstream Thunderbolt 4 port carries a second display or a Thunderbolt SSD from the same host connection, and supplies 15W. A separate USB-C port provides 35W for charging an iPad or phone at the desk.
Other sources
Two HDMI 2.1 inputs are provided for a console, a Windows laptop or a second machine sharing the desk.
Mounting and orientation
The stand gives 150 mm of height travel, -5° to 20° tilt, 15° swivel each way and a 90° pivot with Auto Pivot. The rear carries a VESA 100 x 100 mm pattern for arms and brackets.
Elsewhere in the range
For 4K at a lower price on the same 27-inch size, see the MA270UP (Nano Gloss) or MA270U (Nano Matte); for 31.5 inches with Thunderbolt 4 and 120 Hz, the MA320UG.
Package Contents & BenQ MA Series Range
In the box
- BenQ MA270S monitor with stand
- Thunderbolt 4 cable (1 m) and USB-C cable (signal cables may vary by region)
- Power cable
- Cleaning cloth
- Quick Start Guide
- Warranty Card
- Safety Instruction
Package contents follow BenQ's product data for this model; items not listed by BenQ are not claimed here.
BenQ MA Series range
| Model | Size, Resolution & Panel Finish |
| MA270U | 27", 4K UHD, Nano Matte, 90W USB-C |
| MA270UP | 27", 4K UHD, Nano Gloss, 90W USB-C |
| MA270S (this listing) | 27", 5K, Nano Gloss, Thunderbolt 4 |
| MA320U | 31.5", 4K UHD, Nano Matte, 90W USB-C |
| MA320UP | 31.5", 4K UHD, Nano Gloss, 90W USB-C |
| MA320UG | 31.5", 4K UHD 120 Hz, Nano Gloss, Thunderbolt 4 |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the MA270S on request with a quotation.
Frequently Asked Questions — BenQ MA270S
What do the suffixes mean — S, UG, UP and U?
S, as here, is the 5K Thunderbolt 4 model. UG (MA320UG) is 4K Nano Gloss with Thunderbolt 4 docking and a 120 Hz panel. UP (MA270UP, MA320UP) is 4K Nano Gloss with 90W USB-C docking at 60 Hz. Plain U (MA270U, MA320U) is the base model: 4K Nano Matte with 90W USB-C.
Do I need 5K, or is 4K enough?
At 27 inches, 5K gives 218 PPI against 163 PPI for 4K. If you run macOS at its default "looks like 2560 x 1440" scaling, 5K maps two device pixels to one point exactly, which is why text looks like a MacBook's own screen. Choose 4K if budget matters more than text rendering, and 5K if you read and edit on screen all day.
Will it charge my MacBook Pro over one cable?
Yes — the Thunderbolt 4 upstream port supplies 96W of Power Delivery along with 5K video and 40 Gbps data, so a 14-inch or 16-inch MacBook Pro runs and charges from the single supplied cable.
Can I daisy-chain a second monitor?
Yes. The second Thunderbolt 4 port is a downstream output for a further display or a Thunderbolt storage device, and provides 15W of charging power on that port.
Why Nano Gloss instead of a matte panel?
Nano Gloss holds the contrast and colour saturation of a glossy screen — the look Mac users are used to — while cutting the mirror reflections plain glass gives. In a room with bright overhead lighting or a window behind the desk, a Nano Matte model such as the MA270U is the easier screen to live with.
Can I run it in portrait or on an arm?
Yes. The stand pivots 90° with Auto Pivot rotating the image, and the rear uses the VESA 100 x 100 mm pattern for arms and wall brackets.
How does it compare with the 32-inch MA320UG?
The MA320UG trades resolution for size and speed: 4K on a 31.5-inch panel at 120 Hz, also with Thunderbolt 4. The MA270S keeps 27 inches but doubles the pixel count to 5K at 70 Hz. Pick on whether density or screen area and refresh rate matters more to your work.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every BenQ MA270S sold by SourceIT carries the 3 year BenQ Singapore local warranty on monitors, and a GST invoice is issued with every unit.
