BenQ LK830ST 4K 4000lm Laser Short Throw Simulation Projector
PRODUCT DESCRIPTION
BenQ LK830ST 4K 4000lm Laser Short Throw Simulation Projector (LK830ST) - Local Warranty Support
0.496 Fixed Throw: A Full Screen From Half the Distance
The LK830ST is built for simulation bays where there is simply no room behind the player. Its fixed 0.496 throw ratio means the throw distance is roughly half the image width: a 120-inch 16:9 image, 2.66 metres wide, is produced from about 1.3 metres. That puts the projector well forward of the hitting position and clear of the swing arc, and in a domestic garage or a partitioned clubhouse bay it is often the only geometry that works at all. The 114% offset lets it hang above the line of sight and still cover a full-height impact screen.
Laser Light Source Rated 20,000 to 30,000 Hours
Laser illumination rated at 20,000 hours in Normal mode and 30,000 hours in ECO removes lamp modules from the running cost of a simulator entirely. A commercial bay open twelve hours a day, every day, consumes roughly 4,400 hours a year, so the ECO rating covers the best part of seven years. Beyond cost, the practical benefits are instant start with no warm-up between bookings, no gradual colour shift as a lamp ages, and a sealed optical path - the LK830ST carries a serviceable filter rather than a lamp door, so maintenance is cleaning rather than replacing.
4K With 93% Rec.709 for Close-Range Viewing
A player stands two to three metres from a simulator screen, which is far closer than any cinema seat, so resolution and colour accuracy are visible in a way they are not in a living room. The LK830ST delivers native 4K UHD (3840x2160) at 4,000 ANSI lumens with a published 3,000,000:1 contrast ratio, 30-bit colour for 1.07 billion colours and 93% Rec.709 coverage. Fairway texture, rough, bunker edges and distance overlays read cleanly at that viewing distance, and the brightness holds the image up against the room lighting a commercial bay has to keep on.
Dual HDMI 2.0b, LAN Control and a 15W Speaker
Two HDMI 2.0b inputs with HDCP 2.2 take the simulator PC and a second source without an external switch. An RJ45 LAN port allows the projector to be monitored and controlled over the venue network - useful where several bays are managed centrally - alongside RS-232 for a hardware room controller. Two USB Type-A ports handle media and service, a 3.5mm audio output feeds the bay's sound system, and a 15W speaker is built in for smaller installations. Noise is a published 30 dB typical and 24 dB in Eco, quiet enough to sit above a player's head.
BenQ LK830ST Datasheet — Technical Specifications
General
| Product | BenQ LK830ST 4K Laser Simulation Projector |
| Part Number (SKU) | LK830ST |
| Projection System | DLP |
| Light Source | Laser |
| Platform | None - fed from a simulator PC or media source over HDMI |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice and local warranty support |
Optics & Light Source
| Light Source Life | Normal 20,000 hrs; ECO 30,000 hrs |
| Throw Ratio | 0.496 |
| Zoom Ratio | Fixed |
| Lens | F 2.8, f = 17.51 mm |
| Projection Offset | 114% |
| Keystone Adjustment | 2D, auto vertical +/-30 degrees; horizontal +/-30 degrees |
| Native Resolution | 4K UHD (3840 x 2160) |
| Brightness | 4,000 ANSI lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 30-bit (1.07 billion colours) |
| Colour Gamut | 93% Rec.709 coverage |
Connectivity
| HDMI | x2, both 2.0b / HDCP2.2 |
| LAN | RJ45 x1 |
| USB Type-A | x2 |
| RS-232 | DB-9 pin x1 |
| Audio Out | 3.5mm mini jack x1 |
Audio
| Speaker | 15W x1 |
| Noise Level | 30 dB (typical) / 24 dB (Eco) |
Physical & Environmental
| Dimensions (W x H x D) | 279.2 x 120.5 x 229.3 mm |
| Net Weight | 3.6 kg +/- 100g |
Power
| Power Consumption | 230W (110V) |
| Standby Power | <0.5W |
| Network Standby | <2W |
Specifications are taken from BenQ's published product data for this model. Where BenQ does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Throw distance and screen size in a simulator bay
The throw ratio is a fixed 0.496, so throw distance equals image width multiplied by 0.496. Working from that published figure: a 100-inch 16:9 image is 2.21 metres wide and needs about 1.1 metres of throw distance; a 120-inch image is 2.66 metres wide and needs about 1.3 metres; a 150-inch image is 3.32 metres wide and needs about 1.65 metres. Read the other way, a projector mounted 2.0 metres from the screen produces an image about 4.0 metres wide, which is roughly 182 inches on the 16:9 diagonal. There is no optical zoom, so the mounting distance sets the image size exactly - measure before fixing the bracket, and confirm your simulator software's output aspect ratio, since most impact screens are wider than 16:9.
Mounting in an enclosure

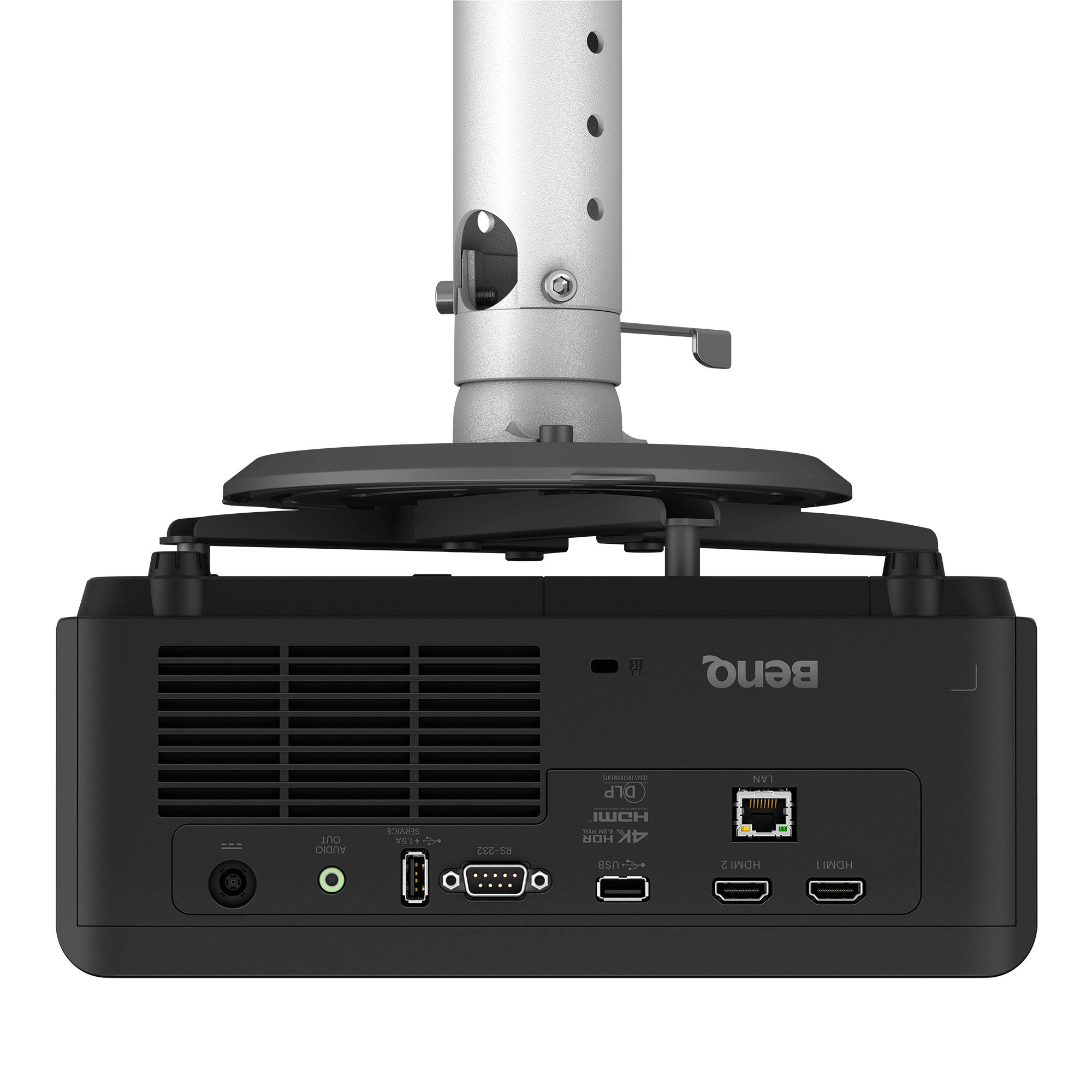

Projection offset is 114%, so the lens can sit well above the top of the image and the projector can be ceiling-mounted clear of the hitting area. 2D keystone gives auto vertical correction of +/-30 degrees and horizontal correction of +/-30 degrees for an off-centre bracket. The LK830ST uses a serviceable dust filter; leave access for filter cleaning and keep the intake and exhaust clear of netting and acoustic padding.
What it connects to
Two HDMI 2.0b inputs with HDCP 2.2 take the simulator PC and a second source such as a media player or laptop. Two USB Type-A ports cover media and service. Audio leaves over the 3.5mm output to the bay's sound system, or plays through the built-in 15W speaker.
Network and control
An RJ45 LAN port allows network monitoring and control of the projector, which suits a venue running several bays from one management point. RS-232 is provided for a hardware room controller so a bay can power up and down with its booking. There is no built-in smart platform - the image comes from the simulator PC.
Related models
If the bay allows a little more depth and you want a zoom lens and rotation keystone, see the BenQ AK700ST. For a higher-output installation projector, see the BenQ LK936ST; for a 1080p simulator option, the BenQ AH500ST.
Package Contents & BenQ Golf Simulation Range
In the box
- BenQ LK830ST projector
- Remote control
- Power cord (1.8m)
- Quick start guide
- Warranty card
Package contents follow BenQ's product data for this model; items not listed by BenQ are not claimed here.
BenQ golf simulation range
| Model | Key specification |
| LK830ST (this listing) | 4K UHD, 4,000 lm, laser, fixed 0.496 throw, LAN |
| AK700ST | 4K UHD, 4,000 lm, laser, 0.69-0.83 throw, 1.2x zoom |
| LK936ST | 4K UHD, laser, short throw installation |
| AH500ST | 4,000 lm, short throw golf simulator |
Datasheet & Downloads
SourceIT can email the current data sheet revision together with a quotation, including throw distance tables worked to your bay dimensions and impact screen size, plus mounting and filter accessory options.
Frequently Asked Questions — BenQ LK830ST
What light source does it use and what does that mean for running cost?
Laser, rated by BenQ at 20,000 hours in Normal mode and 30,000 hours in ECO. There is no lamp module to buy or fit, so the recurring cost of a bay is electricity and filter cleaning rather than lamp replacement. The projector also reaches full brightness immediately, which suits a bay switched on and off between bookings.
How does laser compare with lamp and LED here?
Lamp models such as the MX560C are rated at 6,000 hours Normal and use a replaceable module that dims over its life. LED models such as the TK705i share the 20,000 / 30,000 hour rating but reach only 3,000 lumens. Laser gives both the solid-state life and the 4,000 lumen output a lit simulator bay needs, which is why BenQ uses it across the simulation range.
How close to the screen can it be mounted?
The throw ratio is a fixed 0.496 - roughly half the image width. A 120-inch 16:9 image, 2.66 metres wide, comes from about 1.3 metres. A 150-inch image, 3.32 metres wide, comes from about 1.65 metres.
Is there a zoom lens?
No. The lens is fixed, so image size is set entirely by the mounting distance. Measure the bay and confirm your screen size before fixing the bracket - we can work the numbers with you.
Can it be controlled over the network?
Yes. The LK830ST has an RJ45 LAN port for network control and monitoring, plus RS-232 for a hardware room controller. Network standby draws under 2W.
Does it need an external speaker?
Not necessarily. A 15W speaker is built in, and a 3.5mm audio output is provided for a bay sound system where more output is wanted.
How is it different from the AK700ST?
Both are 4K, 4,000 lumen laser models. The LK830ST has a fixed 0.496 throw ratio for the tightest bays, a LAN port, a 15W speaker and 2D keystone. The AK700ST has a 0.69 to 0.83 throw ratio with a 1.2x zoom lens and 3D keystone including rotation correction, plus USB Type-C.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every unit sold by SourceIT is supplied with local Singapore warranty support and a GST invoice. BenQ's projector warranty terms vary by model and by light source, and the laser light engine is normally covered on its own separate terms, so please ask us to confirm both in writing with your quotation.
