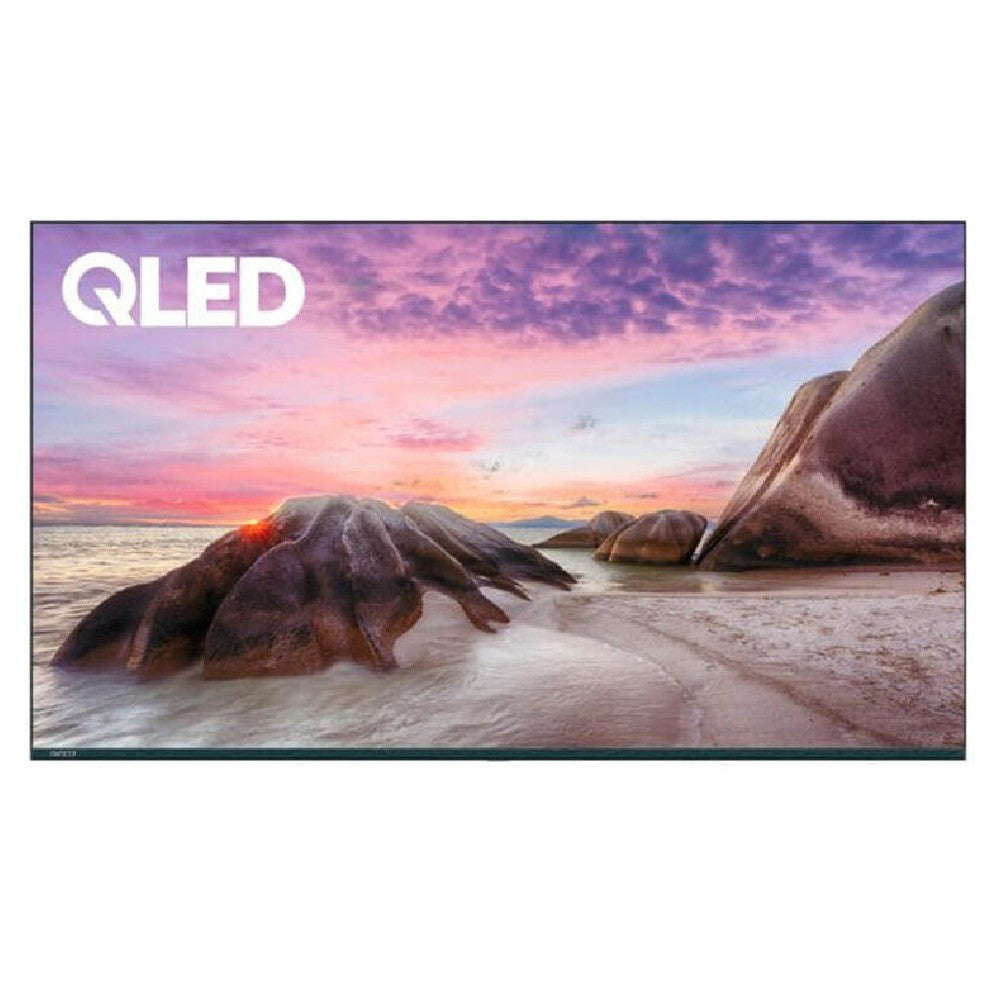

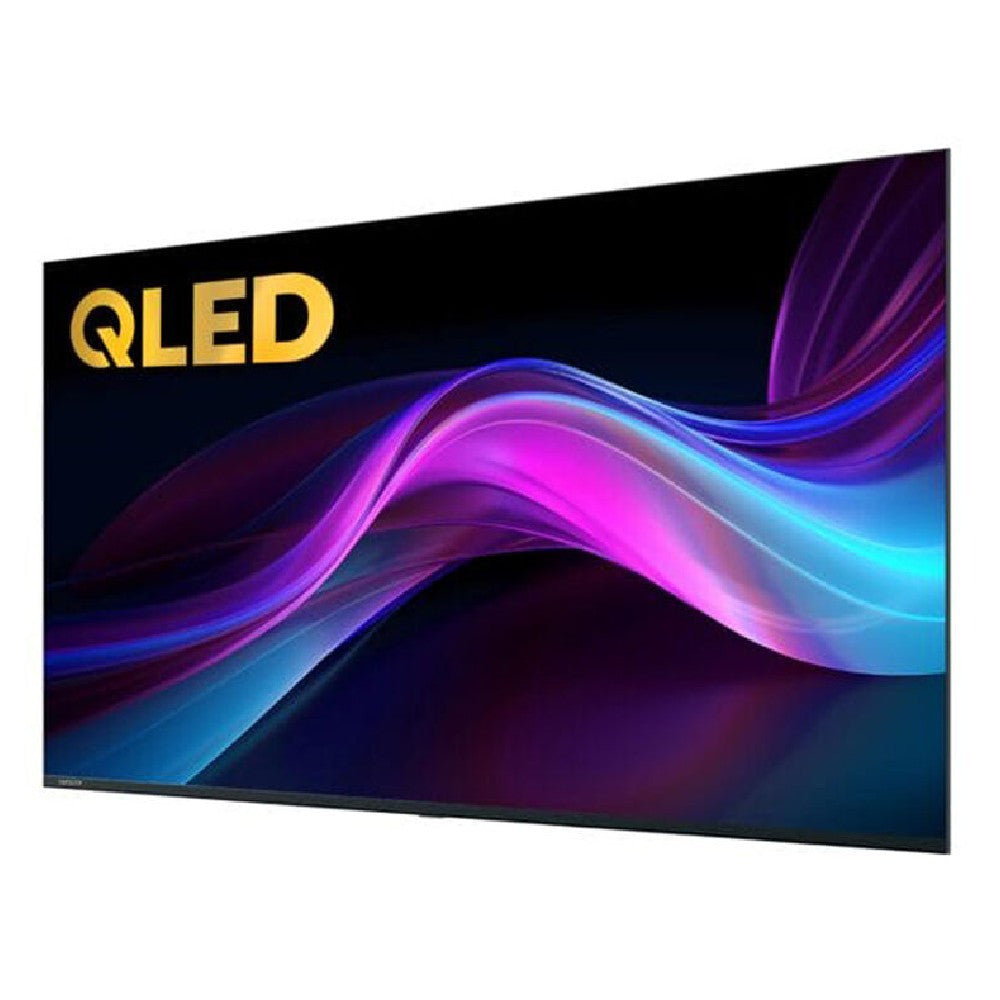

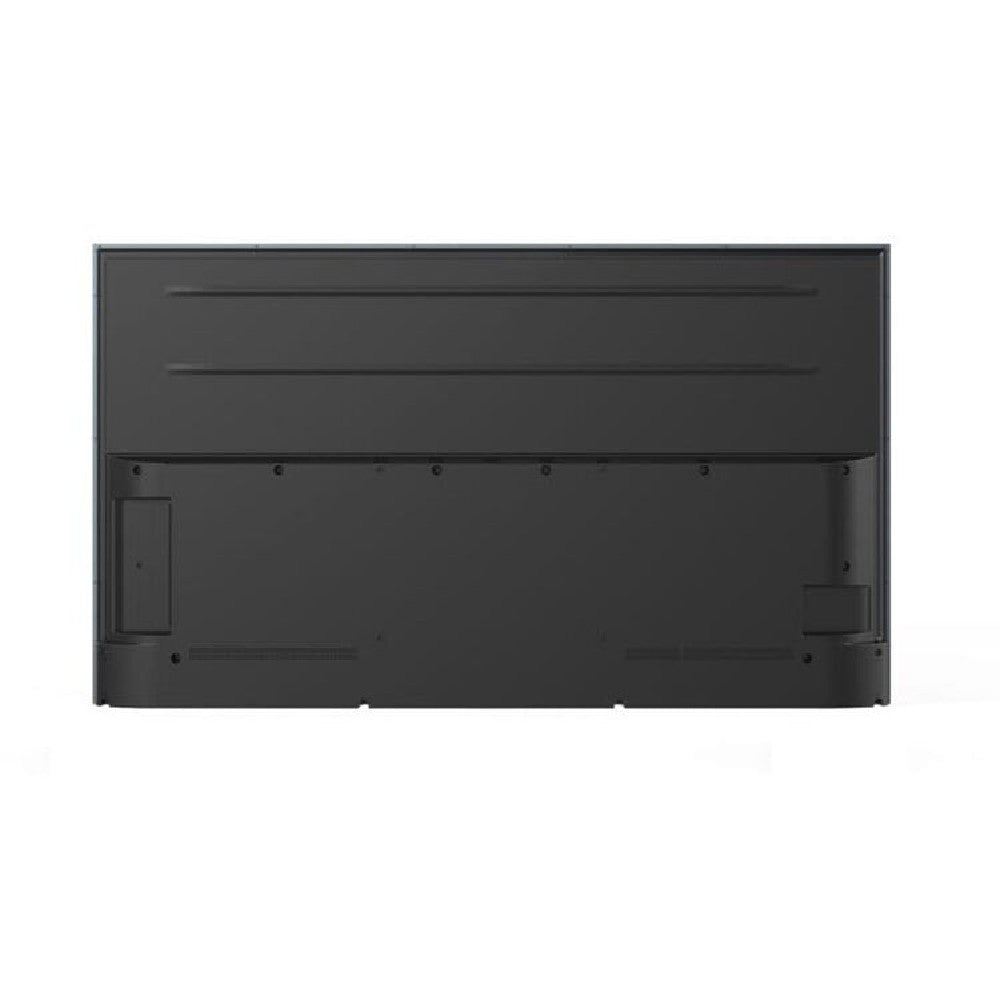

Avocor K Series AVK-8510 85" 4K UHD QLED Commercial Display
PRODUCT DESCRIPTION
Avocor K Series AVK-8510 85" 4K UHD QLED Commercial Display (AVK-8510) - 3 Years Warranty
The Avocor K Series AVK-8510 is a 85-inch non-interactive 4K UHD QLED display with 450 cd/m2 brightness, HDR local dimming and 90% DCI-P3 colour, Android 14 with Montage wireless sharing and Rise Vision signage built in, and free FUSE cloud management - a premium meeting-room, lobby and signage display (wall mount included).
Key Features
- 85" 4K UHD (3840 x 2160) direct-lit QLED panel, 450 cd/m2, 1200:1 contrast, HDR with local dimming.
- 10-bit colour, 1.07 billion colours, 90% DCI-P3 wide colour gamut; anti-glare glass.
- Android 14 SoC (quad-core Cortex-A73, 4GB RAM / 32GB) with DisplayNote Montage wireless sharing and Rise Vision digital signage preloaded.
- 2 x HDMI 2.1 inputs, USB-C (15W PD), USB-A, LAN and RS-232 control; Wi-Fi 5.
- Avocor UiQ interface and FUSE cloud device management; 16/7 operation; NDAA compliant.
- 2 x 10W bottom-front speakers; tabletop stand and remote included; wall mount bracket included.
Avocor AVK-8510 Datasheet — Technical Specifications
General
| Product Name | Avocor K Series AVK-8510 85" 4K UHD QLED Commercial Display |
| Brand | Avocor |
| Part Number | AVK-8510 |
| Series | Avocor K Series (non-interactive) |
| Warranty | 3 years (Avocor Asia region, return to base); optional 2-year extension available (AVC-EW-K85) |
| Compliance | NDAA compliant |
Display
| Screen Size | 85" (16:9, landscape only) |
| Panel | Direct-lit QLED LCD, anti-glare glass, non-touch |
| Resolution | 3840 x 2160 (4K UHD) @ 60Hz |
| Brightness | 450 cd/m2 |
| Contrast Ratio | 1200:1 |
| HDR | Yes, with local dimming |
| Response Time | <= 7 ms |
| Viewing Angle | 178 / 178 degrees |
| Colour | 10-bit, 1.07 billion colours, 90% DCI-P3 |
| Operation Time | 16/7 |
Android / Compute
| Operating System | Android 14 |
| Processor | Quad-core Cortex-A73, Mali-G52 MC1 GPU |
| Memory / Storage | 4GB RAM / 32GB |
| OPS Slot | No |
| Wi-Fi | Wi-Fi 5, 2.4 / 5 GHz |
Audio
| Speakers | 2 x 10W, bottom front |
Connectivity
| Inputs | 2 x HDMI 2.1, 1 x USB-C (15W PD), 1 x USB-A 3.0, 1 x USB-B 2.0 |
| Audio Out | 1 x 3.5 mm line out |
| Control / Network | 1 x RJ-45 LAN (100M), 1 x RS-232 (DB9) |
Power & Physical
| Power Consumption (SDR / HDR / max) | 235 / 305 / 340W |
| Operating Temperature | 0 to 40 C, 10-90% RH |
| Dimensions (W x D x H) | 1894 x 101 x 1097 mm |
| Shipping Dimensions | 2050 x 230 x 1280 mm |
| Net / Gross Weight | 38.6 kg / 52 kg |
| VESA | 500 x 200 mm (wall mount included) |
Compatibility & Software Support
Software Included
| Avocor UiQ | Tile-based on-screen interface |
| Avocor FUSE | Cloud device management |
| DisplayNote Montage | Wireless screen sharing |
| Rise Vision | Digital signage with preloaded templates |
Expansion
| Mobile stand | Avocor Mobile Stand AVC-STND1 (55" to 105", up to 100 kg) |
| Extended warranty | 2-Year Extended Warranty AVC-EW-K85 |
The K Series is a non-touch display and has no OPS slot; connect a PC, media player or UC appliance over HDMI.
Package Contents & K Series Ordering Information
In the Box
- 1 x Power cord (1.5 m)
- 1 x Tabletop stand
- 1 x Remote control with batteries
- 1 x Wall mount bracket
Avocor K Series Commercial Displays
Datasheet & Downloads
| Product page | Avocor K Series |
| Datasheet | Avocor K Series Datasheet |
| User manual | K Series Manual |
| Support | Avocor K Series Support |
| Warranty | Avocor Global Warranty by Region |
Frequently Asked Questions — Avocor AVK-8510
Is the K Series a touch display?
No. The K Series is Avocor's non-interactive line for meeting rooms, lobbies and signage, sharing the UiQ, FUSE and Montage software of the interactive ranges.
Is a wall mount included?
Yes, a wall mount bracket and tabletop stand are in the box.
Can it run digital signage without a player?
Yes. Rise Vision is preloaded on the Android 14 SoC, and FUSE manages the display remotely.
What warranty applies in Singapore?
3 years return to base under Avocor's Asia-region warranty; a 2-year extension (AVC-EW-K85) is available.
