ATEN VS4841 4-Port True 4K HDMI Switch
PRODUCT DESCRIPTION
ATEN VS4841 4-Port True 4K HDMI Switch - 2 Years Local Warranty
Four Sources, One True 4K Display
The VS4841 connects up to four HDMI sources – laptop, console, media player, set-top box – to one display at up to 3840 x 2160 @ 60Hz with 4:4:4 colour, ending cable swapping behind the TV or meeting-room screen.
RapidSync Fast Switching
ATEN RapidSync high-speed AV switching keeps changeovers quick, and auto plug-in detection selects a newly connected source automatically.
Pushbutton or IR Remote
Switch from the front pushbutton or the included IR remote control. HDR10+, 3D, Deep Color and HDCP 2.2 are supported, with LPCM 7.1, Dolby Digital and DTS-HD Master Audio passed through.
Compact and USB-C Powered

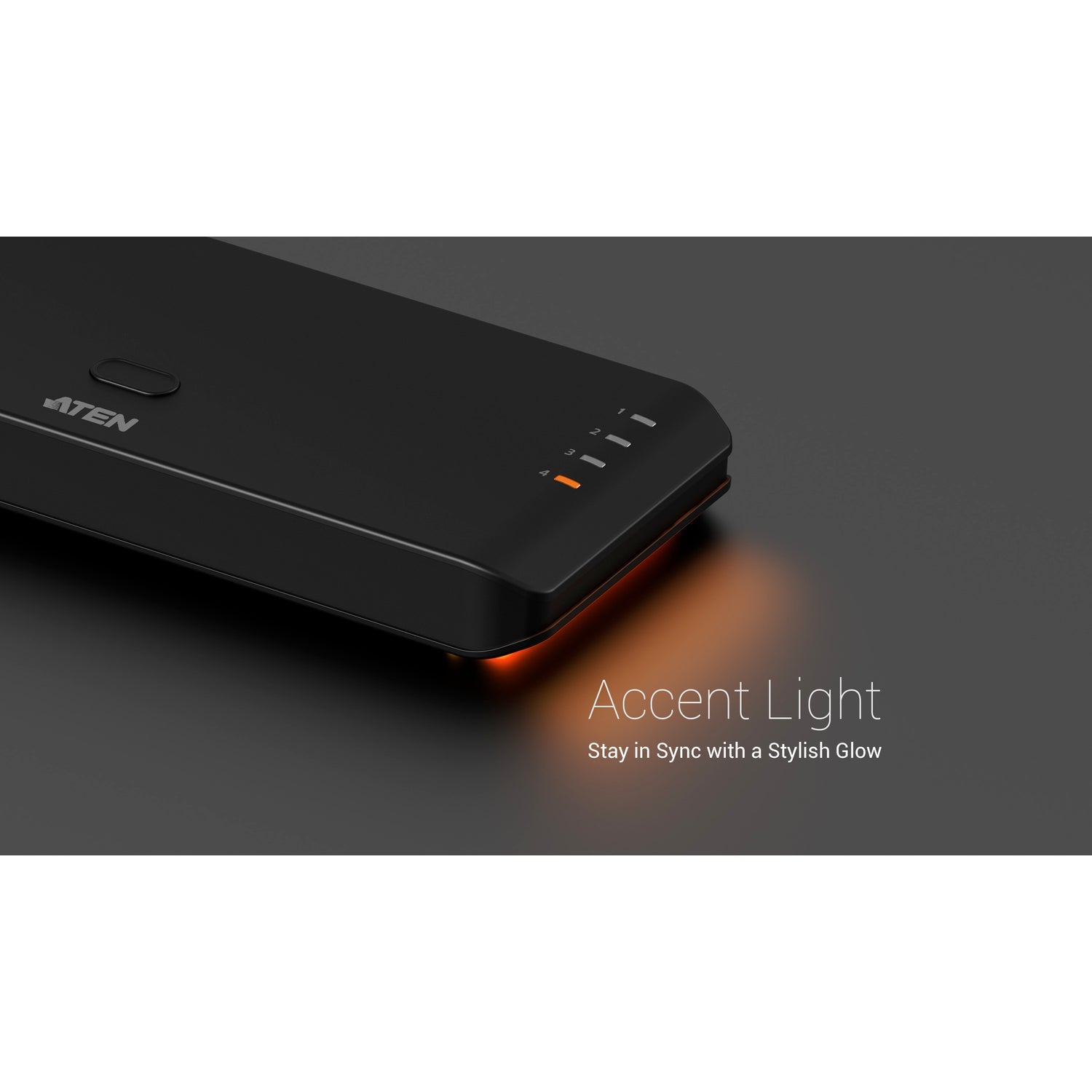

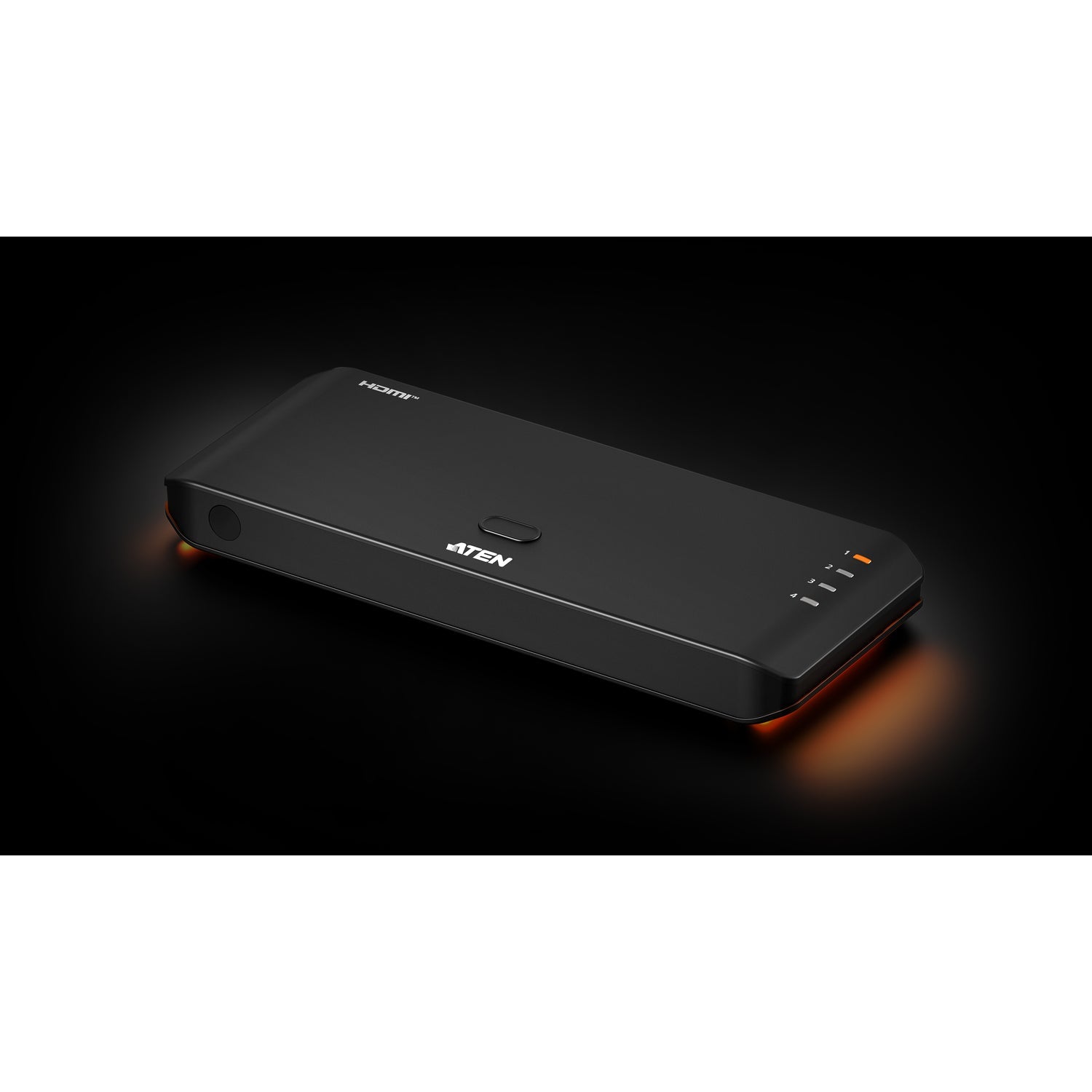

The ATEN essentials VS4841 has a slim body with accent lighting and runs from USB-C power; a Type-C to Type-A cable is included.
Equipping meeting rooms or classrooms with multiple inputs? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN VS4841 Datasheet — Technical Specifications
General
| Product Name | ATEN 4-Port True 4K HDMI Switch |
| Model | VS4841 |
| Order Code | VS4841-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

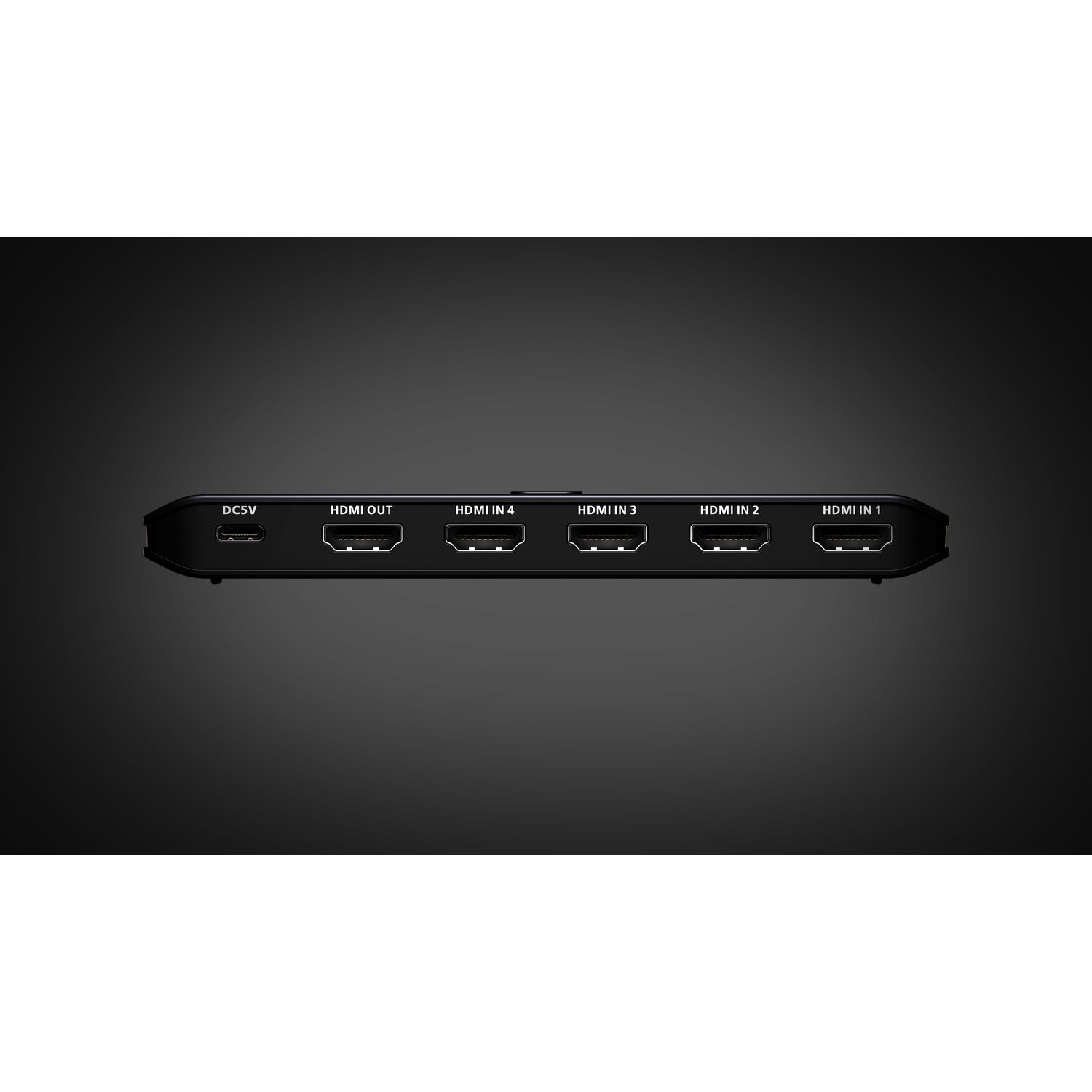

| Video Inputs | 4 x HDMI Type-A Female |
| Video Output | 1 x HDMI Type-A Female |
| Impedance | 100 Ω |
| IR | 1 x IR receiver |
| Power | 1 x USB-C (5V / 1A) |
Video
| Max. Resolution | 3840 x 2160 @ 60Hz (4:4:4) |
| Max. Data Rate | 18 Gbps (6 Gbps per lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI (3D, Deep Color, 4K), HDR10+, HDCP 2.2 compatible |
Audio
| Audio Input / Output | Via HDMI (4 in, 1 out) |
| Formats | LPCM 7.1, Dolby Digital, DTS-HD Master Audio |
Distance
| Max. Cable Distance | 3 m at 3840 x 2160 @ 60Hz (4:4:4) |
Switching & LEDs
| Switching | Pushbutton, IR remote, auto plug-in detection |
| Technology | RapidSync high-speed AV switching |
| LEDs | 4 x port selected (Orange); 2 x power (Orange, bottom side) |
| Cable Included | 1 x USB Type-C to Type-A (1 m) |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 0.07 kg |
| Dimensions (L x W x H) | 14.50 x 5.65 x 1.52 cm |
Compatibility & Applications
Typical Sources
Laptops, PCs, game consoles, streaming boxes, set-top boxes and Blu-ray players with HDMI output.
Typical Use
Home entertainment with several devices on one TV, meeting rooms with multiple presenter inputs, and gaming setups sharing one monitor.
Selection Tip
Keep HDMI cables to 3 m or less at 4K@60Hz. For 8K or 4K@120Hz gaming sources, see the 2-port VS5821.
Package Contents & ATEN HDMI Switch Ordering Information
In the Box
1 x VS4841 4-Port True 4K HDMI Switch, 1 x IR remote controller, 1 x USB power cable (Type-C to Type-A, 1 m).
ATEN HDMI Switch Models
| Model | Key feature |
| VS381B | 3-port True 4K HDMI switch |
| VS481C | 4-port True 4K HDMI switch |
| VS0801HB | 8-port True 4K HDMI switch |
| VS4841 (this listing) | 4-port True 4K HDMI switch, IR remote, essentials design |
| VS5821 | 2-port 8K HDMI switch, 4K@120Hz, VRR / ALLM |
Datasheet & Downloads
| Datasheet | VS4841 Datasheet (PDF) |
| Quick start guide | VS4841 Quick Start Guide (PDF) |
| ATEN product page | VS4841 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS4841-AT.
Frequently Asked Questions — ATEN VS4841
Is a remote control included?
Yes. An IR remote controller is in the box.
Does it switch automatically?
Auto plug-in detection switches to a newly connected source; you can also switch by pushbutton or remote.
Does it support HDR and HDCP 2.2?
Yes. HDR10+ and HDCP 2.2 are supported at up to 4K@60Hz 4:4:4.
How is it powered?
By USB-C (5V / 1A), with a Type-C to Type-A cable included.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
