ATEN VS291 2-Port VGA Switch
PRODUCT DESCRIPTION
ATEN VS291 2-Port VGA Switch - 2 Years Local Warranty
Two VGA Sources, One Display

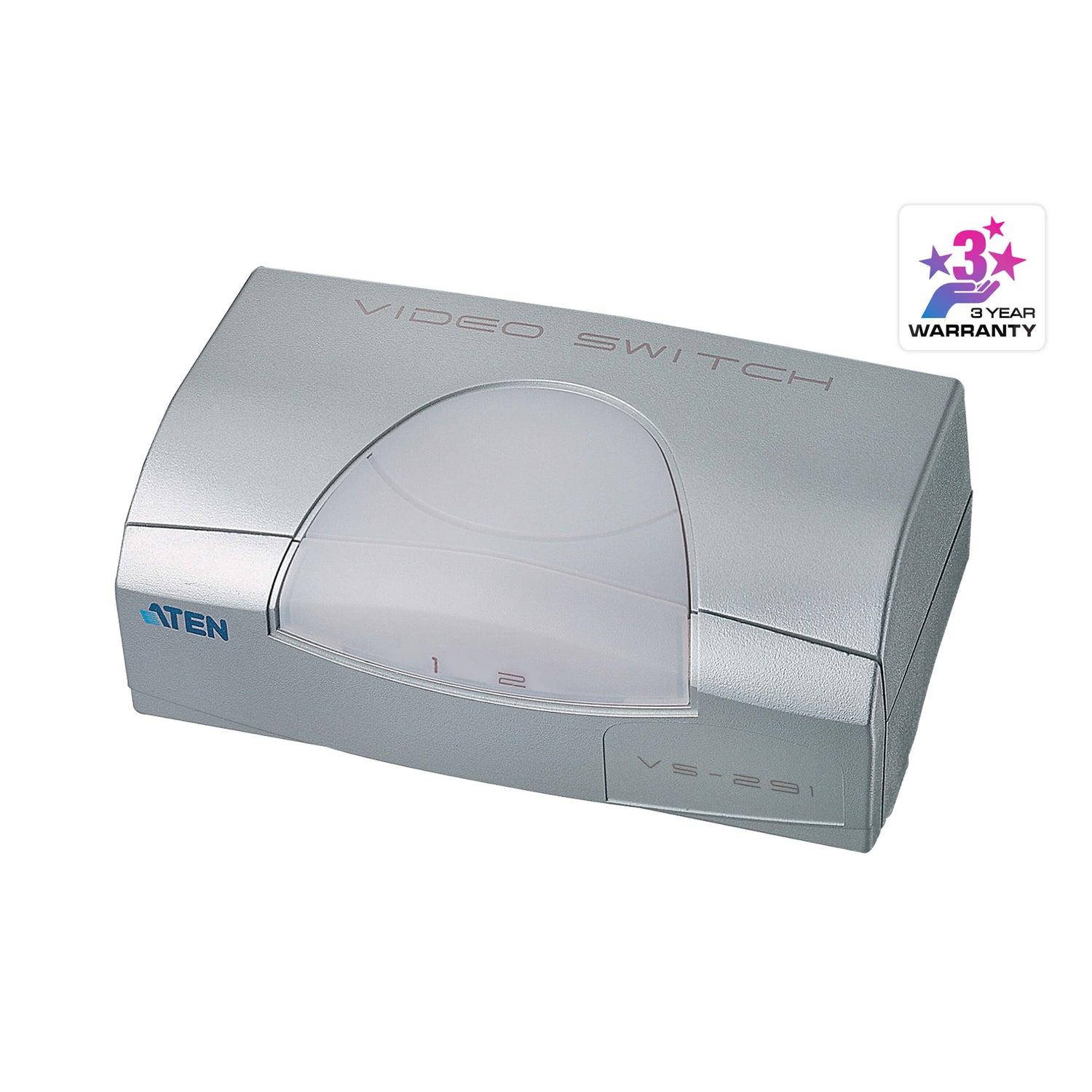

The ATEN VS291 lets two computers or VGA sources share a single monitor or projector. Press the front pushbutton to choose which input is shown, with LEDs confirming the selected port.
Crisp Video up to 1920 x 1440
A 150 MHz bandwidth supports resolutions up to 1920 x 1440, and the output can drive a display up to 10 m away.
No Software Needed
Installation is simply cabling: connect the two sources and the display, plug in the included power adapter, and switch.
Need VGA switching for several rooms or a mix of VGA and HDMI sources? Email sales@sourceit.com.sg for configuration advice.
ATEN VS291 Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port VGA Switch |
| Model | VS291 |
| Order Code | VS291-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

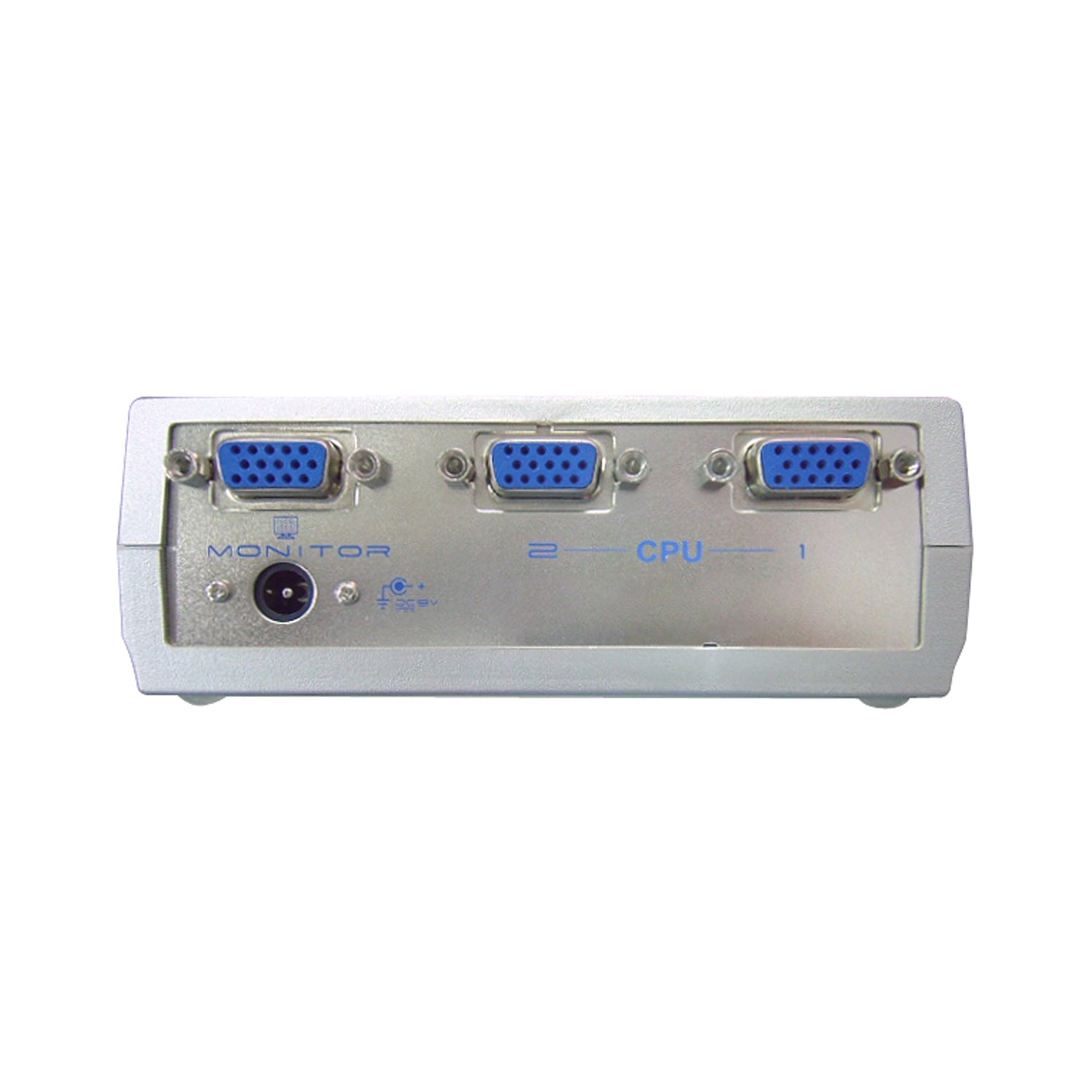

Connectors
| Computer Connections | 2 |
| Video Inputs | 2 x HDB-15 Female (Blue) |
| Video Output | 1 x HDB-15 Female (Blue) |
| Power | 1 x DC jack |
Video
| Max. Bandwidth | 150 MHz |
| Max. Resolution | Up to 1920 x 1440 |
| Input / Output Impedance | 75 Ω |
Distance
| Video Input Max. Distance | 1.8 m |
| Video Output Max. Distance | 10 m |
Control
| Port Selection | Pushbutton |
| LEDs | 2 (selected) |
Power
| Power Consumption | DC 9V, 0.82 W, 4 BTU |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic / Metal |
| Weight | 0.15 kg |
| Dimensions (L x W x H) | 12.00 x 6.52 x 4.40 cm |
Compatibility & Applications
Typical Sources
Desktop PCs, notebooks, servers and other devices with a VGA (HDB-15) output, shared onto one VGA monitor or projector.
Typical Use
Classrooms and meeting rooms with a fixed PC plus a guest laptop, control rooms and test benches that need two VGA sources on one screen.
Selection Tip
Keep input cables short (up to 1.8 m). For HDMI sources choose an HDMI switch such as the VS381B; to control two PCs with one keyboard and mouse as well, choose a KVM switch.
Package Contents & ATEN Video Switch Ordering Information
In the Box
1 x VS291 2-Port Video Switch, 1 x power adapter.
ATEN Video Switch Models
| Model | Key feature |
| VS291 (this listing) | 2-port VGA switch |
| VS381B | 3-port True 4K HDMI switch |
| VS481C | 4-port True 4K HDMI switch |
| VS4841 | 4-port True 4K HDMI switch |
| VS0801HB | 8-port True 4K HDMI switch |
| VS5821 | 2-port 8K HDMI switch |
| VC1280 | 2-port 4K HDMI/VGA to HDMI converter switch |
Datasheet & Downloads
| VS291 datasheet | VS291 / VS491 Datasheet (PDF) |
| VS291 user manual | VS291 / VS491 User Manual (PDF) |
| ATEN product page | VS291 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS291-AT-E.
Frequently Asked Questions — ATEN VS291
How do I switch between sources?
Press the pushbutton on the unit. Two LEDs show which input is selected.
Does the VS291 switch audio?
ATEN lists video connectors only (HDB-15) for the VS291, so plan audio separately.
How far can the display be?
Up to 10 m from the switch. Input cables from the sources should be up to 1.8 m.
Is a power adapter included?
Yes. The VS291 ships with its power adapter.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
