ATEN VS0801HB 8-Port True 4K HDMI Switch
PRODUCT DESCRIPTION
ATEN VS0801HB 8-Port True 4K HDMI Switch - 2 Years Local Warranty
Eight HDMI Sources, One Display
The VS0801HB connects up to eight HDMI sources to a single HDMI display or projector and switches between them at the touch of a button. It is a tidy way to share one screen between PCs, media players, cameras and set-top boxes.
True 4K at 60 Hz
Resolutions up to 4096 x 2160 / 3840 x 2160 at 60 Hz with 4:4:4 colour are supported, with an 18 Gbps data rate, HDR10+, HDCP 2.2 and 3D / Deep Color.

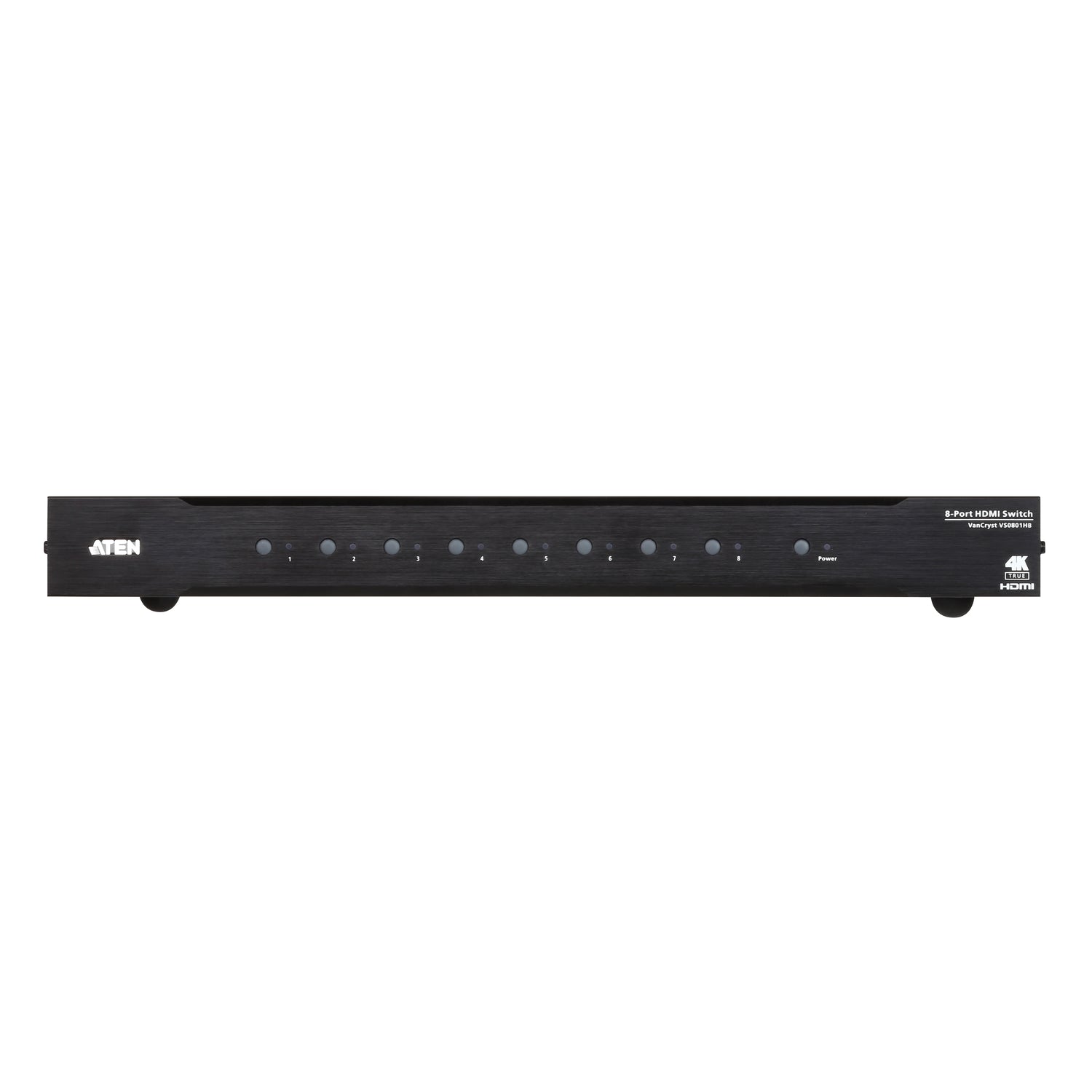

Flexible Control
Select inputs from the front panel, the supplied IR remote, or RS-232 commands from a control system. Auto switching modes can select the active port automatically, and CEC lets connected HDMI devices respond to a single remote.

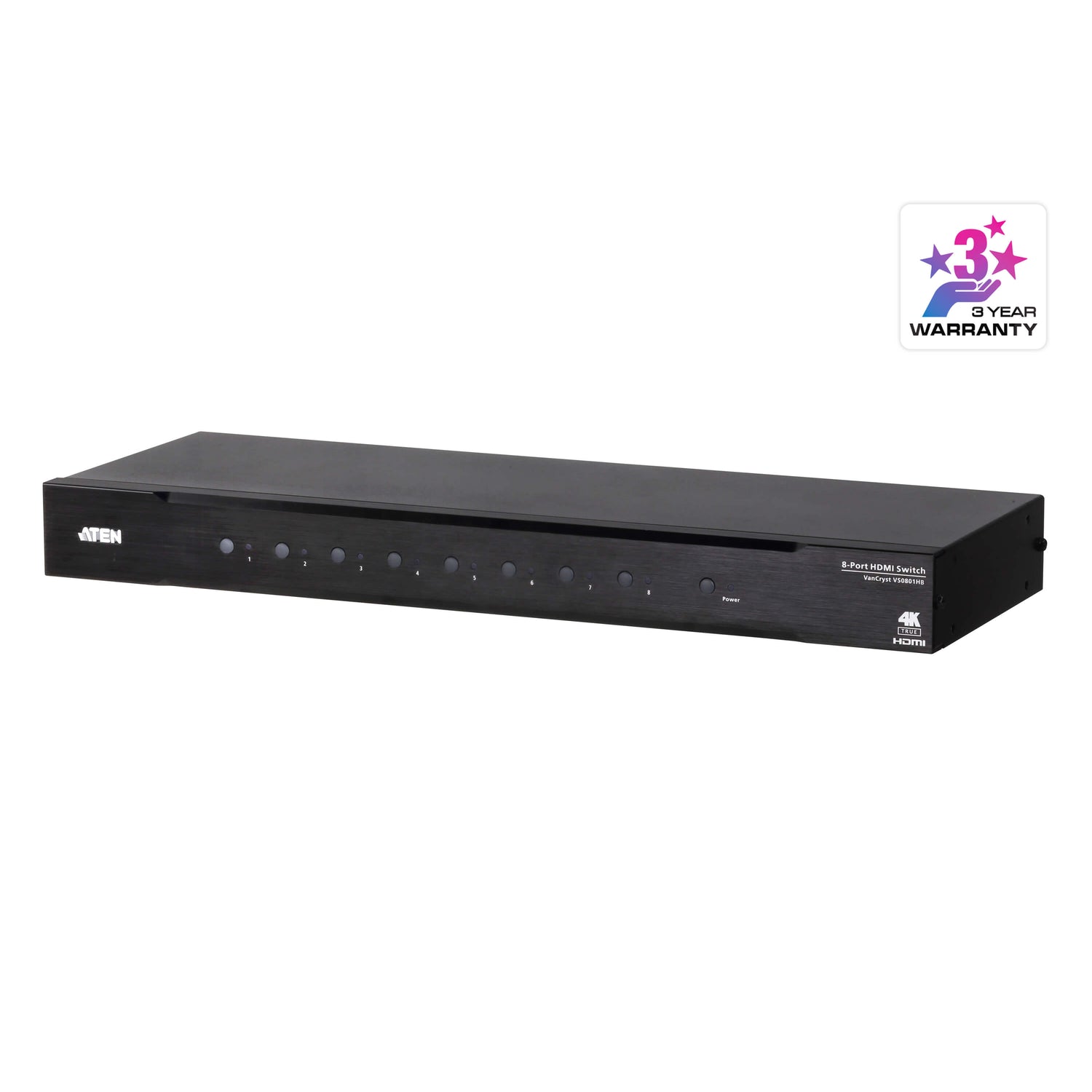

Rack-Ready Metal Chassis
The 1U metal housing ships with a rack mount kit, and a locking DC jack keeps power secure in AV racks.
Fitting out a meeting room, classroom or signage rack? Email sales@sourceit.com.sg for a project quote and lead time.
ATEN VS0801HB Datasheet — Technical Specifications
General
| Product Name | ATEN 8-Port True 4K HDMI Switch |
| Model | VS0801HB |
| Order Code | VS0801HB-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

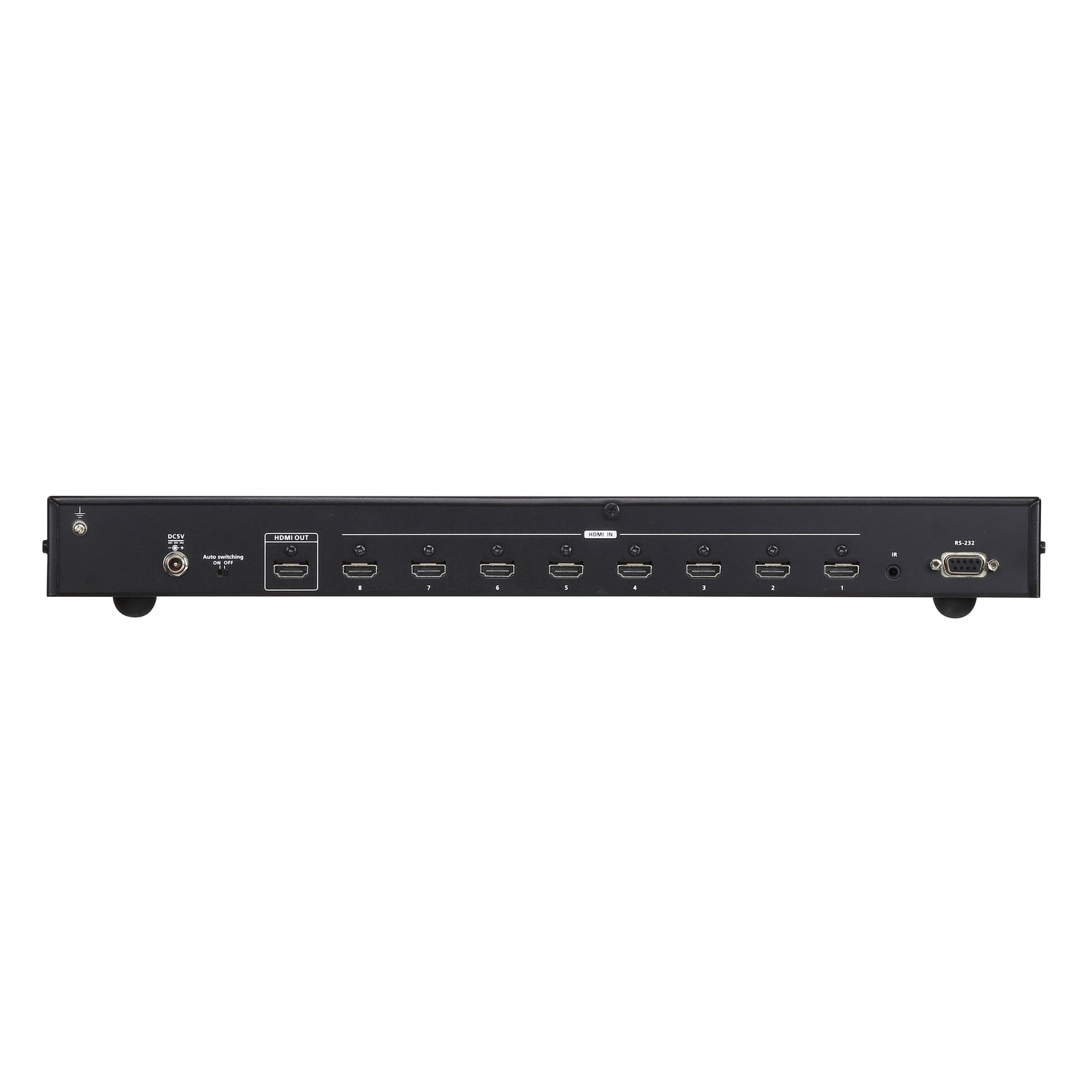

Connectors
| Video Inputs | 8 x HDMI Type A Female (Black), 100 Ω |
| Video Output | 1 x HDMI Type A Female (Black), 100 Ω |
| RS-232 | 1 x DB-9 Female; 19200 baud, 8 data bits, 1 stop bit, no parity, no flow control |
| IR | 1 x mini stereo jack female |
| Power | 1 x DC jack with locking |
Video
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) |
| Max. Data Rate | 18 Gbps (6 Gbps per lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI (3D, Deep Color); HDCP 2.2; CEC; HDR10+ |
| Max. Distance | 5 m (input and output) |
Power & Environmental
| Power Consumption | DC 5 V, 0.94 W |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal, rack mountable |
| Weight | 2.14 kg |
| Dimensions (L x W x H) | 43.72 x 15.83 x 4.40 cm |
Compatibility & Applications
Typical Sources
PCs and laptops with HDMI, media players, Blu-ray players, set-top boxes, game consoles, document cameras and HDMI cameras.
Typical Use
Meeting and training rooms, classrooms, retail and F&B digital signage racks, AV labs and monitoring desks where one screen is shared by many sources.
Selection Tip
Keep HDMI runs within 5 m at 4K. If you need different sources on several displays at the same time, choose a matrix switch such as the VM0404HB or VM0808HB instead.
Package Contents & ATEN HDMI Switch Ordering Information
In the Box
1 x VS0801HB 8-port True 4K HDMI switch, 1 x IR remote control, 1 x IR receiver cable (1.8 m), 1 x power adapter, 1 x rack mount kit, 1 x user instructions.
ATEN HDMI Switch Models
| Model | Key feature |
| VS0801HB (this listing) | 8-port True 4K HDMI switch, 1U rack |
| VS481C | 4-port True 4K HDMI switch |
| VS4841 | 4-port True 4K HDMI switch |
| VS381B | 3-port True 4K HDMI switch |
| VS5821 | 2-port 8K HDMI switch |
| VM0404HB | 4 x 4 True 4K HDMI matrix switch |
| VM0808HB | 8 x 8 True 4K HDMI matrix switch |
Datasheet & Downloads
| Datasheet | VS0801HB Datasheet (PDF) |
| User manual | VS0801HB User Manual (PDF) |
| Quick start guide | VS0801HB Quick Start Guide (PDF) |
| ATEN product page | VS0801HB on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS0801HB-AT-E.
Frequently Asked Questions — ATEN VS0801HB
Does the VS0801HB support 4K at 60 Hz?
Yes. Up to 4096 x 2160 / 3840 x 2160 at 60 Hz with 4:4:4 colour, HDR10+ and HDCP 2.2.
Can it switch automatically?
Yes. Auto switching modes select the input port automatically, or you can switch manually.
Can I control it from a room control system?
Yes. It has an RS-232 (DB-9) port and an IR input, plus front-panel buttons and the supplied remote.
Can it show different inputs on two screens?
No. It is an 8-in, 1-out switch. For multiple displays with independent sources choose a matrix switch such as the VM0808HB.
Is it rack mountable?
Yes. It is a 1U metal unit and a rack mount kit is included.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
