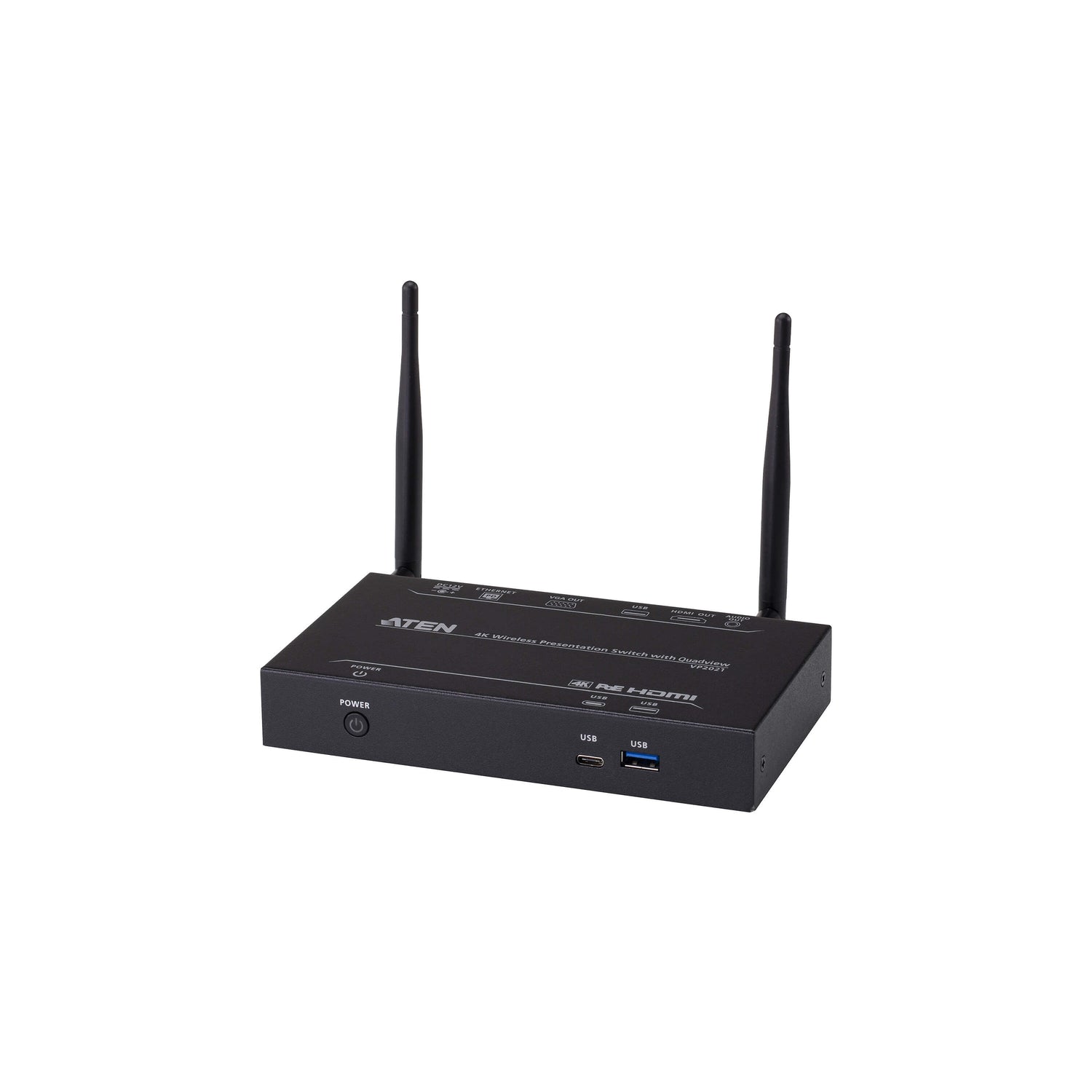

ATEN VP2021KIT 4K Wireless Presentation Switch with Quad View Kit
PRODUCT DESCRIPTION
ATEN VP2021KIT 4K Wireless Presentation Switch with Quad View Kit - 2 Years Local Warranty
Plug a Dongle, Share Your Screen
The VP2021KIT pairs the VP2021 4K wireless presentation switch with two VP201 USB-C wireless dongles. Presenters plug in a dongle and share their laptop screen to the room display – no software or drivers to install. The VP2021 pairs with up to 8 VP201 dongles.
Quad View Collaboration
Show one presenter full screen, two side by side, or four at once in quad view. Up to 20 attendees can also join over the LAN, and Moderation Mode lets the host control who shares and what is displayed.
Bring Your Own Meeting
Connect the VP2021 to a laptop by USB to use the room's camera, speakerphone and display in Microsoft Teams, Google Meet or Zoom calls (BYOM). USB touchback lets an in-room touchscreen control the presenting PC, and annotation, whiteboard and screen capture tools are built in.
4K HDMI and VGA Outputs, PoE Powered
Outputs HDMI at up to 4K@30Hz and VGA at up to 1080p simultaneously, with audio on HDMI and a mini stereo jack. Dual-band 802.11ac Wi-Fi reaches up to 20 m line of sight, and the RJ-45 port supports PoE.
Equipping meeting rooms or classrooms for BYOD sharing? Email sales@sourceit.com.sg for a project quote and configuration advice.
ATEN VP2021KIT Datasheet — Technical Specifications
General
| Product Name | ATEN 4K Wireless Presentation Switch with Quad View Kit |
| Model | VP2021KIT (VP2021 + 2 x VP201) |
| Order Code | VP2021KIT-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
VP2021 Base Unit – Connectors
| Video Outputs | 1 x HDMI Type A Female; 1 x VGA (HDB-15) Female |
| Audio Outputs | 1 x HDMI Type A Female; 1 x mini stereo jack Female |
| USB | USB 3.0, USB 2.0 and USB-C Female ports |
| Network | 1 x RJ-45 (PoE support) |
| Power | 1 x DC jack |
VP2021 Base Unit – Performance
| Max. Resolution | HDMI: up to 4K @ 30Hz; VGA: up to 1080p |
| Wireless | IEEE 802.11ac, dual band 2.4 / 5 GHz |
| Wireless Range | Up to 20 m (line of sight) |
| Users | Pairs with up to 8 VP201 dongles; up to 20 attendees via LAN |
| Display Layouts | Full screen, side-by-side, quad view |
| Collaboration | Moderation Mode, annotation, whiteboard, screen capture, USB touchback, BYOM |
| OS Support | Windows, macOS, Linux |
| Power Consumption | DC12V: 12 W |

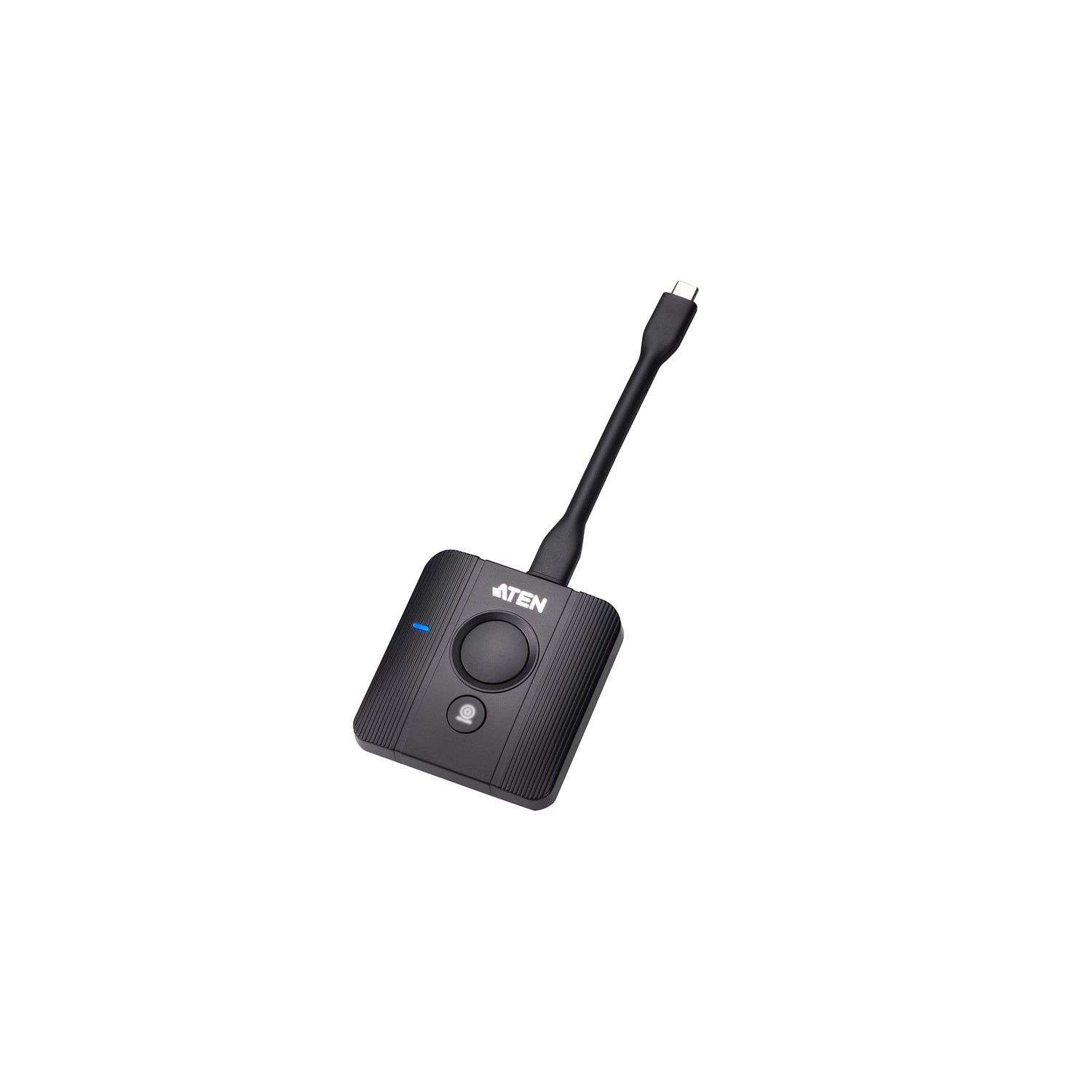

VP201 Wireless Dongle (x 2)
| Input | 1 x USB-C Male (video, audio and power) |
| Max. Resolution | Up to 1080p @ 60Hz |
| Wireless | IEEE 802.11 a/g/n/ac, dual band 2.4 / 5 GHz |
| Wireless Range | Up to 10 m (line of sight) |
| OS Support | Windows, macOS, iOS, Android |
| Power Consumption | DC5V: 1.37 W |
| Weight | 0.09 kg |
| Dimensions (L x W x H) | 6.70 x 6.90 x 1.50 cm |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | VP2021: -20–60 °C; VP201: -10–70 °C |
| Humidity | VP2021: 0–80% RH; VP201: 20–80% RH |
Physical (VP2021)
| Housing | Metal |
| Weight | 0.47 kg |
| Dimensions (L x W x H) | 17.00 x 10.40 x 2.83 cm |
Compatibility & Applications
Typical Devices
Laptops with a USB-C port for the VP201 dongles; Windows, macOS, iOS and Android devices; meeting-room displays and projectors with HDMI or VGA inputs; USB cameras, speakerphones and touch displays for BYOM and touchback.
Typical Use
Huddle and meeting rooms, boardrooms and classrooms where several people need to share screens quickly, compare content side by side, or run a video call from their own laptop on room equipment.
Selection Tip
The kit includes two dongles; the VP2021 pairs with up to eight. The HDMI output is up to 4K@30Hz, which suits presentations and documents. Ask us about additional VP201 dongles for larger teams.
Package Contents & ATEN PresentON Wireless Presentation Ordering Information
In the Box
1 x VP2021 4K Wireless Presentation Switch with Quad View, 2 x VP201 PresentON wireless dongles, 1 x power adapter and power cord, 2 x Wi-Fi antennas, 1 x user instructions.
ATEN Meeting Room AV Models
| Model | Key feature |
| VP2021KIT (this listing) | 4K wireless presentation switch with quad view, 2 x USB-C dongles |
| UC3022 | CAMLIVE PRO dual HDMI to UVC capture |
| UC3310 | UVC camera seamless matrix |
| UC8000 | MicLIVE 6-channel AI audio mixer |
| UC9040 | StreamLIVE Pro multi-channel streaming |
Datasheet & Downloads
| Datasheet | VP2021KIT Datasheet (PDF) |
| User manual | VP2020 / VP2021 User Manual (PDF) |
| Quick start guide | VP2020 / VP2021 Quick Start Guide (PDF) |
| Installation guide | VP201 Installation Guide (PDF) |
| ATEN product page | VP2021KIT on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VP2021KIT-AT-E.
Frequently Asked Questions — ATEN VP2021KIT
What is included in the kit?
One VP2021 base unit and two VP201 USB-C wireless dongles, plus power adapter, two Wi-Fi antennas and user instructions.
Do presenters need to install software?
No. The VP201 dongle is plug-and-play with no software or drivers needed.
How many people can present?
The VP2021 pairs with up to 8 VP201 dongles, shows up to four sources in quad view, and supports up to 20 attendees via LAN.
Can I use it for Teams or Zoom calls?
Yes. BYOM lets a laptop connected to the VP2021 by USB use the room's camera, speakerphone and display with Microsoft Teams, Google Meet or Zoom.
What resolution does it output?
HDMI up to 4K@30Hz and VGA up to 1080p. Each VP201 dongle transmits up to 1080p@60Hz.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
