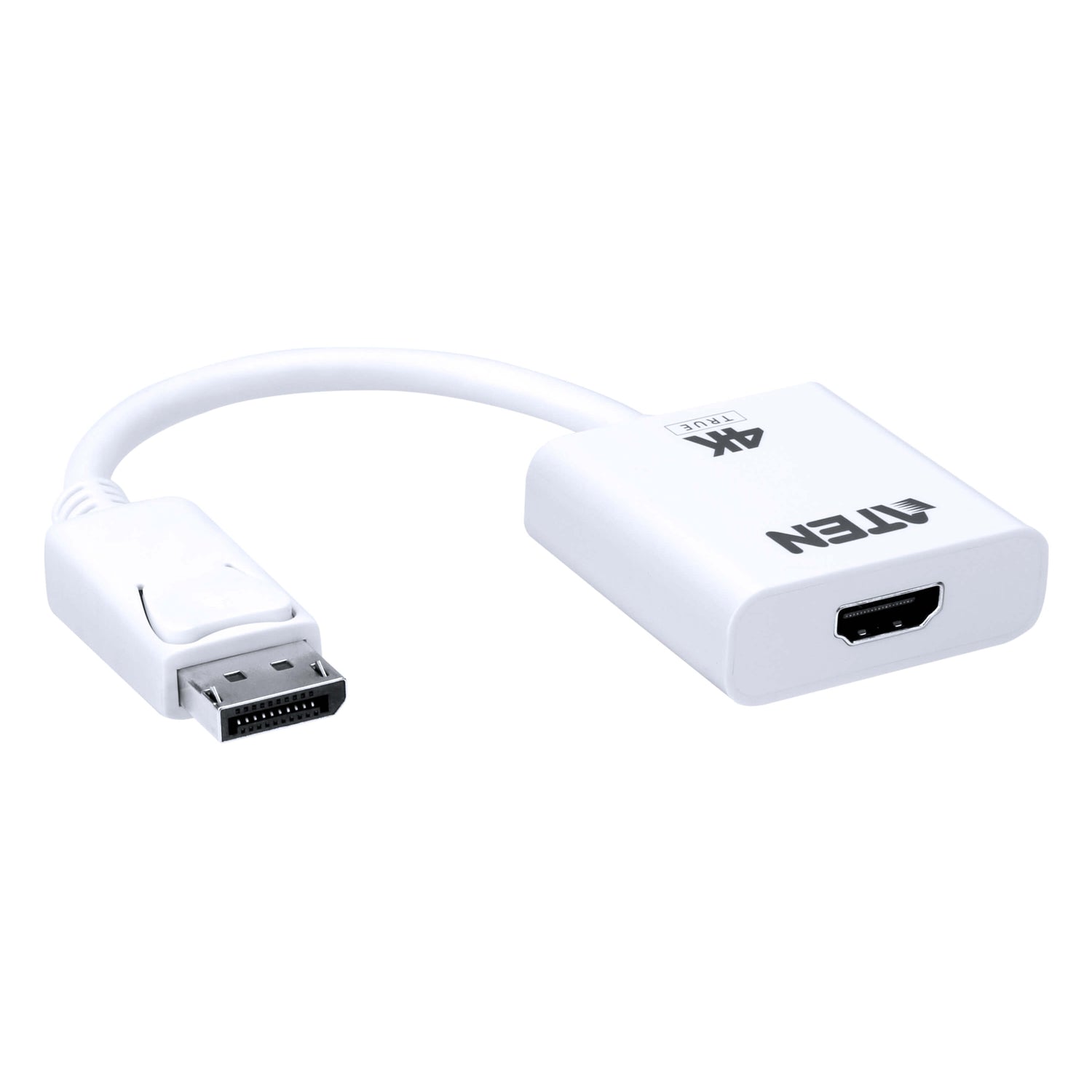

ATEN VC986B True 4K DisplayPort to HDMI Active Adapter (4K@60Hz)
PRODUCT DESCRIPTION
ATEN VC986B True 4K DisplayPort to HDMI Active Adapter (4K@60Hz) - 2 Years Local Warranty

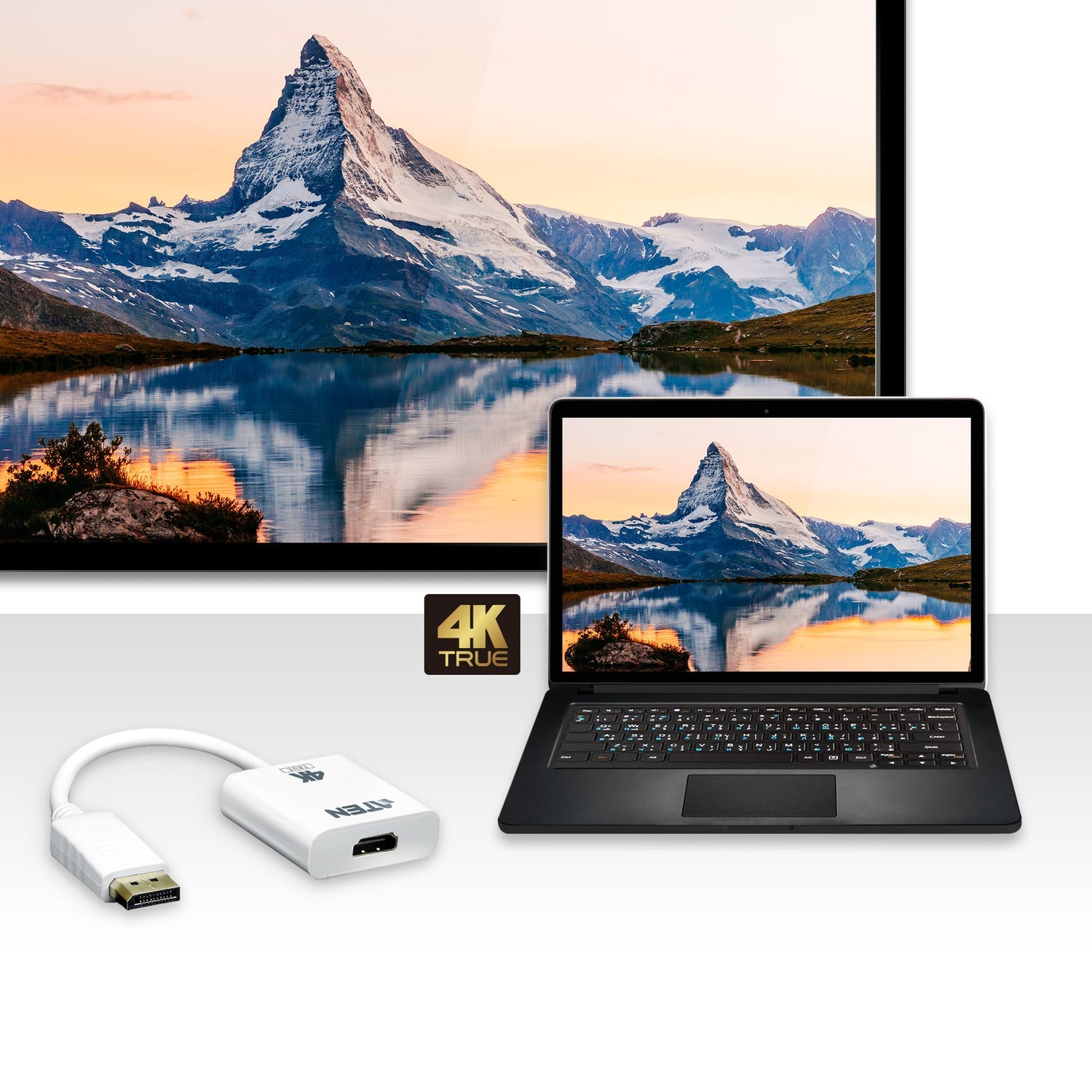

True 4K at 60Hz from DisplayPort to HDMI
The VC986B converts DisplayPort to HDMI 2.0 at up to 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz, with 18 Gbps bandwidth – smooth, full-frame-rate 4K for modern monitors and TVs.
HDCP 2.2 for Protected Content
HDMI 2.0 and HDCP 2.2 compliance means protected 4K content plays correctly on the HDMI display.
Active Chip, AMD Eyefinity Compatible

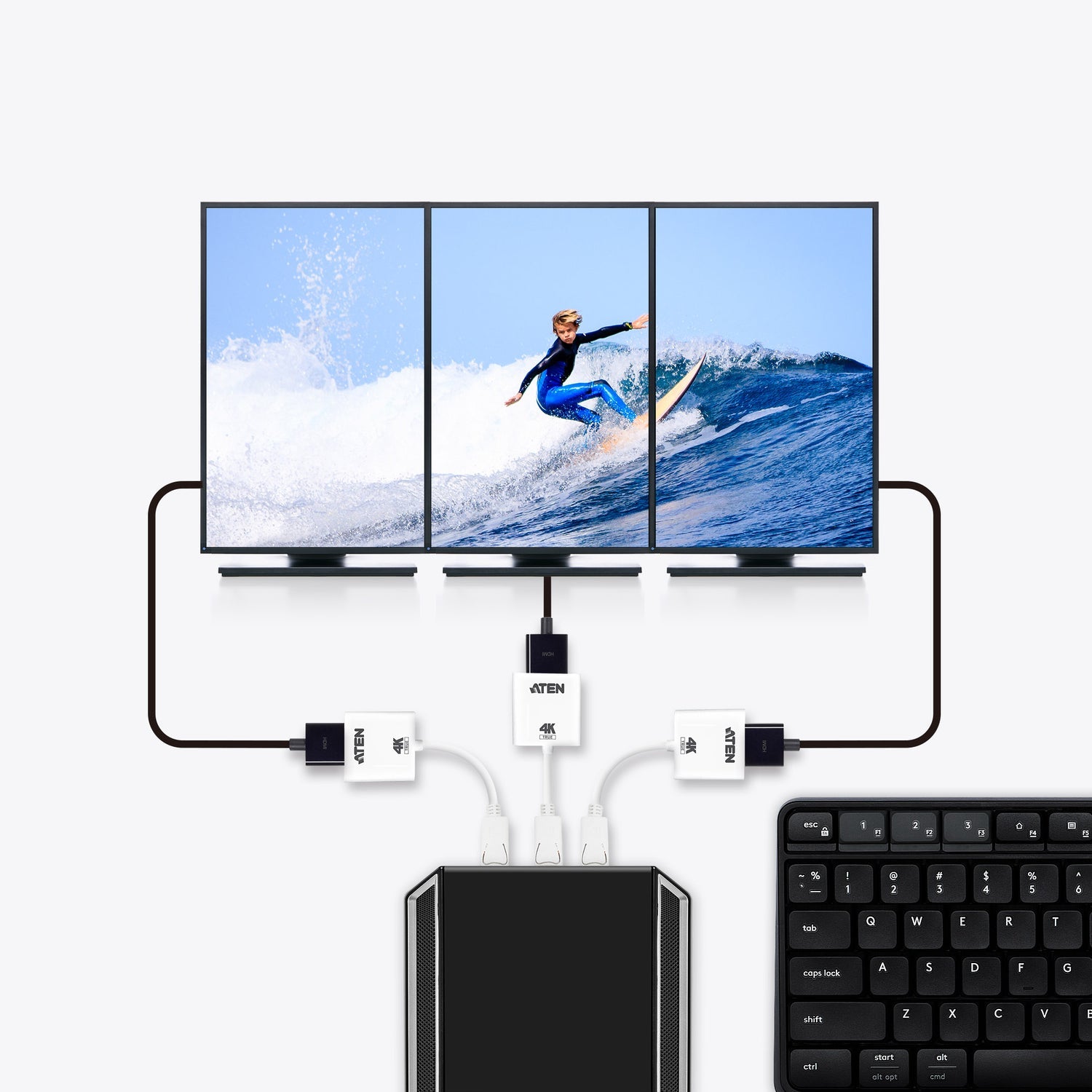

An advanced active chip ensures stable conversion even when the DisplayPort source lacks dual-mode (DP++) support, and the adapter is AMD Eyefinity compatible for multi-display setups.
Audio and Plug-and-Play

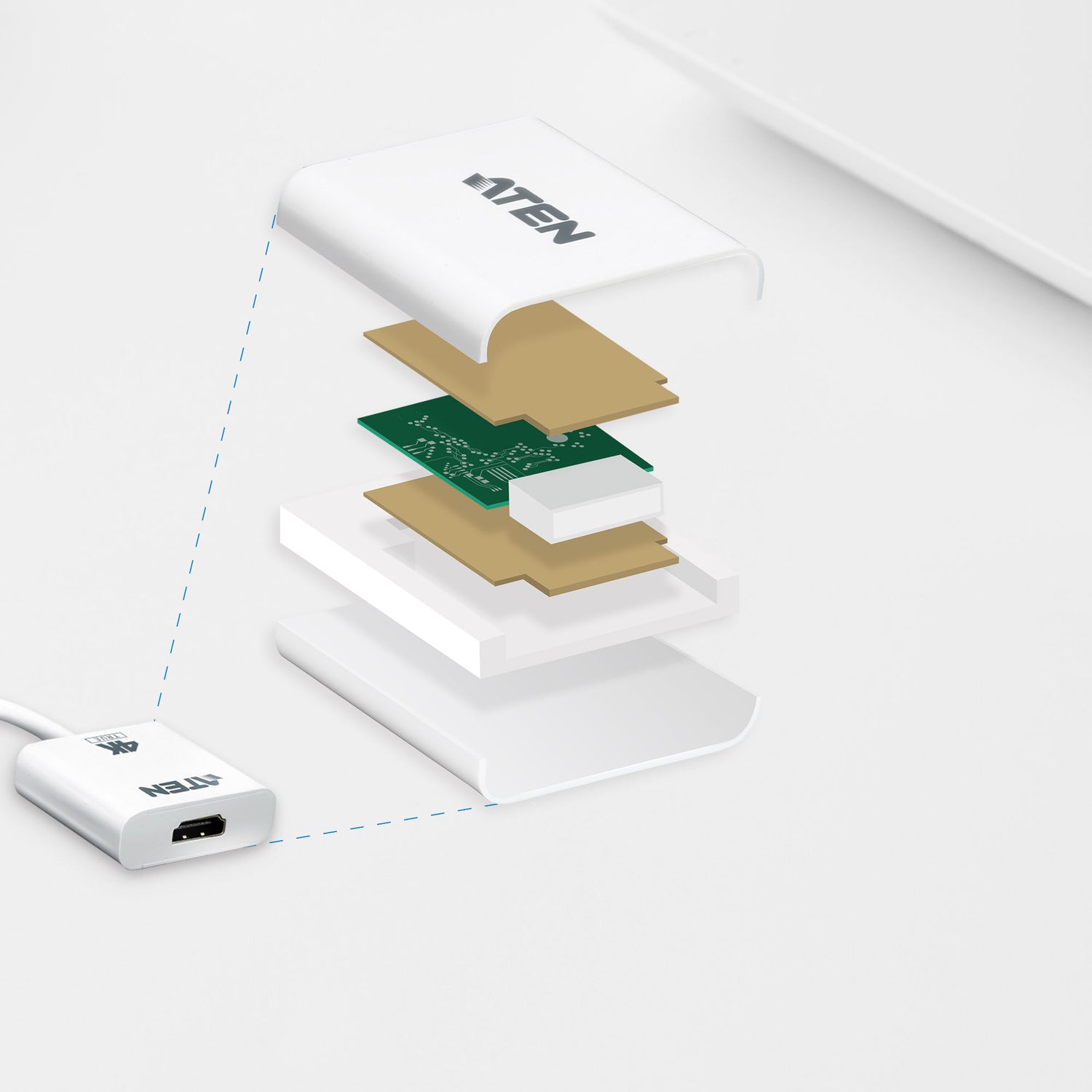

Audio is carried over HDMI and no drivers are needed. Copper foil shielding protects the signal.
Upgrading workstations to 4K HDMI displays? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN VC986B Datasheet — Technical Specifications
General
| Product Name | ATEN True 4K DisplayPort to HDMI Active Adapter |
| Model | VC986B |
| Order Code | VC986B-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Video Input | 1 x DisplayPort Male |
| Video Output | 1 x HDMI Type A Female |
| Audio Output | Via HDMI |
Video
| Max. Resolution | 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz |
| Max. Data Rate | 18 Gbps (6 Gbps per lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | DP 1.2a / HDMI 2.0 / HDCP 2.2 |
| Type | Active (works without DP++ source) |
| Multi-display | AMD Eyefinity compatible |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Shielding | Copper foil |
| Weight | 0.04 kg |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm |
Compatibility & Applications
Typical Sources
Desktop PCs, workstations and graphics cards with full-size DisplayPort outputs, including those without DP++ support.
Typical Use

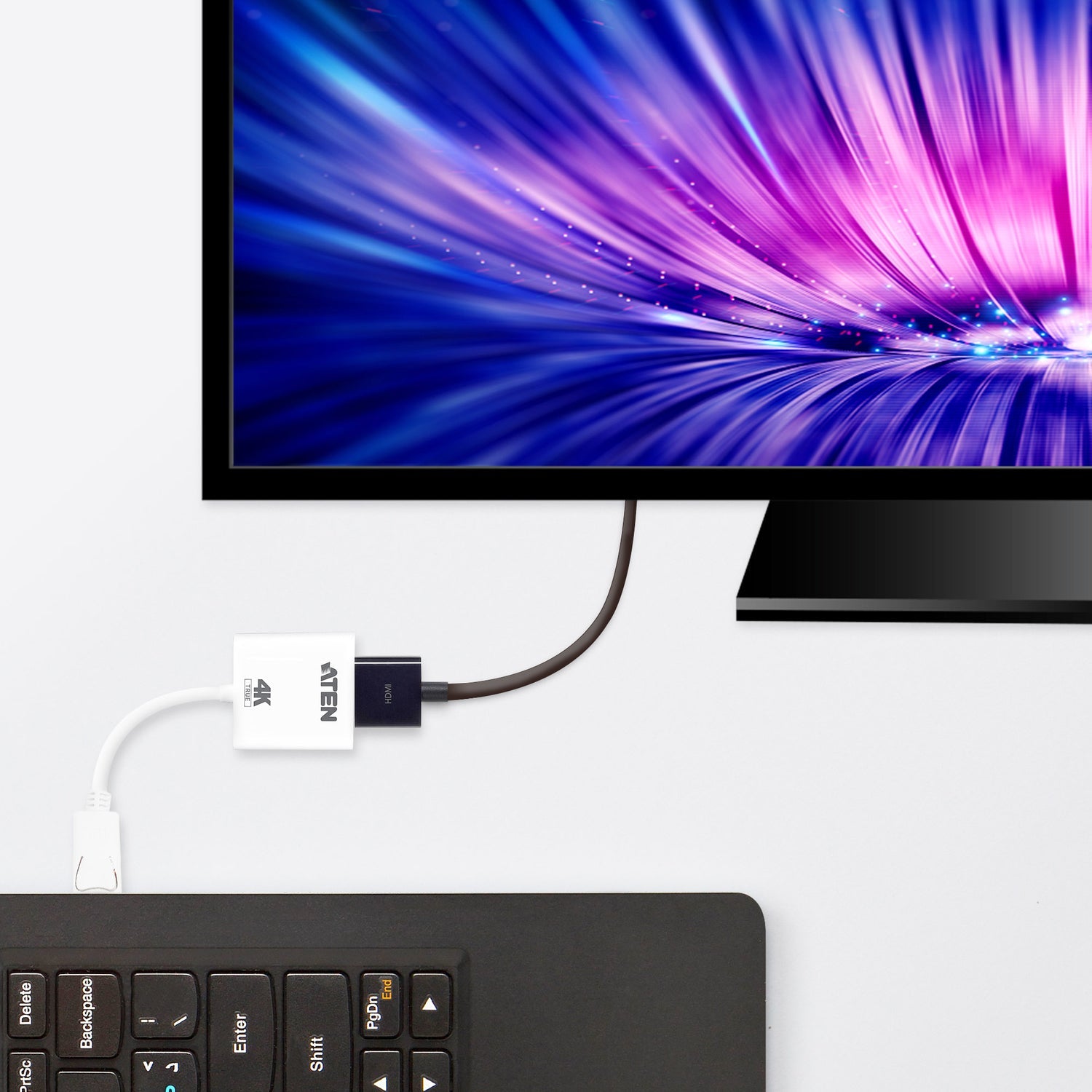

Driving 4K HDMI monitors and TVs at 60Hz for design, video editing, CAD and multi-monitor desks.
VC986B or VC986?
The VC986B delivers 4K at 60Hz with HDMI 2.0 and HDCP 2.2. The lower-cost VC986 is limited to 4K at 30Hz with HDCP 1.3, so the VC986B is the right choice for any 4K display used for everyday work or video.
Package Contents & ATEN Video Adapter Ordering Information
In the Box
1 x VC986B True 4K DisplayPort to HDMI Active Adapter.
ATEN Video Adapter Models
| Model | Key feature |
| VC985 | DisplayPort to HDMI adapter, up to 1080p |
| VC986 | DisplayPort to 4K HDMI active adapter, 4K@30Hz |
| VC986B (this listing) | DisplayPort to True 4K HDMI active adapter, 4K@60Hz |
| VC965 | DisplayPort to DVI adapter |
| VC925 | DisplayPort to VGA adapter |
| VC981 | Mini DisplayPort to 4K HDMI active adapter |
| VC980 | Mini DisplayPort to HDMI adapter |
| VC960 | Mini DisplayPort to DVI adapter |
| VC920 | Mini DisplayPort to VGA adapter |
| VC810 | HDMI to VGA adapter |
Datasheet & Downloads
| Datasheet | VC981 / VC986 / VC986B Datasheet (PDF) |
| ATEN product page | VC986B on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC986B-AT.
Frequently Asked Questions — ATEN VC986B
What is the difference between the VC986B and the VC986?
The VC986B supports True 4K at 60Hz (HDMI 2.0, HDCP 2.2, 18 Gbps). The VC986 is limited to 4K at 30Hz with HDCP 1.3.
Does it support HDCP 2.2?
Yes.
Will it work if my graphics card has no DP++?
Yes. It is an active adapter and does not rely on dual-mode DisplayPort.
Does it carry audio?
Yes. Audio is output over HDMI.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
