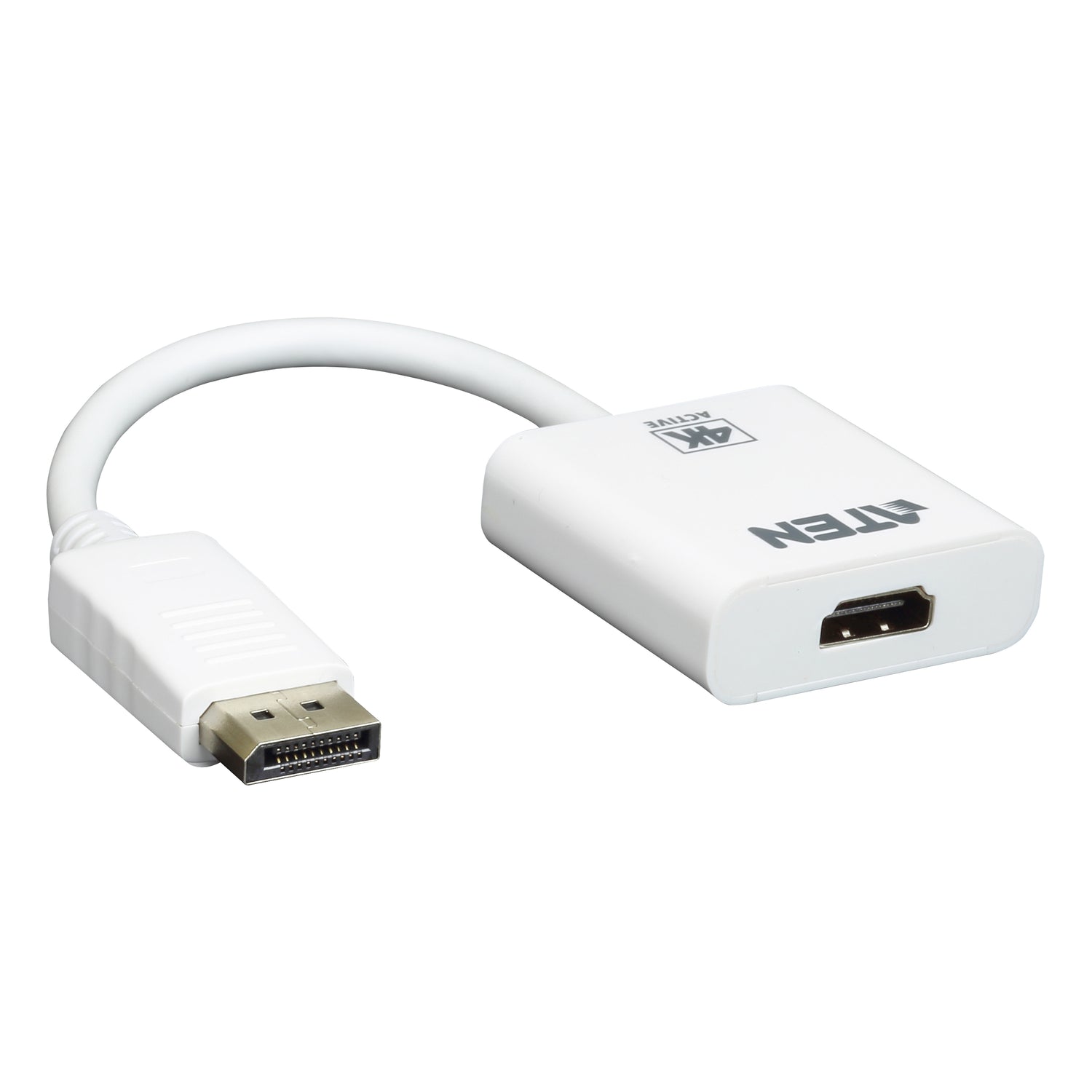

ATEN VC986 4K DisplayPort to HDMI Active Adapter (4K@30Hz)
PRODUCT DESCRIPTION
ATEN VC986 4K DisplayPort to HDMI Active Adapter (4K@30Hz) - 2 Years Local Warranty
Active DisplayPort to HDMI Conversion
The VC986 uses an advanced active chip, so it converts reliably even when the DisplayPort source does not support dual-mode DisplayPort (DP++) – common on workstation and multi-display graphics cards.
4K UHD at 30Hz, Full HD at 60Hz
Supports 3840 x 2160 @ 30Hz and up to 1920 x 1200 @ 60Hz. Note that 4K output is limited to 30Hz; for 4K at 60Hz choose the VC986B True 4K model.
AMD Eyefinity Compatible
Compatible with AMD Eyefinity multi-display technology, making it a good fit for multi-monitor setups from one graphics card.
Audio and Plug-and-Play

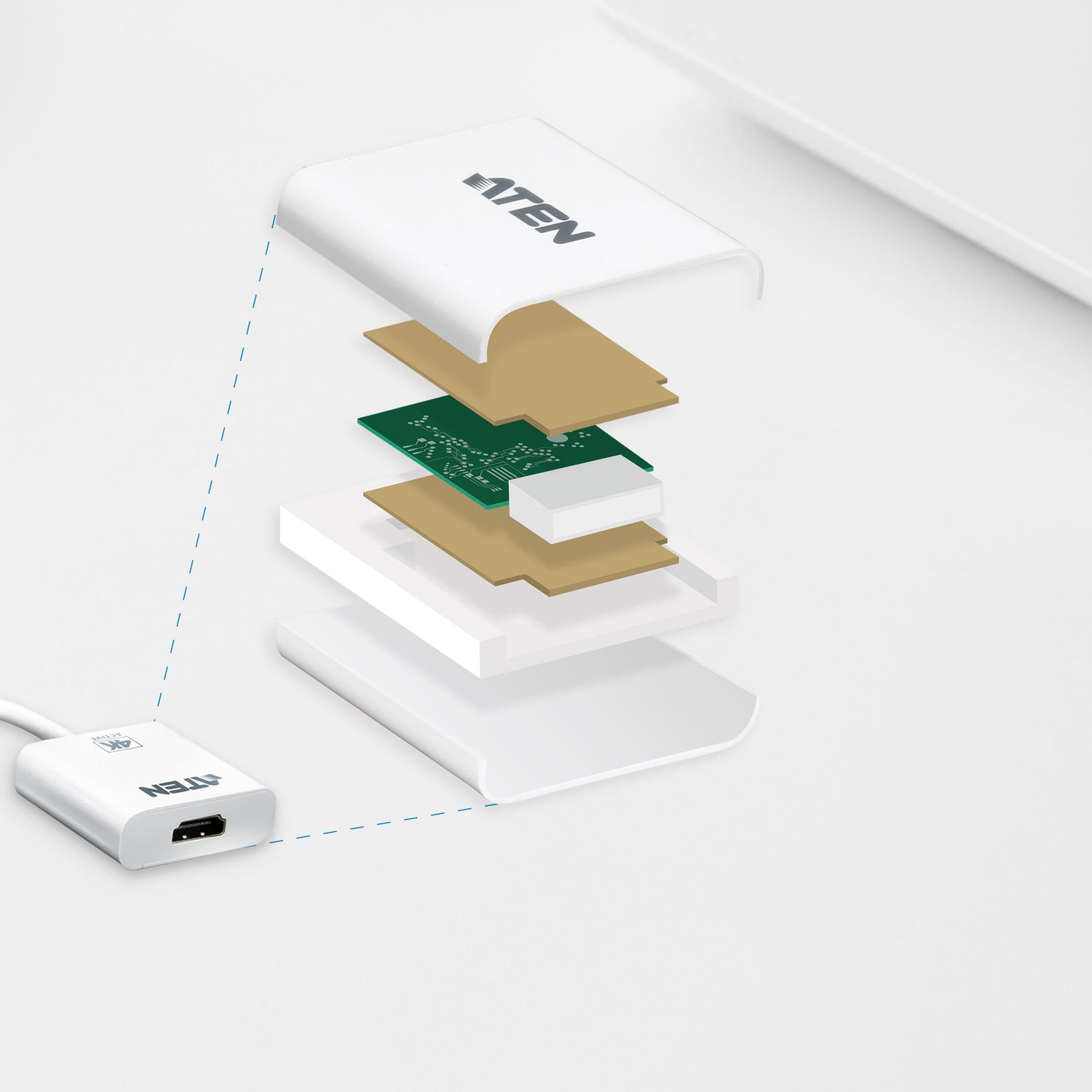

Audio is carried over HDMI, and no drivers are needed. Copper foil shielding protects the signal.
Fitting out multi-monitor workstations? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN VC986 Datasheet — Technical Specifications
General
| Product Name | ATEN 4K DisplayPort to HDMI Active Adapter |
| Model | VC986 |
| Order Code | VC986-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Video Input | 1 x DisplayPort Male |
| Video Output | 1 x HDMI Type A Female |
| Audio Output | Via HDMI |
Video
| Max. Resolution | 3840 x 2160 @ 30Hz; 1920 x 1200 @ 60Hz |
| Max. Pixel Clock | 297 MHz |
| Compliance | DP 1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3 |
| Type | Active (works without DP++ source) |
| Multi-display | AMD Eyefinity compatible |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Shielding | Copper foil |
| Weight | 0.04 kg |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm |
Compatibility & Applications
Typical Sources
Desktop PCs, workstations and graphics cards with full-size DisplayPort outputs, including cards without dual-mode (DP++) support.
Typical Use

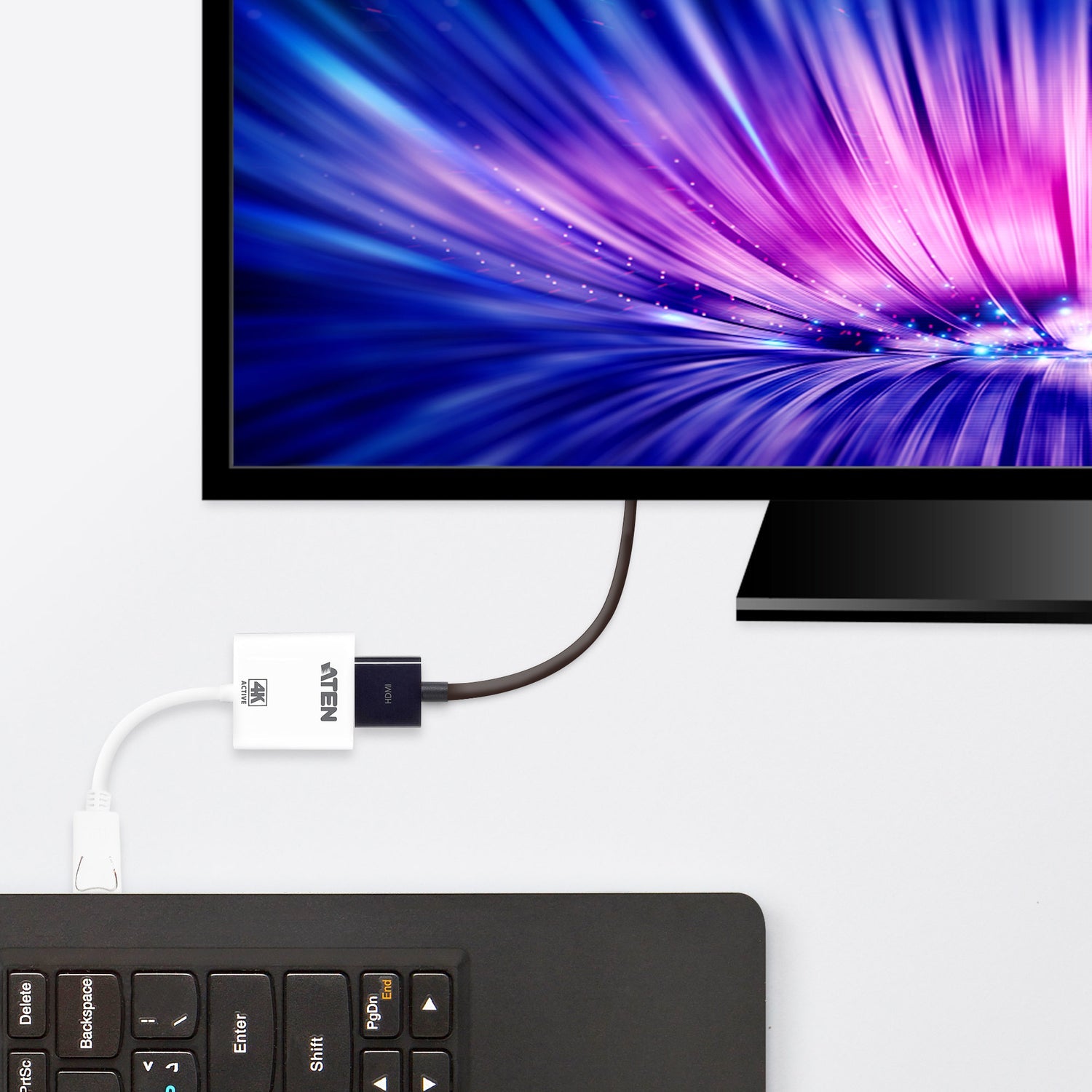

Multi-monitor office and trading desks, AMD Eyefinity setups, and connecting DisplayPort PCs to HDMI monitors or TVs for office work.
VC986 or VC986B?
The VC986 is 4K at 30Hz (HDCP 1.3) – fine for office documents and Full HD at 60Hz. For smooth 4K at 60Hz, HDMI 2.0 and HDCP 2.2 content, choose the VC986B True 4K adapter.
Package Contents & ATEN Video Adapter Ordering Information
In the Box
1 x VC986 4K DisplayPort to HDMI Active Adapter.
ATEN Video Adapter Models
| Model | Key feature |
| VC985 | DisplayPort to HDMI adapter, up to 1080p |
| VC986 (this listing) | DisplayPort to 4K HDMI active adapter, 4K@30Hz |
| VC986B | DisplayPort to True 4K HDMI active adapter, 4K@60Hz |
| VC965 | DisplayPort to DVI adapter |
| VC925 | DisplayPort to VGA adapter |
| VC981 | Mini DisplayPort to 4K HDMI active adapter |
| VC980 | Mini DisplayPort to HDMI adapter |
| VC960 | Mini DisplayPort to DVI adapter |
| VC920 | Mini DisplayPort to VGA adapter |
| VC810 | HDMI to VGA adapter |
Datasheet & Downloads
| Datasheet | VC981 / VC986 / VC986B Datasheet (PDF) |
| ATEN product page | VC986 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC986-AT.
Frequently Asked Questions — ATEN VC986
Does the VC986 support 4K at 60Hz?
No. It supports 4K at 30Hz (3840 x 2160 @ 30Hz) and 1920 x 1200 at 60Hz. For 4K at 60Hz, choose the VC986B.
What does 'active' mean?
An active chip converts the signal itself, so the adapter works even when the DisplayPort source does not support dual-mode (DP++).
Can I use several for multiple monitors?
Yes. The VC986 is AMD Eyefinity compatible for multi-display setups.
Does it carry audio?
Yes. Audio is output over HDMI.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
