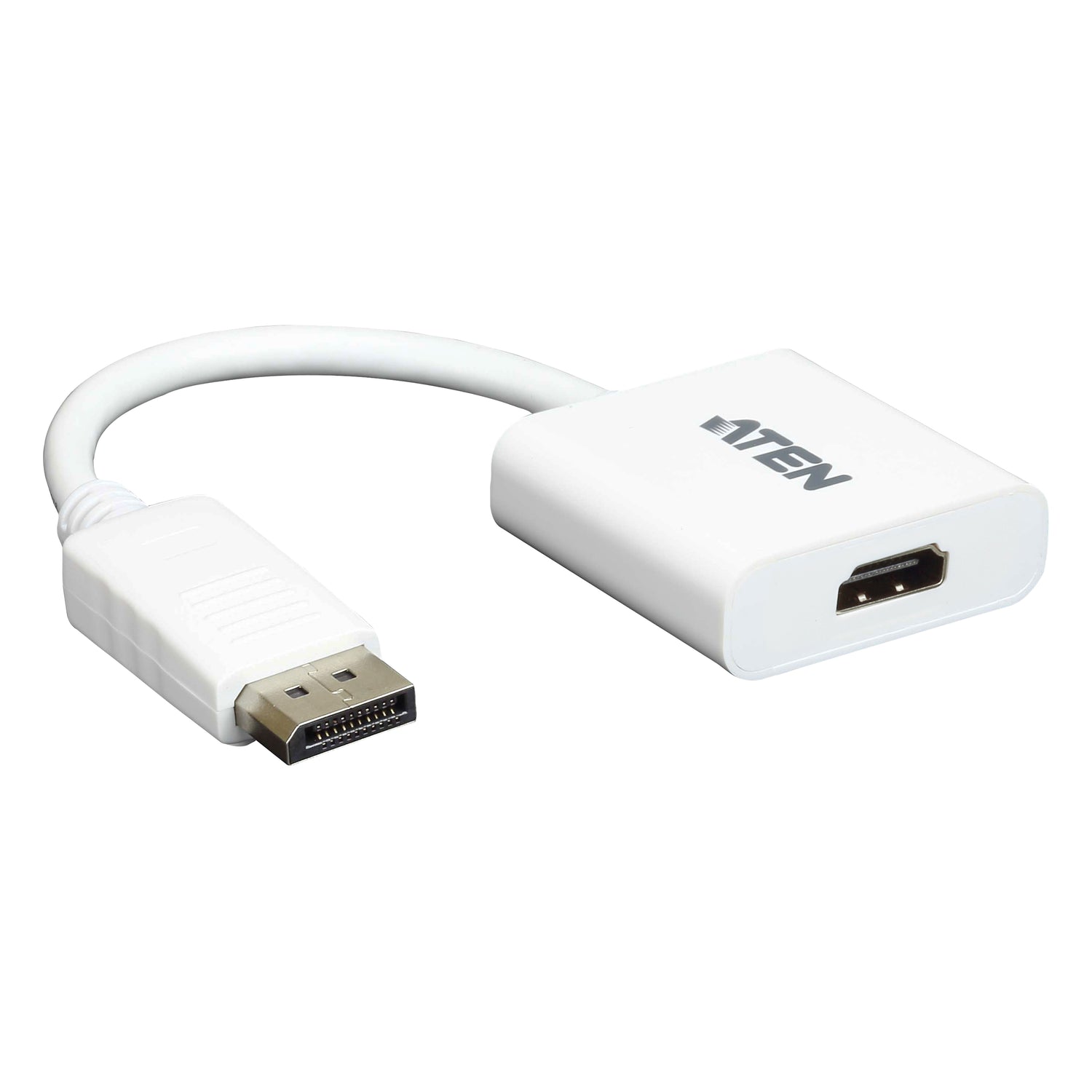

ATEN VC985 DisplayPort to HDMI Adapter
PRODUCT DESCRIPTION
ATEN VC985 DisplayPort to HDMI Adapter - 2 Years Local Warranty

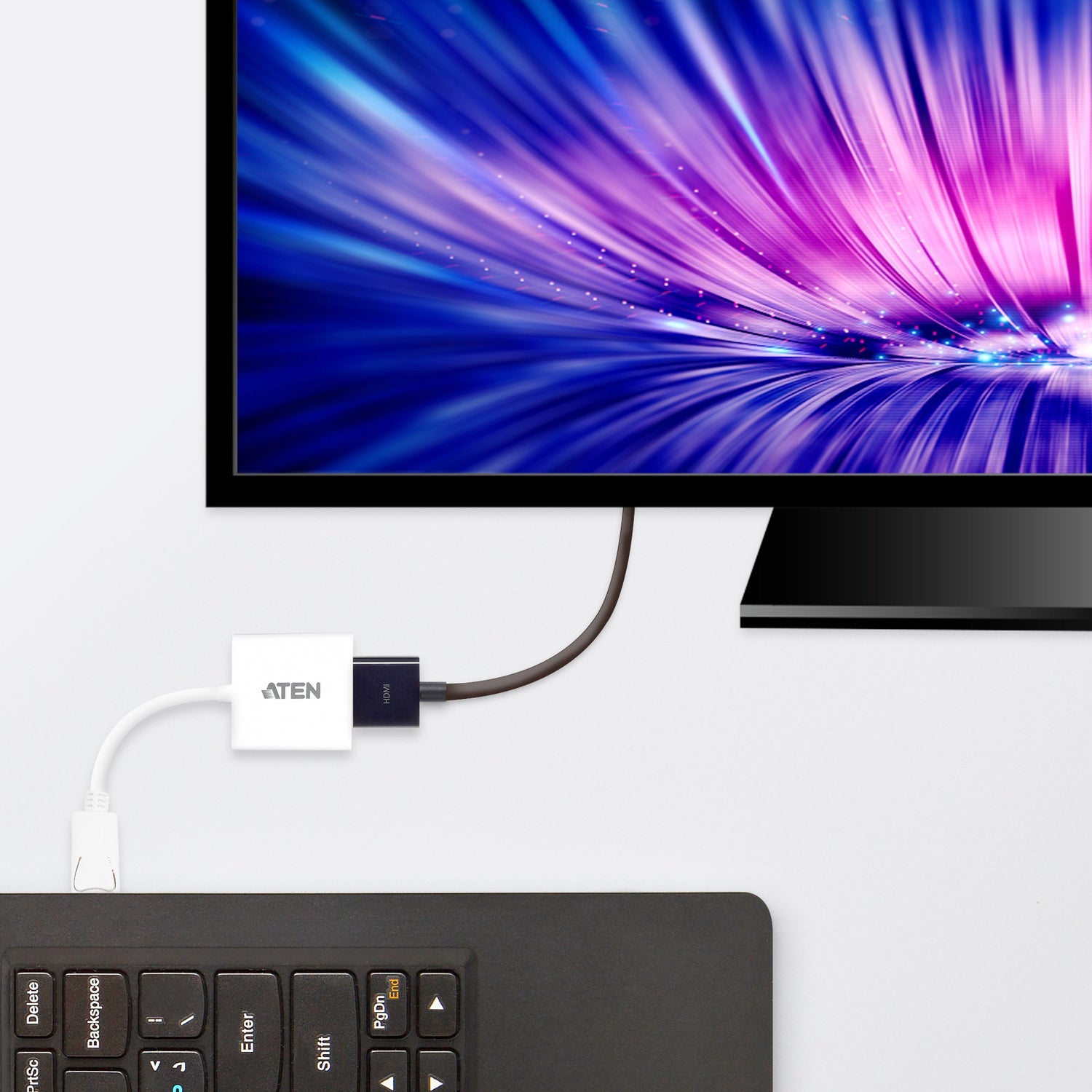

Connect a DisplayPort PC to an HDMI Screen
The VC985 converts a full-size DisplayPort output to HDMI so a desktop PC, workstation or laptop with DisplayPort can drive an HDMI monitor, TV or projector.
Full HD Picture with Audio
Supports resolutions up to 1920 x 1080 @ 60Hz and carries audio over HDMI, so a TV's speakers work with no extra audio cable.
Plug and Play

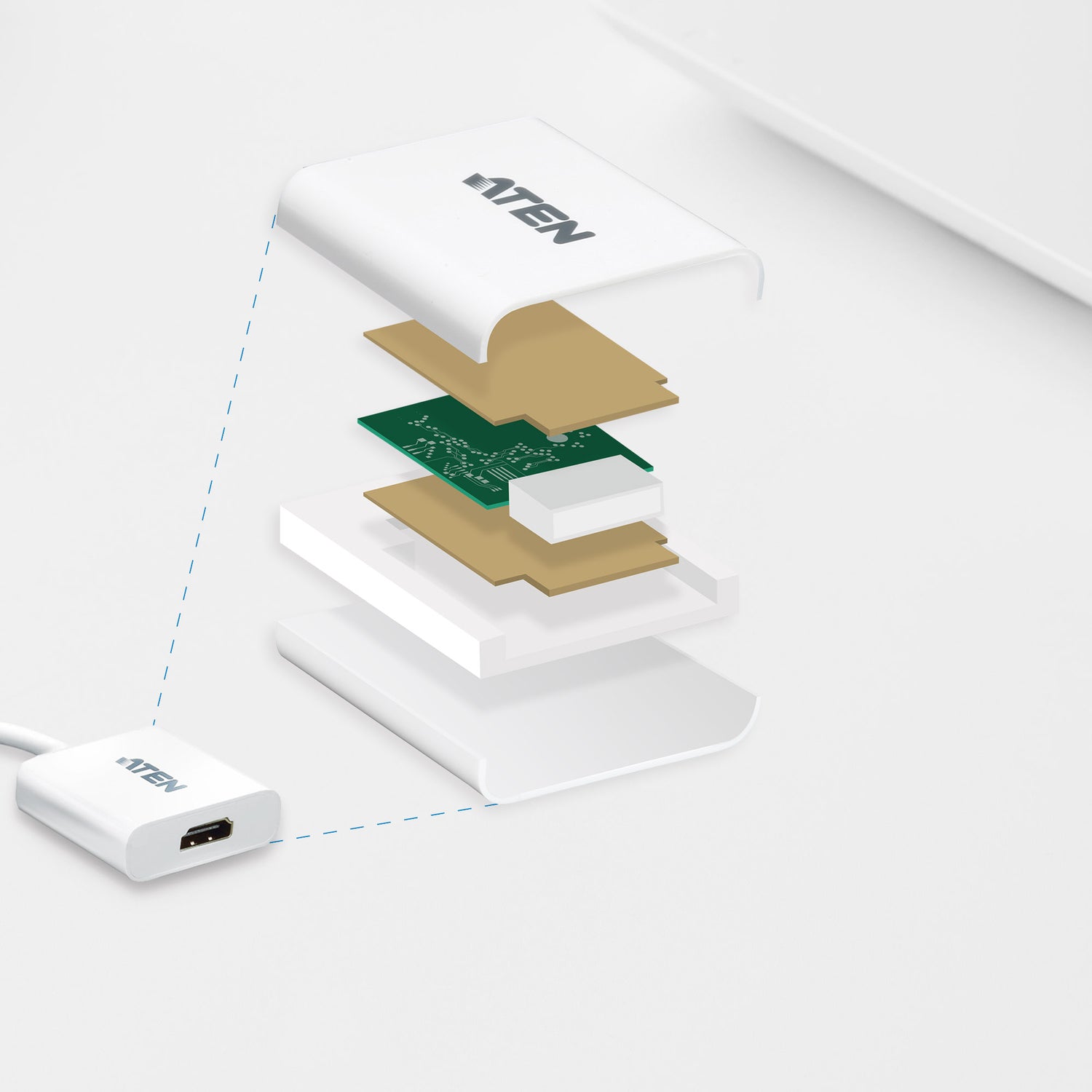

No software or drivers are needed. The short adapter cable with copper foil shielding takes strain off the PC port and fits crowded rear panels.
Equipping a fleet of desktops with HDMI displays? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN VC985 Datasheet — Technical Specifications
General
| Product Name | ATEN DisplayPort to HDMI Adapter |
| Model | VC985 |
| Order Code | VC985-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Video Input | 1 x DisplayPort Male |
| Video Output | 1 x HDMI Type A Female |
| Audio Output | Via HDMI |
Video
| Max. Resolution | 1920 x 1080 @ 60Hz |
| Max. Pixel Clock | 165 MHz |
| Compliance | DP 1.2, HDMI 1.3 |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Shielding | Copper foil |
| Weight | 0.04 kg |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm |
Compatibility & Applications
Typical Sources
Desktop PCs, workstations, graphics cards and laptops with a full-size DisplayPort output.
Typical Use
Connecting office desktops to HDMI monitors or TVs, and meeting-room PCs to HDMI projectors at Full HD.
Selection Tip
The VC985 is a Full HD adapter. For a 4K HDMI display choose the VC986B (True 4K@60Hz). For a Mini DisplayPort source, see the VC980.
Package Contents & ATEN Video Adapter Ordering Information
In the Box
1 x VC985 DisplayPort to HDMI Adapter.
ATEN Video Adapter Models
| Model | Key feature |
| VC985 (this listing) | DisplayPort to HDMI adapter, up to 1080p |
| VC986 | DisplayPort to 4K HDMI active adapter, 4K@30Hz |
| VC986B | DisplayPort to True 4K HDMI active adapter, 4K@60Hz |
| VC965 | DisplayPort to DVI adapter |
| VC925 | DisplayPort to VGA adapter |
| VC981 | Mini DisplayPort to 4K HDMI active adapter |
| VC980 | Mini DisplayPort to HDMI adapter |
| VC960 | Mini DisplayPort to DVI adapter |
| VC920 | Mini DisplayPort to VGA adapter |
| VC810 | HDMI to VGA adapter |
Datasheet & Downloads
| Datasheet | VC925 / VC965 / VC985 Datasheet (PDF) |
| Quick start guide | VC925 / VC985 Quick Start Guide (PDF) |
| ATEN product page | VC985 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC985-AT.
Frequently Asked Questions — ATEN VC985
Does it carry audio?
Yes. Audio is output over HDMI.
Does it support 4K?
No. The VC985 supports up to 1920 x 1080 @ 60Hz. For 4K@60Hz use the VC986B.
Do I need drivers?
No. It is plug-and-play.
Will it work from HDMI to DisplayPort?
No. It converts a DisplayPort source to an HDMI display only.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
