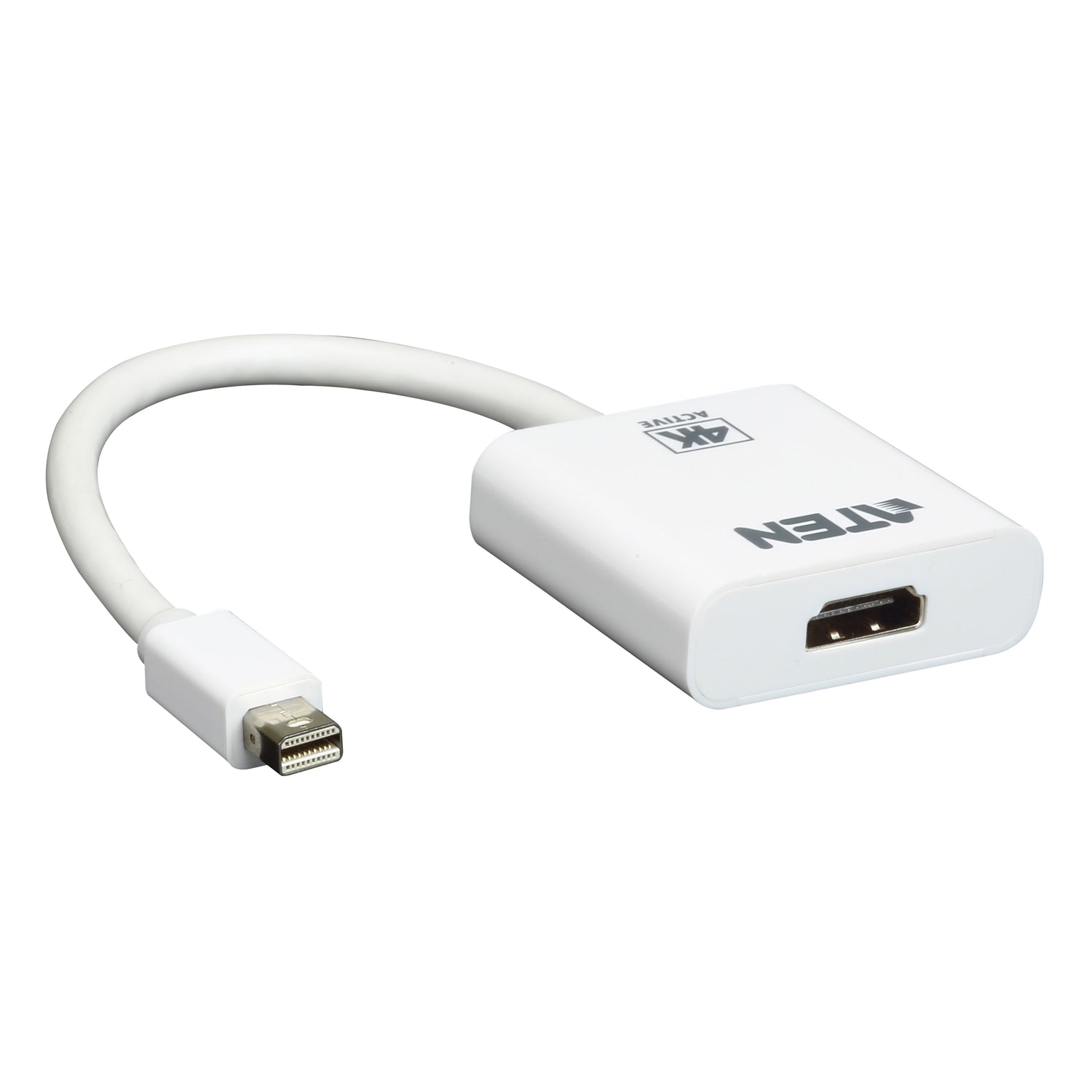

ATEN VC981 4K Mini DisplayPort to HDMI Active Adapter
PRODUCT DESCRIPTION
ATEN VC981 4K Mini DisplayPort to HDMI Active Adapter - 2 Years Local Warranty
4K from Mini DisplayPort to HDMI
The VC981 converts Mini DisplayPort to HDMI at up to 3840 x 2160 at 30 Hz, or 1920 x 1200 at 60 Hz, for 4K TVs, monitors and projectors.
Active Conversion for Multi-Display Setups
As an active adapter it works whether or not the source supports dual-mode DisplayPort (DP++), and it is compatible with AMD Eyefinity multi-display configurations.
Audio Included
Audio is carried to the HDMI display, so TV and monitor speakers work without a separate cable.
Plug-and-Play, Shielded

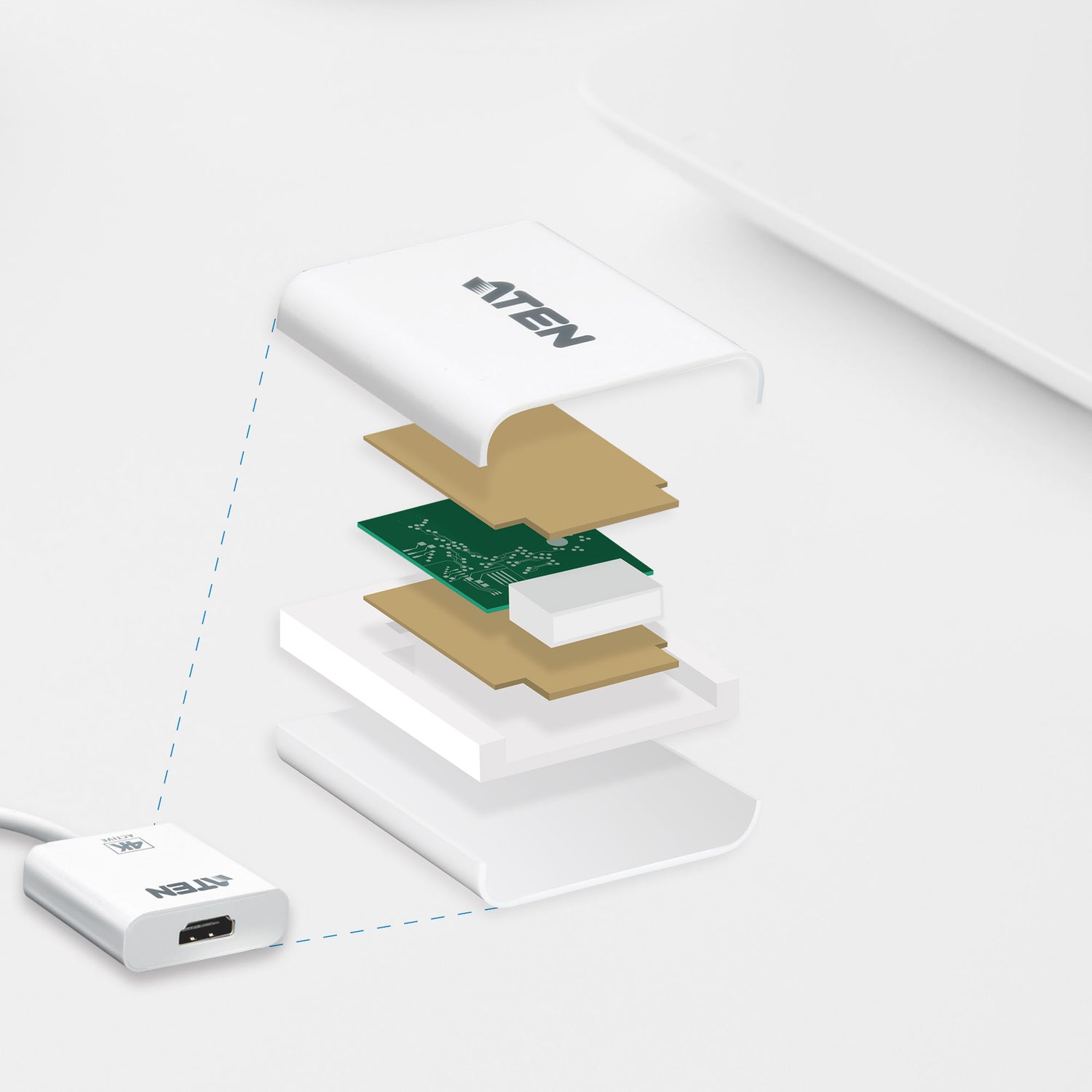

No drivers needed. Internal copper foil shielding helps protect signal quality.
Building a multi-display workstation or signage wall? Email sales@sourceit.com.sg for volume pricing.
ATEN VC981 Datasheet — Technical Specifications
General
| Product Name | ATEN 4K Mini DisplayPort to HDMI Active Adapter |
| Model | VC981 |
| Order Code | VC981-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Video Input | 1 x Mini DisplayPort Male (white) |
| Video Output | 1 x HDMI Type A Female (black) |
Video and Audio
| Max. Resolution | 3840 x 2160 @ 30 Hz; 1920 x 1200 @ 60 Hz |
| Max. Pixel Clock | 297 MHz |
| Compliance | DisplayPort 1.2a; HDMI (3D, Deep Color, 4K); HDCP 1.3 |
| Conversion | Active (works regardless of DP++ support); AMD Eyefinity compatible |
| Audio | Supported |
Physical
| Shielding | Internal copper foil |
| Housing | Plastic |
| Weight | 0.04 kg |
| Dimensions | 17.50 x 4.50 x 1.50 cm |
Compatibility
| Software | Plug-and-play, no drivers required |
Compatibility & Applications
Typical Devices
Graphics cards, laptops and desktops with Mini DisplayPort outputs connected to HDMI monitors, 4K TVs and projectors.
Typical Use
Multi-monitor workstations with AMD Eyefinity, digital signage and conference room displays.
Selection Tip
4K is supported at 30 Hz. For 1080p-only needs, the passive VC980 is a simpler option.
Package Contents & ATEN Video Adapter Ordering Information
In the Box
1 x VC981 4K Mini DisplayPort to HDMI Active Adapter.
ATEN Video Adapter Models
| Model | Key feature |
| VC980 | Mini DisplayPort to HDMI adapter, 1080p |
| VC981 (this listing) | Mini DisplayPort to 4K HDMI active adapter |
| VC920 | Mini DisplayPort to VGA adapter |
| VC960 | Mini DisplayPort to DVI adapter |
| VC985 | DisplayPort to HDMI adapter |
| VC986B | DisplayPort to True 4K HDMI active adapter |
| UC3008A1 | USB-C to 4K HDMI adapter |
| UC3002A | USB-C to VGA adapter |
Datasheet & Downloads
| Datasheet | VC981 / VC986 / VC986B Datasheet (PDF) |
| ATEN product page | VC981 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC981-AT.
Frequently Asked Questions — ATEN VC981
Does the VC981 support 4K at 60 Hz?
No. ATEN rates it to 3840 x 2160 at 30 Hz, and 1920 x 1200 at 60 Hz.
What does 'active' mean?
The adapter converts the signal itself, so it works even if the Mini DisplayPort output does not support dual-mode (DP++). This also makes it suitable for AMD Eyefinity setups.
Does it carry audio?
Yes, audio is supported over HDMI.
Do I need drivers?
No. It is plug-and-play.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
