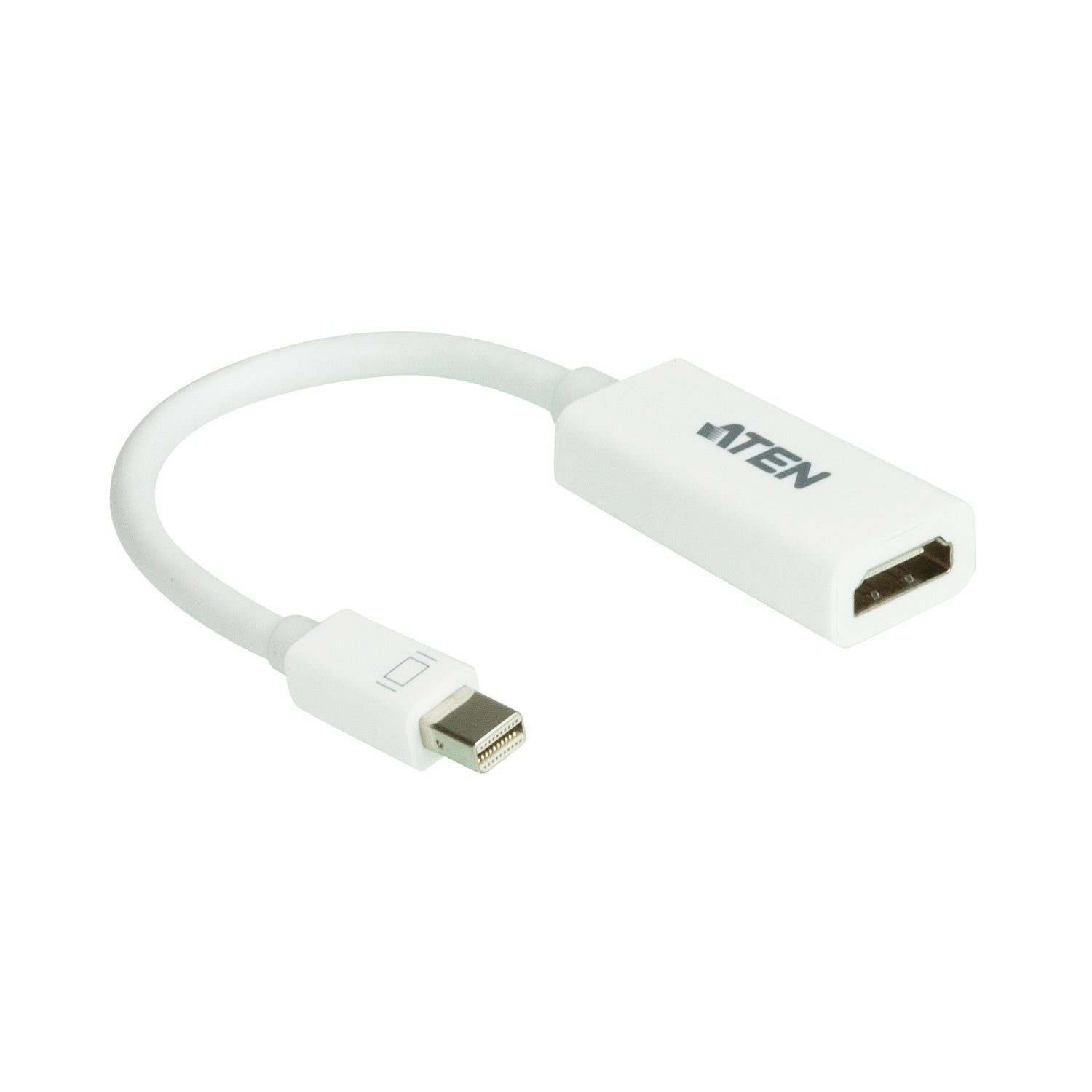

ATEN VC980 Mini DisplayPort to HDMI Adapter
PRODUCT DESCRIPTION
ATEN VC980 Mini DisplayPort to HDMI Adapter - 2 Years Local Warranty

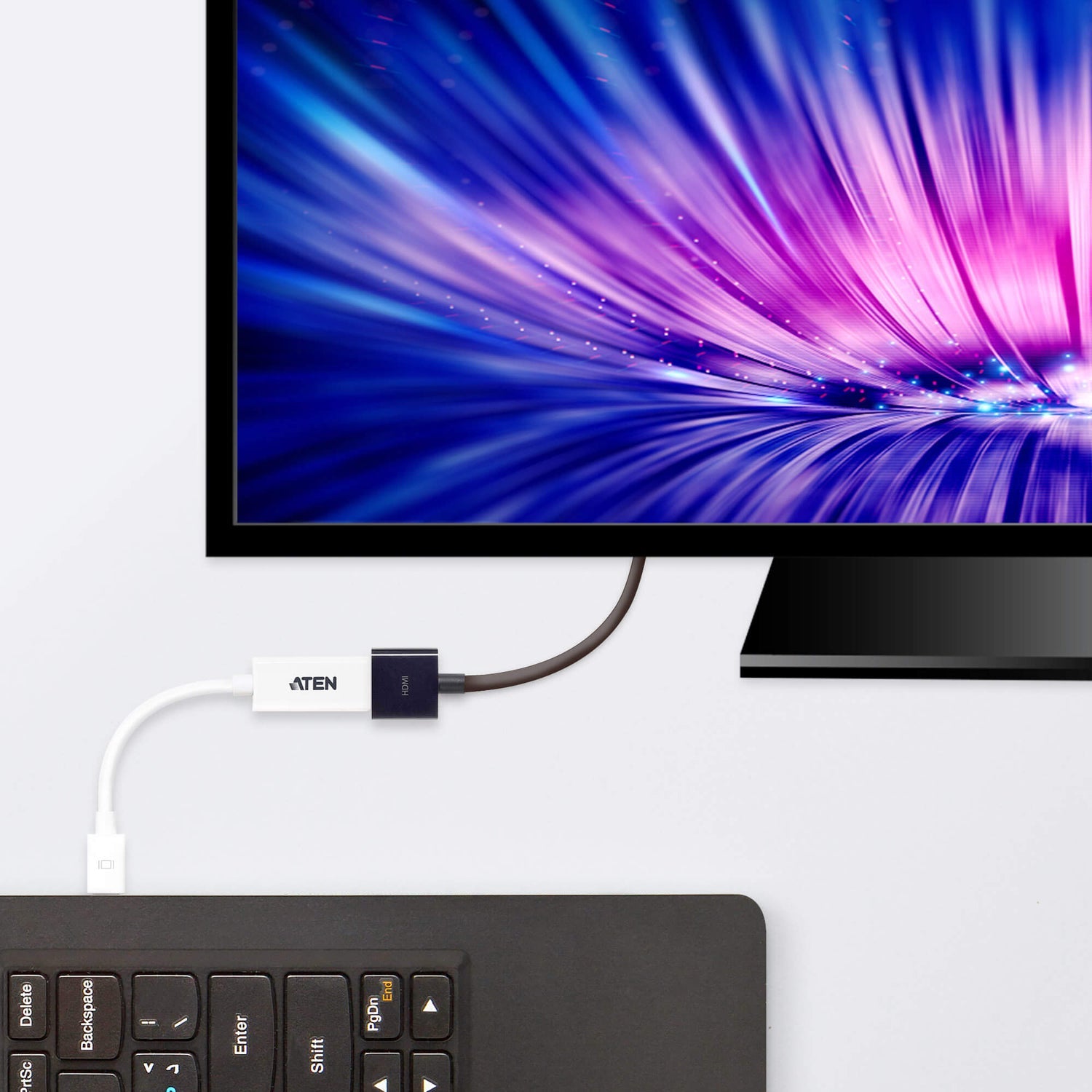

Connect a Mini DisplayPort Laptop to an HDMI Screen
The VC980 converts a Mini DisplayPort output to HDMI, so a laptop or desktop with Mini DisplayPort can drive an HDMI monitor, TV or projector.
Full HD Video with Audio
Supports resolutions up to 1920 x 1200 (PC) and 1080p (HDTV) at a 165 MHz pixel clock, and passes audio over HDMI, including Dolby TrueHD and DTS-HD Master Audio.
Plug and Play
No software or drivers needed. It is DisplayPort 1.2a compliant and ATEN lists support for MacBook, MacBook Pro, MacBook Air, Mac mini and Mac Pro.
Light and Portable
At just 0.03 kg, the short-cable adapter slips into a laptop bag for presentations and hot-desking.
Need adapters for a fleet of laptops or meeting rooms? Email sales@sourceit.com.sg for volume pricing.
ATEN VC980 Datasheet — Technical Specifications
General
| Product Name | ATEN Mini DisplayPort to HDMI Adapter |
| Model | VC980 |
| Order Code | VC980-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Video Input | 1 x Mini DisplayPort Male (white) |
| Video Output | 1 x HDMI Type A Female (black) |
Video and Audio
| Max. Pixel Clock | 165 MHz |
| Max. Resolution | 1920 x 1200 (PC) / 1080p (HDTV) |
| Audio | Via HDMI; supports Dolby TrueHD and DTS-HD Master Audio |
| Compliance | DisplayPort 1.2a |
Environmental and Physical
| Operating Temperature | 0–50 °C |
| Housing | Plastic |
| Weight | 0.03 kg |
| Dimensions | 19.00 x 2.10 x 1.11 cm |
Compatibility
| Software | No software or drivers required |
| Mac Support (listed by ATEN) | MacBook, MacBook Pro, MacBook Air, Mac mini, Mac Pro |
Compatibility & Applications
Typical Devices
Laptops and desktops with a Mini DisplayPort output, including Mac models listed by ATEN, connected to HDMI monitors, TVs and projectors.
Typical Use
Presenting in meeting rooms and classrooms, adding an HDMI monitor at a desk, and hot-desking.
Selection Tip
The VC980 is rated to 1080p / 1920 x 1200. For 4K output from Mini DisplayPort, choose the ATEN VC981 active adapter.
Package Contents & ATEN Video Adapter Ordering Information
In the Box
1 x VC980 Mini DisplayPort to HDMI Adapter.
ATEN Video Adapter Models
| Model | Key feature |
| VC980 (this listing) | Mini DisplayPort to HDMI adapter, 1080p |
| VC981 | Mini DisplayPort to 4K HDMI active adapter |
| VC920 | Mini DisplayPort to VGA adapter |
| VC960 | Mini DisplayPort to DVI adapter |
| VC985 | DisplayPort to HDMI adapter |
| VC986B | DisplayPort to True 4K HDMI active adapter |
| UC3008A1 | USB-C to 4K HDMI adapter |
| UC3002A | USB-C to VGA adapter |
Datasheet & Downloads
| Datasheet | VC920 / VC960 / VC980 Datasheet (PDF) |
| Quick start guide | VC920 / VC980 Quick Start Guide (PDF) |
| ATEN product page | VC980 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC980-AT.
Frequently Asked Questions — ATEN VC980
Does the VC980 carry audio?
Yes. Audio is passed over HDMI, including Dolby TrueHD and DTS-HD Master Audio.
Does it support 4K?
No. The VC980 supports up to 1920 x 1200 / 1080p. For 4K, choose the VC981.
Do I need drivers?
No. It is plug-and-play.
Will it work with a Thunderbolt port on a Mac?
ATEN lists support for MacBook, MacBook Pro, MacBook Air, Mac mini and Mac Pro with Mini DisplayPort output. Check that your Mac's port supports Mini DisplayPort video.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
