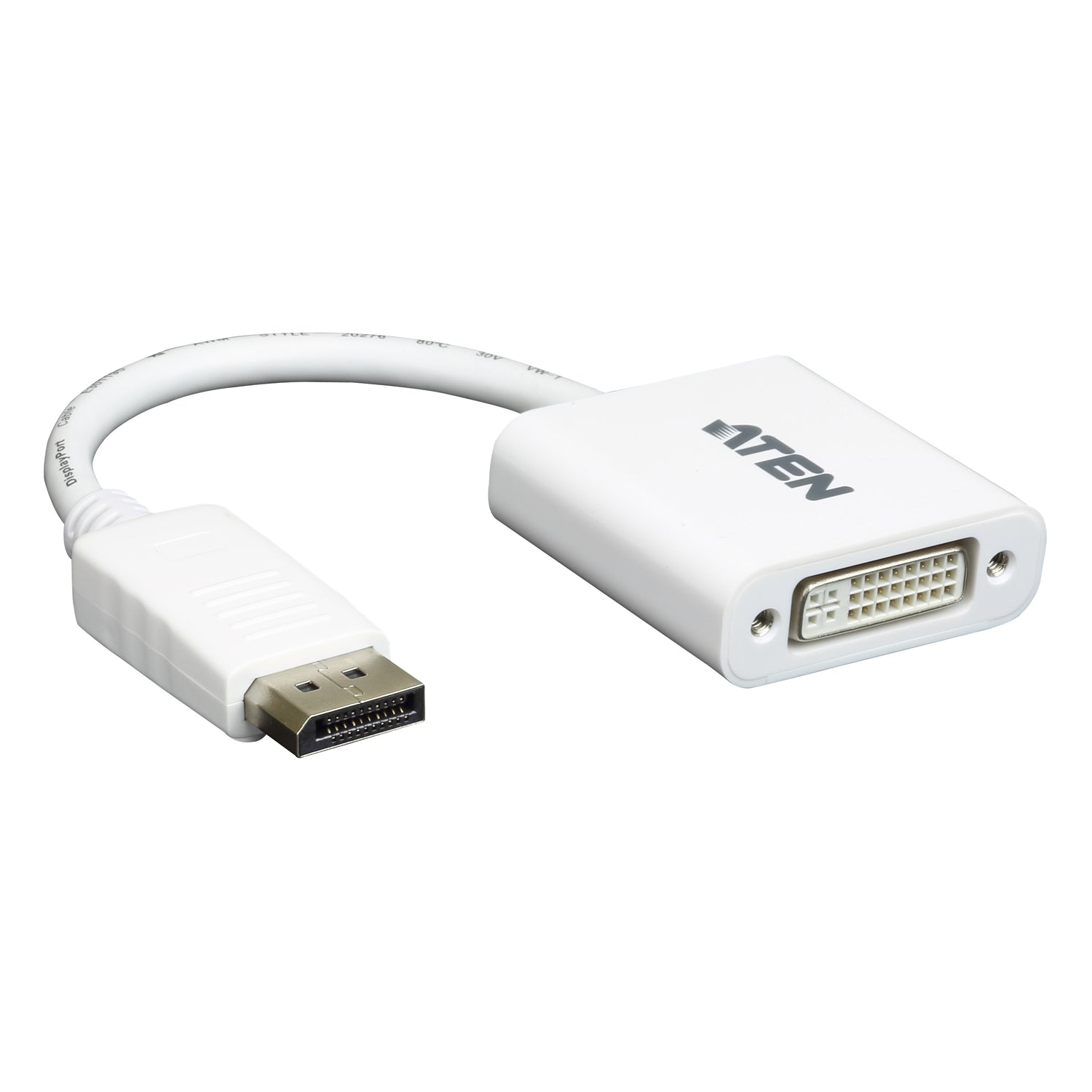

ATEN VC965 DisplayPort to DVI Adapter
PRODUCT DESCRIPTION
ATEN VC965 DisplayPort to DVI Adapter - 2 Years Local Warranty
Keep Using Your DVI Monitors

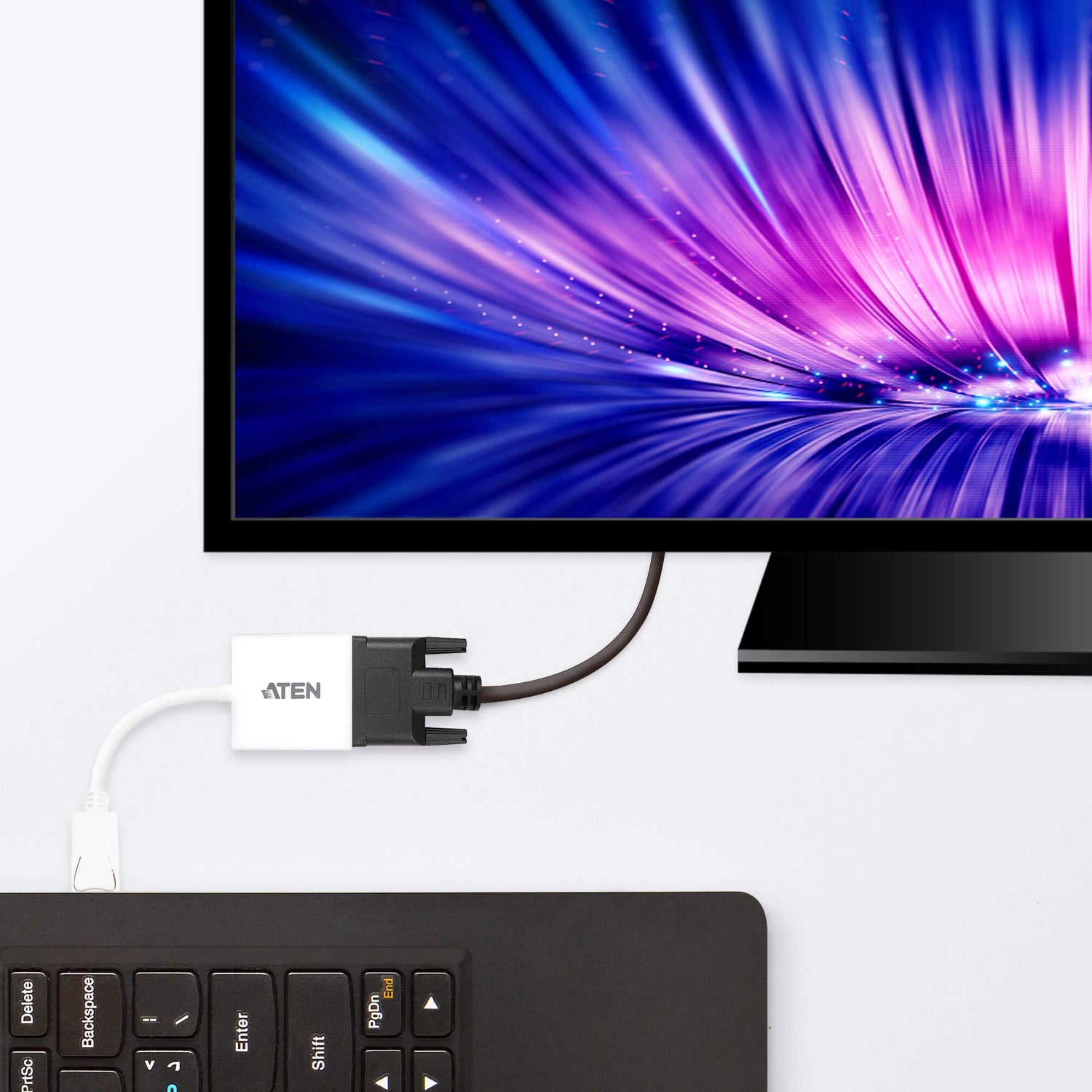

The VC965 connects a DisplayPort computer or graphics card to a DVI monitor or projector, so existing DVI displays stay in service after a PC refresh.
Full HD Digital Output
Output resolution goes up to 1920 x 1080 with a 165 MHz pixel clock. The DVI-I female socket carries a digital signal only.
Plug and Play
Compliant with DP 1.2 and DVI 1.1; no software or drivers are needed.
Refreshing PCs but keeping DVI monitors? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN VC965 Datasheet — Technical Specifications
General
| Product Name | ATEN DisplayPort to DVI Adapter |
| Model | VC965 |
| Order Code | VC965-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Video Input | 1 x DisplayPort Male |
| Video Output | 1 x DVI-I Female (digital signal only) |
| Audio | Not supported |
Video
| Max. Resolution | Input: up to 4096 x 2160 @ 60Hz (4:4:4); Output: up to 1920 x 1080 |
| Max. Pixel Clock | 165 MHz |
| Compliance | DP 1.2, DVI 1.1 |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 0.04 kg |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm |
Compatibility & Applications
Typical Sources
Desktop PCs, workstations and graphics cards with full-size DisplayPort outputs.
Typical Displays
DVI-D monitors and projectors. Use a DVI-D cable between the adapter and the display; analogue (VGA-over-DVI) displays are not supported.
Selection Tip
For a Mini DisplayPort source, choose the VC960. For HDMI displays, see the VC985 or VC986B.
Package Contents & ATEN Video Adapter Ordering Information
In the Box
1 x VC965 DisplayPort to DVI Adapter.
ATEN Video Adapter Models
| Model | Key feature |
| VC985 | DisplayPort to HDMI adapter, up to 1080p |
| VC986 | DisplayPort to 4K HDMI active adapter, 4K@30Hz |
| VC986B | DisplayPort to True 4K HDMI active adapter, 4K@60Hz |
| VC965 (this listing) | DisplayPort to DVI adapter |
| VC925 | DisplayPort to VGA adapter |
| VC981 | Mini DisplayPort to 4K HDMI active adapter |
| VC980 | Mini DisplayPort to HDMI adapter |
| VC960 | Mini DisplayPort to DVI adapter |
| VC920 | Mini DisplayPort to VGA adapter |
| VC810 | HDMI to VGA adapter |
Datasheet & Downloads
| Datasheet | VC925 / VC965 / VC985 Datasheet (PDF) |
| ATEN product page | VC965 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC965-AT.
Frequently Asked Questions — ATEN VC965
What resolution does it output?
Up to 1920 x 1080.
Does it carry audio?
No. DVI output carries video only.
Will it work with an analogue VGA display through a DVI-to-VGA adapter?
No. The DVI-I output carries a digital signal only.
Do I need drivers?
No. It is plug-and-play.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
